Power Supply

Features

null

PSU – AC/DC CONVERTER

With robust, advanced high-voltage converter and power factor corrector, together with innovative architecture and extended temperature range, PSU offers an integrated solution that meets all switching-mode power supply design needs.

ViewZ AC/DC converter reduces power consumption and increase efficiency, essential for powering the majority of mains equipment. When combined together, ST power factor corrector, PWM controllers and offline converters significantly lower system power consumption to outperform the most demanding energy-saving regulations.

null

ACT POWER TRANSFORMER

ViewZ ACT series is specifically designed for 23″, 27″ and 32″ ViewZ IP Public View Monitors and 10″, 23″, 27″ and 32″ HD Public View Monitors.

null

LONG PRODUCT LIFE

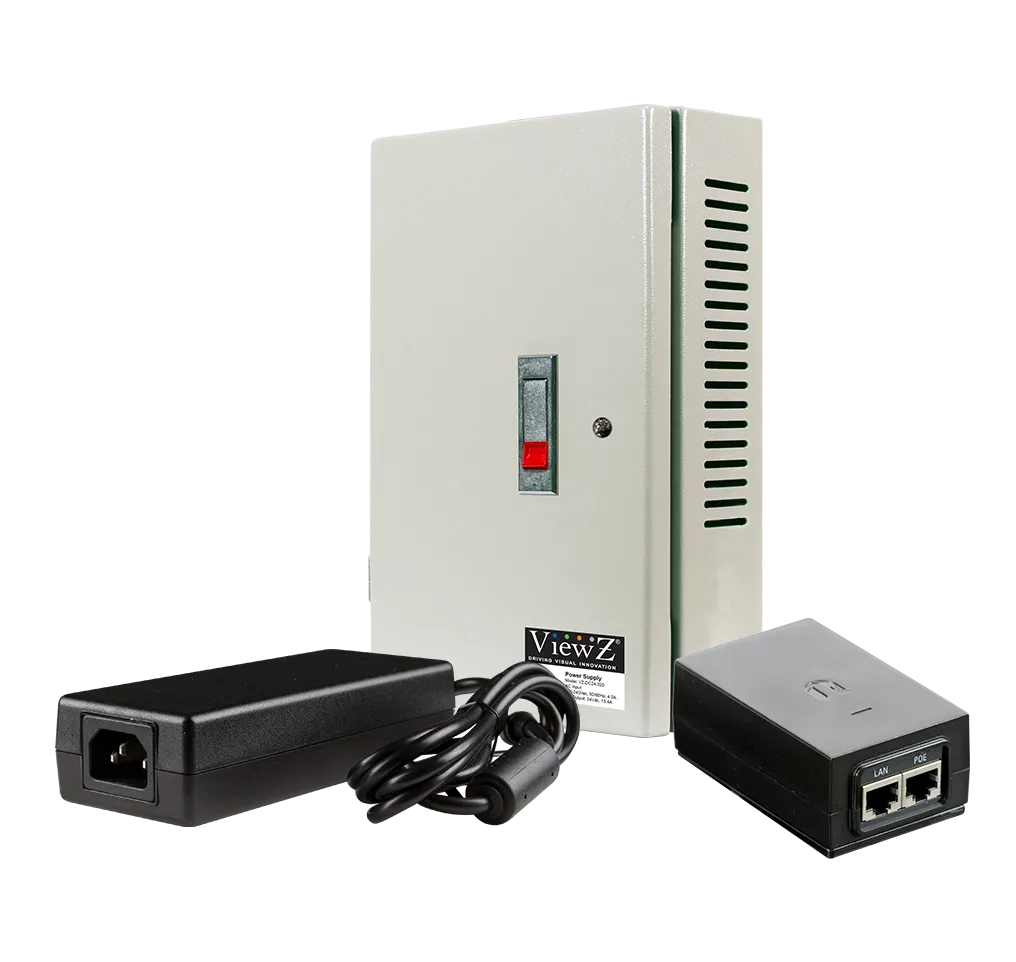

ViewZ ACT, DC24-320 and PSU Series ac/dc transformers are designed for long life and reliable operation in demanding environments. The ACT, DC24-320 and PSU products operate from 32°F ~ 104°F / 0°C ~ +40°C (10-90%R.H). They are available in 120Vac, 60Hz and universal input (100 to 240 V AC) and regulated output of DC 12V, 24V or 28V and AC 24V. All feature low inrush current with active inrush current limiting, fusing and EMI filtering.
null

PORTABLE SOLUTION

ViewZ ACT, DC24-320 and PSU provide a perfect solution for a portable, compact AC/DC and AC/AC power transformer for small loads and helps to cut down installation time and costs.
null

TESTED PRODUCTS

ViewZ ACT, PSU and DC-24-320 converters are some of the most important pieces of equipment required for operating ViewZ security products. Therefore, they are put through rigorous tests and quality-control procedures for optimal and reliable performance.
null

MISSION CRITICAL INSTALLATION

ViewZ AC/DC and AC/AC power converters are made to deliver for mission critical installations. The security product’s installation of an electrical distribution requires knowledge of different factors relating to, for example, installation utilities, the electrical conductors and other components; this knowledge leads the design engineer to consult numerous safety check and surveillance system environment. ViewZ ACT, PSU and DC24-320 series products are ideal for various installations for all security equipment.
null

PoE – POWER over ETHERNET

The PE24 is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 300ft away. The PoE kit uses two devices, one, the ´injector´ injects power and data into a single Ethernet cable while the other, the ´splitter´ placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place VZ-PVM-I1W4N (ViewZ 10” IP PVM) anywhere that it is best suited, regardless of whether a power socket is available, to achieve the best performance for the connected device.
null

SAFETY / EMI STANDARDS

ViewZ knows that safety is critical and ensures the power supplies and converters all meet safety and EMI standards.
null

A PEACE OF MIND

ViewZ products are proudly designed and produced with the highest performance and quality in mind. As a result, each ViewZ product is backed by 2-Year parts and labor warranty. In the rare event that one of our products does not perform according to our specifications, ViewZ may also provide an advanced replacement unit.
null

COMMERCIAL GRADE PRODUCTS

ViewZ products are built with commercial grade for stand-ability, durability and reliability for power transformer and converter.
