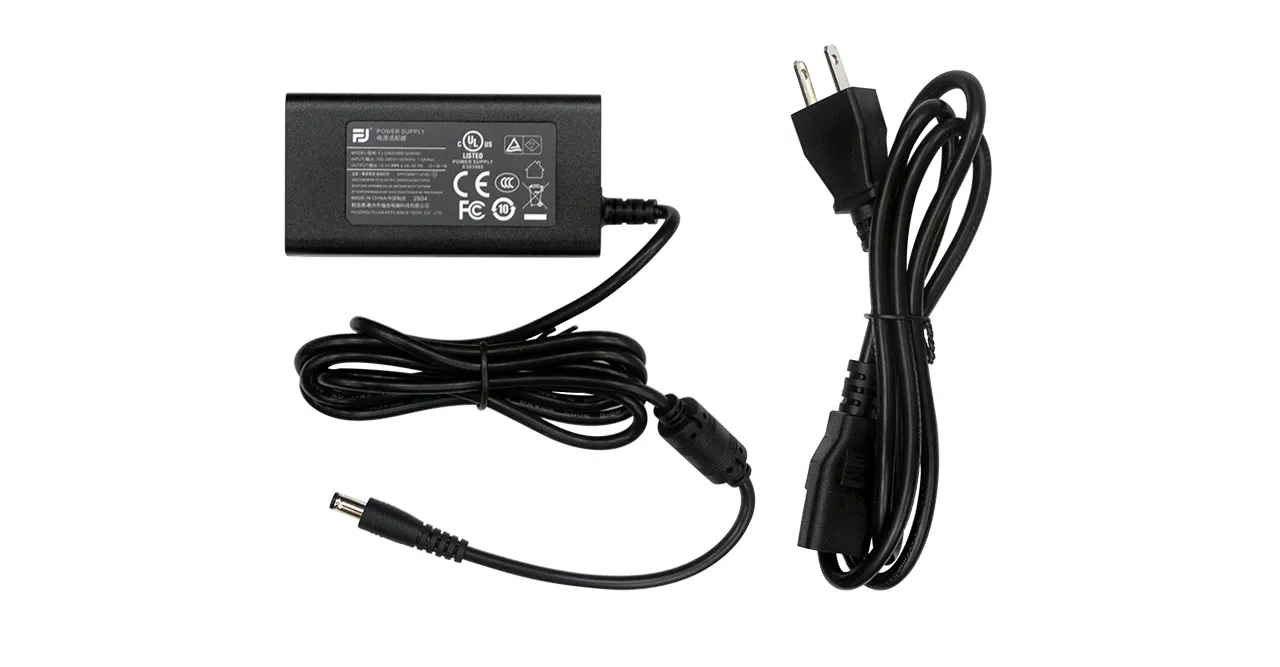

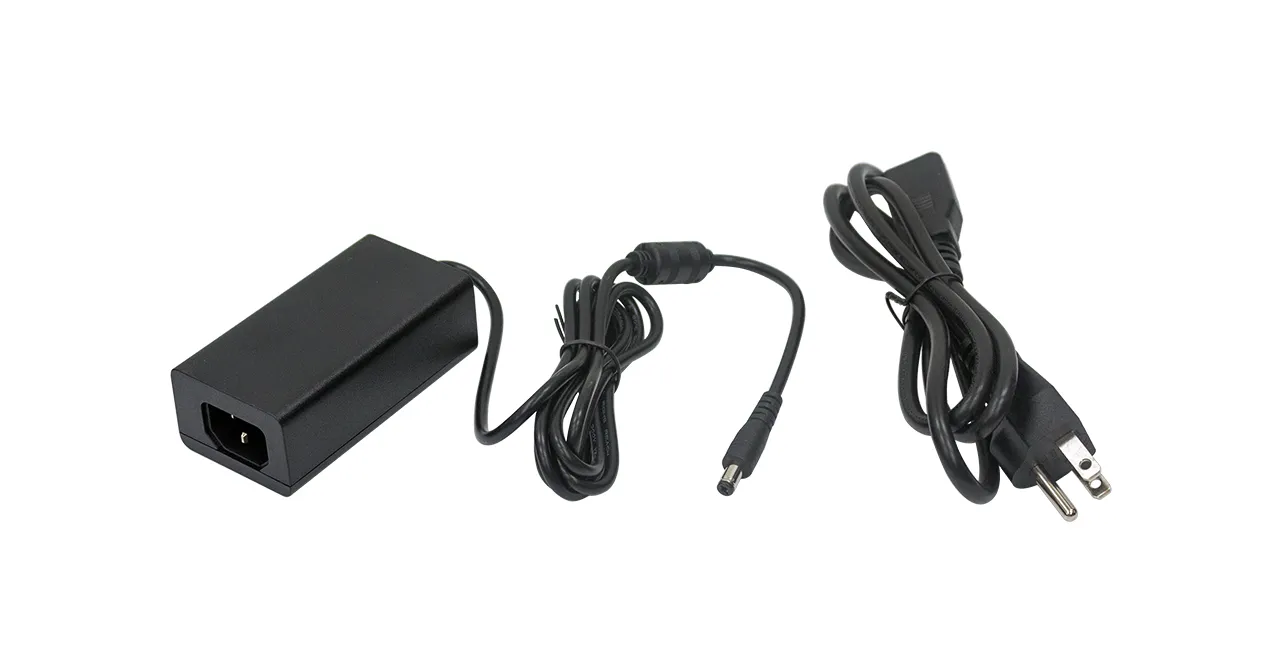

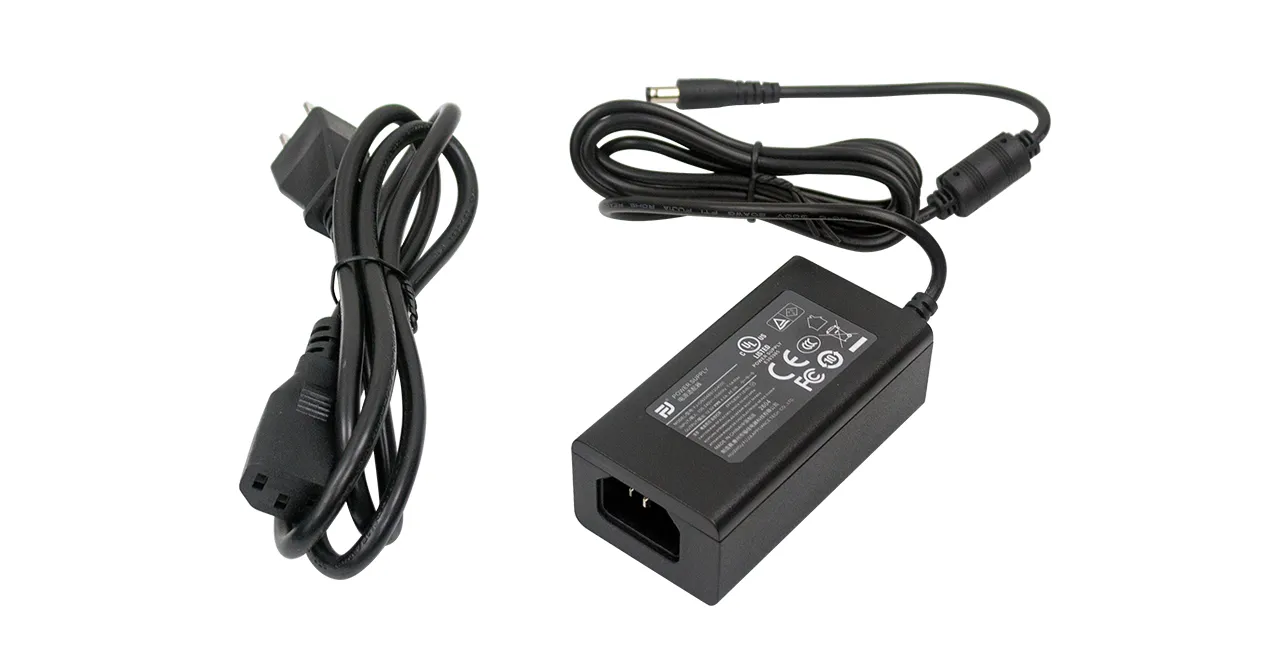

VZ-PSU3-N
AC 120V to DC 12V Adapter
- Output : 12V DC / 48W / 4A
- Input : 100~ 240VAC / 50~60Hz / 1.5A MAX
- Fully tested for VZ-101RTC / VZ-17RTN / VZ-19RTN / VZ-24IPM
- Safe & Reliable
- Complies with Environmental Protection Requirements
- Long Product Life
Specification | Dimension | Spec & Manual
Series : Power Adapter
Compatible Monitors
Product Features
- Model Number: VZ-PSU3-N
- Fully testified for 17″ & 19″ RTN, 10.1″ RTC, 24″ IPM
- DC 12V / 4.0A output
- 12V DC Power Supply (AC 100~240V (50/60Hz))
- Green Power On LED
- Energy efficiency rating: VI
- Compact & Light-Weight
- Safe & Reliable
- Complies with International Safety Standards & Environmental Protection Requirements
- Over voltage / Overload / Over current / Short Circuit Protection
- Comply with Environmental Protection Requirements
- Safe & Reliable Wide Voltage Compatibility
- Long Product Life
- Safety Certification: cULus, CB, GS, KC, CCC, PSE
- EMC Compliance: FCC Part 15 Class B, EN 55032, EN 55035
- Regulatory Compliance: CE, UKCA, RCM
- Environmental Compliance: RoHS, REACH, CA65
Specification
| Input – Voltage range | current | 100 ~ 240V AC, 50/60Hz, 1.5 A |
| Output – Voltage | 12V DC |
| Output – Watt | 48 W |
| Output – Rated current | 4.0 A |
Protection
| Short-Circuit Protection | The Power Supply will be auto recovered when short circuit faults remove. |
| Over-Current Protection | Over Current Point Limited: 4.4A – 8A (Input 110 ~ 230V AC), The output shall hiccup when the over currents applied to the output trail, and shall be self-recovery when the fault condition is removed |
Regulation - Safety Standards
| Safety Standards | cULus(UL62368-1), CB(IEC62368-1), ERP(62368-1), GS/LVD(62368-1), PSE(J62368-1), KC(60950-1), BS/UKCA(62368-1), C-tick (AS/NZS CISPR 32), FCC(PART15 CLASS B), CE(EN55032, EN55035), C-tick (AS/NZS CISPR 32), SAA (62368-1), RCM (62368-1), S-Mark(62368-1), Brazil (62368-1), BSMI (CNS14336-1, CNS13438, CNS15663) |
Dimensions & Weight
| Outline Dimension (W x H x D) | 2.14 x 4.81 x 1.33″ / 54.4 x 122.2 x 33.8 mm |
| Net Weight | 0.45 + 0.04 lbs / 0.205 ± 0.02 kg |
Interface
| Input Plug Type | IEC320 C14 AC PIN |
| Output Cord | WIRE: 20AWG / 1500 ± 30 mm | PLUG: JACK PLUG ø5.5 x 10.5 mm |
General Summary
| Construction | PC, ABS, or equivalent |
| Cable | AWM Style 2468 – 20 AWG |
| Cooling | Cooling shall be with natural convection cooling |
| Operating Temperature | Humidity | 32 ~ 104°F / 0 ~ 40°C | 5 ~ 90% RH. Non-condensing |
| Storage Temperature | Humidity | 14 ~ 185°F / -10 ~ +85°C | 20 ~ 90% RH. Non-condensing |

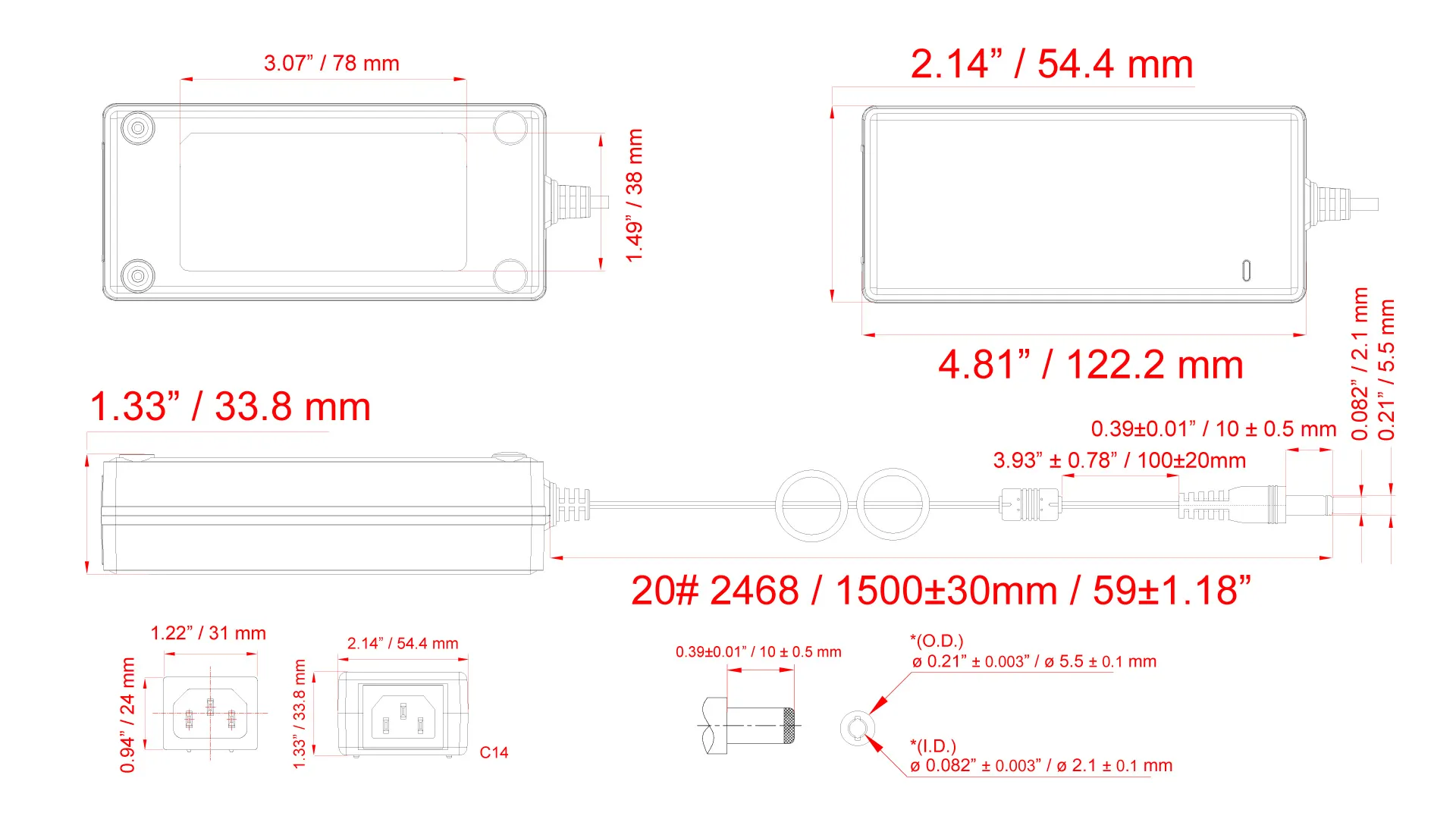

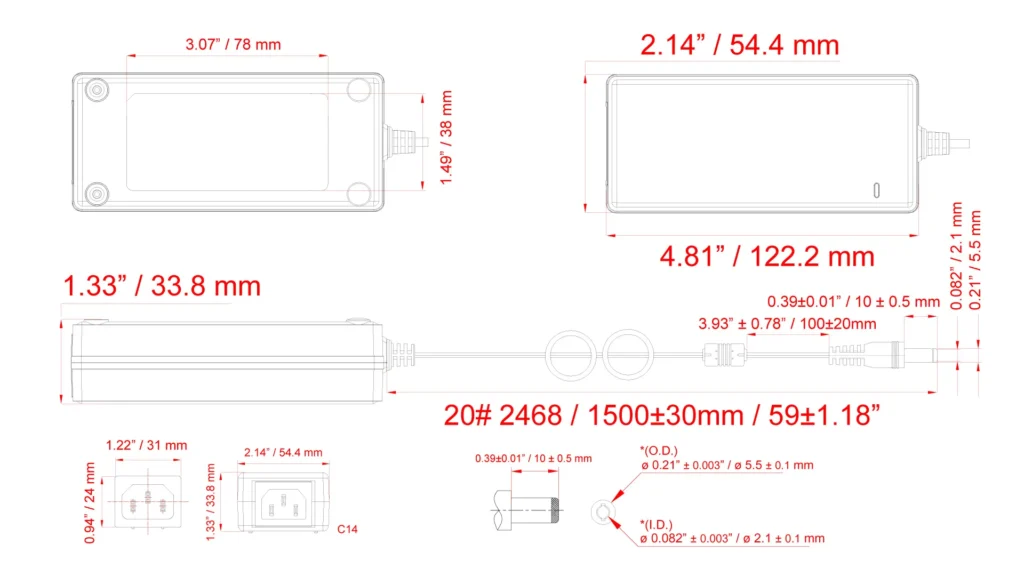

Product Dimension & Weight
Click below to enlarge
