VZ-101RTC
As our premium security monitor series, RTC delivers superior analog & digital video inside a ruggedly designed enclosure.
- 10.1” LED CCTV Monitor
- BNC, HDMI, VGA, Trigger
- 16:9 / 4:3 Ratio Available
- Auto Power and Source Recovery
- 1024 x 600 Resolution
- 2D Comb-filter, Noise Reduction, Built-in Speakers
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : RTC | Key Features : 4:3 Monitor Metal Bezel NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-101RTC
- 10.1″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- 1024 x 600 / 16:9 (4:3 available)
- Looping BNC(NTSC/PAL) / Looping BNC(NTSC/PAL) / HDMI / VGA / Audio
- 2D Comb Filter / Noise Reduction / Trigger
- OSD
- Auto Power and Source Recovery
- 1W Stereo Speaker x 2
- DC 12V, 2.0 A
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Display
| Screen Size | 10.1″ |
| Max Resolution | 1024 x 600 @60Hz |
| Pixel Pitch | 0.2175 mm x 0.2175 mm |
| Brightness | 300cd/m²(Typical) |
| Contrast Ratio | 800 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 16.7 Million |
| Response Time | < 25 ms |

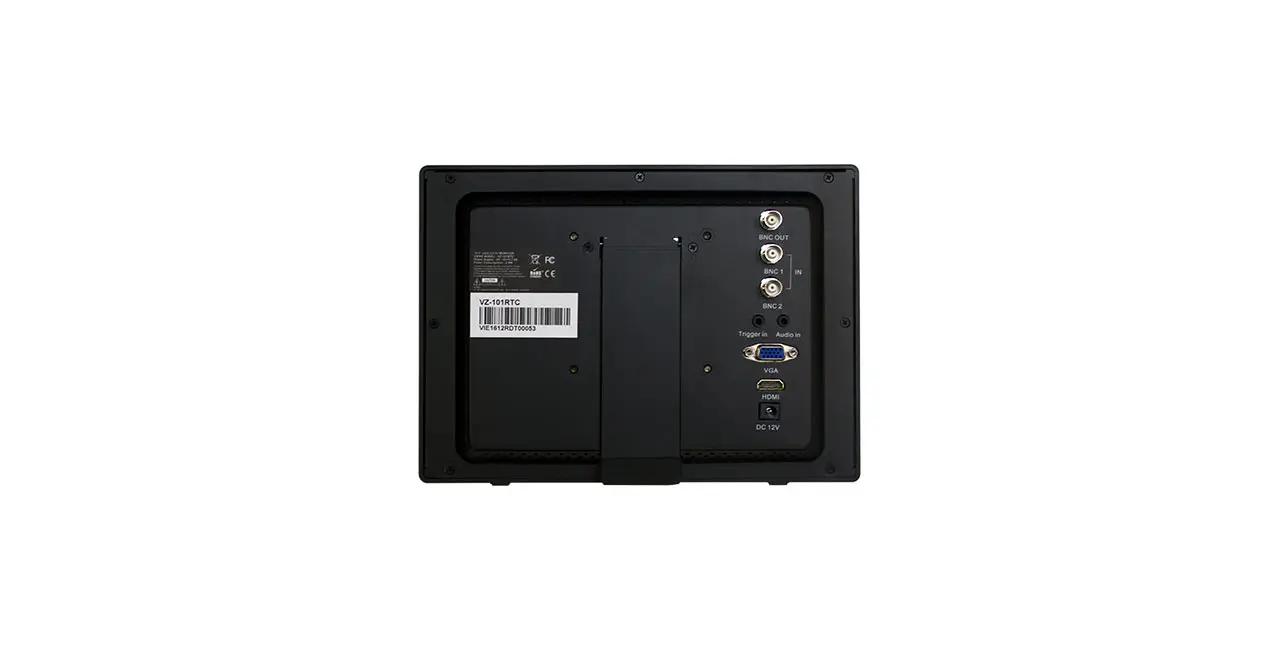

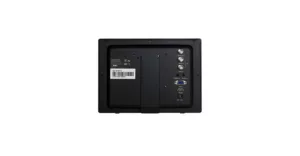

Interface
| AV (Composite) In / BNC Out | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| Trigger In | 1 |
| Audio In | 1 |
Audio
| Built in speaker | 1W x 2 |
Special Features
| Filter Type | 2D Comb-filter / Noise Reduction |
| Multi-Lingual Language | English, Spanish, French, German, Italian, Portuguese, Polish, Russian |
Dimensions & Weight
| Outline Dimension (W x H x D) | 9.92” x 7.28” x 1.05” / 252.0 mm x 185.0 mm x 26.80 mm |
| Net Weight | 2.86 lbs / 1.3 kg |
| Gross Weight | 3.52 lbs / 1.6 kg |
Mount
| Vesa | 75 mm x 75 mm / M4 x L8 mm |
General Summary
| Power – Electrical Ratings | DC 12V, 2.0 A (AC100 ~ 240V[50/60Hz]) |
| Power – Consumption | ≤ 8 w |
| Regulations | FCC(A), CE, NDAA |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 20 ~ 70% RH |
| Compatible Mounts – Wall | VZ-WM05, VZ-WM11, VZ-AM01 |
| Compatible Mounts – Rack | VZ-RMK08 |
Product Dimension & Weight
Click below to enlarge
