Status Description

“Onvif stream is working properly.
Event/Motion recording is working.”

Notes

“Onvif auto searching. Motion events detected.
Resolution & Camera Image Setting change must be configured in camera webpage”

Test Record

Entry Date	10/31/2017
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	5.84
Client Version	5.84
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Continues recording & Motion recording(VMS Server)
Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	11/14/2017
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	7.5.5831.0
Client Version	7.5.5831.0
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Unsupported

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Continues recording.
Resolution change must be configured in camera webpage”

Test Record

Entry Date	02/28/2018
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	2.3.4
Client Version	2018.2.27.90
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“RTSP/TCP stream is working properly.”

Notes

“Continues recording
Resolution & Camera Image Setting change must be configured in camera webpage.
RTSP URL – Image Path : snl/live/1/1/”

Test Record

Entry Date	02/02/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.11_20161230
Server Version	4.7.0.115
Client Version	4.7.0.115
Plugin	RTSP / TCP
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Unsupported
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Unsupported

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.
Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	02/06/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.11_20161230
Server Version	7.15.70.11007
Client Version	7.15.70.11007
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Continues recording & Motion recording(VMS Server)
Resolution & Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	08/01/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.16_20170608
Server Version	6.3.2.12
Client Version	6.3.2.12
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Unsupported
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.
Resolution & Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	10/31/2017
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	5.1.0.27
Client Version	5.1.0.27
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.”

Test Record

Entry Date	08/10/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.16_20170608
Server Version	Ocularis 5.4
Client Version	6.10.1_08
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.”

Test Record

Entry Date	06/08/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.16_20170608
Server Version	Pro 7.2.1
Client Version	Pro 7.2.1
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.”

Test Record

Entry Date	10/06/2017
Camera Firmware	v3.3.0701.1002.147.0.70.1.18_20170926
Server Version	2017 R2 11.2a
Client Version	2017 R2 11.2a
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.
Resolution Setting change must be configured in camera webpage.”

Test Record

Entry Date	2/20/2018
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	2.1.1.122
Client Version	2.1.1.122
Plugin	ONVIF 2.4
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.
Resolution & Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	06/08/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.16_20170608
Server Version	2.5.8.12
Client Version	2.5.8.12
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Continues recording.
Camera Image Setting change must be configured in camera webpage”

Test Record

Entry Date	08/14/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.16_20170608
Server Version	14.1.1
Client Version	14.1.1
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Unsupported
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Continues recording & Motion recording(VMS Server)
Resoultion & Camera Image Setting change must be configured in camera webpage
Manual add device through Onvif”

Test Record

Entry Date	08/01/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.16_20170608
Server Version
Client Version
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Unsupported
JPEG Video	Passed : 1920 x 1080
JPEG Motion Detection	Unsupported
IP Camera Finder	Unsupported

Status Description

“Onvif stream is working properly.”

Notes

“Resolution Setting change must be configured in camera webpage.
Motion events detected.”

Test Record

Entry Date	01/11/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.11_20161230
Server Version	V3.3.5. Build 160607
Client Version	V3.3.5. Build 160607
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Motion events detected.”

Test Record

Entry Date	11/17/20177
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	5.5 SR3
Client Version	5.5 SR3
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Unsupported

Status Description

“Onvif stream is working properly. Event/Motion recording is working.”

Notes

“Onvif auto searching. Motion events detected.”

Test Record

Entry Date	11/17/20177
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	8.8
Client Version	8.8
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Continues recording & Motion recording(VMS Server)
Resolution & Camera Image Setting change must be configured in camera webpage”

Test Record

Entry Date	01/31/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.11_20161230
Server Version	v2.6.0.13109
Client Version	v2.6.0.13109
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Unsupported
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.
Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	2/22/2018
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	9.0.158.0
Client Version	9.0.158.0
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching.
Motion events detected. Max Frame Rate 12FPS(H.264 & MJPEG)
Camera Image Setting change must be configured in camera webpage”

Test Record

Entry Date	07/17/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.16_20170608
Server Version	3.210.0000.2
Client Version	3.210.0000.2
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080 [12 FPS]
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Camera Image Setting change must be configured in camera webpage
Camera Stream Setting : 1st Stream : H.264, 2nd Stream : MJPEG
Motion events detected”

Test Record

Entry Date	10/31/2017
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	4.9.0.602 r47804
Client Version	4.9.0.602 r47804
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1280x720 - 2nd Stream
JPEG Motion Detection	Unsupported
IP Camera Finder	Unsupported

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching.
Continues recording & Motion recording(VMS Server)
Resolution & Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	02/01/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.11_20161230
Server Version	3.0.0.838
Client Version	3.0.0.838
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching.
Continues recording & Motion recording(VMS Server)
Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	01/19/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.11_20161230
Server Version	7.0.4.2
Client Version	2.1.2.0
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching.
Continues recording.
Resolution & Camera Image Setting change must be configured in camera webpage”

Test Record

Entry Date	01/26/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.11_20161230
Server Version	6.9.0.1528
Client Version	6.9.0.1528
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Unsupported
JPEG Video	Unsupported
JPEG Motion Detection	Unsupported
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Onvif auto searching. Motion events detected.
Camera Image Setting change must be configured in camera webpage.”

Test Record

Entry Date	11/17/2017
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	5.14.008
Client Version	5.14.008
Plugin	ONVIF
Maximum Streams Available	1

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly. Event/Motion recording is working.”

Notes

“Onvif auto searching. Motion events detected.”

Test Record

Entry Date	11/17/2017
Camera Firmware	v3.3.0701.1002.147.0.70.1.20_20171026
Server Version	6.4.4.2
Client Version	6.4.4.2
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Auto Detected

Status Description

“Onvif stream is working properly.”

Notes

“Resolution & Camera Image Setting change must be configured in camera webpage.
Motion events detected.”

Test Record

Entry Date	05/09/2017
Camera Firmware	v3.3.0701.1002.147.0.70.0.11_20161230
Server Version	9.50.0000+
Client Version	9.50.0000+
Plugin	ONVIF
Maximum Streams Available	2

Functionality

H.264 Video	Passed : 1920 x 1080
H.264 Motion Detection	Passed : Motion Detected
JPEG Video	Passed : 1920 x 1080 [12 FPS]
JPEG Motion Detection	Passed : Motion Detected
IP Camera Finder	Unsupported

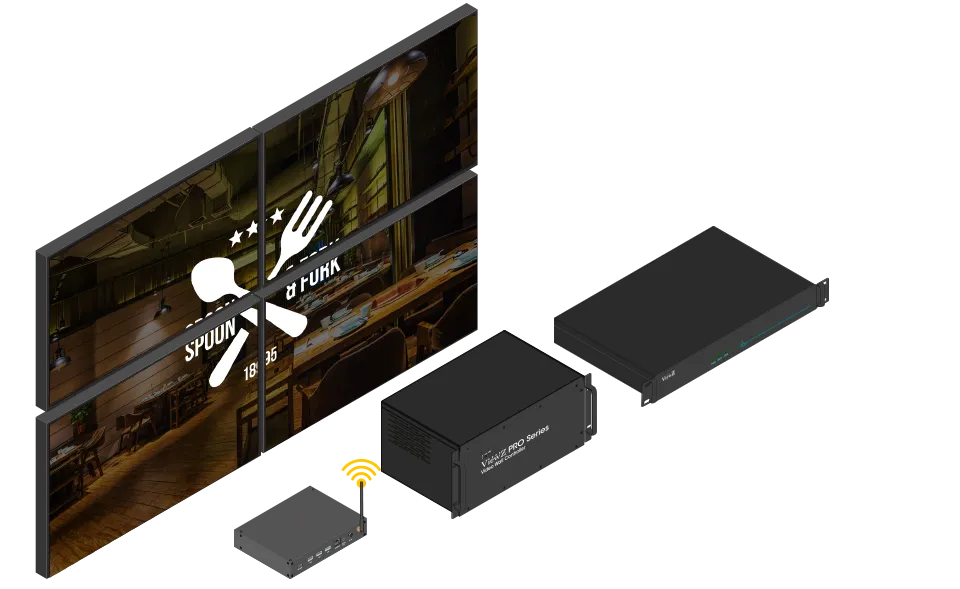

Video Wall Kit

Video Wall Kit

VZ-49UNBX2x2/8

VZ-55UNBX2x2/8
