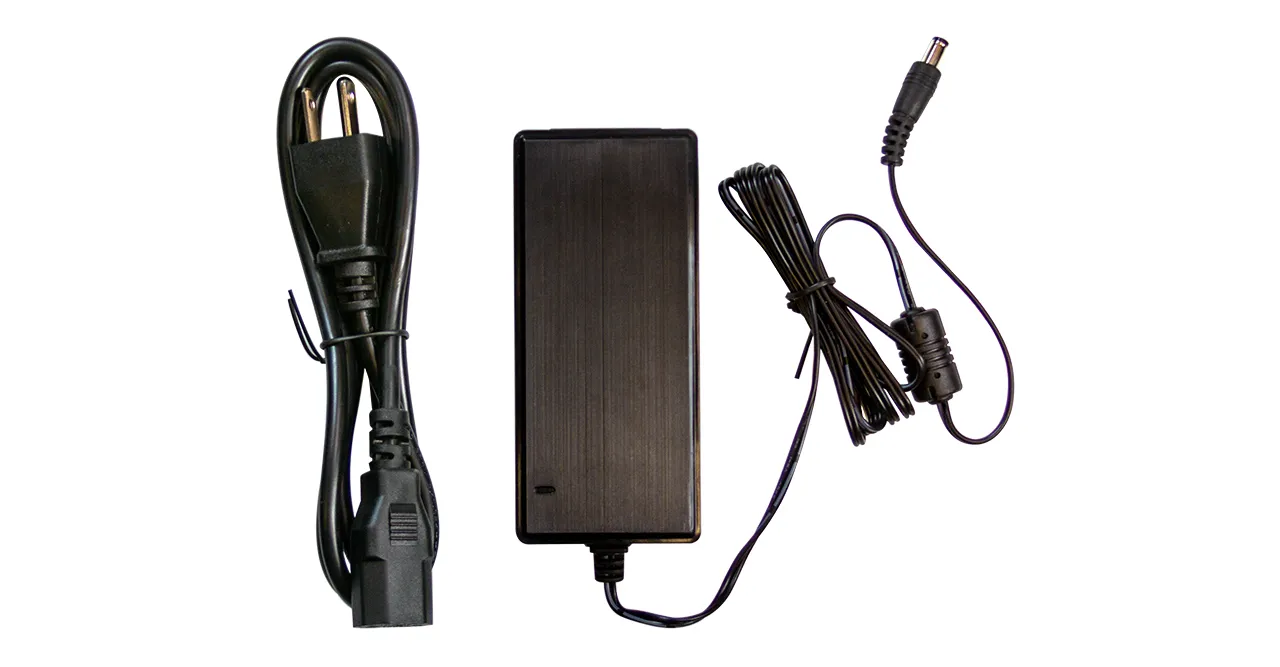

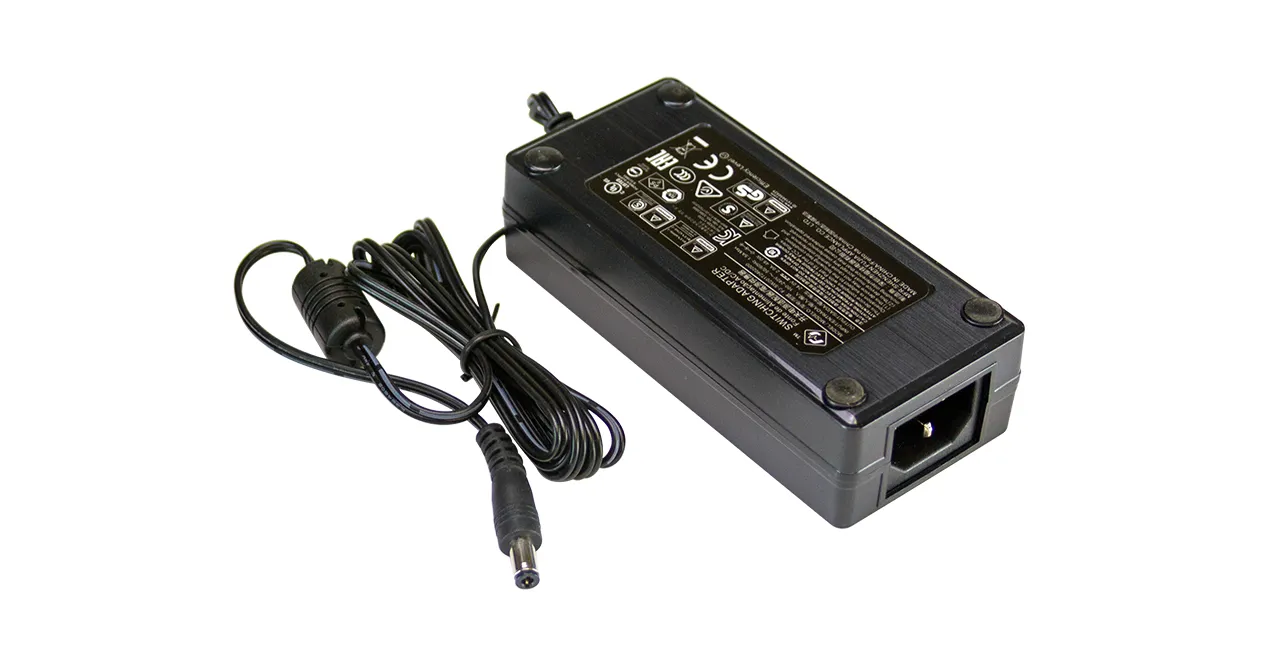

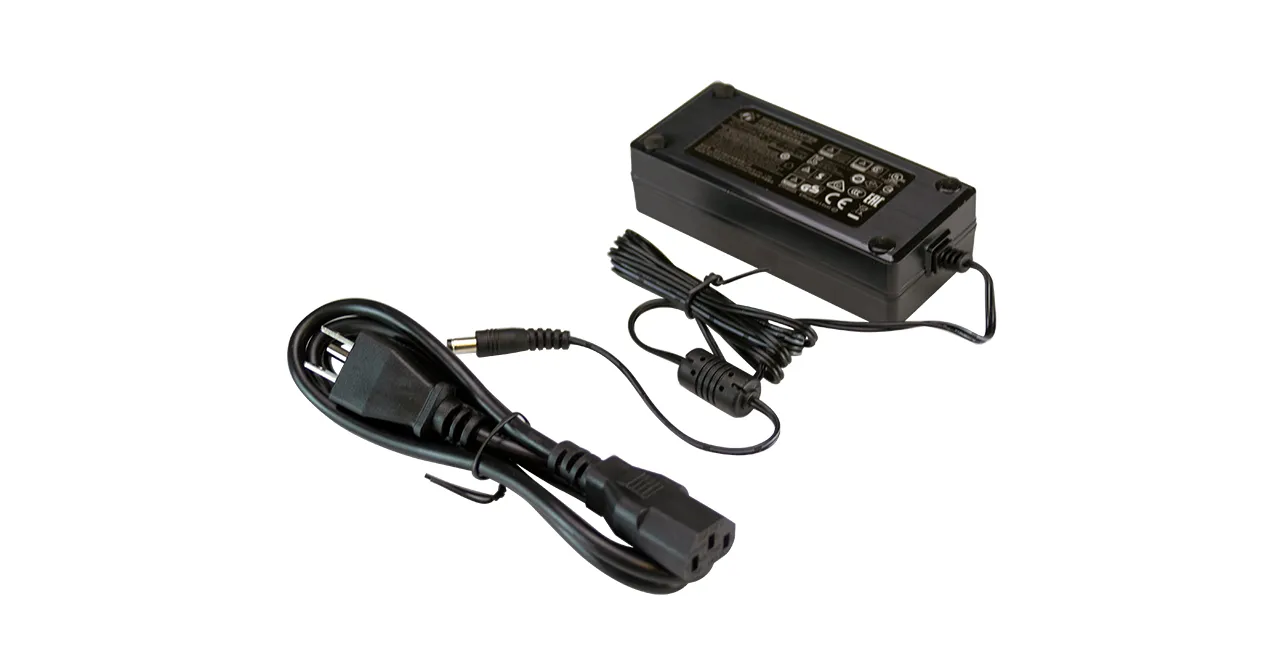

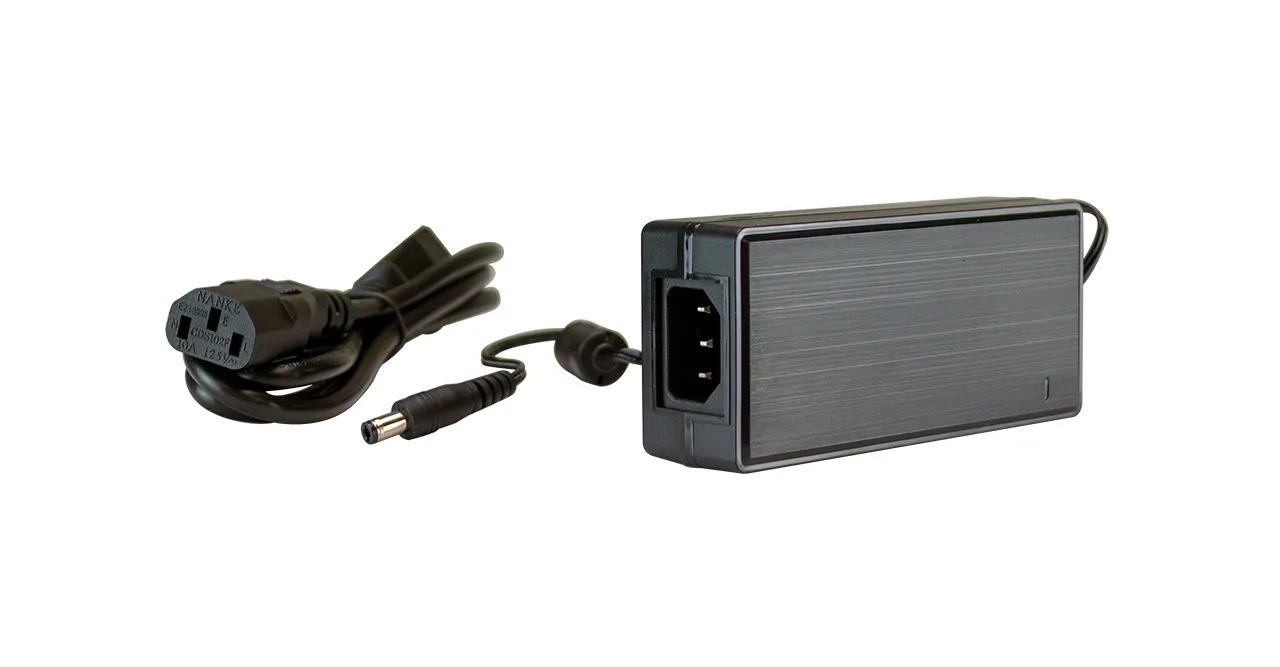

VZ-PSU4N-24
AC 120V to DC 24V Adapter for 43” Monitors
- Output : 24V DC / 100.8 W / 4.2A
- Input : 100~ 240VAC / 50~60Hz / 3.0A Max
- Fully tested for 43″ CMP
- Safe & Reliable
- Complies with Environmental Protection Requirements
- Long Product Life
Specification | Dimension | Spec & Manual
Series : Power Adapter
Compatible Monitors
Product Features
- Model Number: VZ-PSU4N-24
- Fully testified for 43″ CMP
- DC 24V / 4.2A Output
- AC 100~240V / 50 or 60Hz / 3.0A Input
- Green Power On LED
- Energy efficiency rating: VI
- Compact & Light-Weight
- Safe & Reliable
- Complies with International Safety Standards & Environmental Protection Requirements
- Over voltage / Overload / Over current / Short Circuit Protection
- Complies with Environmental Protection Requirements
- Wide Voltage Compatibility
- Long Product Life
- Safety Certification: cULus, CB, GS, CCC, PSE, SAA
- EMC Compliance: FCC Part 15B, EN 55032, EN 55024
- Regulatory Compliance: CE, UKCA, RCM
- Environmental Compliance: REACH, CA65
Specification
| Input – Voltage range | current | 100 ~ 240V AC, 50/60Hz | 3.0A |
| Output – Voltage | 24V DC |
| Output – Watt | 100.8 W |
| Output – Rated current | 4.2 A |
Protection
| Short Circuit Protection | The Power Supply will be auto recovered when short circuit faults remove. |
| Over Current Protection | Over Current Point Limited: 110-160%(input 110-230V AC) The output shall hiccup when the over currents applied to the output trail, and shall be self-recovery when the fault condition is removed |
| Over Voltage Protection | The Power Supply shell be self-recovering when the fault condition is removed |
Regulation - Safety & EMI Standards
| Safety Standards | cULus(UL62368-1), CB(IEC62368-1), CE(EN55032), GS/LVD(62368-1), PSE(J62368-1), KC(60950-1), BS/UKCA(62368-1 UKCA), C-tick (AS/NZS CISPR 32), FCC+ICES-003 (PART15 B), ERP(62368-1), DOC/CEC, C-tick (AS/NZS CISPR 32), CCC(GB4943.1), SAA (62368-1), RCM (62368-1), PSE(J62368-1), S-mark (62368-1), Brazil (62368-1) |
| EMI STANDARDS | EN 55032 + 55020 + 55024 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 2.59″ x 6.42″ x 1.25″ / 65.9 mm x 163.2 mm x 31.8 mm |
| Net Weight | 0.953 ± 0.04 lbs / 0.4325 ± 0.02 kg |
Interface
| Input Plug Type | IEC 721-3-2 2M2 – C14 AC PIN |
| Output Cord | WIRE: 20 AWG / 1500 ± 50 mm | PLUG: JACK PLUG ø5.5 x 10.5 mm |
General Summary
| Construction | PC, ABS, or equivalent |
| Cable | AWM Style 2468 – 20 AWG |
| Cooling | Cooling shall be with natural convection cooling |
| Operating Temperature | Humidity | 32 ~ 95°F / 0 ~ +35°C | 5 ~ 90% RH. Non-condensing |
| Storage Temperature | Humidity | 14 ~ 167°F / -10 ~ +75°C | 20 ~ 80% RH. Non-condensing |
