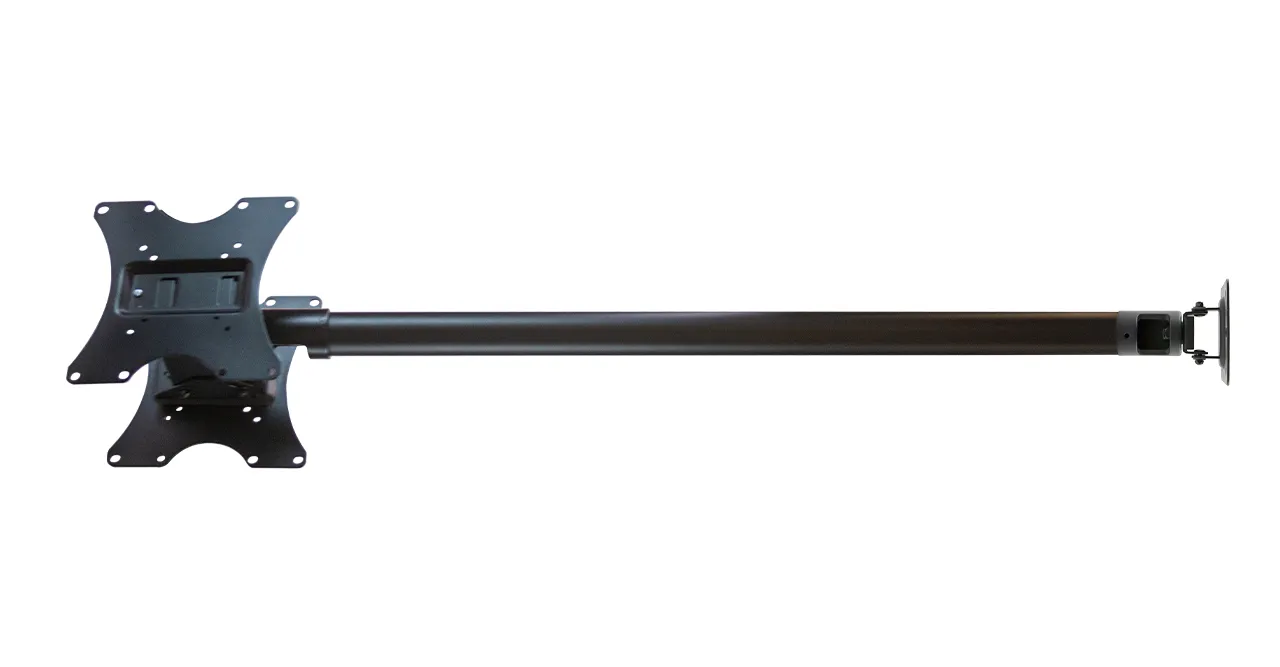

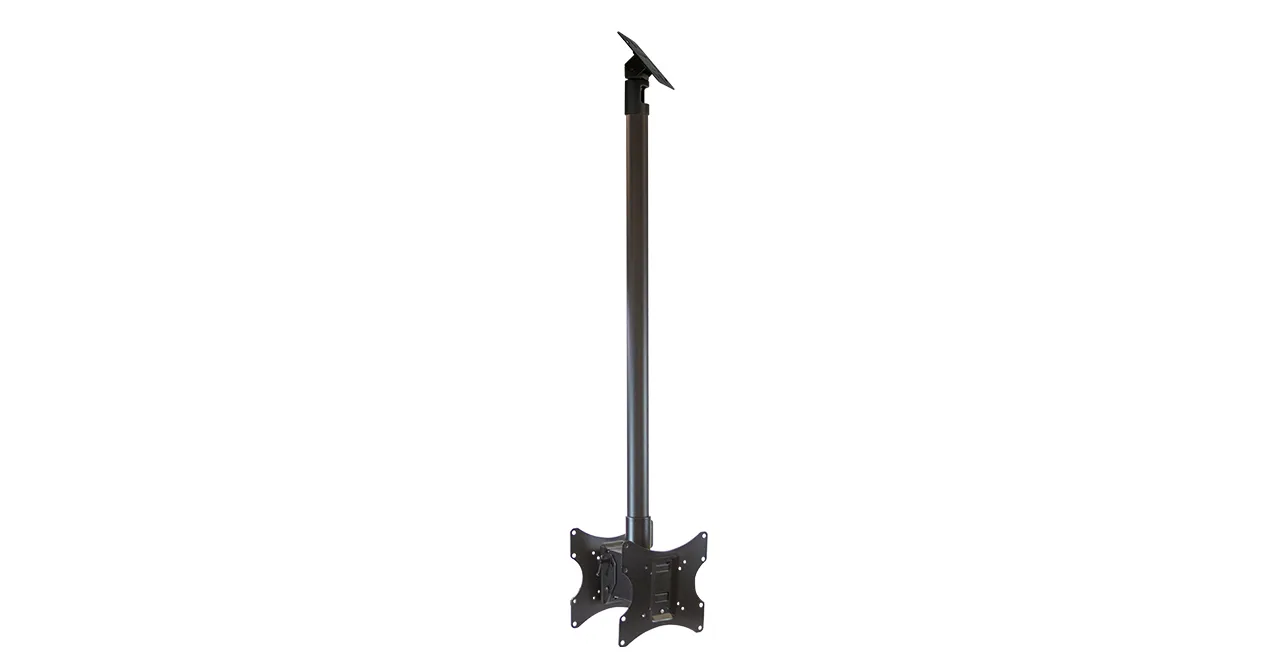

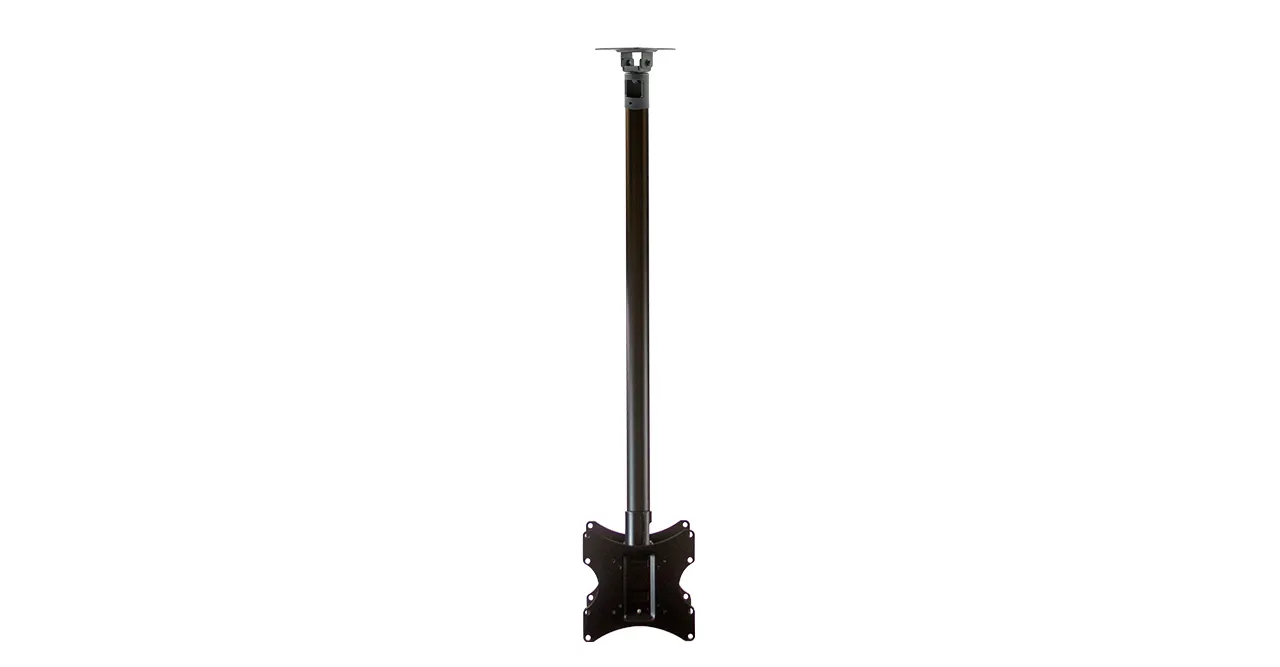

VZ-CMKiT-06
23~43`` Back to Back Dual VESA Mount Head for Ceiling Mount
- Mounting Dual Head for 23″ to 43″ CCTV & Video Wall Monitors
- Load Capacity is 110 lbs / 50 kg (for each head)
- VESA Standard – 75×75, 100×100, 200×100 and 200×200
- Easy Cable Management
- Connects to Standard Pole sizes – 1-1/2″
- 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation For Achieving that Perfect Viewing Angle
Specification | Dimension | Spec & Manual
Series : Ceiling Mount Kit | Key Features : Compatible for 21-32″ Monitors VESA
Compatible Monitors
Product Features
- Model Number: VZ-CMKiT-06
- Dual Mounting Head for 23″ to 43″ CCTV & Video Wall Monitors
- Load Capacity is 110 lbs / 50 kg (for each head)
- 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation for Achieving that Perfect Viewing Angle
- VESA Standard – 75×75, 100×100, 200×100 and 200×200
- Easy Cable Management
- Supported Pole Sizes – NPT Size 1-1/2″ (38.1mm)
- 2 units of VZ-CM-P36 poles can be connected by using VZ-CM-C pole connector.
* Connecting more than 2 poles is not recommended.
Specification
| Display Range | 23″ ~ 43″ |
| Weight Capacity | 110 lbs / 50 kg (for each head) |
| Tilt (VZ-CM-V2) | +5° ~ -12° |
| Tilt (VZ-CM-T) | ± 80° |
| Rotation | 360° |
| Mounting Pattern Type | VESA |
| Mounting Patterns | 75×75, 100×100, 200×100, 200×200 |

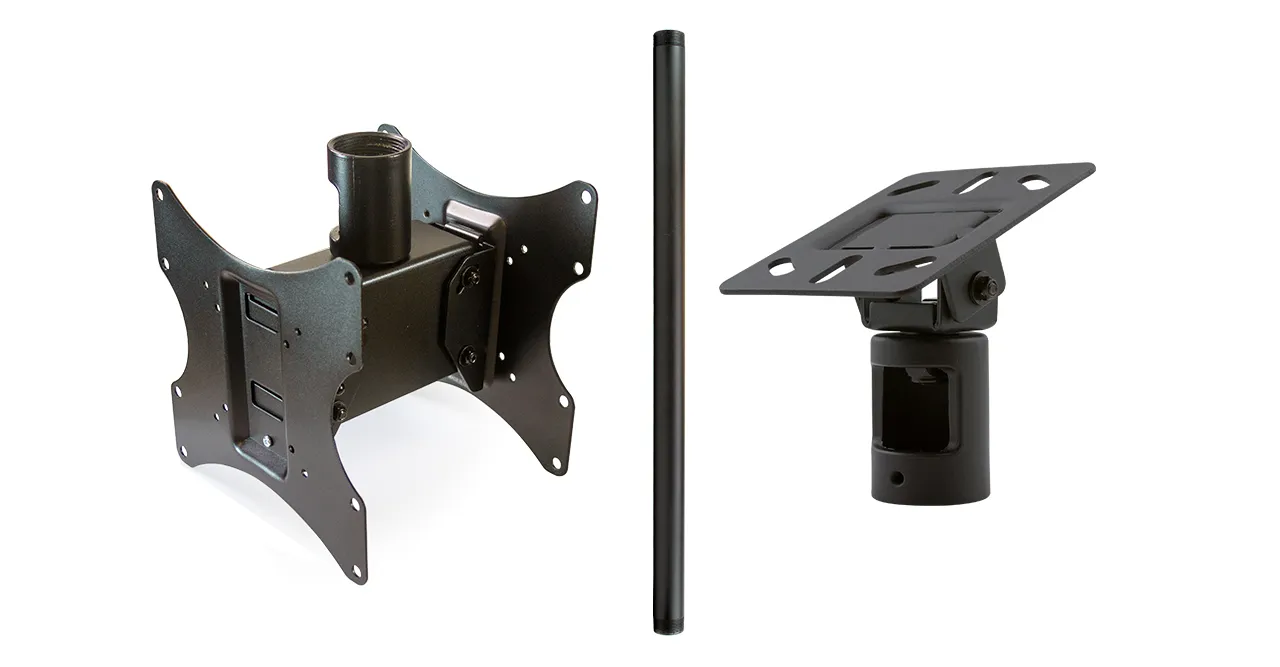

Dimensions & Weight
| VZ-CM-V2 Plate Size (W x H x D) | 220 mm x 252 mm x 195 mm / 8.66″ x 9.92″ x 7.67″ |
| VZ-CM-V2 Pole ( R x Length ) | Ø 38.1 x 76 mm / Ø 1.5 x 3″ |
| VZ-CM-P36 Pole ( R x Length ) | Ø 48 x 900 mm / Ø 1.88 x 35.43″ |
| VZ-CM-P36 Thread ( R x Length ) | Ø 38.1 mm / Ø 1-1/2″ |
| VZ-CM-T Plate Size (W x H x D) | 150 mm x 120 mm x 53 mm / 5.9″ x 4.72″ x 2.08″ |
| VZ-CM-T Pole ( R x Length ) | Ø 38.1 x 76mm / Ø 1.5 x 3″ |
| Net Weight | 13.91 lbs / 6.32 kg |
Product Dimension & Weight
Click below to enlarge
