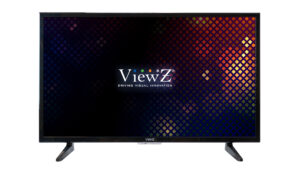

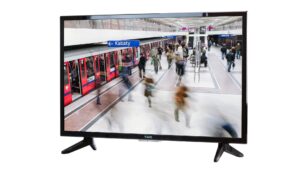

VZ-32CMP
Eco-friendly Full HD CCTV monitor for professional security, digital signage and more
- Full HD 1080p Resolution
- 2 AV(Composite) Inputs / 1 Output (Loop-through)
- 16:9 / 4:3 Ratio Available
- Built-in Media Player
- Auto Source & Power Recovery
- AC 100-240V, 50/60Hz (with DC Adaptor) & DC 24V (2.7 A)
- HDMI, VGA, Audio In/Out
- 3D Comb-Filter, De-Interlace, Built-in Speakers
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : CMP | Key Features : 16:9 / 4:3 Full HD NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-32CMP
- 32″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Full HD (1920×1080) / 16:9
- 2 CVBS (BNC) Inputs / 1 CVBS (BNC) Output (Loop-through)
- Built-in Media Player
- 3D Comb-Filter / De-Interlace
- HDMI / VGA / Audio In/Out
- Auto Source & Power Recovery
- 5W Speaker x 2
- AC 100-240V, 50/60Hz (with DC 24V / 2.7A Adaptor) / Power Consumption ≤ 50 W
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Display
| Screen Size | 32″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.36375 mm x 0.36375 mm |
| Brightness | 250cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 8 ms |

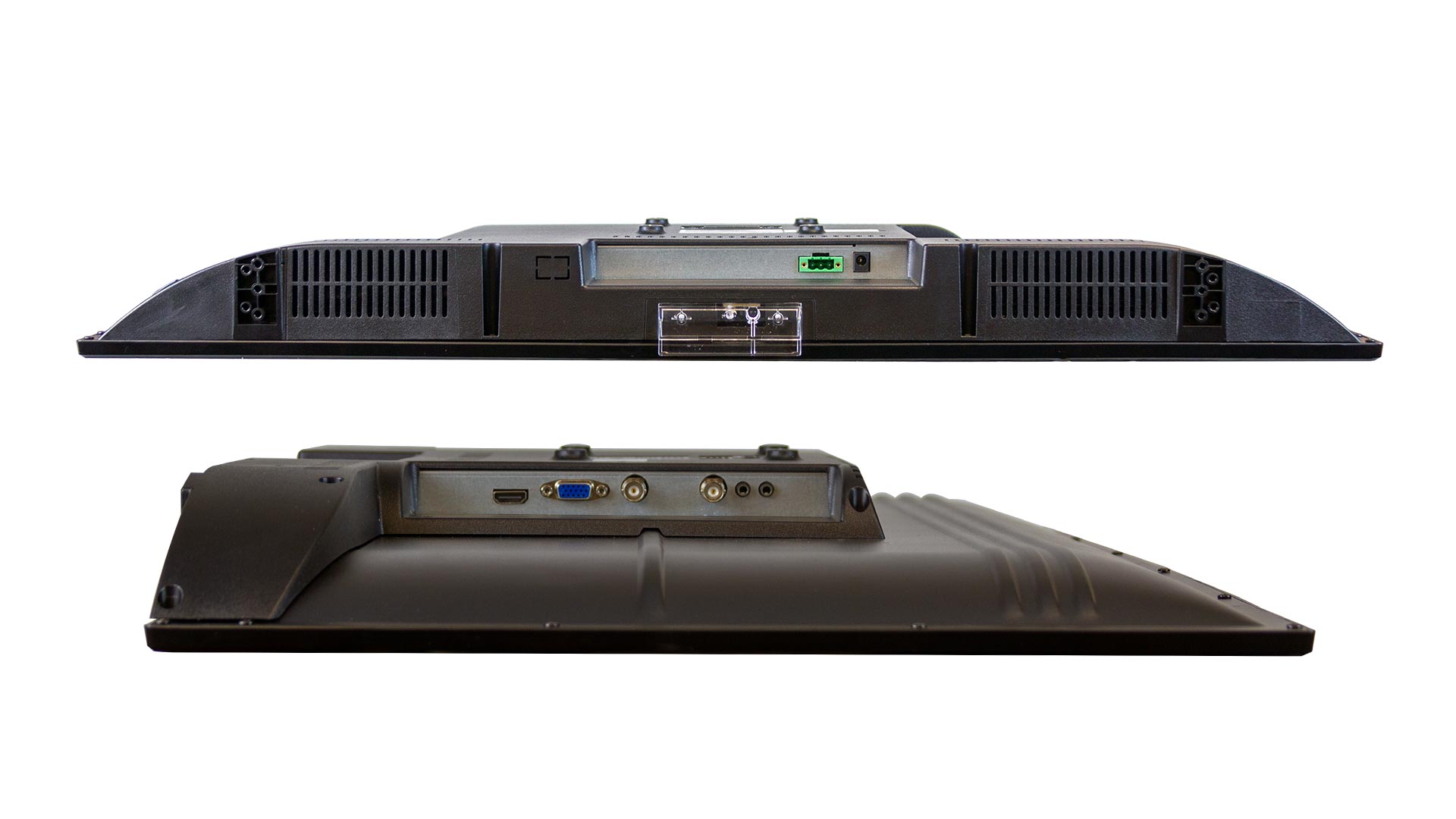

Interface
| CVBS (BNC) In / Out | 2 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| Audio In / Out | 1 / 1 |
| USB In | 1 |
Audio
| Built in speaker | 5W x 2 |
Special Features
| Filter Type | 3D Comb-filter / De-Interlace |
| Multi-Lingual Language | English, Deutsche, French, Spanish, Italian |
Dimensions & Weight
| Outline Dimension (W x H x D) | 28.94” x 17.06” x 2.72” / 735.08 mm x 433.46 mm x 69.3 mm |
| Net Weight | 12.78 lbs / 5.8 kg |
| Gross Weight | 15.43 lbs / 7.0 kg |
Mount
| Vesa | 200 mm x 100 mm / 4 x (M6 x L8 mm) |
Media Card Reader
| Support Type | Photo, Music, Video |
| External Storage | Support USB 2.0 HOST |
| VIDEO Resolution | 1080P @60/50Hz, 1080i @60/50Hz, 720P @60/50Hz |
| VIDEO Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| Image Format | JPEG, TIF, PNG, BMP |
| AUDIO Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| VIDEO Play Control | AUTO, REPEAT, ZOOM, RESUME, TIME |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz (with DC Adaptor), DC 24V / 2.7 A |
| Power – Consumption | ≤ 50 w |
| Regulations | FCC(A), CE, NDAA, RoHS |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 20 ~ 70% RH |
| Compatible Mounts – Wall | VZ-WM50, VZ-AM02-A |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM308 |
Product Dimension & Weight
Click below to enlarge
