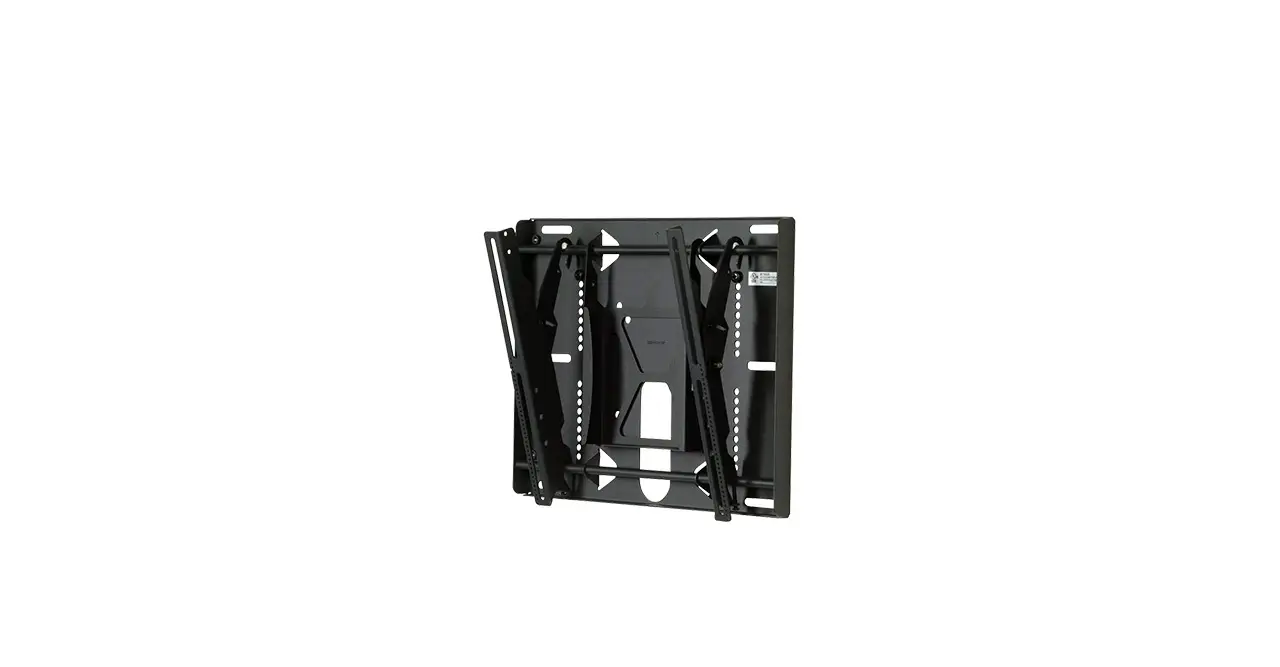

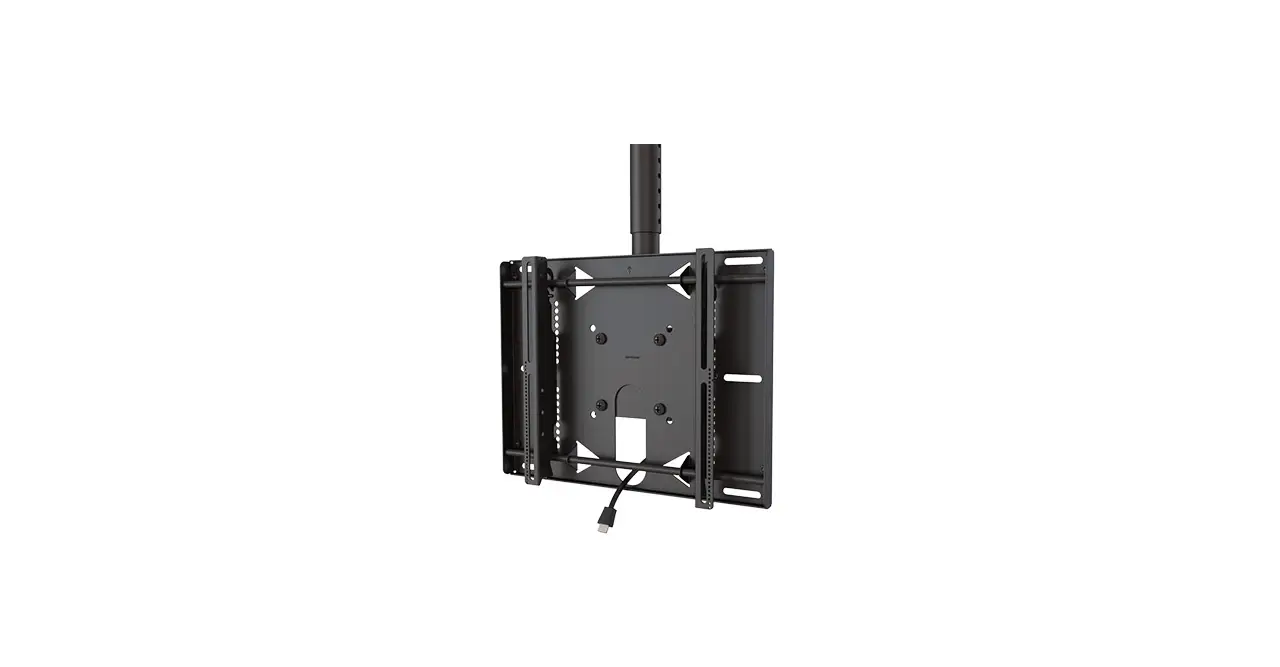

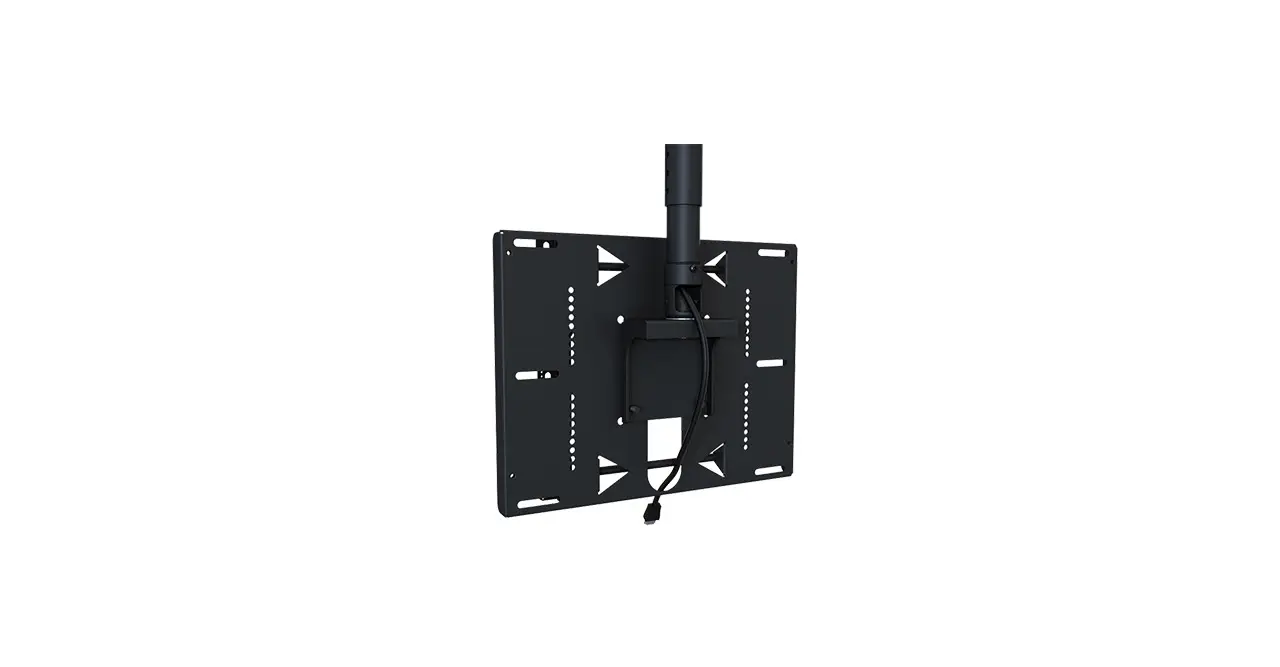

VZ-CMK03
- Mounting Head for 27″ to 43″ CCTV & Video Wall Monitors
- Load Capacity is 160 lbs / 72.57 kg
- Universal Range- 100 x 100(Min) ~ 490 x 360(Max)
- Mounts to walls, floor stands, carts and ceiling adapters
- Features patented Clevis technology for effortless tilt
- Built-in lateral shift
- Mounts to studs at 16 in. and 18 in. spacing
- Durable, textured powder coat finish
- Allows 12° continuous tilt
Specification | Dimension | Spec & Manual
Series : Ceiling Mount Kit | Key Features : Compatible for 27-43″ Monitors
Compatible Monitors
Product Features
- Model Number: VZ-CMK03
- Features Griplates™ (patent pending) to safely support flat-panel displays
- Adjusts from 27 – 43 in. (610-1168 mm) in 1.25 in. increments
- Adapts to 1.5 in. NPT
- Works with both flat-panel mounts and projector mounts
- Multiple attachment points adapt to a single stud or a 4.5″ bolt pattern
- Can be installed on a wood stud or concrete ceiling structure
Specification
| Display Range | 27″ ~ 43″ |
| Weight Capacity | 160 lbs / 72.57 kg |
| Tilt | 12° |
| Mounting Pattern Type | Range |
| Mounting Patterns | 100 x 100(Min) ~ 490 x 360(Max) |
Dimensions & Weight
| Plate Size (W x H x D) | 521.7 mm x 393.7 mm x 62.1 mm / 20.54″ x 15.50″ x 2.44″ |
| Pole ( R x Length ) | Ø 38.1 x 1116.50 mm / Ø 1.5 x 43.957″ |
| Net Weight | 36 lbs / 16.32 kg |
Product Dimension & Weight
Click below to enlarge
