49 ~ 55″ Wall Mount | VZ-FSM3X2

product Description
vzfsm3x2_4
vzfsm3x2_2
vzfsm3x2_3
vzfsm3x2_1
vzfsm3x2_4 vzfsm3x2_2 vzfsm3x2_3 vzfsm3x2_1

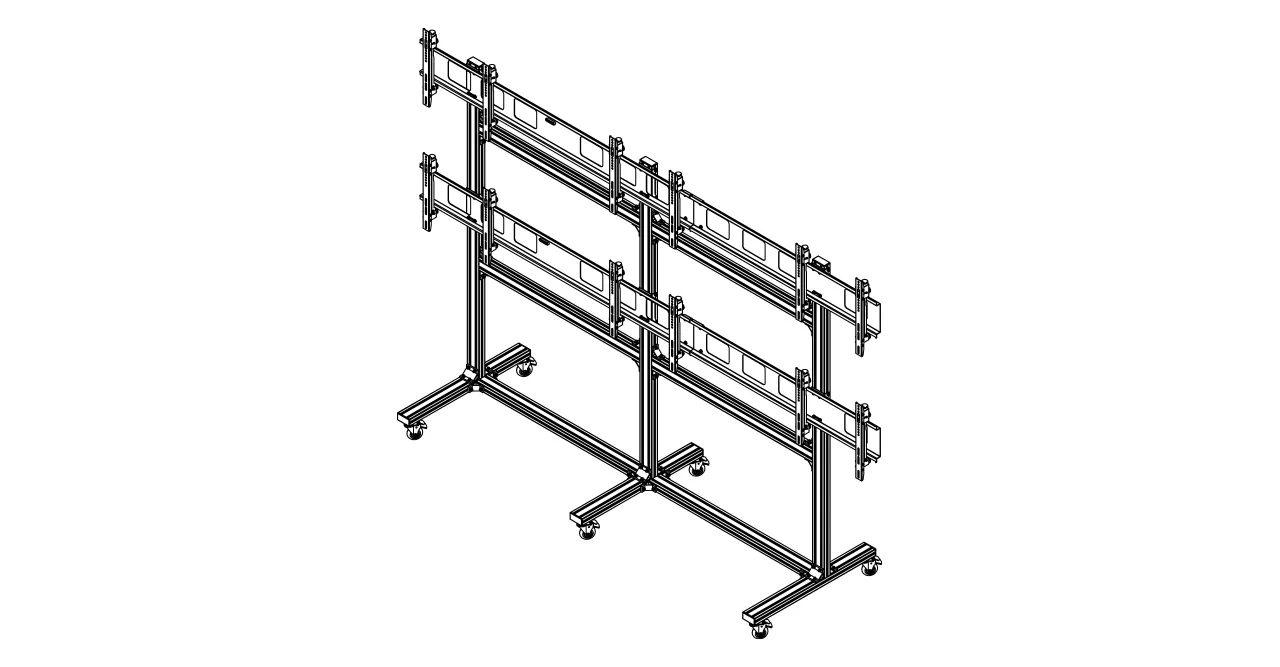

The ViewZ FSM3X2 mount is a customizable video wall extending flat-panel mount for displays weighing up to 66 lb. 30 kg with a mounting pattern of 100 x 100 to 600 x 400 mm.

  • 49″ to 55″ 3×2 Video Wall Monitor Mount
  • Load Capacity is 66 lbs / 30.0 kg (per screen)
  • Universal Mounting – 100 x 100 (Min) ~ 600 x 400 (Max) mm
  • Multi-monitor stacking
  • Top adjustable mounting brackets, open design & X, Y and Z axis fine tune adjustment system allows for easy and accurate installation
  • Top adjustable mounting brackets
  • 1×2, 2×2 or 3×2 Video Wall Mount

Compatible Monitors

Product Features

  • Model Number: VZ-FSM3X2
  • 1×2, 2×2 or 2×2 Video Wall Mount for VZ-49/55UNBS, VZ-55SHB, VZ-43/55UHD Video Wall Monitors
  • X, Y and Z axis fine tune adjustment system allows for easy and
    accurate installation
  • Works with flat-panel mounts that have a VESA pattern
    MIN. 100 x 100 mm, MAX. 600 x 400mm
  • Fit for ViewZ Monitors 32″ ~ 55″
  • -4° ~ 4° tilting , black color
  • 3 Year Warranty

Specification

Display Range 32″ ~ 55″
Weight Capacity per Screen 66 lbs / 30 kg
Tilt -4° ~ 4°
Mounting Pattern Type VESA (100 x 100 (Min), 600 x 400 (Max) mm), Universal


Dimensions & Weight



Dimension (W x H x D) 3480 x 1800 x 950 mm / 137.0 x 70.86 x 37.4″
Net Weight TBD

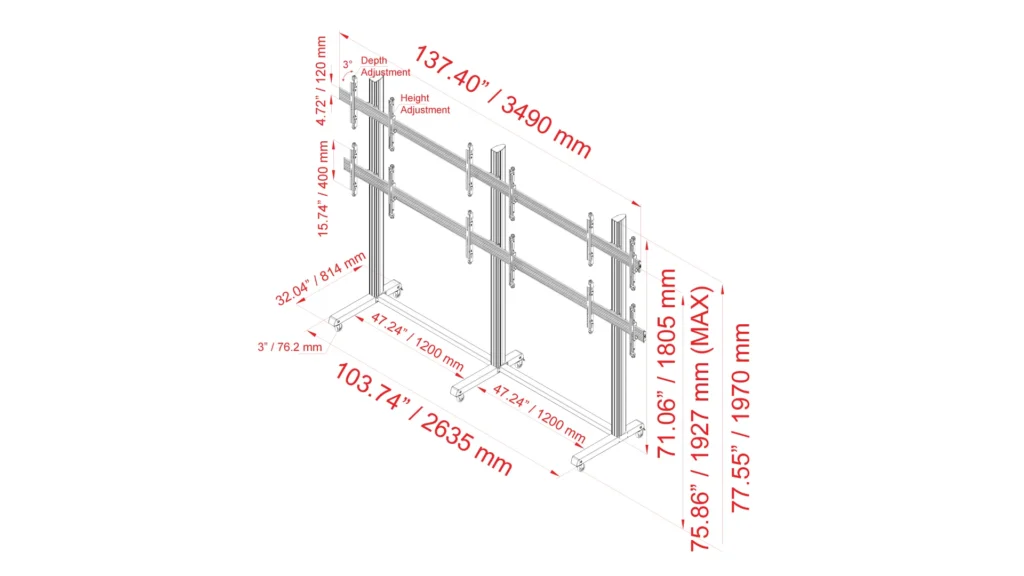

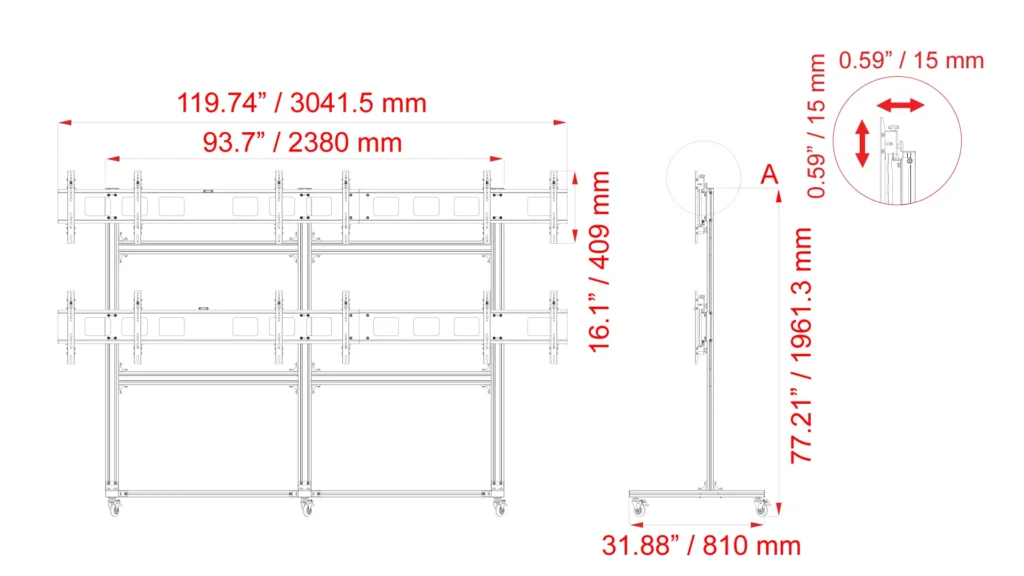

Product Dimension & Weight

Click below to enlarge
product Details
