VZ-55UNBS2x2/8

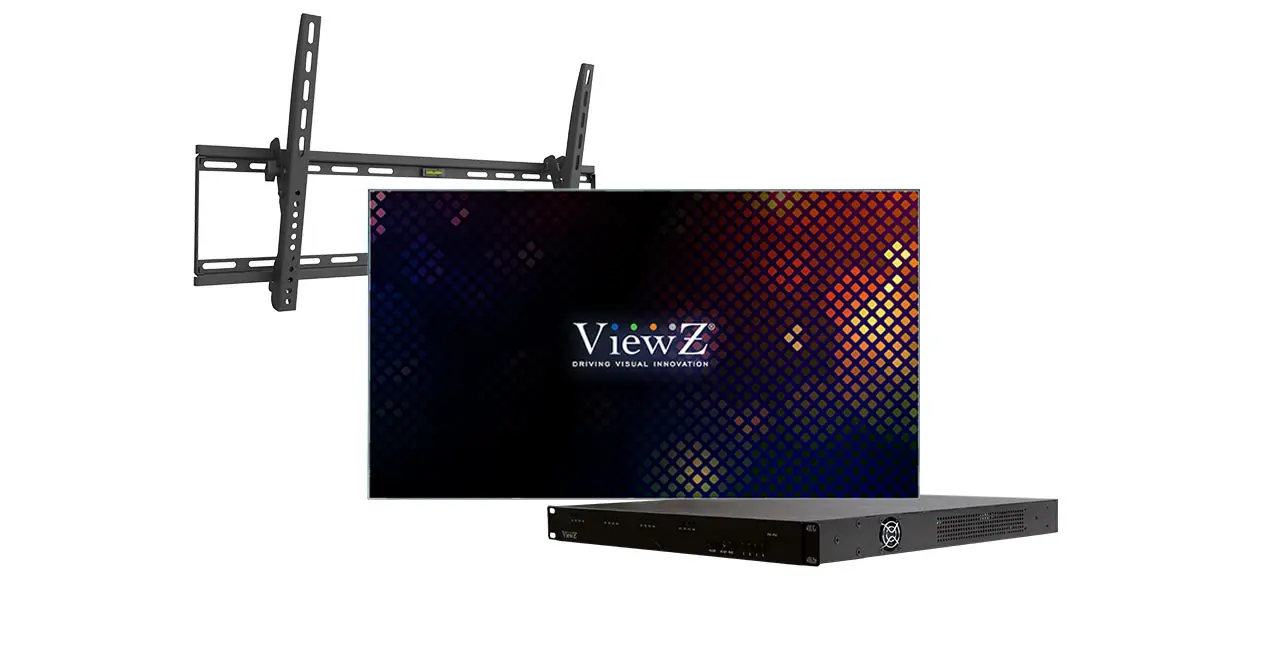

- (4) VZ-55UNBS – 55inch Video Wall Monitors / NDAA Compliant
- (1) VZ-MV802 8inputs Multi-Viewer
- (4) VZ-WM71 (Wall (4) VZ-WM71 Wall Mounts
- Up to 8 screens on 2×2 Video Wall
- Unlimited user-defined layouts
- Up to 24 preset layouts assigned on the front panel and unlimited preset layouts in the PC
- Customized borders (Size and Color)
- Analog or Digital Clock Display
- UMD / OMD Display
- Built to run 24/7/365
Specification | Dimension | Spec & Manual
Series : Video Wall Kits | Key Features : Multi Viewer Ultra Narrow Bezel Compatible for 40-65″
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-55UNBS2x2/8
- Up to 8 screens on 2×2 Video Wall
- NDAA Compliant
- Unlimited user-defined layouts
- Up to 24 preset layouts assigned on the front panel and unlimited preset layouts in the PC
- Customized borders (Size and Color)
- Analog or Digital Clock Display
- Fast switching among input channels and combined multiple images
on single monitor - Multiple labels per video windows – UMD, OMD, IMD, standalone labels
- Automatic input aspect ratio detection
- Built-in video, audio alarm detection – no audio, audio high/low, no video, video black, video frozen
- 55″ Black All Metal 1.2 mm Ultra-narrow Seamless Bezel
- Daisy Chain System – HDMI up to 15 x 15
- Tilt Wall Mount, Black Metal
VZ-55UNBS - Display
| Screen Size | 55″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.630 mm x 0.630 mm |
| Brightness | 500cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 M |
| Response Time | < 8 ms |
| Active Display area ( H x V ) | 1209.6 mm × 680.4 mm |
VZ-55UNBS - Interface
| VGA In (15Pin D-Sub) | 1 |
| DP In | 1 |
| DVI-D In | 1 |
| HDMI 1 In | 1 |
| HDMI 2 In / Out (Daisy Chain) | 1 / 2 |
| USB In (Upgrade) | 1 |
| RS-232 (RJ-45) In | 1 (Serial Control / IR Receiver) |
| RS-232 (RJ-45) Out | 2 (Serial Control) |
| Audio Out | 1 |
VZ-55UNBS - Support Refresh Rate
| HDMI 1 (2.0) In | 3840 x 2160 @ 60Hz |
| HDMI 2 (2.0) In / Out | 3840 x 2160 @ 60Hz |
| DP In | 3840 x 2160 @ 30Hz |
| DVI-D In | 3840 x 2160 @ 30Hz |
| VGA In | 1920 x 1080 @ 60Hz |
VZ-55UNBS - Special Features
| Bezel Width – TOP and LEFT Side | 0.096” / 2.3 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.053” / 1.2 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.149” / 3.5 mm (Bezel to Bezel) |
| Advanced Anti-Image Residual Function | Support |
| 3D Comb filter | Support |
| Language | English, Spanish, French and Portuguese |
VZ-55UNBS - Dimensions & Weight
| Outline Dimension (W x H x D) | 47.77” x 26.93” x 4.7” / 1213.4 mm x 684.2 mm x 119.4 mm |
| Net Weight | 65.91 lb / 29.9 kg |
| Gross Weight | 88.18 lb / 40.0 kg |
VZ-55UNBS - Mount
| Vesa | 600 x (100 x 4) mm / M8 x L10 screws |
VZ-55UNBS - General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | ≤ 180 W (Max) / 0.5 W (Standby) |
| Regulations | FCC(A), RoHS |
| Operating Temperature | Humidity | 32°F ~ 122°F / 0°C ~ 50°C | 20% ~ 80% RH |
| Storage Temperature | 32°F ~ 140°F / 0°C ~ 60°C |
| Compatible Mounts – Wall | VZ-XMS, VZ-WM71 |
| Compatible Mounts – Ceiling | VZ-CMKiT-04 |
| Compatible Mounts – Free Standing Mount | VZ-FSM2x2, VZ-FSM3x2 |
| Accessories | AC110V Power Cable x 1, HDMI Cable x 1, Manual x 1, CAT5 Cable (RS232) x 1, Remote Controller x 1, IR Receiver x 1, Converter (RJ45 to RS232) x 1 |
VZ-MV802 - Specification
| HDMI® signals with Deep Color and HDCP | 1.4 / 2.2 |
| On Screen Display | Skin Technology for customizing borders, labels (4 per window), fonts, tally LEDs, clock faces, logos, UMD, OMD, IMD, dynamic UMD |
| Alarms | No audio, audio high/low, no video, video black, video frozen |
| Discrete AES Audio | Up to 4ch/video input (2 pairs, balanced/unbalanced) |
| Discrete Analog Audio | Upto 4ch/video input (2 pairs, balanced/unbalanced) |
| Control | Front panel buttons for quick preset recalls, GPIs, ASCII Protocol (AXP), Director |
VZ-MV802 - Interface
| DVI-I Input | 8 |
| HD/SD-SDI | 8 (Optional) |
| HDMI Output | 2 |
| Discrete AES Audio Output (BNC) | 1 – Line Level AES Audio Monitor |
| Discrete Audio Output (SCSI) | 2 – Discrete Audio and GPI/O |
| Discrete Analog Audio Output | 1 |
| LTC (BNC) | 1 – Sync on Screen Clocks |
| Serial Port (RJ-45) | 1 – RS-232 |
| Network (RJ-45) | 1 – 10/100/1000 Base-T |
| General Purpose IO (RJ50) | 1 – Control, Alarm and Tally |
VZ-MV802 - Resolution
| Video Output | 800 x 480 (2048 x 1080 @60hz) |
VZ-MV802 - Dimensions & Weight
| Outline Dimension (W x H x D) | 18” x 13” x 1.75” / 457.2 x 330.2 x 44.5 mm |
| Net Weight | 12 lbs / 2.8 kg |
VZ-MV802 - Mount
| Server Chassis | 1U (19”) |
VZ-MV802 - General Summary
| Transmitter – IR Remote Control | YES |
| Power – Electrical Ratings | DC 12V/5A | AC 90~250 V (50/60Hz) 1.5A |
| Operating / Storage Temperature | 32 ~ 104°F ( 0 ~ 40°C ) / -4 ~ 140°F (-20 ~ 60°C ) |
| Operating / Storage Humidity | 20 % ~ 80 % RH / 10 % ~ 90 % RH |
| Operating Humidity | 20 % ~ 90 % RH |
| EMI/RFI | FCC Part 15 Class A, CE, EU EMC, C-tick |
| Accessories | VGA to DVI Adapter x8, Rack Mount Bar x1, RJ-50 toDB9 GPI I/O Cable x1, Power Cable x1, RJ-50 to DVI Adapter x2, RJ-50 to HDMI x1, SCSI-DB9 GPI/Audio Cable x2, RJ45 to DB9 RS232 Cable x 1, CD (SW&Manual) |
VZ-WM71 - Specification
| Display Range | 40″ ~ 65″ |
| Weight Capacity | 165 lbs / 75 kg |
| Profile | 1.97″ / 50.03 mm |
| Tilt | -10° ~ 0° |
| Mounting Pattern Type | VESA, Universal |
| Mounting Patterns | 800 x 600, 800 x 400, 600 x 400, 400 x 400 |
VZ-WM71 - Dimensions & Weight
| Dimension (W x H x D) | 864.0 mm x 439.93 mm x 50.03 mm / 34.01″ x 17.32″ x 1.97″ |
| Net Weight (with Holder) | 6.35 lbs /2.88 kg |
Product Dimension & Weight
