VZ-49UHD | 49″ Quad View 4K Monitor

product Description
vz55uhd30
vz55uhd34
vz55uhd31
vz55uhd35
vz55uhd33
vz55uhd32
vz55uhd30 vz55uhd34 vz55uhd31 vz55uhd35 vz55uhd33 vz55uhd32

VZ-49UHD

Maximize free desk space in your LP office, maximize viewing resolution for your megapixel cameras

  • 49” UHD Quad View Security & Video Wall Monitor
  • Narrow 9.1 mm Bezel
  • Supports Quad View Mode
  • Supports Landscape & Portrait Mode
  • Supports 4K (3840X2160) Resolution
  • Supports HDMI 2.0 / 1.4 & DP In / Out
  • USB, SD Card – Media Player
  • OPS Slot – Optional Windows OPS Available
  • Auto Source Detection / Auto Power Recovery
  • Wide Viewing Angle (IPS Panel)
  • Built-to Run 24/7/365
  • NDAA Compliant

Compatible Mounts & Accessories

Product Features

  • Model Number: VZ-49UHD
  • 49″ LED UHD Panel
  • 4K Resolution – 3840 x 2160 / 16:9

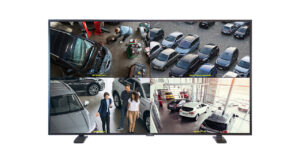

  • Quad View Mode
  • Landscape & Portrait Mode
  • USB, SD Card – Media Player
  • OPS Slot – Optional Windows OPS available
  • Wide Viewing Angle (IPS Panel)
  • Auto Source Detection / Auto Power Recovery
  • Supported HDMI (2.0, 1.4) & DP In/Out
  • Built to run 24/7/365
  • NDAA Compliant

Display

Screen Size 49″
Max Resolution 3840 x 2160 @60Hz
Pixel Pitch 0.27963 mm x 0.27963 mm
Brightness 350 cd/m²(Typical)
Contrast Ratio 1200 : 1
Aspect Ratio 16 : 9 (1.78 : 1)
Viewing Angle (H/V) 178°/178°
Display Color 1.07G
Response Time < 9ms


Interface

HDMI (2.0) In 1
HDMI (1.4) In 1
DP In / Out 2/1
RS-232(RJ-45) In/Out 1/1
Audio Out 1
USB In 1 (Media Player) / 1 (OPS Only)
SD Card In 1 (Media Player)
OPS In (Option) – USB Type C 1
OPS In (Option) – USB 2.0 Type A 2
OPS In (Option) – USB 3.0 Type A 2
OPS In (Option) – Ethernet (RJ-45) In 1
OPS In (Option) – HDMI Out 1
OPS In (Option) – Mic. In / Audio Out 1/1


Special Features

Quad View Support
Landscape & Portrait Support
Bezel Width – TOP and LEFT Side 0.37″ / 9.5 mm
Bezel Width – BOTTOM and RIGHT Side 0.35″ / 9.1 mm
Bezel Width – ACTIVE to ACTIVE AREA 0.72″ / 18.6 mm


Media Player

Video Codec WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB
Video Format AVI,MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV, SWF
Music Format WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB
Video Format MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B
Image Format JPEG, JPG, BMP, GIF
Text Format TXT (raw text file only)
Capacity MAX 16 GB


Refresh Rate

HDMI (2.0) In 3840 x 2160 @ 60Hz
HDMI (1.4) In 3840 x 2160 @ 30Hz
DP (1.2) In 3840 x 2160 @ 60Hz


Audio

Built in speaker 5W x 2


Dimensions & Weight

Outline Dimension (W x H x D) without stand 43.07” x 24.62” x 2.03” / 1094.2 mm x 625.4 mm x 51.7 mm
Outline Dimension (W x H x D) with stand 43.07” x 26.25” x 7.08” / 1094.2 mm x 666.8 mm x 180.0 mm
Net Weight 36.15 lb / 16.4 kg
Gross Weight 52.91 lb / 24 kg


Mount

Universal Wall Mount 400 x 400 mm (M6)


General Summary

Transmitter – IR Remote Control Yes
>Power – Electrical Ratings AC 100-240V (50/60Hz)
Power – Consumption ≤ 160 W / ≤ 180 W (with OPS)
Regulations FCC(A), CE, NDAA, RoHS
Operating Temperature | Humidity 32 ~ 104°F / 0 ~ 40°C | 20 ~ 85% RH
Storage Temperature | Humidity 50 ~ 140°F / 10 ~ 60°C | 10 ~ 90% RH
Compatible Mounts – Wall VZ-AM03, VZ-WM71, VZ-XMS
Compatible Mounts – Ceiling VZ-CMKiT-04
Accessories Stand (1set), Manual (1pc), Power Cable (1pc), Remote Control


Product Dimension & Weight
