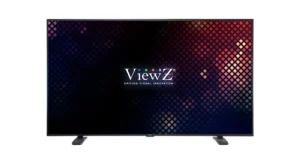

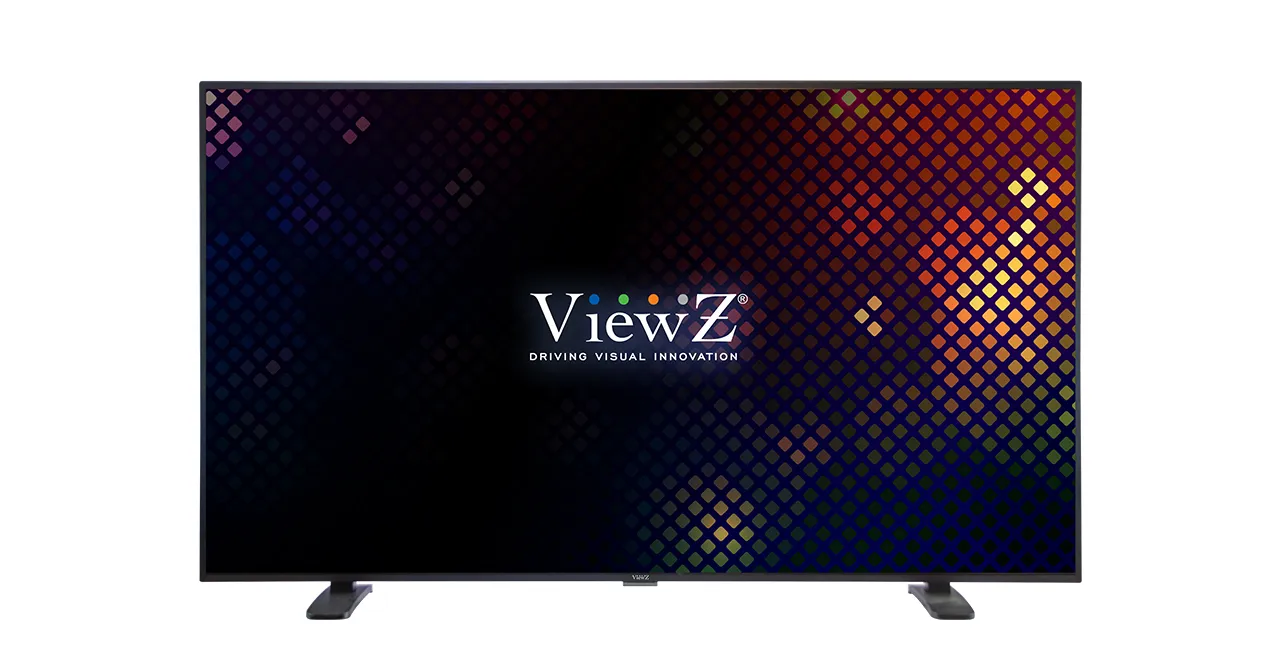

VZ-65UHD
Maximize free desk space in your LP office, maximize viewing resolution for your megapixel cameras

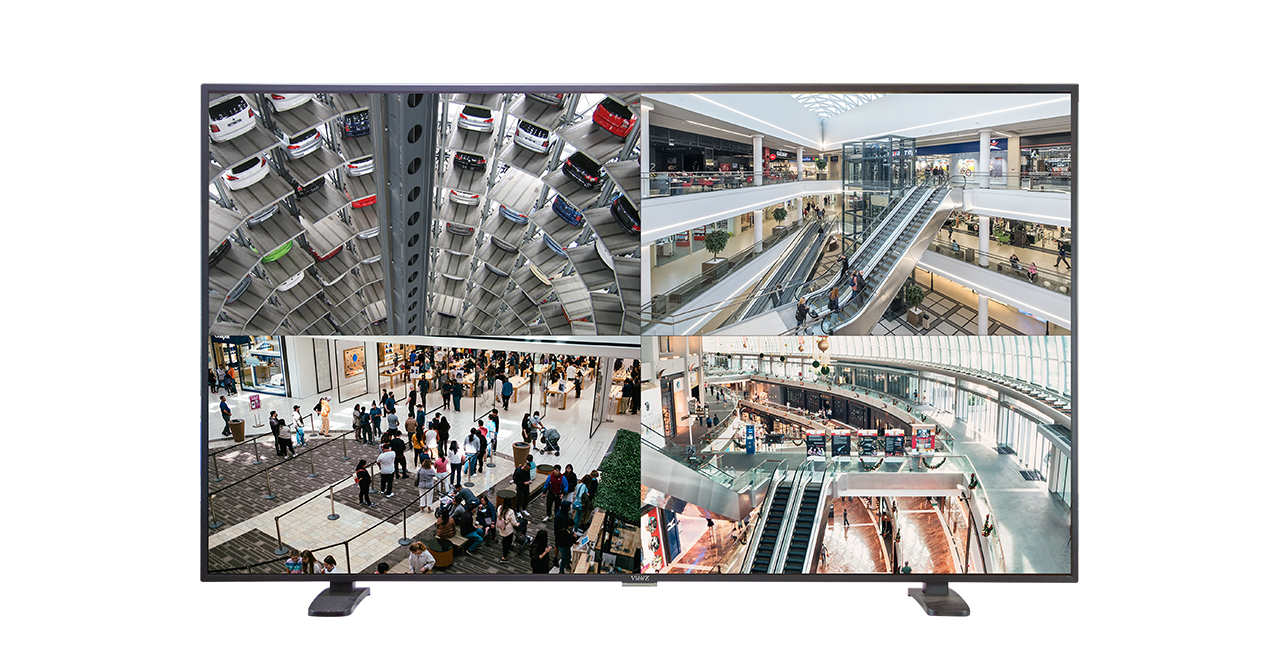

- 65” UHD Quad View Security & Video Wall Monitor
- Narrow 23.1 mm Bezel
- Supports 4K (3840X2160) Resolution
- Supports HDMI 2.0 & VGA In
- USB – Media Player
- OPS Slot – Optional Windows OPS Available
- Auto Source Detection / Auto Power Recovery
- Wide Viewing Angle (IPS Panel)
- Built-to Run 24/7/365
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : 4K Monitor | Key Features : 4K Media Player NDAA Compliant Quad View
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-65UHD
- 65″ LED UHD Panel
- 4K Resolution – 3840 x 2160 / 16:9
- USB – Media Player
- OPS Slot – Optional Windows OPS available
- Wide Viewing Angle (IPS Panel)
- Auto Source Detection / Auto Power Recovery
- Supported HDMI (2.0, 1.4) & DP In/Out
- Built to run 24/7/365
- NDAA Compliant
Display
| Screen Size | 65″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.372 mm x 0.372 mm |
| Brightness | 400 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 (1.78 : 1) |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.07G |
| Response Time | < 8 ms |
Interface
| HDMI (2.0) In | 2 |
| VGA In | 1 |
| USB 2.0 In | 1 |
| SPDIF In | 1 |
| RS232 In (9Pin D-Sub) | 1 |
| PC Audio In | 1 |
| OPS In (Option) | 1 |
Special Features
| Image Retention | YES |
| USB | Media Player |
| Bezel Width – TOP and LEFT Side | 0.9” / 23.1 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.9” / 23.1 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 1.8” / 46.2mm |
Media Player
| Video Codec | WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB |
| Video Format | AVI,MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV, SWF |
| Music Format | WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB |
| Video Format | MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B |
| Image Format | JPEG, JPG, BMP, GIF |
| Text Format | TXT (raw text file only) |
| Capacity | MAX 16 GB |
Refresh Rate
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
| VGA In | 1920 x 1080 @ 60Hz |
Audio
| Built in speaker | 10W x 2 |
Dimensions & Weight
| Outline Dimension (W x H x D) without stand | 58.13” x 33.53” x 3.14” / 1476.7 mm x 851.7 mm x 79.8 mm |
| Net Weight | 62.83 lb / 28.5 kg |
| Gross Weight | 89.28 lb / 40.5 kg |
Mount
| Universal Wall Mount | 600 x 400 mm (M8) |
General Summary
| Transmitter – IR Remote Control | Yes |
| >Power – Electrical Ratings | AC 100-240V (50/60Hz) |
| Power – Consumption | ≤ 170 W | ≤ 0.5 W (Standby) |
| Regulations | FCC(A), CE, NDAA, RoHS |
| Operating Temperature | Humidity | 32 ~ 104°F / 0 ~ 40°C | 20 ~ 85% RH |
| Storage Temperature | Humidity | 50 ~ 140°F / 10 ~ 60°C | 10 ~ 90% RH |
| Language (OSD) | English, Spanish, French, Portuguese, Japanese |
| Compatible Mounts – Wall | VZ-AM03, VZ-WM71, VZ-XMS |
| Compatible Mounts – Ceiling | VZ-CMKiT-04 |
| Accessories | Stand (1set), Manual (1pc), Power Cable (1pc), Remote Control |
