VZ-43CMP
Eco-friendly Full HD CCTV monitor for professional security, digital signage and more
- Full HD 1080p Resolution
- 2 AV(Composite) Input / Output (Loop-through)
- 16:9 / 4:3 Ratio Available
- Built-in Media Player
- Auto Source & Power Recovery
- AC 100-240V, 50/60Hz (with DC Adaptor) & DC 24V (4.2 A)
- HDMI, VGA, Audio In/Out
- 3D Comb-Filter, De-Interlace, Built-in Speakers
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : CMP | Key Features : 16:9 / 4:3 Full HD
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-43CMP
- 43″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Full HD (1920×1080) / 16:9
- 2 CVBS (BNC) Inputs / 1 CVBS (BNC) Output (Loop-through)
- 3D Comb-Filter / De-Interlace
- HDMI / VGA / Audio In/Out
- Auto Source & Power Recovery
- 5W Speaker x 2
- AC 100-240V, 50/60Hz (with DC 24V / 4.2A Adaptor) / Power Consumption ≤ 65 W
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Display
| Screen Size | 43″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.4902 mm x 0.4902 mm |
| Brightness | 250cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 8ms |

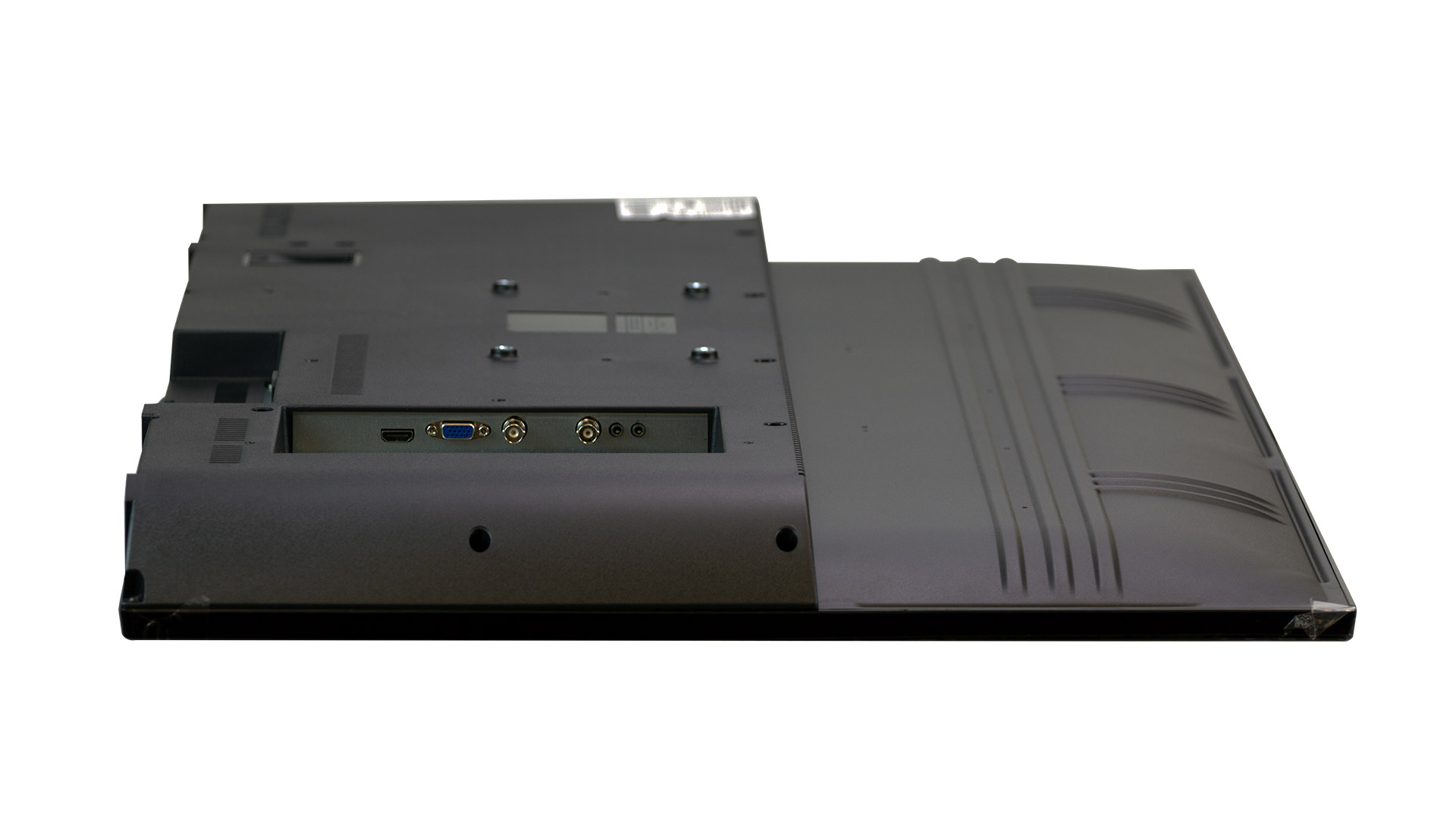

Interface
| CVBS (BNC) In / Out | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| Audio In / Out | 1 / 1 |
| USB In | 1 |
Audio
| Built in speaker | 5W x 2 |
Special Features
| Filter Type | 3D Comb-filter / De-Interlace |
| Multi-Lingual Language | English, Deutsche, French, Spanish, Italian |
Dimensions & Weight
| Outline Dimension (W x H x D) | 38.10” x 24.27” x 2.83” / 967.9 mm x 616.6 mm x 71.9 mm |
| Net Weight | 19.26 lbs / 8.9 kg |
| Gross Weight | 25.35 lbs / 11.5 kg |
Mount
| Vesa | 200 mm x 100 mm / M6 x L8 mm |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz (with DC Adaptor), DC 24V / 4.2A |
| Power – Consumption | ≤ 65 w |
| Regulations | FCC(A), CE, RoHS |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 20 ~ 70% RH |
| Compatible Mounts – Wall | VZ-WM50, VZ-AM02-A |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM308 |
Product Dimension & Weight
Click below to enlarge
