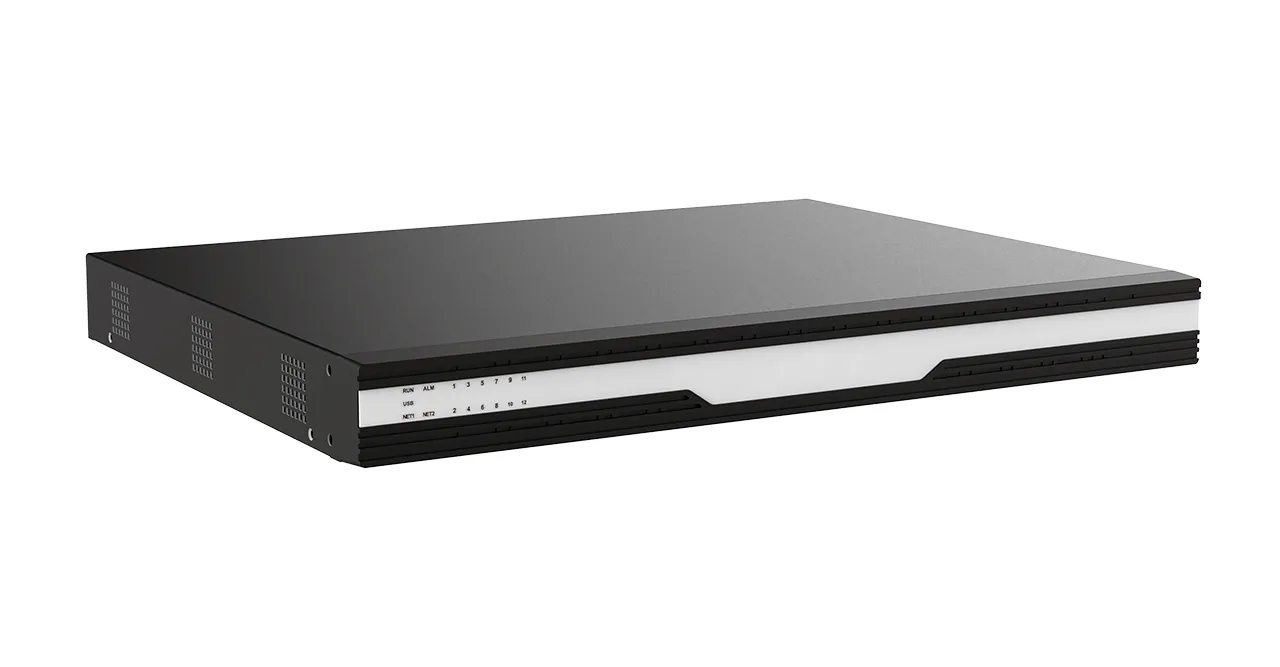

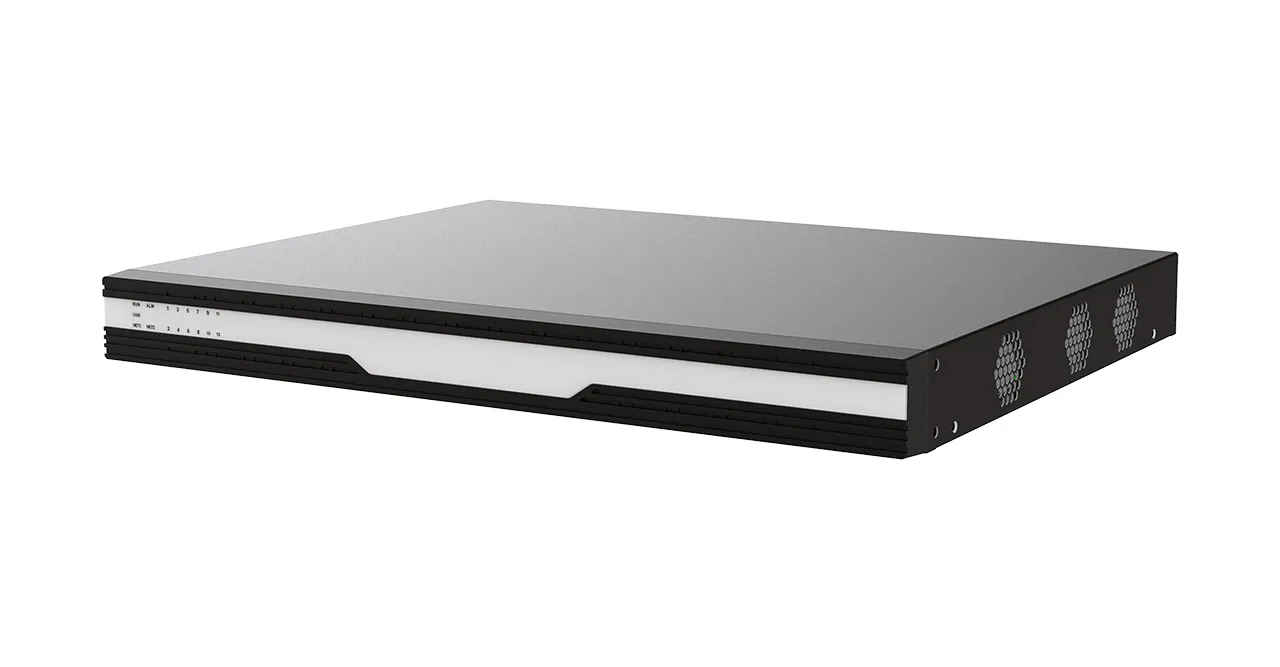

VZ-PRO-IP
The VZ-PRO-IP is the IP Based 4K Controller. With this PRO-IP system, the video source can be accessed in the LAN, distributed in the LAN, preview in the control panel or on the webpage and presented on the video wall with the features of slicing, overlapping, windowing and stretching the video across all the displays.
- H.265, H.254 & MPEG4 video format
- HDMI video input & output interface (upto 4K @ 30Hz resolution)
- Max decoding resolution, upto 3840 x 2160p @ 30Hz decoding capability for each channel
- Supports G.711A and G.711U formats
- Supports high coding efficiency & clear images
- Supports decoding SD & HD video
- Supports the decoding stream of Onvif protocol
- Supports multicast
- Supports window opening, roaming & PIP
- Upto 36 windows per each output channel
- Upto 4K @ 30Hz output resolution, compatible with mainstream display devices
- Built to run 24/7/365
Specification | Dimension | Spec & Manual
Series : PRO | Key Features : Video Wall Controller IP Based
Compatible Monitors, Mounts & Accessories
Product Features
- Model Number: VZ-PRO-IP4x6, VZ-PRO-IP4x9 & VZ-PRO-IP4x12
- Controllers can be cascaded to extend to more HDMI outputs
- HDMI video input & output interface (upto 4K @ 30Hz resolution)
- H.265, H.254 & MPEG4 video format
- Max decoding resolution, upto 3840 x 2160p @ 30Hz decoding capability for each channel
- Supports G.711A and G.711U formats
- Supports high decoding efficiency & clear images
- Supports decoding SD & HD video
- Supports the decoding stream of Onvif protocol
- Supports multicast
- Supports ON/OFF video wall screens
- Upto 36 windows per each output channel
- Upto 4K @ 30Hz output resolution, compatible with mainstream display devices
- Supports window opening, roaming & PIP
- Self-developed decoding algorithm offers high decoding efficiency
and clear images - Embedded Linux OS with 24/7 stable operation
- 3 year Warranty
*HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blue-ray and DVD players.
Specification
| VZ-PRO-IP4x6 | VZ-PRO-IP4x9 | VZ-PRO-IP4x12 | |||
| Decoding Capability | 8ch x 12MP @20 Hz, 8ch x 4K @30Hz, 32ch x 1080p @30 Hz, 72ch x 720p @30 Hz |
12ch x 12MP @20 Hz, 12ch x 4K @30Hz, 48ch x 1080p @30 Hz, 108ch x 720p @30 Hz |
16ch x 12MP @20 Hz, 16ch x 4K @30Hz, 64ch x 1080p @30 Hz, 144ch x 720p @30 Hz |
||
| Decoding Format | H.265, H.264, MPEG4 | ||||
| Split Screen | 36 | ||||
| Windows | 36 | ||||
VZ-PRO-IP4x6 Input
| HDMI Input – 4K | 3840×2160@30Hz, 1920×1080@60/50/30Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA), 1280×1024(SXGA)@60Hz,1280×720(720P)@60/50Hz, 1024×768(XGA)@60Hz(4K Interface 1, 2) |
| HDMI Input – 1080p | 1920×1080@60/50/30Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60/50Hz, 1024×768(XGA)@60Hz (1080p Interface 3, 4) |
VZ-PRO-IP4x6 Output
| HDMI Output – 4K | 3840×2160@30Hz, 1920×1200@60Hz(WUXGA), 1920×1080@60Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA+), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60Hz, 1024×768(XGA)@60Hz (4K Interface 1, 2, 4, 5) |
| HDMI Output – 1080p | 1920×1200@60Hz(WUXGA), 1920×1080@60Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA+), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60Hz, 1024×768(XGA)@60Hz (1080p Interface 3, 6) |
VZ-PRO-IP4x9 Input
| HDMI Input – 4K | 3840×2160@30Hz, 1920×1080@60/50/30Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA), 1280×1024(SXGA)@60Hz,1280×720(720P)@60/50Hz, 1024×768(XGA)@60Hz(4K Interface 1, 2) |
| HDMI Input – 1080p | 1920×1080@60/50/30Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60/50Hz, 1024×768(XGA)@60Hz (1080p Interface 3, 4) |
VZ-PRO-IP4x9 Output
| HDMI Output – 4K | 3840×2160@30Hz, 1920×1200@60Hz(WUXGA), 1920×1080@60Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA+), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60Hz, 1024×768(XGA)@60Hz (4K Interface 1, 2, 4, 5, 7, 8) |
| HDMI Output – 1080p | 1920×1200@60Hz(WUXGA), 1920×1080@60Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA+), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60Hz, 1024×768(XGA)@60Hz (1080p Interface 3, 6, 9) |
VZ-PRO-IP4x12 Input
| HDMI Input – 4K | 3840×2160@30Hz, 1920×1080@60/50/30Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA), 1280×1024(SXGA)@60Hz,1280×720(720P)@60/50Hz, 1024×768(XGA)@60Hz(4K Interface 1, 2) |
| HDMI Input – 1080p | 1920×1080@60/50/30Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60/50Hz, 1024×768(XGA)@60Hz (1080p Interface 3, 4) |
VZ-PRO-IP4x12 Output
| HDMI Output – 4K | 3840×2160@30Hz, 1920×1200@60Hz(WUXGA), 1920×1080@60Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA+), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60Hz, 1024×768(XGA)@60Hz (4K Interface 1, 2, 4, 5, 7, 8, 10, 11) |
| HDMI Output – 1080p | 1920×1200@60Hz(WUXGA), 1920×1080@60Hz, 1600×1200@60Hz(UXGA), 1400×900@60Hz(WXGA+), 1280×1024(SXGA)@60Hz, 1280×720(720P)@60Hz, 1024×768(XGA)@60Hz (1080p Interface 3, 6, 9, 12) |

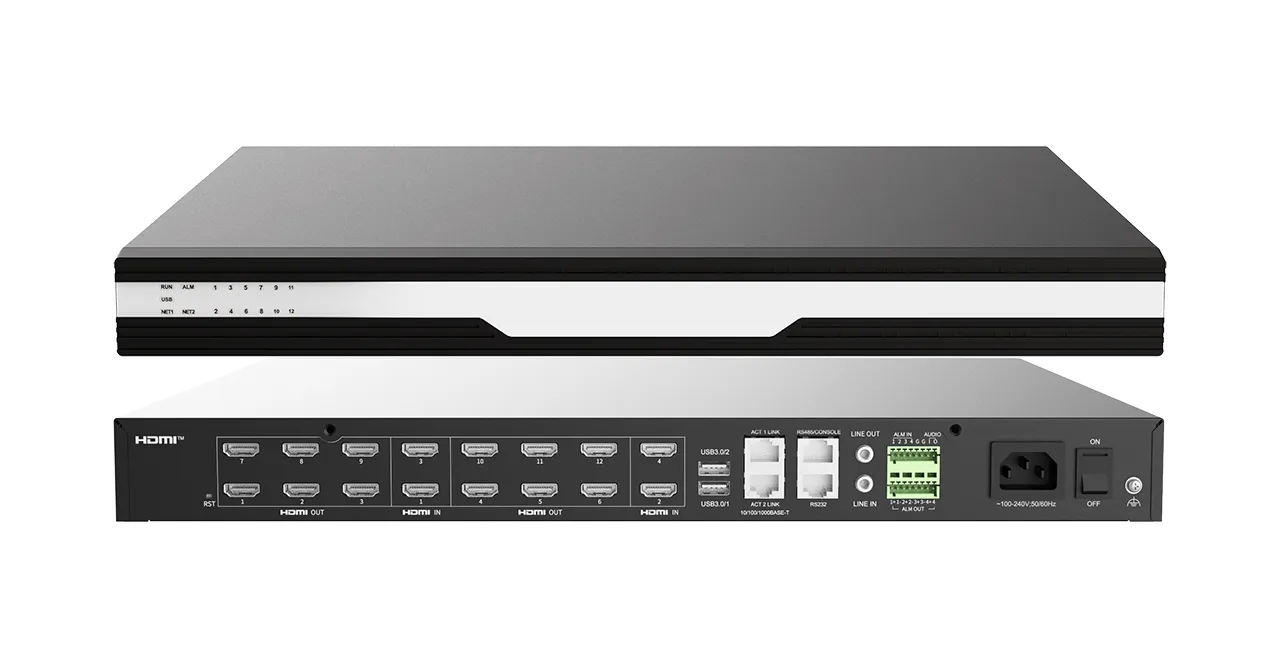

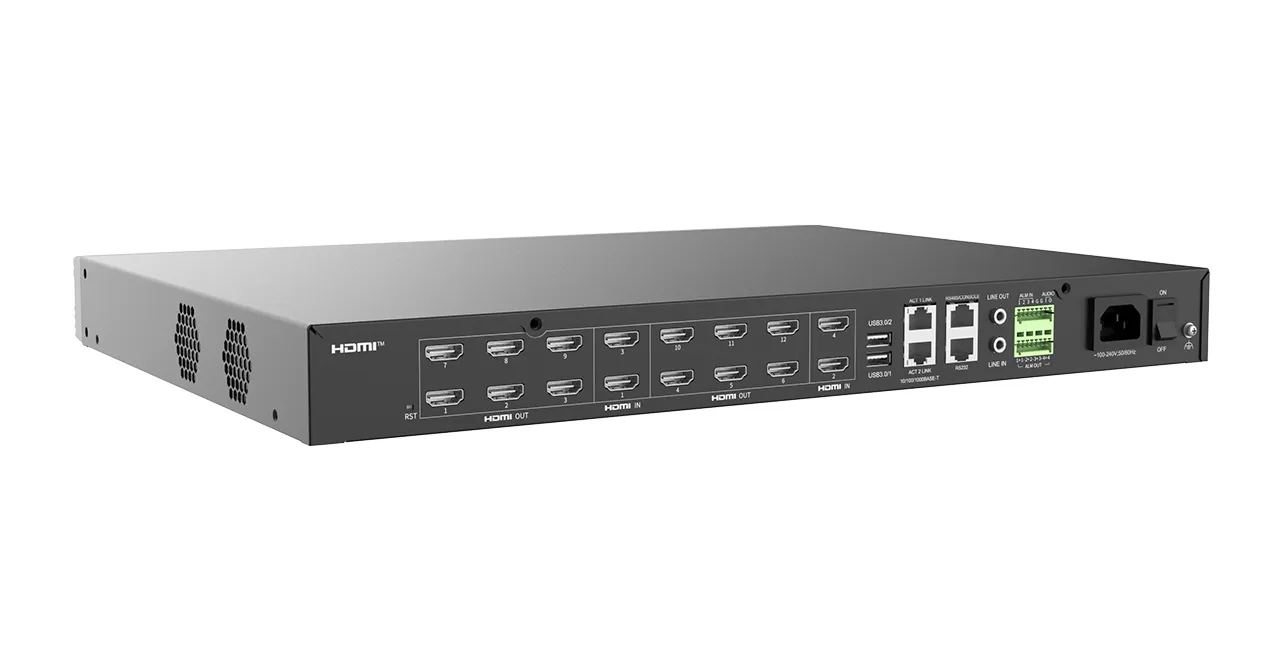

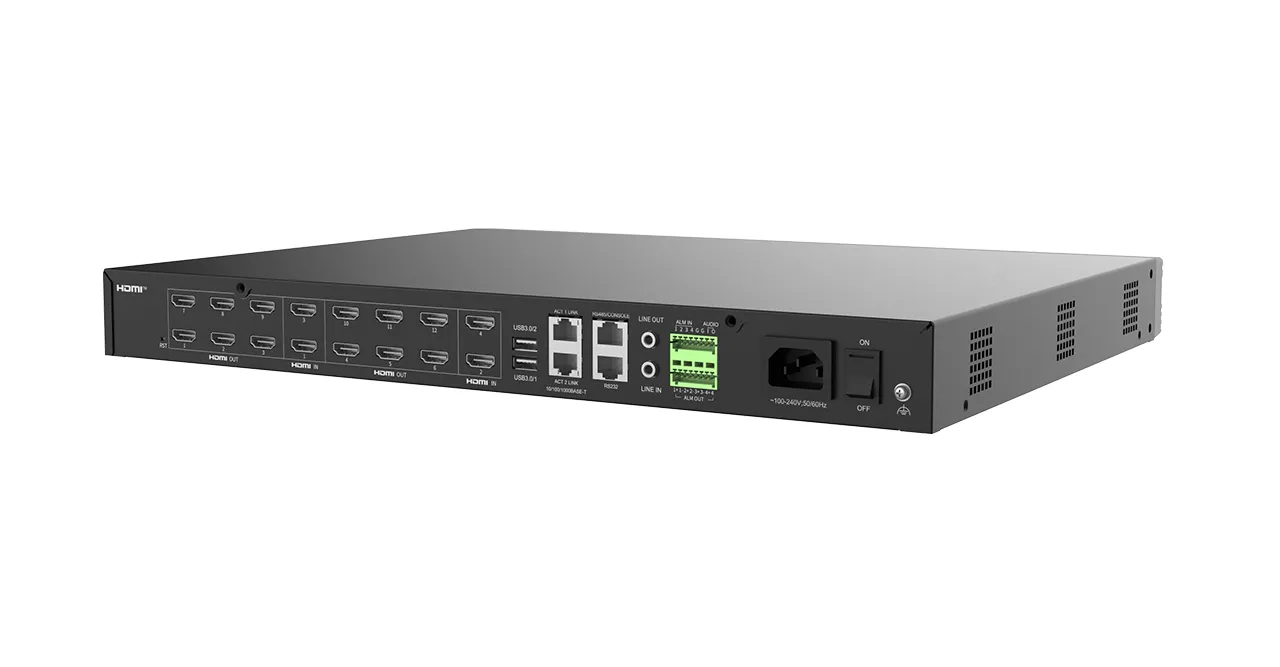

Interface
| VZ-PRO-IP4x6 | VZ-PRO-IP4x9 | VZ-PRO-IP4x12 | |||
| HDMI In / Out | 4 / 6 | 4 / 9 | 4 / 12 | ||
| Audio In / Out | 1 / 1 ( 3.5 mm ) | ||||
| Alarm Signal In / Out | 1 / 1 ( Green Terminal ) | ||||
| Ethernet 10/100/1000 In | 2 (RJ-45, Half Duplex & Full Duplex) | ||||
| RS 485 (RJ-45) | 1 | ||||
| RS 232 (RJ-45) | 1 | ||||
| USB (3.0) | 1 | ||||
Dimensions & Weight
| VZ-PRO-IP 4×6 | VZ-PRO-IP 4×9 | VZ-PRO-IP 4×12 | |||
| Outline Dimension (W x D x H) | 17.32” x 1.73” x 13.34” / 440 x 44 x 339 mm | ||||
| Net Weight | 8.44 lbs / 3.83 kg | 8.59 lbs / 3.9 kg | 8.7 lbs / 3.95 kg | ||
General Summary
| VZ-PRO-IP4x6 | VZ-PRO-IP4x9 | VZ-PRO-IP4x12 | |||
| Power Input | AC 100 ~ 240V, 50/60 Hz | ||||
| Power Consumption (Full load) | ≤ 32W | ≤ 40 W | ≤ 50 W | ||
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C | ||||
| Operating Humidity | 10 – 950 RH | ||||
| Regulation | CE, FCC, RoHS | ||||
| Accessories | Power Cable x1, Manual x1 | ||||
