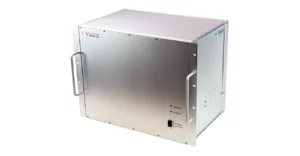

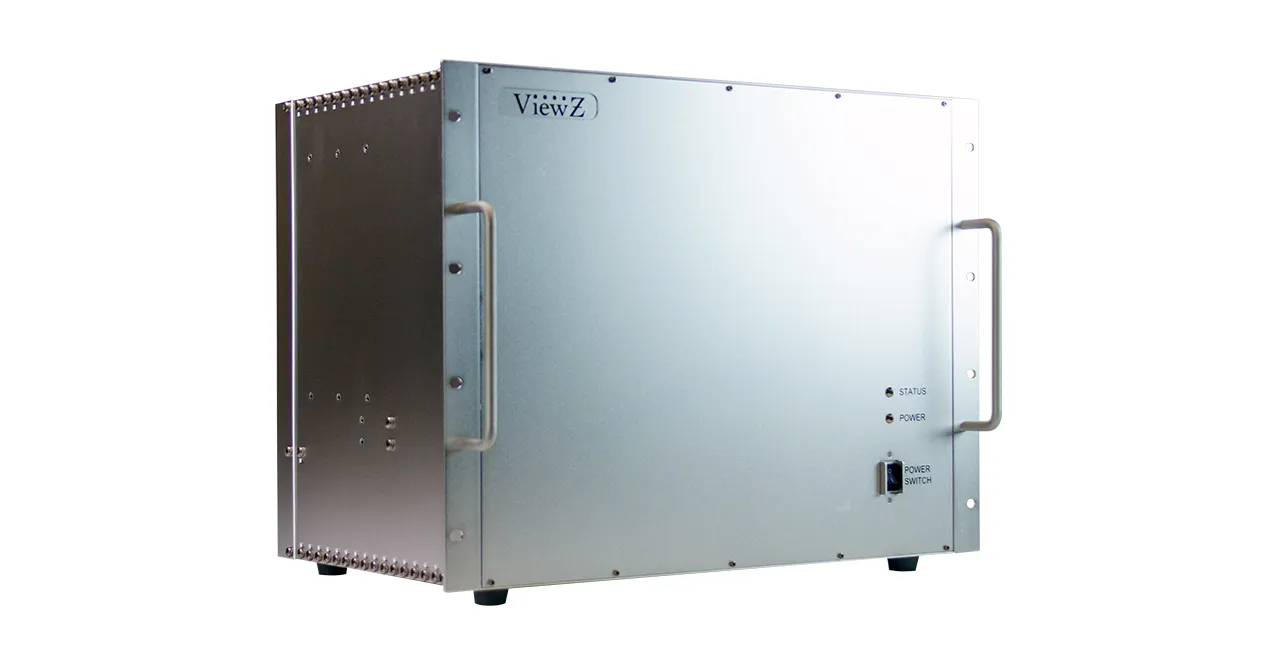

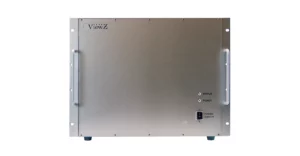

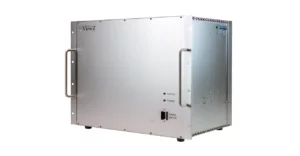

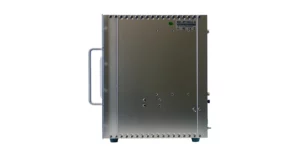

VZ-PRO-MX
VZ-PRO-MX Series is a FPGA-design professional high-performance image processing 4K video wall controller. It can display multiple images on multiple screens in real time without loss of frames for full function multi-window splicing. This advanced control device provides an ideal image processing solution for security operations centers, traffic control centers and other similar applications.
- Maximum Inputs and Outputs of 152 x 160 – 3840 x 2160 @ 60 Hz
- Hot-Pluggable Structure and High Integration of Chassis
- Pure Hardware Structure, no Operating System and High Stability
- Advanced Remote Control Software via TCP/IP
- Serial Control RS-232C Available
- Redundant Power Supply
- Multiple Videowall Setting / Built-in Matrix Function
- NDAA Compliant
- Built to run 24/7/365
Specification | Dimension | Spec & Manual
Series : PRO | Key Features : 4K Support Video Wall Controller NDAA Compliant
Compatible Monitors, Mounts & Accessories
Product Features
VZ-PRO-MX Series is a FPGA-design professional high-performance image processing 4K video wall controller. It can display multiple images on multiple screens in real time without loss of frames for full function multi-window splicing. This advanced control device provides an ideal image processing solution for security operations centers, traffic control centers and other similar applications.
This wall controller adopts the large-scale high performance FPGA array and high–speed digital switching technology architecture and combined with full digital hardware design concept, provides a CPU-free operation and offers powerful processing capabilities such as broadband video signal acquisition and real-time high resolution digital image processing. VZ-PRO-MX uses digital multibus paralleling and digital multibus data switching processing mechanism that can fundamentally ensure all the input signal sources are processed with real-time processing and data consistency without delay, discretization and frame loss.
- Model Number: VZ-PRO-MX
- Maximum Input and Outputs of 152 x 160 for 3840 x 2160 @ 60Hz
- Hot-Pluggable Structure and High Integration of Chassis
- Pure Hardware Structure, no Operating System and High Stability
- Advanced Remote Control Software via TCP/IP
- Serial Control RS-232C Available
- Redundant Power Supply
- Multiple Videowall Setting
- Synchronized Sub Monitor can be added
- Built to run 24/7/365
- NDAA Compliant
- 3 year Warranty
*HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blue-ray and DVD players.
Specification
| 8RU | 12RU | 18RU | 26RU | |
| Frame Number | 1 | 1 | 2 | 3 |
| Total Card Support | 20 | 40 | 60 | 80 |
| Max Input Card | 18 | 38 | 38 | 76 |
| Max Output Card | 10 | 20 | 20 | 40 |
Resolution
| Max Resolution | 3840 x 2160 @30Hz |
| Max Bit Rate | 25 Gbps per card |
| Support Layers | Up to 4 layers for 4K (8 Layers for 2K) per output card |
| Max Preset / Group | 32 per group / 4 |
Interface
| HDMI 4K Input Card (VZ-H4KM-IN1) | HDMI 2.0 – 1 Input I Up to 3840×2160/60p |
| HDMI 4K Input Card (VZ-H4KM-IN2) | HDMI 1.4 – 2 Inputs I Up to 3840×2160/30p |
| HDMI HD Input Card (VZ-H2KM-IN4) | HDMI 1.3 – 4 Inputs I Up to 1920×1080/60p |
| DVI HD Input Card (VZ-D2KM-IN4) | DVI – 4 Inputs I Up to 1920×1080/60p |
| DVI HD Input Card | DVI – 2 Inputs | Up to 1920x1080p/60 |
| SDI Input Card (VZ-S2KM-IN4) | SDI – 2 Inputs I Up to 1920×1080/60p |
| BNC Input Card (VZ-B1KM-IN8) | BNC – 8 Inputs I CVBS |
| IP Decoder Card (VZ-IPM-IN2) | IP – 1 Input I H.265 IP Decorder – Decode up to 4 (4K) or 16 (1080p) |
| HDMI 4K Output Card (VZ-H4KM-OUT1) | HDMI 2.0 – 1 Output I Up to 3840×2160/60p |
| HDMI 4K Output Card (VZ-H4KM-OUT2) | HDMI 1.4 – 2 Outputs I Up to 3840×2160/30p |
| HDMI HD Output Card (VZ-H2KM-OUT4) | HDMI 1.3 – 4 Outputs I Up to 1920×1080/60p |
| DVI Output Card (VZ-D2KM-OUT4) | DVI – 4 Outputs I Up to 1920×1080/60p |
| HDBase-T Output Card (VZ-HDBT-OUT4) | HDBase-T – 4 Outputs I Up to 1920zx1080/60p |
| Ethernet 10/100 (RJ45) | 1 (Remote Control) |
| RS232 In / Out | 1 (Serial Control/IR Receiver) / 1 |
| USB | For Firmware Update |
Remote Control
| Serial Control (RS232C) / Network | Yes (DB9 Connector) / TCP/IP (RJ45) |
| Remote Control Software for TCP/IP | Multiview Controller Software (Compatible with Windows XP/7/8/10) |
Dimensions & Weight
| 8RU | 12RU | 18RU | 26RU | |
| Outline Dimension (W x D x H) | 19″ x 13.96″ x 11.86″ / 482.52 x 354.75 x 301.4 mm | 19″ x 20.96″ x 11.86″ / 482.52 x 532.25 x 301.4 mm | 19″ x 32.04″ x 11.86″ / 482.52 x 814 x 301.4 mm | 19″ x 45.46″ x 16″ / 482.52 x 1154.85 x 406.4 mm |
| Net Weight | 39.6 lbs / 18 Kg | 44 lbs / 20 Kg | 55 lbs / 25 Kg | 88 lbs / 40 Kg |
Mount
| 8 RU | 12 RU | 18 RU | 26 RU | |
| Server Chassis | 8U (19”) | 12U (19”) | 18U (19”) | 26U (19”) |
General Summary
| 8RU | 12RU | 18RU | 26RU | |
| Power Input | 100 – 240V AC | |||
| Power Consumption (Full load) | 450 Watts | 800 Watts | 1000 Watts | 2000 Watts |
| Redundant Power Supply | Support | Support | Support | Support |
| Operating Temperature | 22°F ~ 122°F / -30°C ~ 50°C | |||
| Operating Humidity | 5% – 95% Non-Condensing | |||
| Cooling Fan | Built-in | |||
| Regulation | FCC(A), CE, NDAA | |||
Product Dimension & Weight
Click below to enlarge
