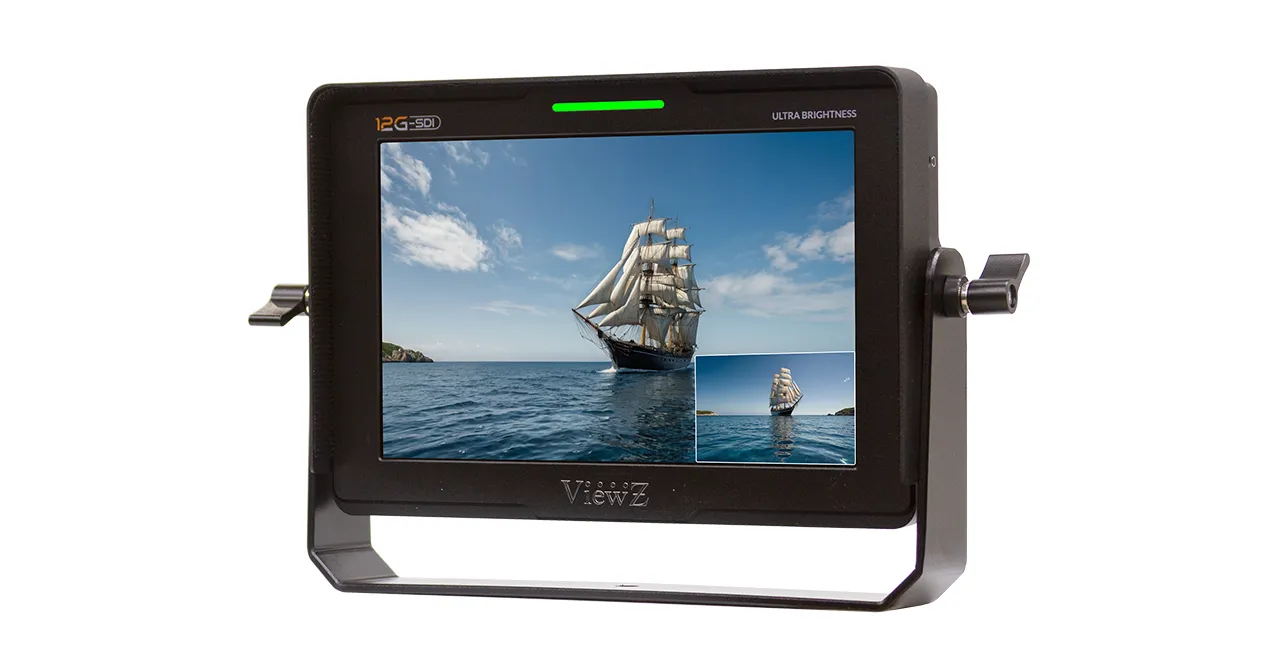

Add crisp daylight viewing to your video or photography shoot with the VZ-070FM-12G 7” HD 12G-SDI/HDMI 2.0 Ultra-Bright On-Camera Monitor. Bright enough to be seen outdoors, the VZ-070FM-12G monitor supports up to DCI 4K60 video, has HDMI and dual 12G-SDI inputs and outputs, and offers pro functions like 3D LUTs, high dynamic range (HDR), multiple log compatibility, imaging tools, and a Sony L-Series battery plate.
- 7″ Portable 4K & 3G-SDI Monitor
- 1920 x 1200 Resolution (IPS Panel)

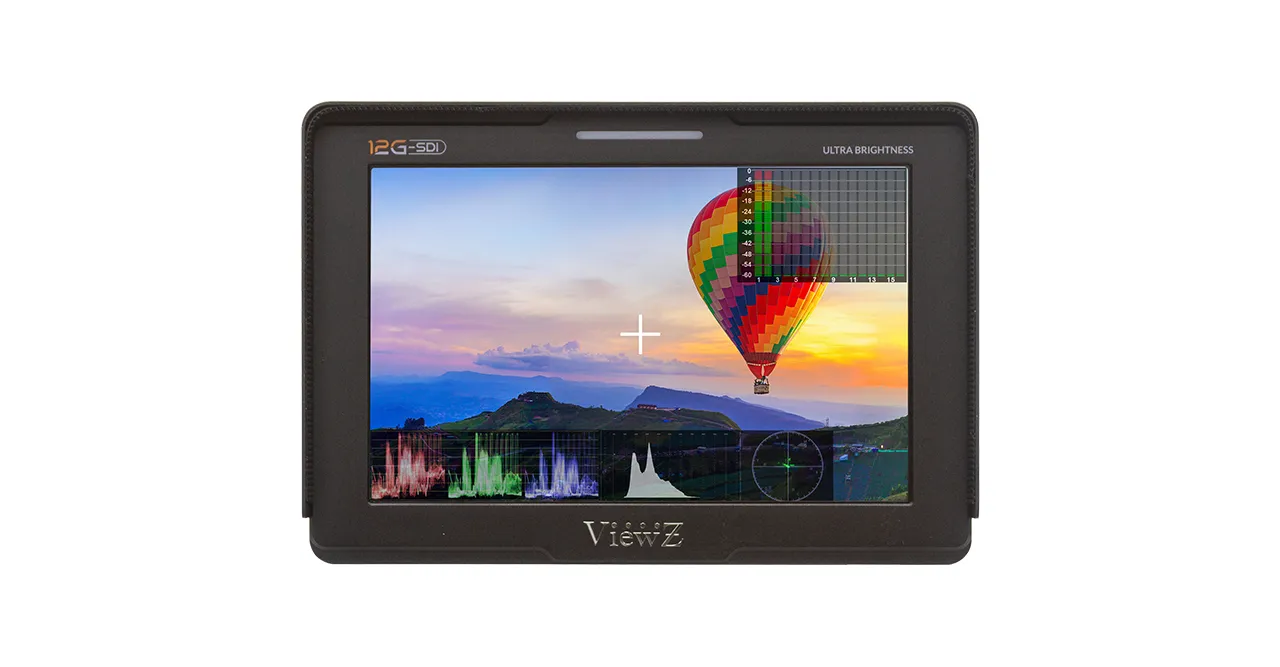

- Waveform, Histogram and Vector Scope
- 12G-SDI & HDMI 2.0 Loop-Through Input & Output
- 12G-SDI | 6G-SDI | 3G-SDI (Level A/B) | HD-SDI/SD-SDI
- ST2084 / HLG, False Color, Exposure, Peaking Focus
- Color Temperature, Color Space and Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
- Tally ( Red / Green / Yellow )
- Audio Level Meter
Specification | Dimension | Spec & Manual
Series : Field Monitor | Key Features : 12G-SDI 3G-SDI Tally
Product Features
- Model Number: VZ-070FM-12G
- 7″ Portable Field 4K & 12G-SDI Monitor
- All SDI signals Input – 12G-SDI | 6G-SDI | 3G-SDI (Level A, DL-B, DS-B) | HD-SDI/SD-SDI
- 12G-SDI & HDMI 2.0 Loop-Through Input & Output
- High Brightness 2000 cd/m2
- Waveform, Vector Scope, Histogram
- 12G-SDI Picture in Picture, Tally (Red/Green/Blue)
- HDR(PQ/HLG), 3D-LUT
- ST2084 300/ST2084 1000/ST2084 10000/HLG
- False Color, Color Temperature, Color Space, Peaking Filter
- Pixel to Pixel, Pixel Zoom, (User) Marker
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
- Check Field, Exposure, HV Delay, Freeze
- Audio Level Meter, Audio Vector
Display
| Screen Size | 7″ (IPS Panel) |
| Max Resolution | 1920 x 1200 |
| Brightness | 2000 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 10 |
| Viewing Angle (H/V) | 170°/170° |
| HDR Supported | HLG & ST 2084 300/1000/10000 |
| Display Color | 1.07B |

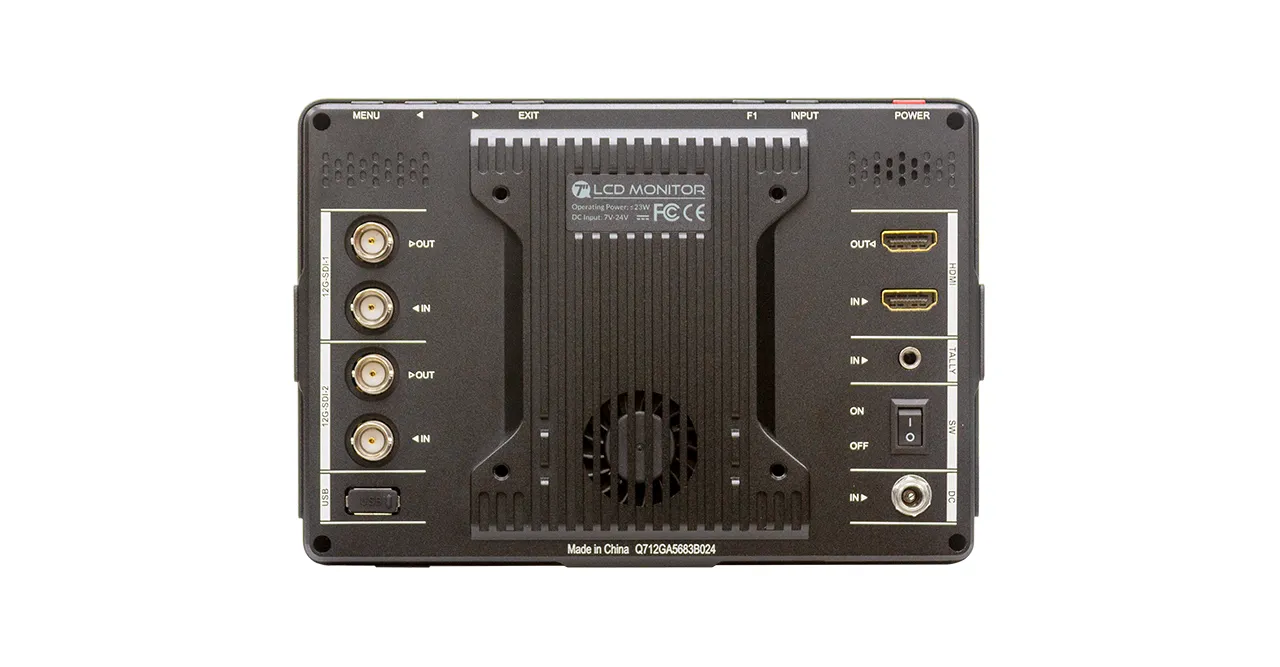

Interface
| 12G-SDI In / Out | 2 / 2 |
| HDMI (2.0) In / Out | 1 / 1 |
| Tally | 1 |
Input Format
| 12G-SDI – SMPTE 425M-Level A | 3840x2160p – 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 23.98sf / 24sf / 25sf / 29.97sf / 30sf |
| 3G-SDI Level A/B | 1920x1080p – 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 23.98sf / 24sf / 25sf / 29.97sf / 30sf |
| HD-SDI | 1920x1080p – 23.98 / 24 / 25 / 29.97 / 30 23.98sf / 24sf / 25sf / 29.97sf / 30sf |
| HD-SDI | 1920x1080i – 50 / 59.94 / 60 |
| HD-SDI | 1280x720p – 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| SD-SDI | 525i (59.94) / 625i (50) |
| HDMI | 3840x2160p – 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1920x1080p – 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1920x1080i – 50 / 59.94 / 60 |
Audio
| Built in Speaker | 2 x 1W |
| SDI | 16ch 48kHz 24 bit |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5mm |
Dimensions & Weight
| Outline Dimension (W x H x D) | 7.32 x 5.03 x 1.27″ / 186 x 128 x 32.5 mm |
| Net Weight | 1.73 lbs / 0.785 kg |
General Summary
| Power – Electrical Ratings | DC 7~24V (AC 100 ~ 240V) |
| Power – Consumption | ≤ 23 W (12 V) |
| Warranty | 2 Years |
| Operating Temperature | 32 – 122°F / 0 – 50°C |
| Humidity at High Operating Temperature | 10 ~ 90% RH |
| Storage Temperature | 14 ~ 140°F / -10 ~ 60°C |

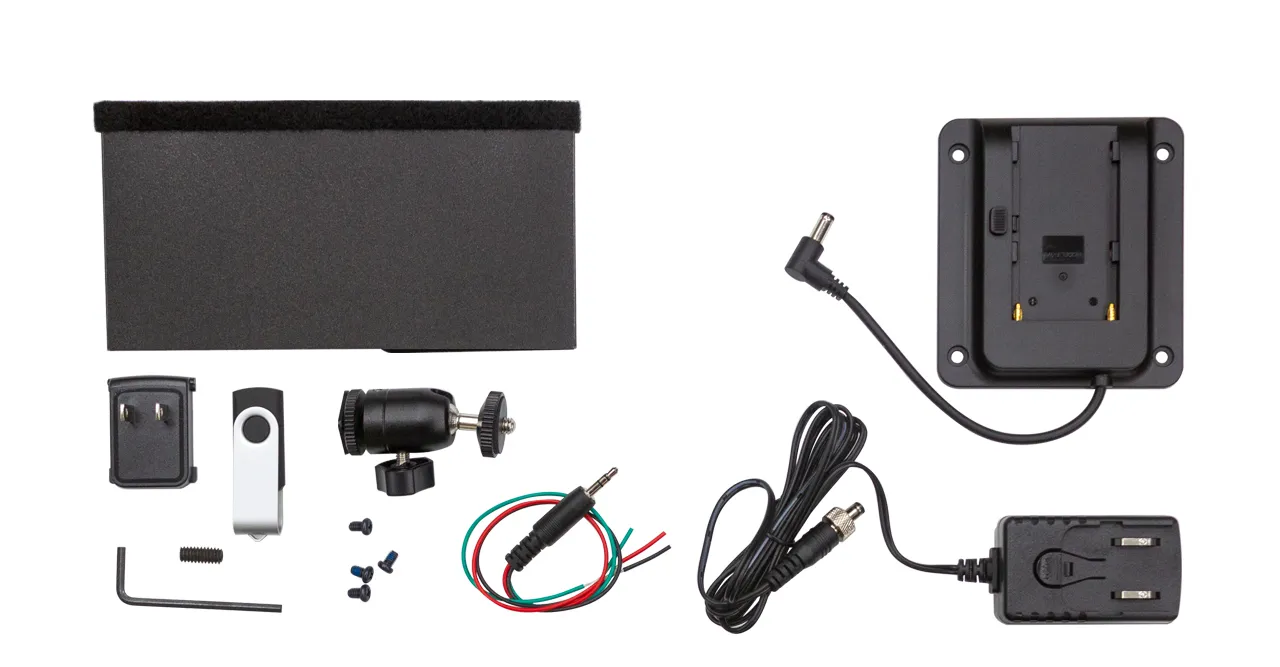

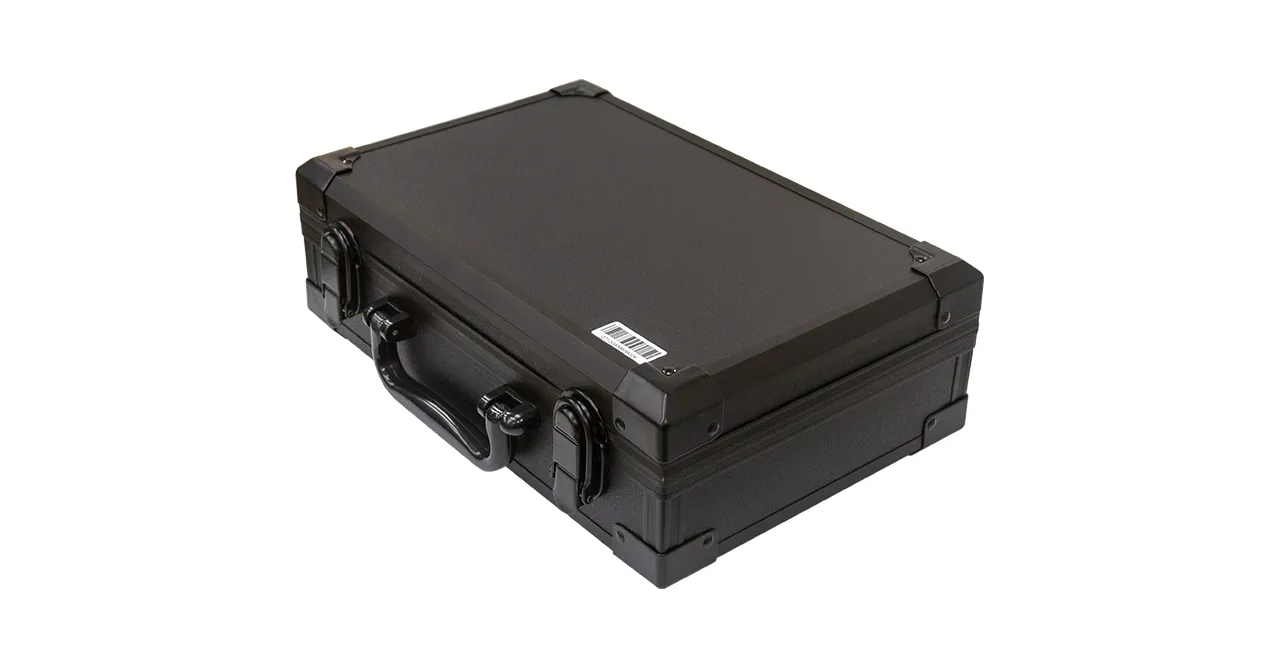

| Package Include | Manual x 1, 12V 2A DC Power Adapter x 1, U-Shaded Bracket x 1, Tally Connector x1, Carrying Case x 1, VESA Plate (75mm) x1 |

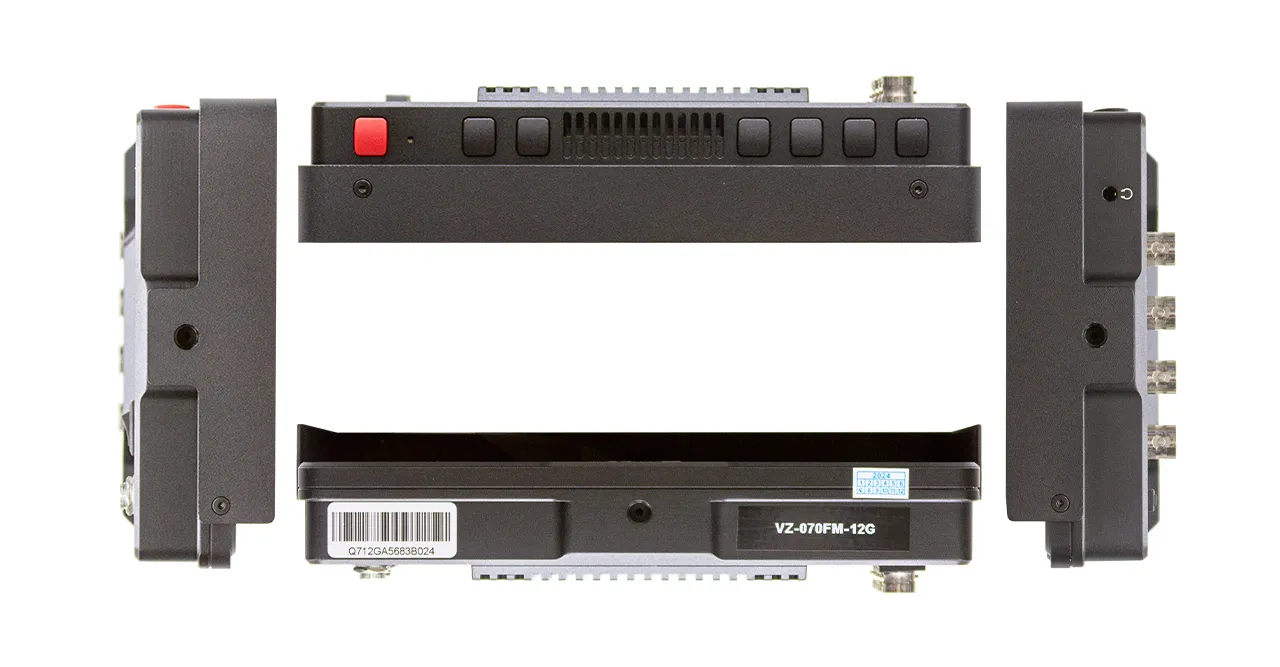

Product Dimension & Weight
Click below to enlarge
