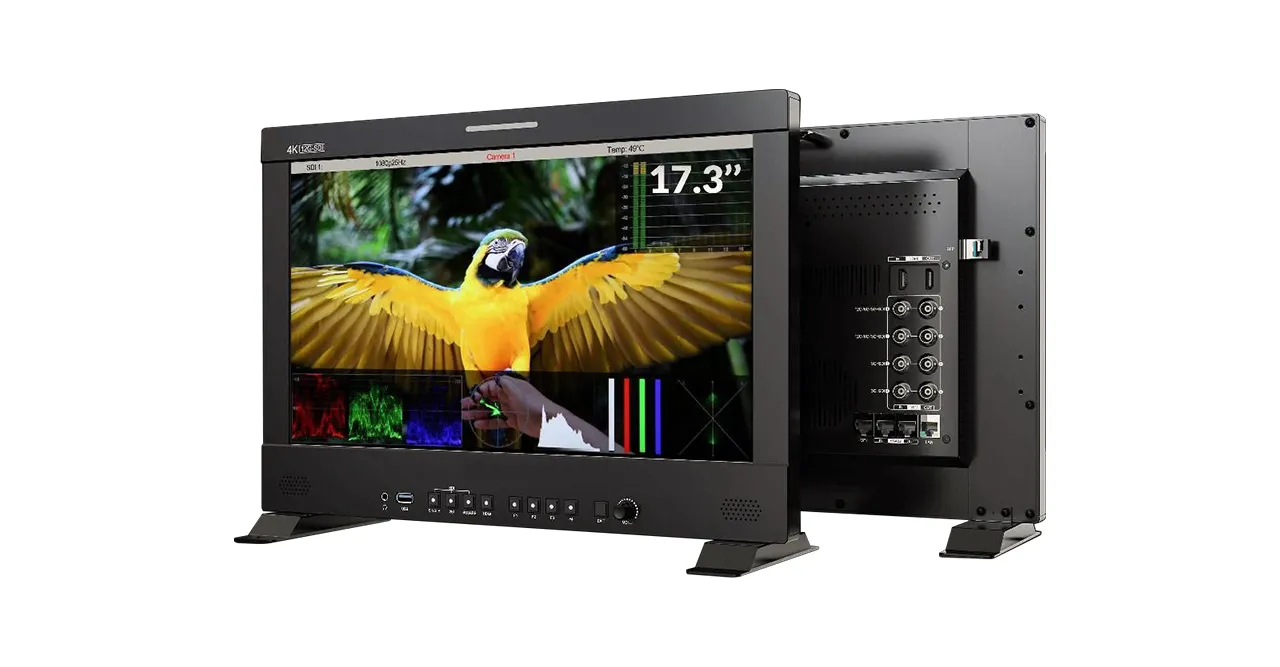

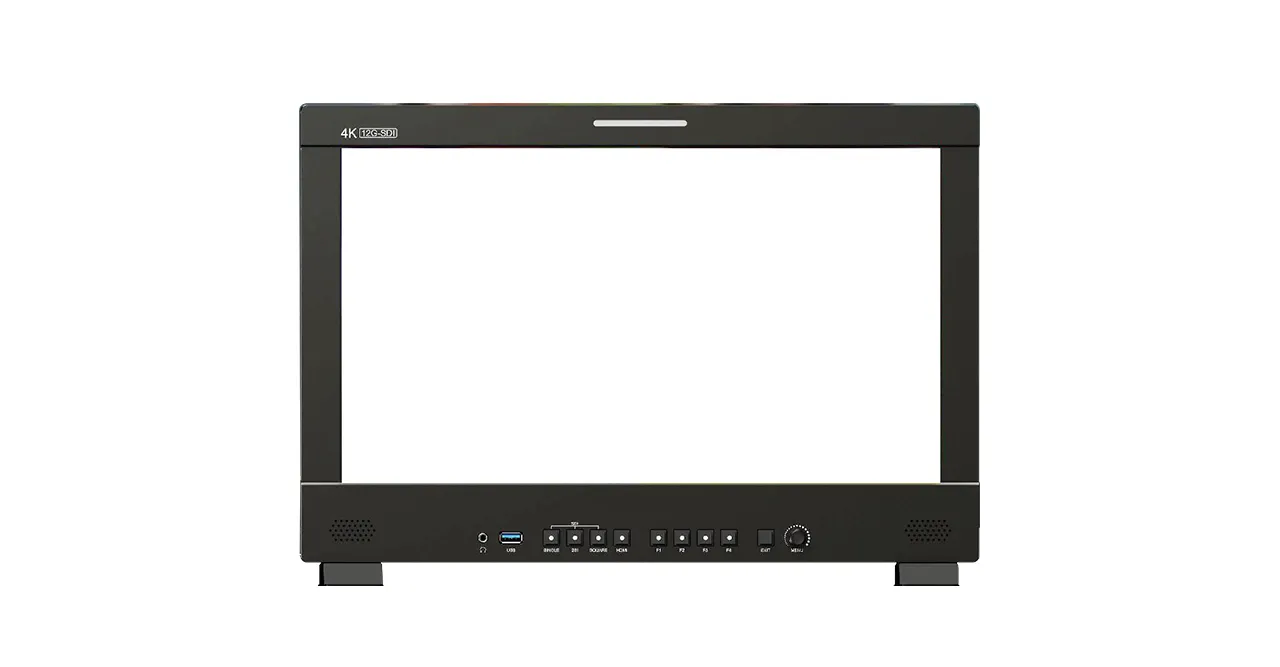

VZ-173PM-12GU is a 17.3” 4K monitor with 7U 12G-SDI interface - 2×3G-SDI & 2×12G-SDI. VZ-173PM-12GU supports various video formats including 12G-SFP, 12G/6G/3G/HD-SDI and HDMI 2.0. VZ-173PM-12GU provides wide color gamut up to DCI and a full feature set. It supports up to 4096x2160 (60,50,30,25 & 24p) and 3840x2160 (60,50,30,25 & 24p) signal.
- 17.3” 4K/12G-SDI Monitor
- All SDI signals Input -12G-SDI / 6G-SDI / 3G-SDI (Level A, DL-B, DS-B) / HD-SDI / SD-SDI

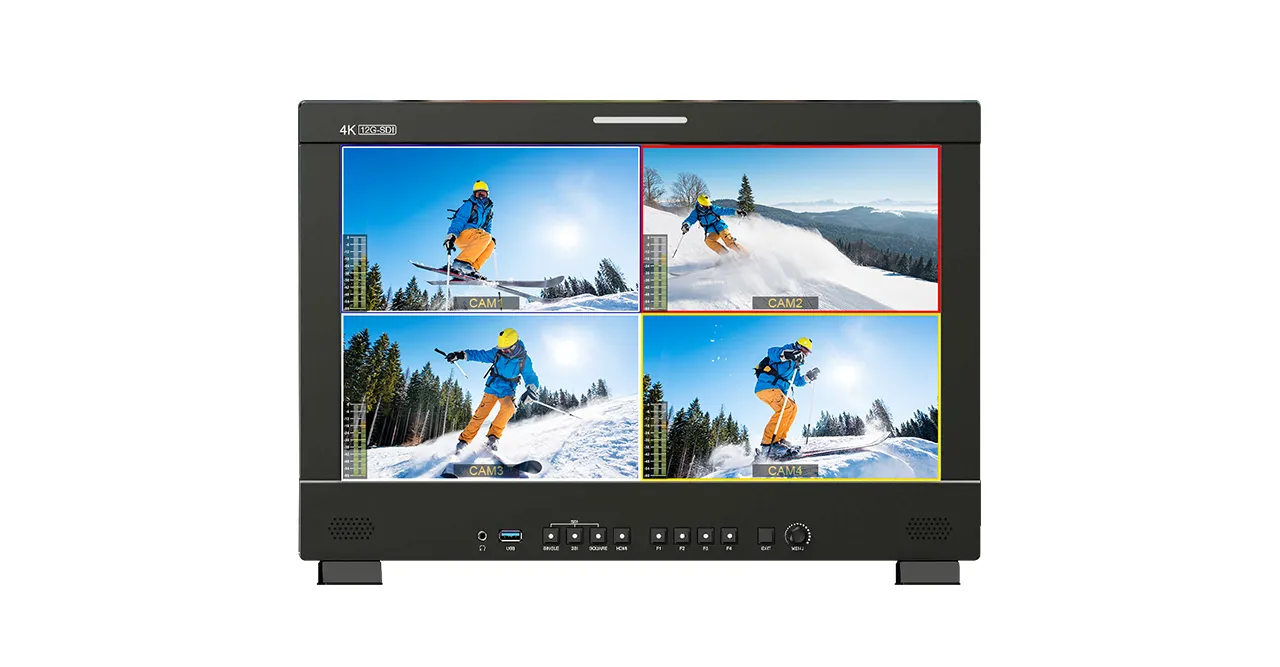

- Quad SDI | Dual SDI | Single SDI / HDMI
- 12G-SDI / 3G-SDI Loop-Through
- ST2084 / HLG / Time Code ( LTC / VITC ) / Tally
- Waveform / Vector Scope / Histogram / UMD
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
Specification | Dimension | Spec & Manual
Series : Production Monitor | Key Features : 12G-SDI 3G-SDI Tally
Product Features
- Model Number: VZ-173PM-12GU
- All SDI signals Input – 12G-SDI/6G-SDI/3G-SDI (Level A, DL-B, DS-B) / HD-SDI / SD-SDI
- Quad SDI | Dual SDI | Single SDI/HDMI
- ST2084 / HLG / Time Code ( LTC / VITC )
- Loop-Through (SDI)
- Tally ( Red / Green / Yellow )
- Audio Level Meter (16ch) / Audio Vector (Remote Lissajous)
- Front User definable buttons F1 and F4
- Picture / (User) Marker / UMD
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
- Waveform / Vector Scope / Histogram
- Check Field / Exposure / HV Delay / Freeze
- False Color / Color Temperature / Color Space (144% Rec.709; 91% DCI-P3)
Display
| Screen Size | 17.3″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.1989 mm x 0.1989 mm |
| Brightness | 400 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 16.7 M |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User |
| LUT (Look Up Table) | Support (3D LUT – .cube Format) |
| Technology | Calibration to Rec.709 with Optional Calibration Unit |

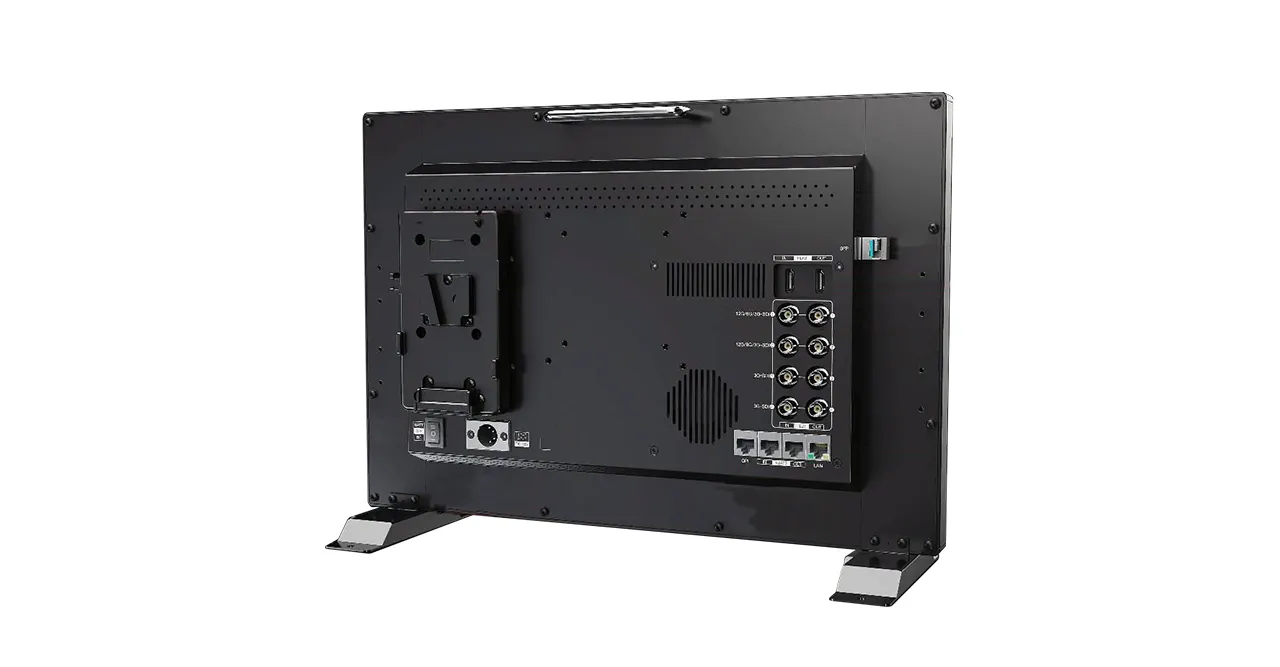

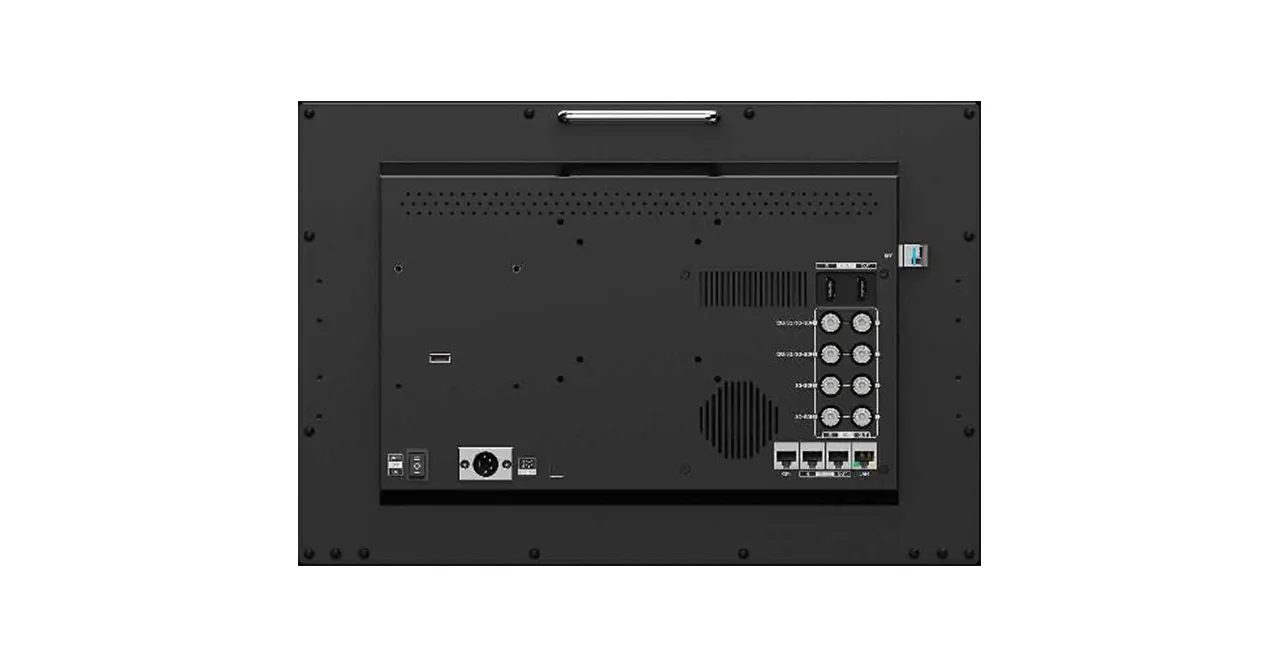

Interface
| 12G-SDI In / Out | 2 / 2 (Loopthrough) |
| 3G-SDI In / Out | 2 / 2 (Loopthrough) |
| HDMI 2.0 In / Out | 1 / 1 |
| 12G SFP In | 1 x 12G SFP+ ( Fiber Module for Option) |
| RJ45 In | 1 |
| RS422 In / Out | 1 / 1 (Remote Control) |
| GPI In | 1 (Remote Control) |
| USB In | 1 (Remote Control) |
Audio
| Built in speaker | 1W x 2 |
| SDI | 16ch 48kHz 24 bit |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5 mm |
Dimensions & Weight
| Outline Dimension (W x H x D) | 17.08 x 11.58 x 1.79″ / 433.9 x 294.2 x 45.7 mm |
| Net Weight | 8.59 lbs / 3.9 kg |
Input Format
| 12G-SDI (YCbCr 4:2:2) | 3840×2160/4096×2160 (47.95/48/50/59.94/60p) |
| 12G-SDI (YCbCr 4:4:4) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| DL 6G (YCbCr 4:2:2) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| DL 6G (YCbCr 4:4:4) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| 6G-SDI (YCbCr 4:2:2) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| 6G-SDI (YCbCr 4:4:4) | 1920p/2048×1080 (47.95/48/50/59.94/60p) |
| 2SI-3G (YCbCr 4:2:2) | 3840×2160/4096×2160 (47.95/48/50/59.94/60p) |
| 2SI-3G (YCbCr 4:4:4) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| SQ-HD,2SI DL-3G, SQ DL-3G | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| SQ-3G (YCbCr 4:2:2) | 3840×2160/4096×2160 (47.95/48/50/59.94/60p) |
| SQ-3G (YCbCr 4:4:4) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| DL 3G-SDI-Level B (YCbCr 4:2:2) | 1080p / 2048×1080 (47.95p/48p/50p/59.94p/60p) 720p(23.98/24/25/29.97/30/50/59.94/60p) |
| DL 3G-SDI-Level B (YCbCr 4:4:4) | 1080p (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p//29.97sf/30p/30sf/50i/59.94i/60i) |
| 3G-SDI-Level A (YCbCr 4:2:2) | 1080p / 2048×1080 (47.95p/48p/50p/59.94p/60p) |
| 3G-SDI-Level A (YCbCr 4:4:4) | 1080p / 2048×1080 (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p/29.97sf/30p/30sf) 720p(23.98p/24p/25p/29.97p/30p/50p/59.94p/60p) |
| HD | 2048×1080/1080P/720P |
| SD | 525i/625i |
| HDMI | 3840×2160 (24/25/30/50/60p) 1080p (24/25/30/50/60p) 1080i (50/60p), 720p (50/60p) |
General Summary
| Power – Electrical Ratings | XLR-4p (DC 12~24V) |
| Power – Consumption | ≤ 34.5W (15 V) |
| Warranty | 2 Years |
| Operating Temperature | 32 ~ 122°F / 0 ~ 50°C |
| Operating Humidity | 90% RH for 240 hrs, TA=+ 140°F (60°C) |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Battery Plate | V-mount / Anton Bauer Mount |
| Package Include | 15V DC Adapter x1, Manual x1, VESA Plate x1, USB Disk x1, Desktop Stand Set x1 |
| Package Option | Carrying Case x 1, Gimbal Bracket x1, Battery Plate (V-Mount) x 1, Rack Mount Bracket x1 |
