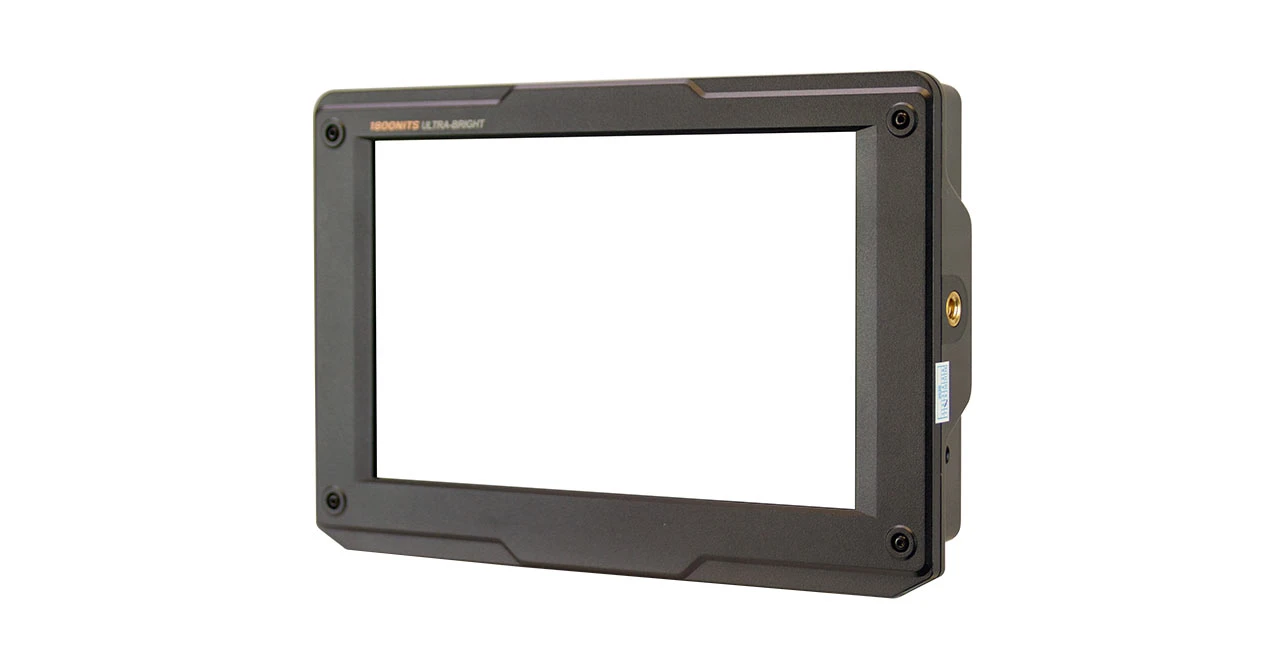

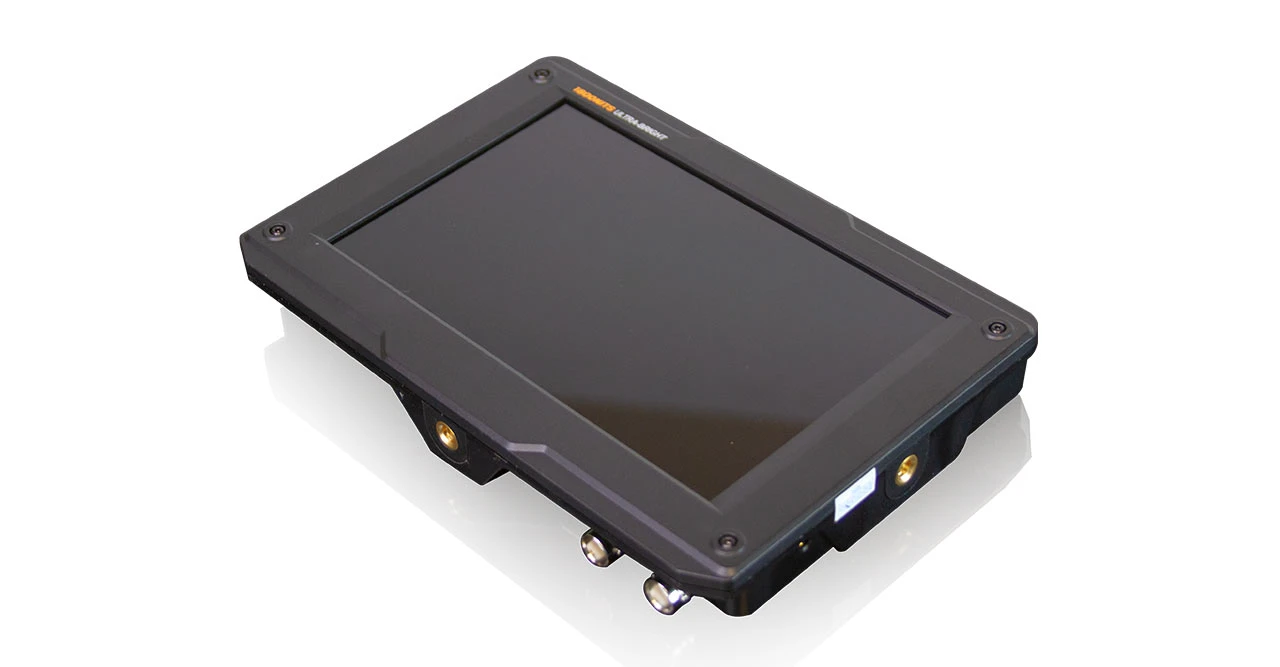

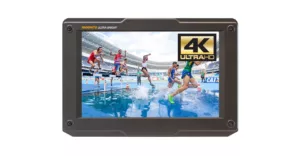

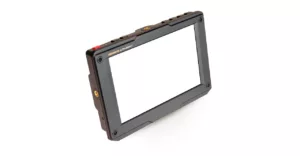

7-inch High Brightness 3G-SDI/HDMI 4K Field Monitor
- 7” LED 3G-SDI/HDMI Portable Monitor
- 3D LUT, HDR (HLG & PQ), Image Flip & Zoom, Histogram
- SDI & HDMI Loop-through out, User-Definable Button (F1)
- Histogram, Audio Level Meter (2ch out of 16ch), User Markers
- H/V Delay, Peaking, Exposure, False Color(SD/HD SDI)
- Tally (Red, Green, Yellow) Support, Mount Shoe, Battery Mount
- Gamma 1.8/2.0/2.2/2.35/2.4/2.6
Specification | Dimension | Spec & Manual
Series : Field Monitor | Key Features : 3G-SDI HDR 4K
Product Features
- Model Number: VZ-070FM-4K
- Audio Level Meter (2ch out of 16ch), Gamma 1.8/2.0/2.2/2.35/2.4/2.6
- Aspect Ratio 16:9, 1.85:1, 2.35:1, 4:3, 3:2 and User Defined Ratio
- Center & Safety Marker
- SDI & HDMI Loop-through output
- 3D LUT & HDR (HLG & PQ)
- Image Flip & Zoom, Histogram
- Check Field, Freeze, Gamma, Pixel to Pixel
- User-Definable Button (F1)
- Screen Color Mode: Blue, Red, Green & Mono
- H/V Delay, Peaking, Exposure, False Color(SD/HD SDI)
- Tally (Red, Green, Yellow) Support, Shoe Mount, Carrying Bag
Display
| Screen Size | 7″ (IPS Panel) |
| Max Resolution | 1920×1200 @60Hz |
| Pixel Pitch | 0.07875 mm x 0.07875 mm |
| Brightness | 1800 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 10 |
| Viewing Angle (H/V) | 160°/160° |
| Display Color | 16.7 Million (8bit) |

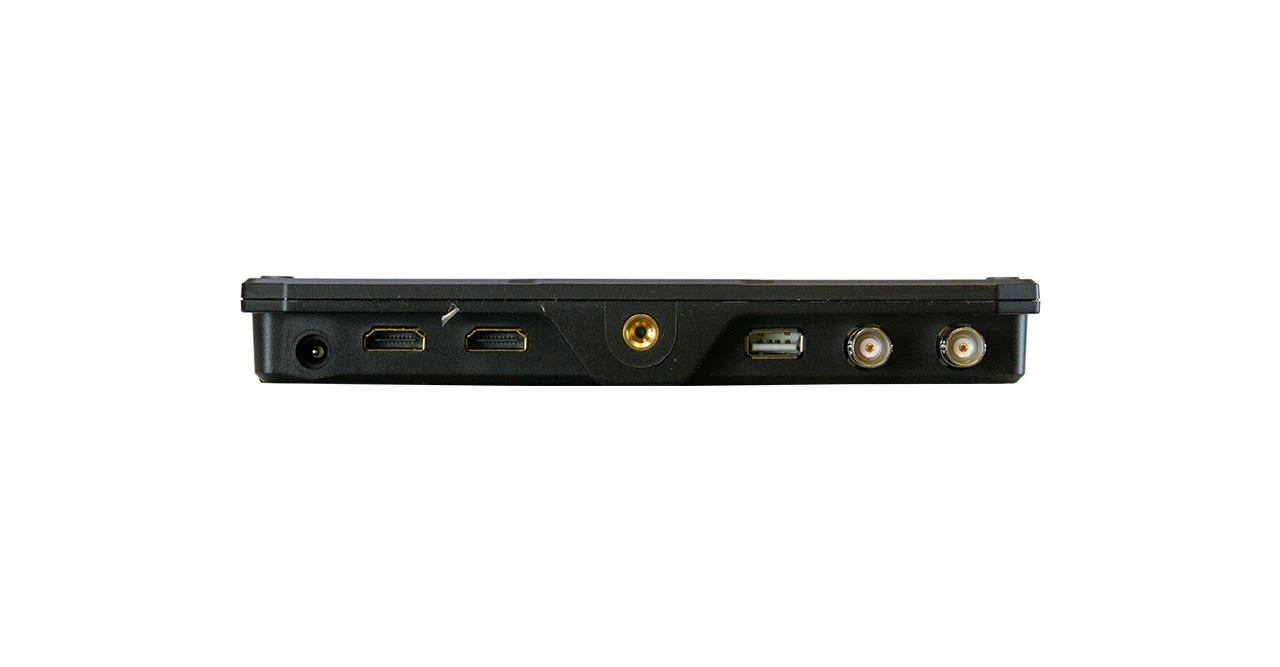

Interface
| 3G-SDI In / Out | 1 / 1 |
| HDMI In / Out | 1 / 1 |
| Tally | 1 |
| USB | 1 |
| Audio Out (3.5 mm) | 1 (2ch De-Embedded Audio Selected Output) |
Input Format
| 3G-SDI Level A/B |
1080p / 60,59.94,50,30,29.97,25,24,23.98, 30sf, 29.97sf, 25sf, 24sf, 23.98sf 1080i / 60, 59.94, 50 |
| HD-SDI |
1080p / 30, 29.97, 25, 24, 23.98, 30sf, 29.97sf, 25sf, 24sf, 23.98sf 1080i / 60,59.94,50 720p / 60,59.94,50,30,29.97,25,24,23.98 |
| SD-SDI | 525i / 59.94, 625i / 50 |
| HDMI 1.4B |
2160p (4K) / 30, 29.97, 25, 24, 23.98 1080p / 60,59.94,50,30,29.97,25,24,23.98 1080i / 60, 59.94, 50 |
| Audio Format – SDI | 12ch 48kHz 24-bit |
| Audio Format – HDMI | 2 or 8ch 24-bit |
Audio
| Built in speaker | 1 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 7.67 x 5.19 x 0.86″ | 195 x 132 x 25.4 mm |
| Net Weight | 1.21 lbs / 550g |
General Summary
| Power – Electrical Ratings | DC 7 ~ 24V |

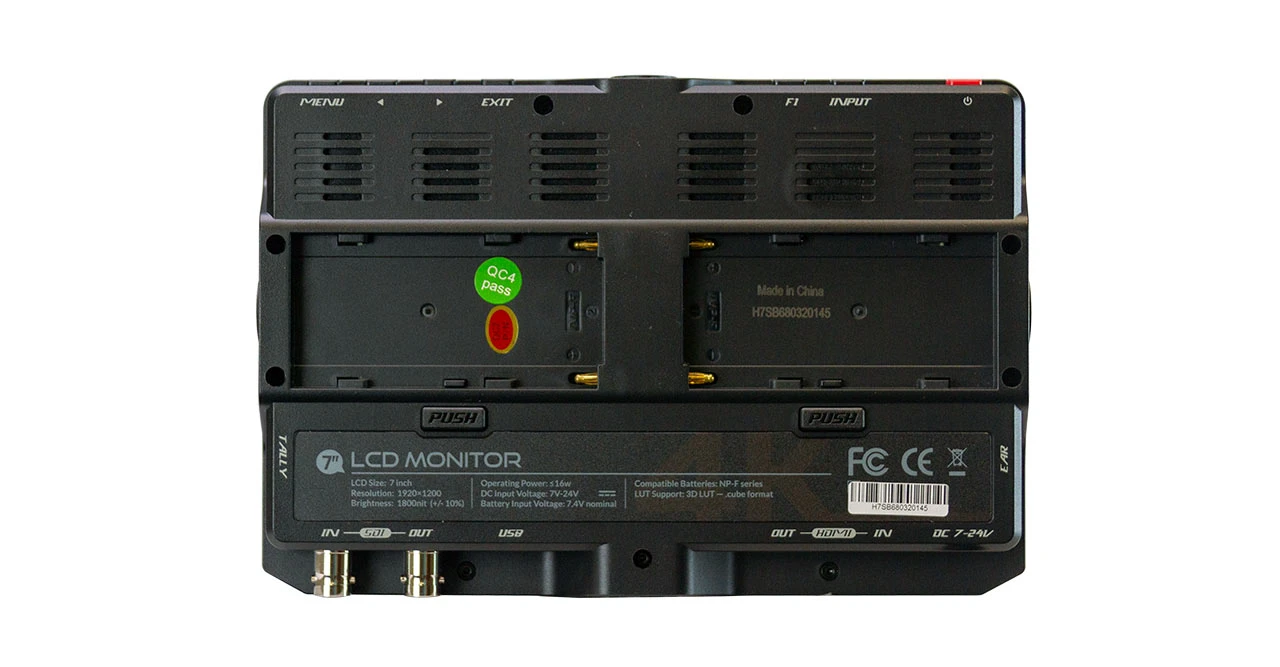

| Power – Battery (Option) | L Series NP-F type only |
| Power – Consumption | ≤ 16 W (12V) |
| Warranty | 2 Years |
| Operating Temperature | 32 – 140°F / 0 – 60°C |
| Storage Temperature | 14 – 140°F / -10 – 60°C |
| Package Include | Monitor x1, Carrying Bag x1, HDMI A to C Cable x1, Shoe Mount x1, Tally Cable x1, Manual x1 |
Product Dimension & Weight
Click below to enlarge
