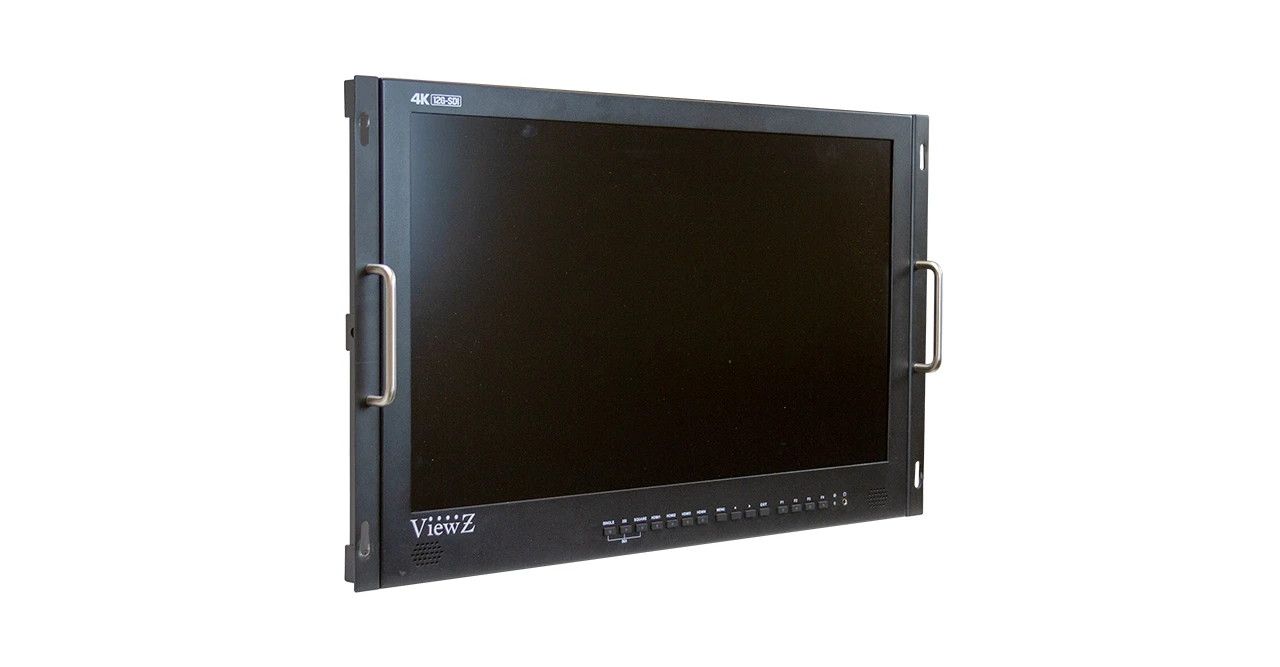

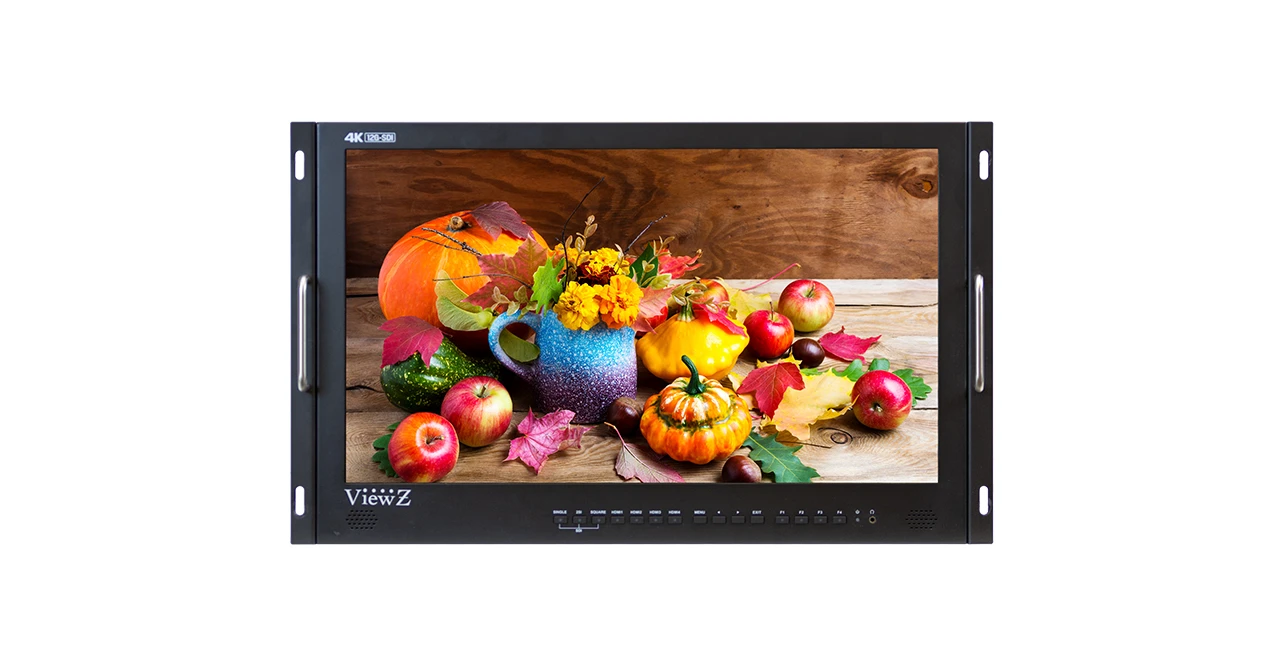

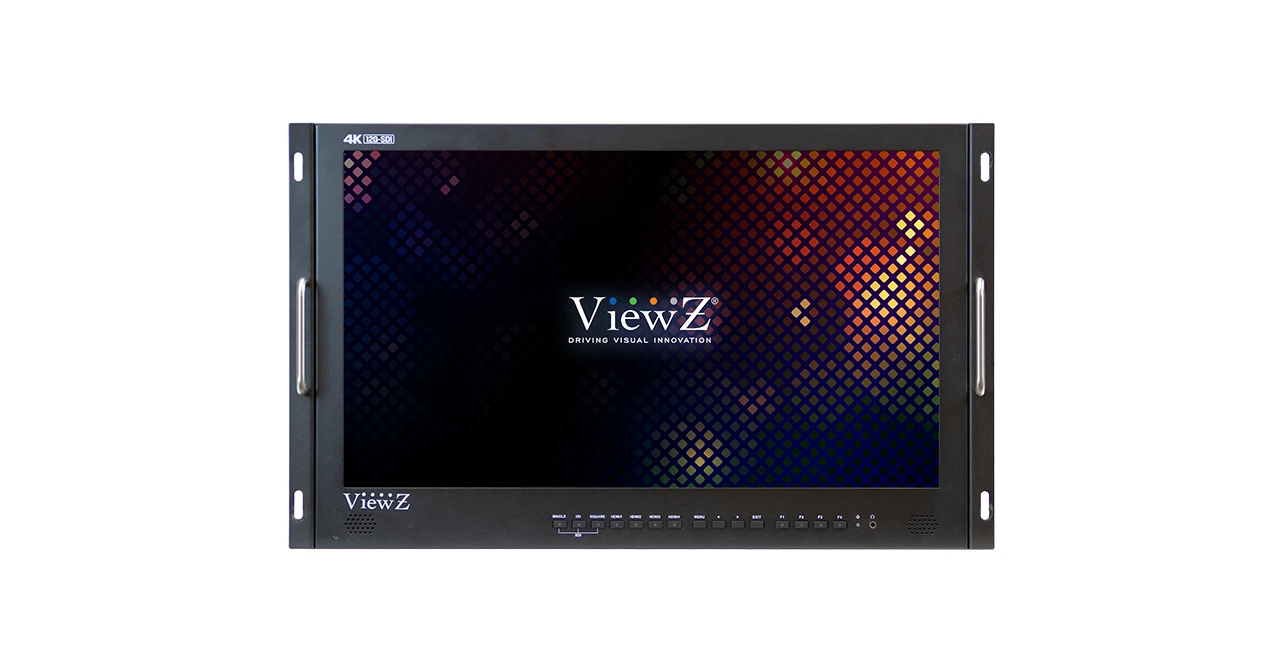

VZ-156PM-4K is a 15.6” 4K (3840×2160) monitor with 3G-SDI interface - 2×3G-SDI & 4xHDMI. VZ-156PM-4K provides HDR, 3D LUT and color space (Native. Rec. 709 & User).
- 15.6” 4K/3D LUT/3G-SDI Monitor
- HDR (HDMI) / 3D-LUT / Loop-Through (SDI)
- Loop-Through (SDI)
- Time-Code / Aspect Ratio / Quad View / Tally (D-Sub 9pin) / Freeze
- Underscan / Pixel to Pixel / Exposure / Histogram / Check Field
- 4K (3840 x 2160) Ultra-HD native resolution
Specification | Dimension | Spec & Manual
Series : Production Monitor | Key Features : 3D LUT 3G-SDI
Product Features
- Model Number: VZ-156PM-4K
- 4K (3840*2160) Ultra-HD native resolution
- Front User definable button F1 to F4
- False Color / Color Temperature / Color space / Audio Level Meter
- Audio Channel Output 2ch (out of 16ch)
- Display Flip / Mirror / Various Markers / Peaking
- Underscan / Pixel to Pixel / Exposure / Histogram / Check Field
- Time-Code / Aspect Ratio / Quad View / Tally (D-Sub 9pin) / Freeze
- HDR (HDMI) / 3D-LUT / Loop-Through (SDI)
Display
| Screen Size | 23.8″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.08970 mm x 0.08970 mm |
| Brightness | 330 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 176°/176° |
| Display Color | 16.7 M |
Interface
| 3G-SDI In / Out | 1 / 1 (Loop through) |
| HDMI 2.0 / 1.4 In | 1 (4K@60Hz) / 3 (4K@30Hz) |
| DVI In | 1 |
| VGA In | 1 |
| USB In | 1 (3D LUT) |
| Audio In | 2 (L/R) |
| Tally | 1 |
Audio
| Built in speaker | 1W x 2 |
| Ear Jack | 3.5 mm |
Dimensions & Weight
| Outline Dimension (W x H x D) | 15.32 x 10.51 x 1.49″ / 389 x 267 x 38 mm |
| Net Weight | 6.39 lbs / 3.4 kg |
| Gross (with case) Weight | 26.45 lbs / 12 kg |
Input Format
| SDI – SMPTE-425M | 1920 x 1080p | 60/59.94/50 |
| SDI – SMPTE-372M | 1920 x 1080p | 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i | 29.97/25/24/23.98 |
| SDI – SMPTE-296M | 1280 x 720p | 60/59.94/50/30/29/25/24/23.98 |
| SDI – SMPTE-292M | 1920 x 1080p | 30/29.97/25/24/24sF/23.98/23.98sF |
| SDI – SMPTE-274M | 1920 x 1080p | 30/29.97/25/24/24sF/23.98/23.98sF 1920 x 1080i | 60/59.94/50 |
| SDI – SMPTE-125M | 480i | 59.94 |
| HDMI – 4K | 4096×2160 / 3840×2160 / 1080p, 1080i, 720p, 720i, 480p |
General Summary
| Power – Electrical Ratings | XLR-4p (DC 12~24V), 2.7A (15V) |
| Power – Consumption | ≤ 18 W |
| Warranty | 2 Years |
| Operating Temperature | 32 ~ 140°F / 0 ~ 60°C |
| Operating Humidity | 90% RH |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Battery Plate | V-mount / Anton Bauer Mount |
| Package Include | 15V DC Adapter x 1, Tally Connector x 1, Manual x 1, Aluminium Carrying Case x 1, Field Hood x 1, Battery Bracket (V-Mount) x 1, Desktop Stand Set x 1, V-mount or Anton Bauer mount Power cable x 1, V-mount or Anton Bauer mount x 1, Adapter Fixing Belt x 1 |

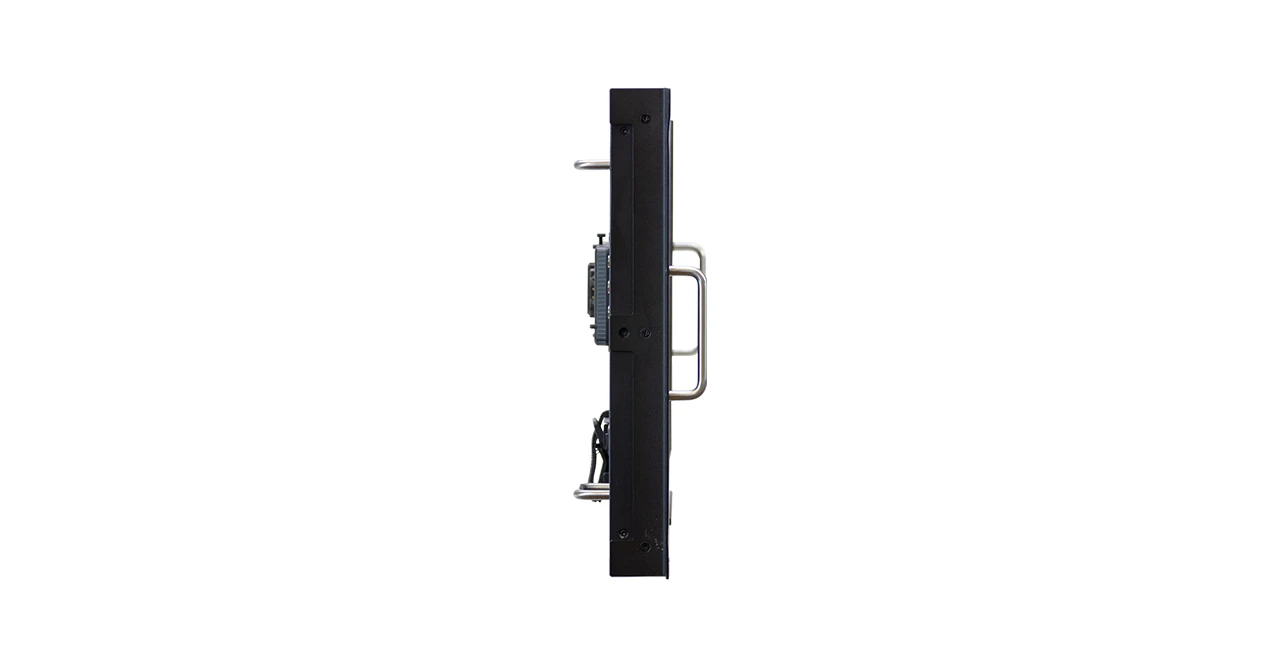

Product Dimension & Weight
