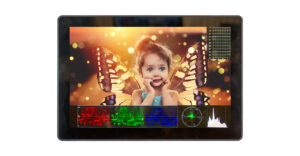

10 inch Touch Portable Field 1500 nits Monitor
- 10″ Touch 3G-SDI Control Monitor
- 1920 x 1200 Resolution (IPS Panel)
- 3D Lut and High Brightness 1500 nits
- HDR (HLG; ST 2084 300/1000/10000), Waveform and Vector Scope

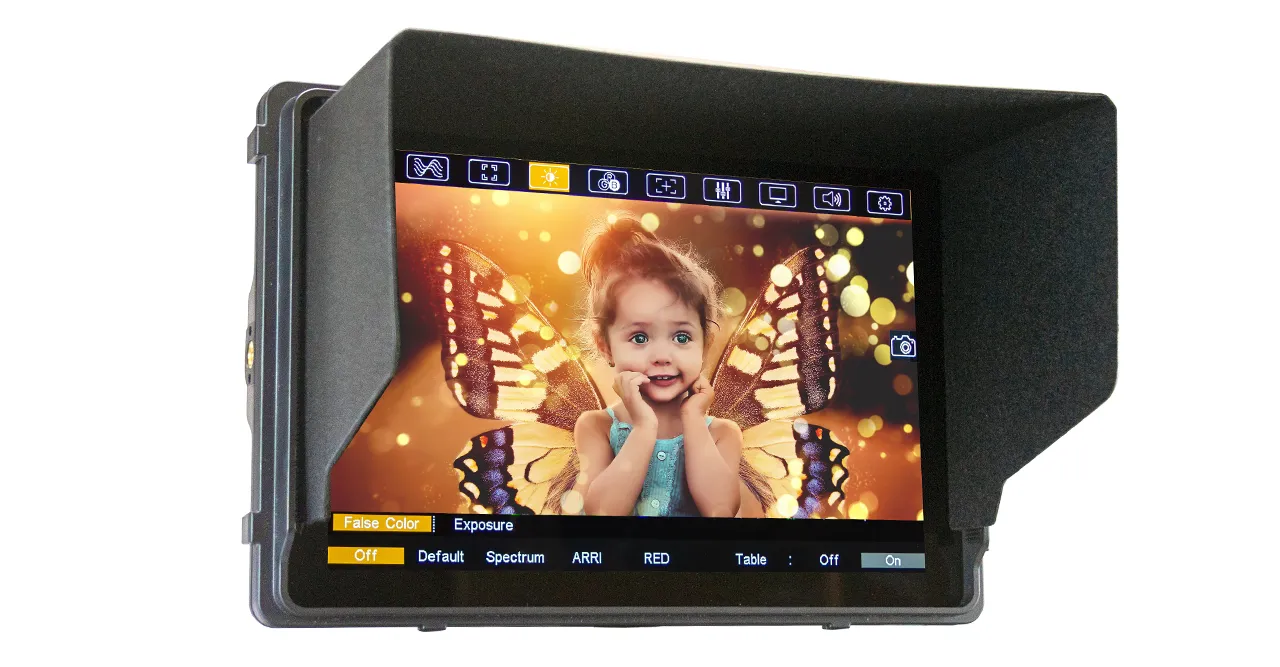

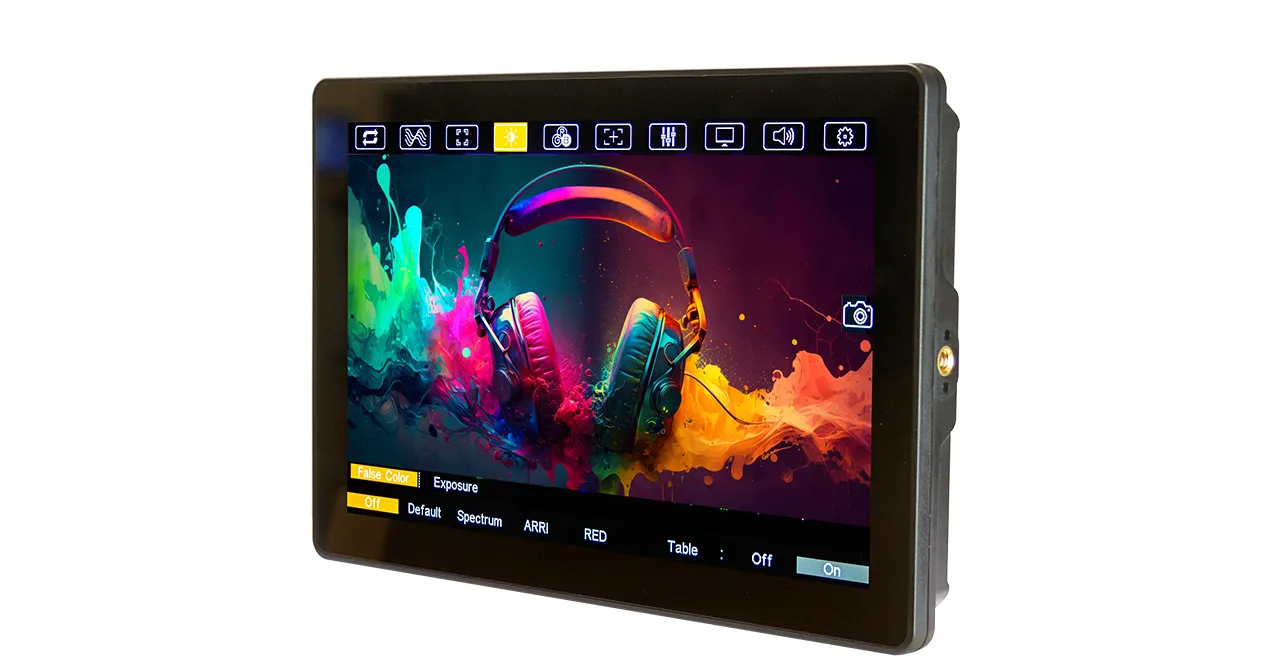

- Histogram, False Color, Exposure, Peaking Focus
- H/V Delay, Time Code, Color Temperature, Gamma
- 2ch Audio Level Meter
Specification | Dimension | Spec & Manual
Series : Field Monitor | Key Features : 3G-SDI Touch Monitor
Product Features
- Model Number: VZ-101FM-HB-T
- 10.1″ Touch Portable Filed 3G-SDI Monitor
- 3D LUT (17 default camera logs & 6 user logs)
- 3G-SDI & HDMI Loop-through / Control Camera (Lanc Cable)
- HDR – support HLG, ST 2084 300/1000/1000
- High Brightness 1500 cd/m2 and Resolution ( 1920×1200 )
- Waveform, Vector Scope, Peaking, False Color, Exposure
- Histogram, Marker, Audio Level Meter, Freeze
- H/V Delay, Check Field, Time Code, Image Flip, De-Sequence
- User-Defined Button, Color Calibration
- Gamma 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 and 2.8
- Color Temperature (3200K/5500K/6500K/7500K/9300K/User)
Display
| Screen Size | 10.1″ |
| Max Resolution | 1920 x 1200 |
| Brightness | 1500 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 10 |
| Viewing Angle (H/V) | 170°/170° |
| HDR Supported | HLG; ST 2084 300/1000/10000 |
| Touch Screen | Capacitive Touch |
| LUT | 3D LUT |
| Color Space | 125% BT.709 / 92.5% DCI – P3 |

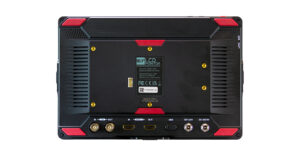

Interface
| 3G-SDI In / Out | 1 / 1 |
| HDMI (2.0) In / Out | 1 / 1 |
| CAMERA (LANC) In | 1 |
| DC 7-24 In / DC 8V Out | 1 / 1 |
| USB | 1 (Firmware, 3D LUT load) |
Input Format
| 3G-SDI | 1080p / 60, 50, 30, 25, 24 1080psf / 30, 25, 24 1080i / 60, 50 720p / 60, 50 |
| HDMI | 2160p / 60, 50, 30, 25, 24 1080p / 60, 50, 30, 25, 24 1080i / 60, 50 720p / 60, 50 |
Audio
| Built in Speaker | 1 |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24 bit |
Dimensions & Weight
| Outline Dimension (W x H x D) | 9.88 x 6.69 x 1.33″ / 251 x 170 x 33.9 mm |
| Net Weight | 1.83 lbs / 0.85 kg |
General Summary
| Power – Electrical Ratings | DC 7~24V (AC 100 ~ 240V), 2A |
| Power – Consumption | ≤ 23 W (12 V) |
| Warranty | 2 Years |
| Operating Temperature | 32 – 122°F / 0 – 50°C |
| Humidity at High Operating Temperature | 0 ~ 90% RH |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |

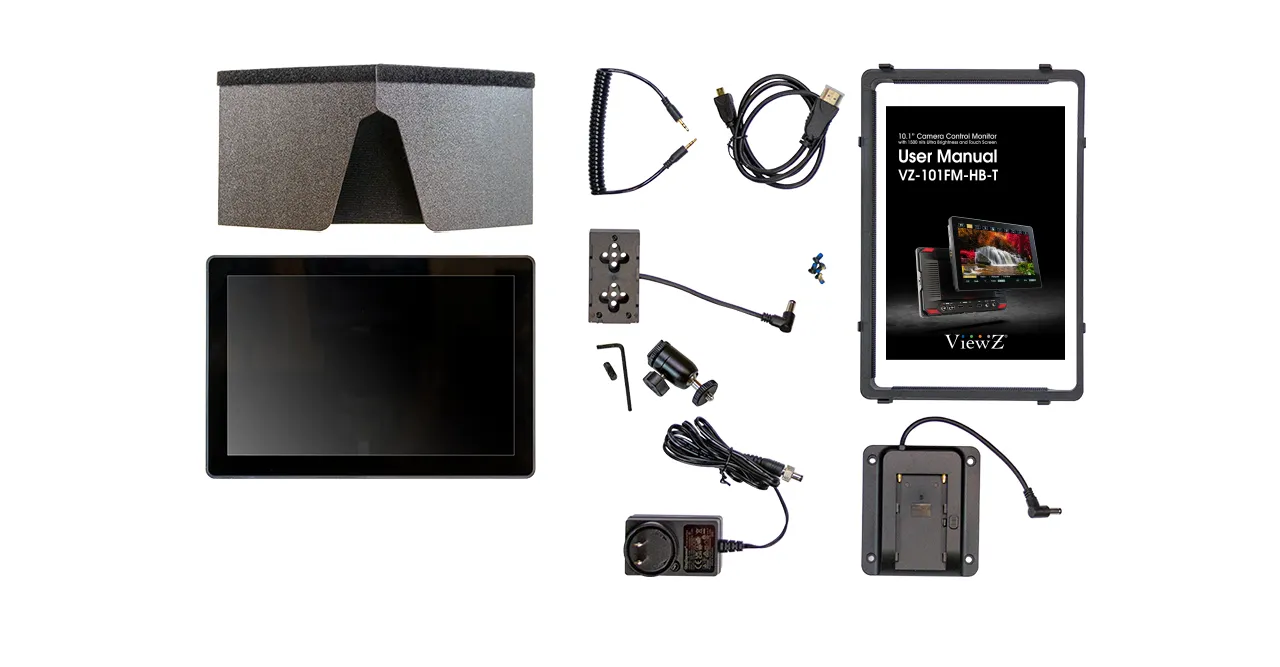

| Package Include | Monitor x1, HDMI AtoC Cable x1, USB x1, Shoe Mount x1, Sunshade x1, Lanc Cable x1, F970 Battery Plate x1, Battery Plate Adapter x1, DC 12V Power Adapter x1 |
