VZ-070FM-HDR

product Description
vz070fmhdr1
vz070fmhdr2

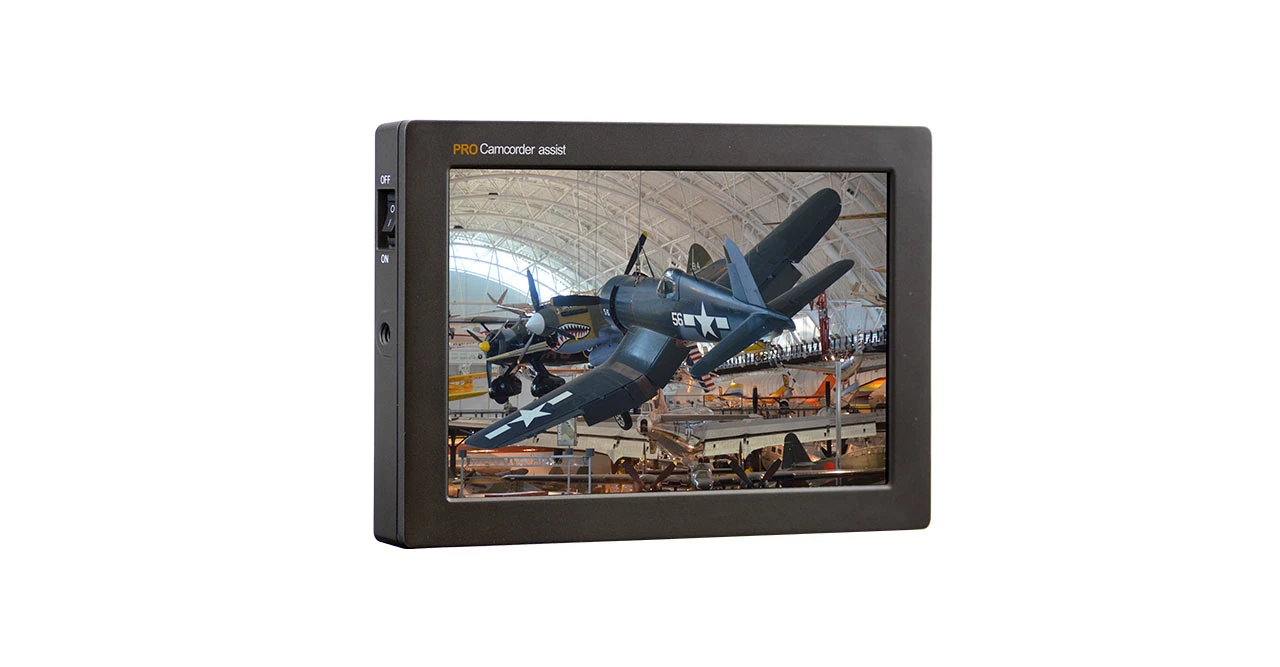

vz070fmhdr3

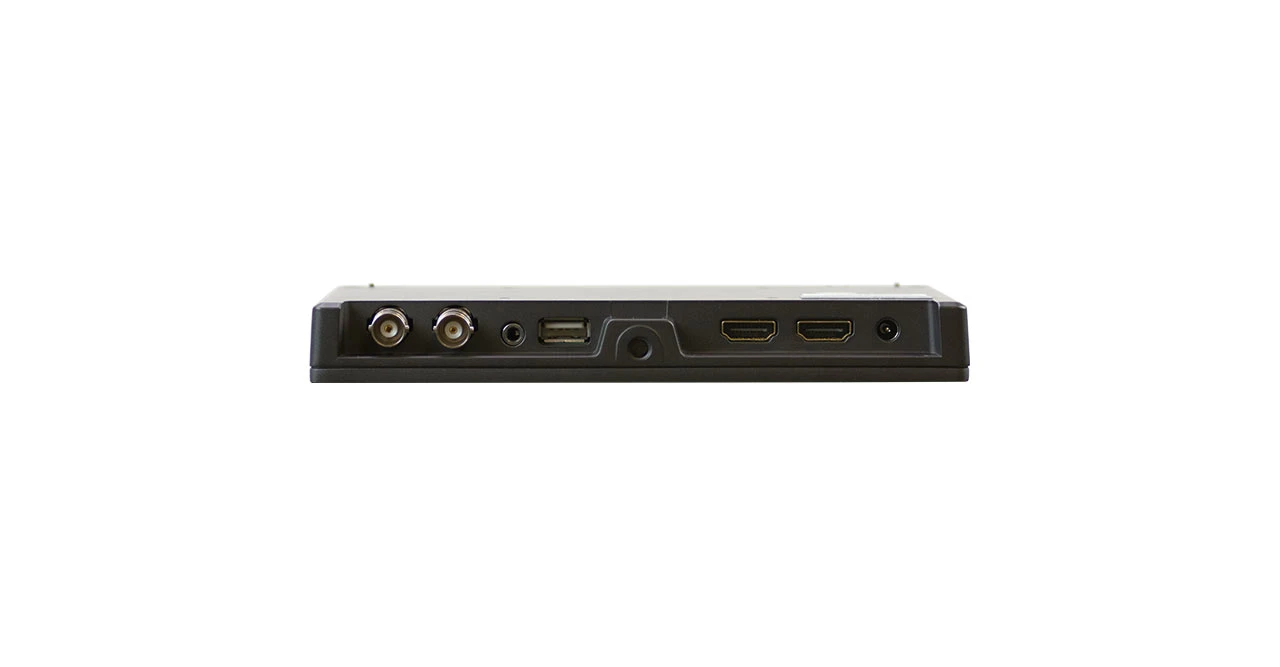

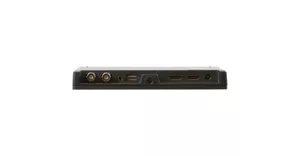

vz070fmhdr4

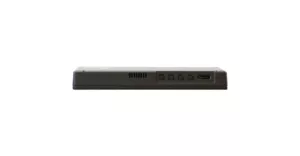

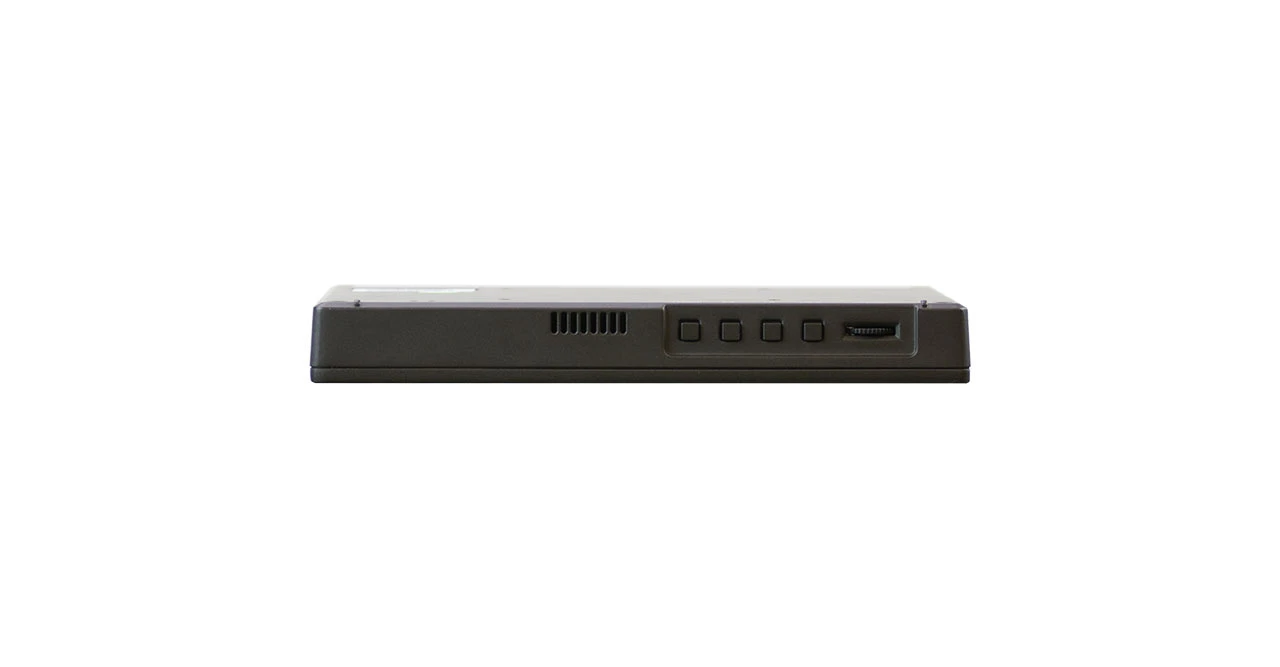

vz070fmhdr5

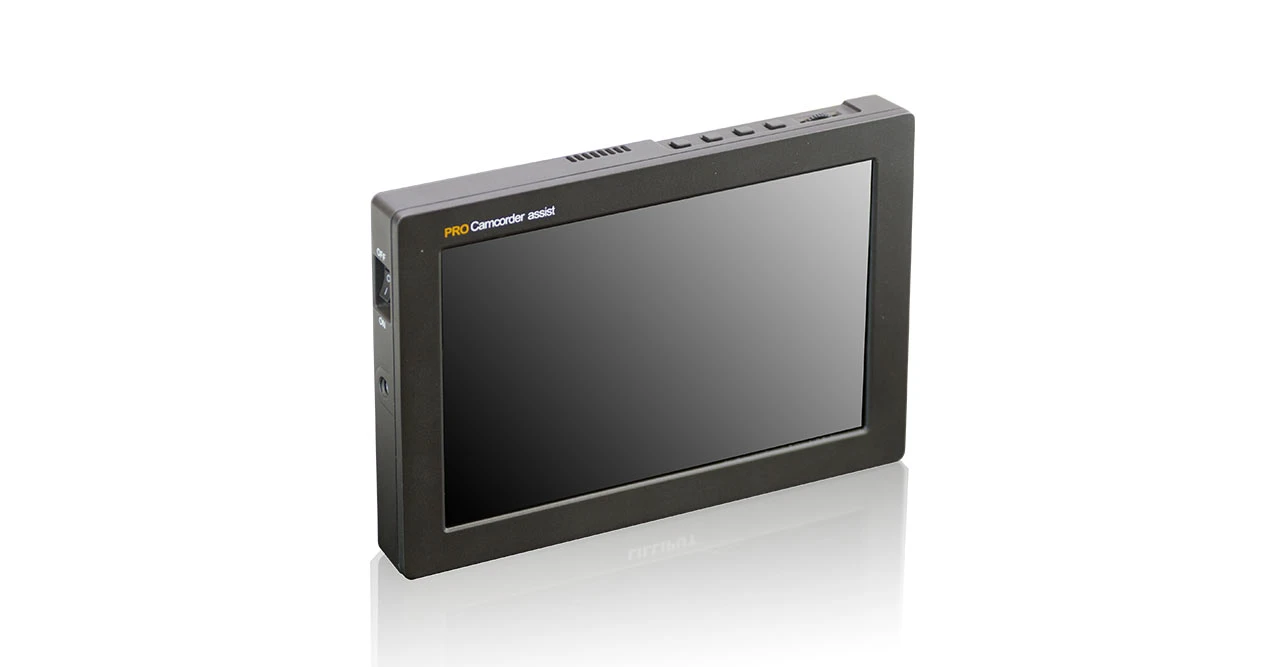

vz070fmhdr7

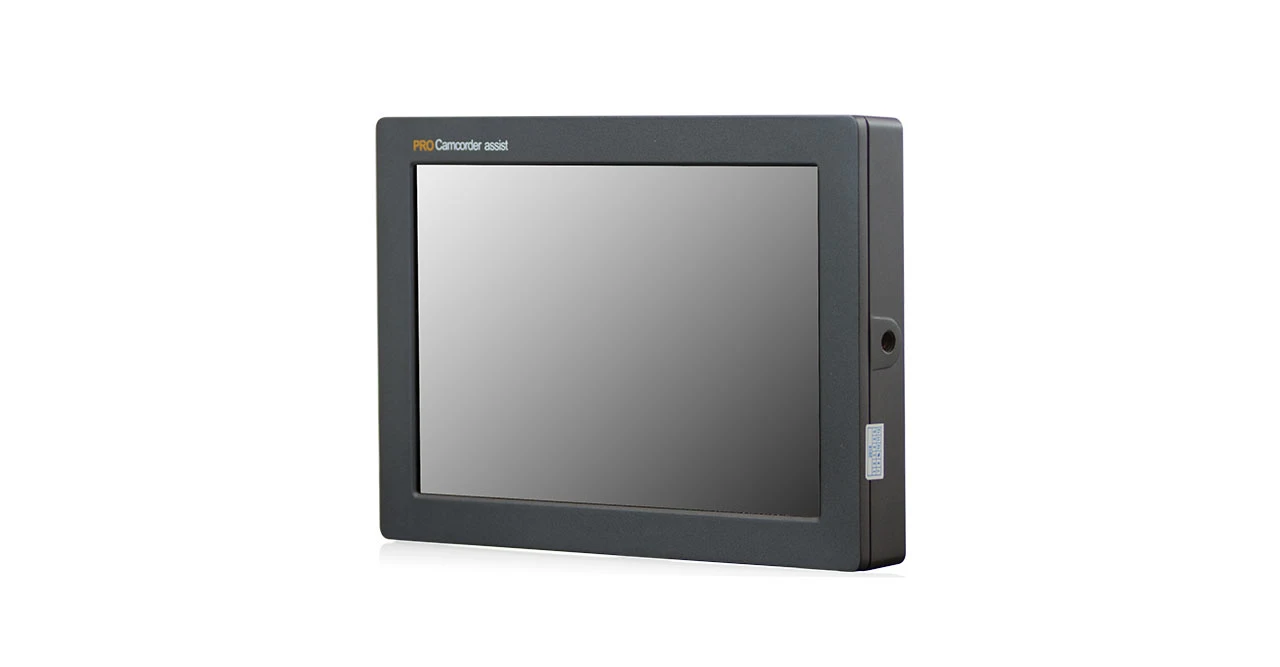

vz070fmhdr6
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

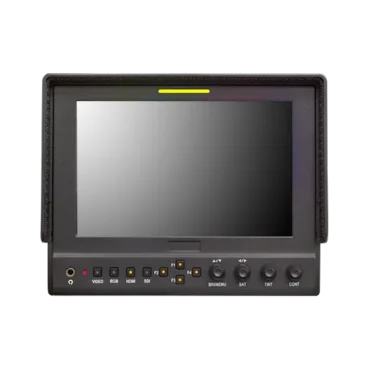

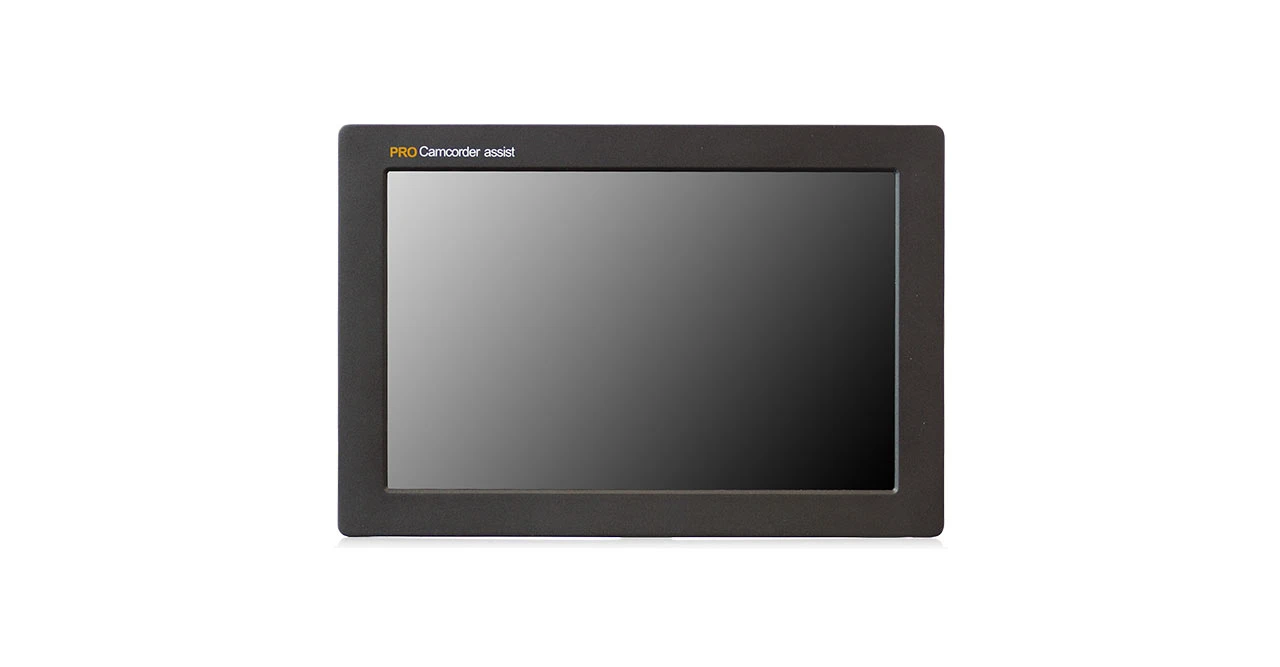

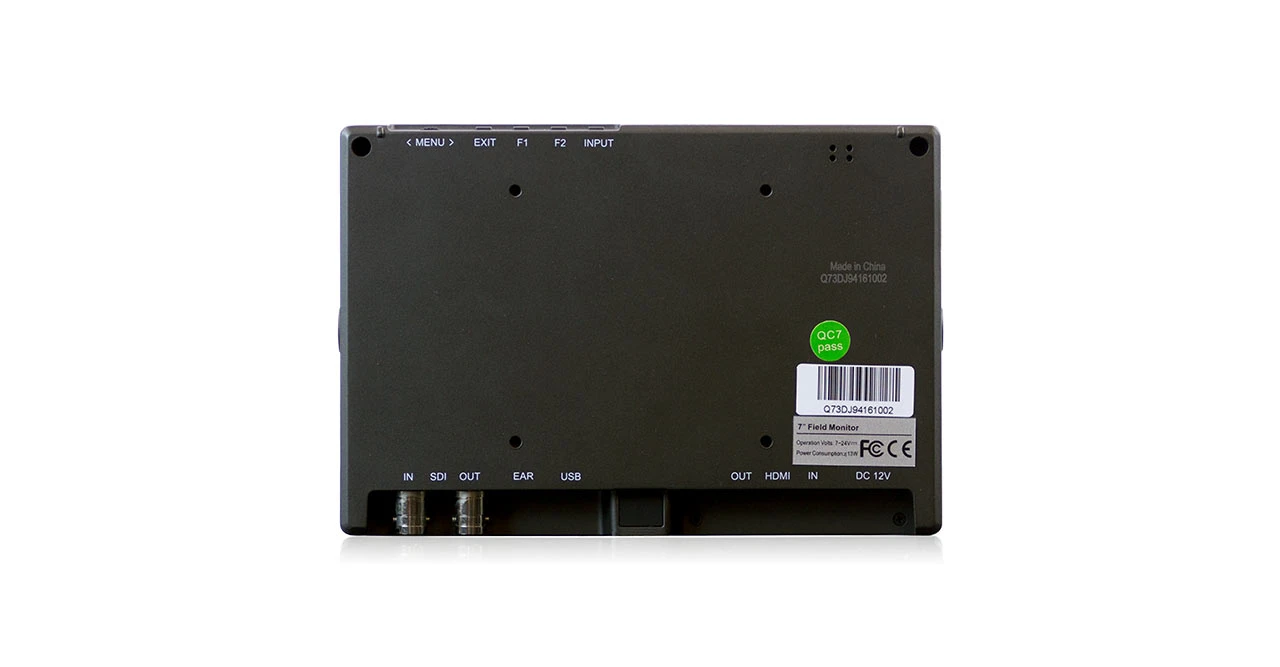

7-inch Portable Field 3G-SDI Monitor

  • 7” LED 3G-SDI Portable Monitor
  • SDI (1080p) / HDMI Inputs and loop through
  • 3D-LUT – 8 Default Logs & 6 User Logs
  • SDI to HDMI Cross Conversion, HDR (PQ / HLG) Supported
  • Waveform, Vector Scope, Time Code, Marker, Image Flip, Peaking
  • Marker / Safety Area / Audio Level Meter
  • Audio Level Indicators, Scan, Underscan, Freeze, H/V Delay, DSLR

Product Features

  • Model Number: VZ-070FM-HDR
  • 3D-LUT – 8 Default Logs & 6 User Logs
  • SDI to HDMI Cross Conversion
  • HDR (PQ / HLG) Supported
  • SDI (1080p) / HDMI Inputs and loop through
  • Gamma 1.8, 2.0, 2.2, 2.35, 2.4, 2.6, 2.8
  • RGB Gain
  • Check Field
  • Waveform, Vector Scope
  • Time Code, Marker, Image Flip, Peaking
  • Audio Level Indicators, Scan, Underscan, Freeze, H/V Delay, DSLR
  • False Color, Exposure, Histogram, Optional Color Calibration Tool

Display

Screen Size21.5″
Max Resolution1920 x 1080 @60Hz
Pixel Pitch0.24825 mm x 0.24825 mm
Brightness250 cd/m²(Typical)
Contrast Ratio1000 : 1
Aspect Ratio16 : 9
Viewing Angle (H/V)170°/160°
Display Color16.7 Million (8bit)
Response Time5 ms


Interface

3G-SDI In / Out1 / 1
HDMI In1
VGA In (15Pin D-Sub)1
Component In3
USB In1
Speaker Out1
PC Stereo In1


Audio

Built in speaker2W x 2


Dimensions & Weight

Outline Dimension (W x H x D)20.32 x 13.65 x 1.72″ / 516.0 x 346.9 x 43.6 mm
Net Weight8.4 lbs / 3.8 kg


Special Features

Line Marker Option3:2, 4:3, 1.85:1, 2.35:1, Off
Safety Area OptionOff, 80%, 85%, 88%, 90%, 93% and 95%
SDI Sound Channel OptionTwo (2) Channels out of sixteen (16) channels
RGB Gain-128 to 128
RGB Bias-128 to 128


Input Format

SMPTE 425M-A & B (YCbCr 4:2:2)1920 x 1080p / 60/59.94/50
1920 x 1080i / 60,59.94,50
SMPTE 274M (YCbCr 4:2:2)1920 x 1080p / 30/29.97/25/24/23.98
1920 x 1080i / 60/59.94/50
1920×1080 Psf / 30/29.97/25/24/23.98
1280×720 P / 60/59.94/50/30/29.97/25/24/23.98
SMPTE 296M (YCbCr 4:2:2)525i / NTSC 59.94
SMPTE 125M (YCbCr 4:2:2)625i / PAL 50
ITU-R BT.656 (YCbCr 4:2:2)2048 x 1080P / 24/23.98/24sF/23.98sF
ANALOG – 2K Format (YCbCr 4:2:2)1920 x 1080p / 60/59.94/50, 30/29.97/25/24/23.98
ANALOG – COMPONENT2048 x 1080i / 60/59.94/50
720P / 60/59.94/50
HDMI480i/480P/576i/576P/1080i/1080P
VGAVGA, SGA, XGA, SXGA, WXGA, WUXGA


General Summary

Power – Electrical RatingsDC12V (AC100 ~ 240V[50/60Hz])
Power – Consumption≤ 24 W
Warranty – Parts2 Years
Operating Temperature32 – 104°F / 0 – 40°C
RegulationFCC(A), CE
Compatible Mounts – WallVZ-WM05, VZ-WM11, VZ-AM01
Compatible Mounts – CeilingVZ-CM308, VZ-CMKiT-01, VZ-CMKiT-02
Compatible Mounts – RackVZ-RMK0
RegulationFCC(A), CE
