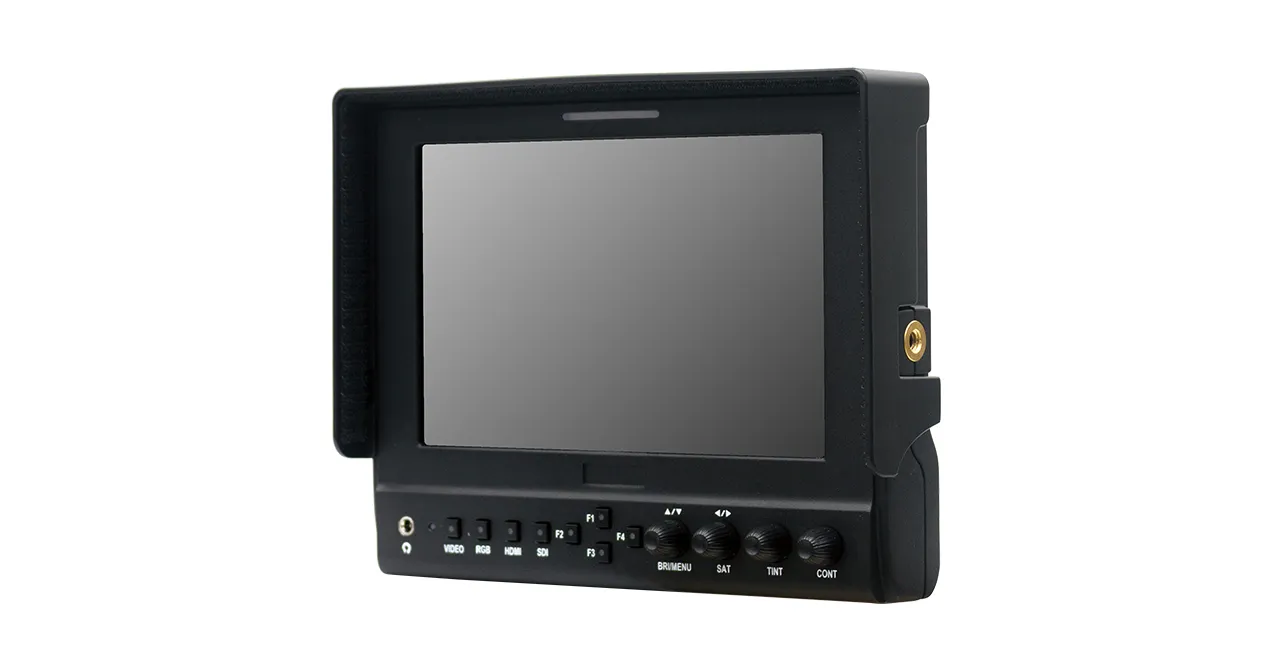

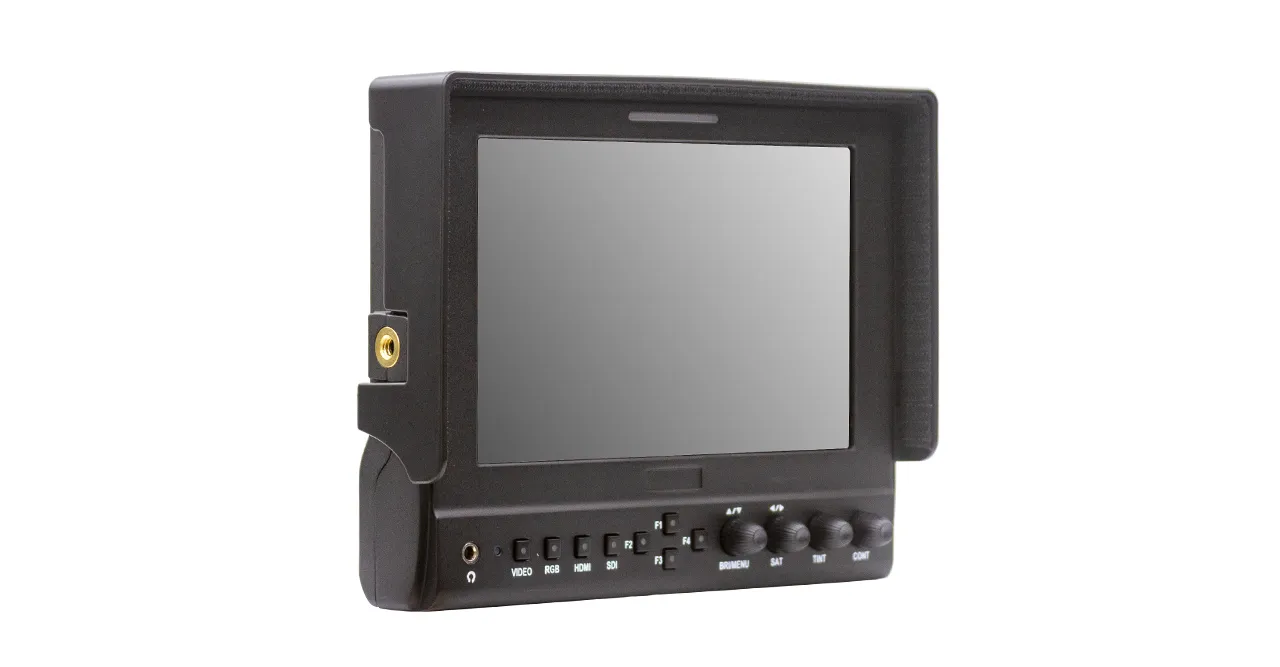

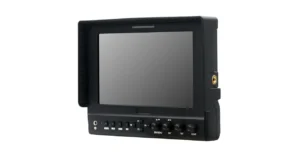

7-inch Portable Field 3G-SDI Monitor

  • 7” LED 3G-SDI Portable Monitor

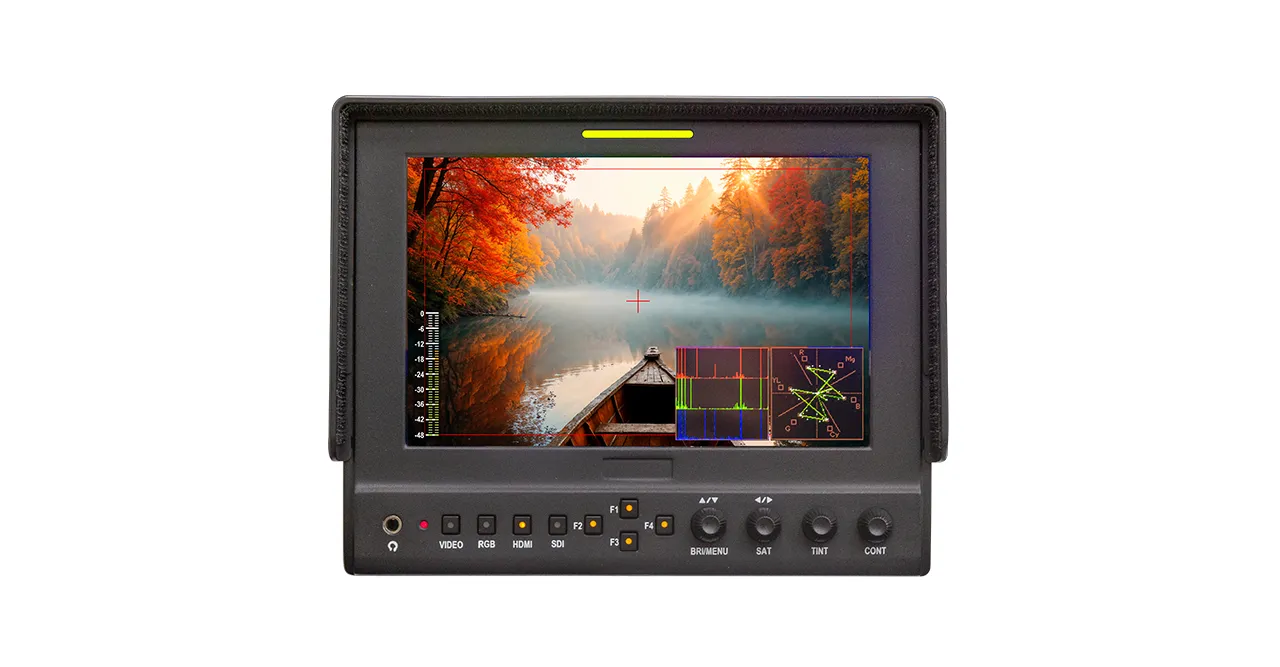

  • Wave / Vectpr Scope, Image Flip & Zoom, Histogram
  • SDI to HDMI Cross Conversion, Front User-Definable Buttons (F1 to F4)
  • Screen Color Mode: Blue, Red, Green & Mono
  • H/V Delay, Peaking, Exposure, False Color(SD/HD SDI)

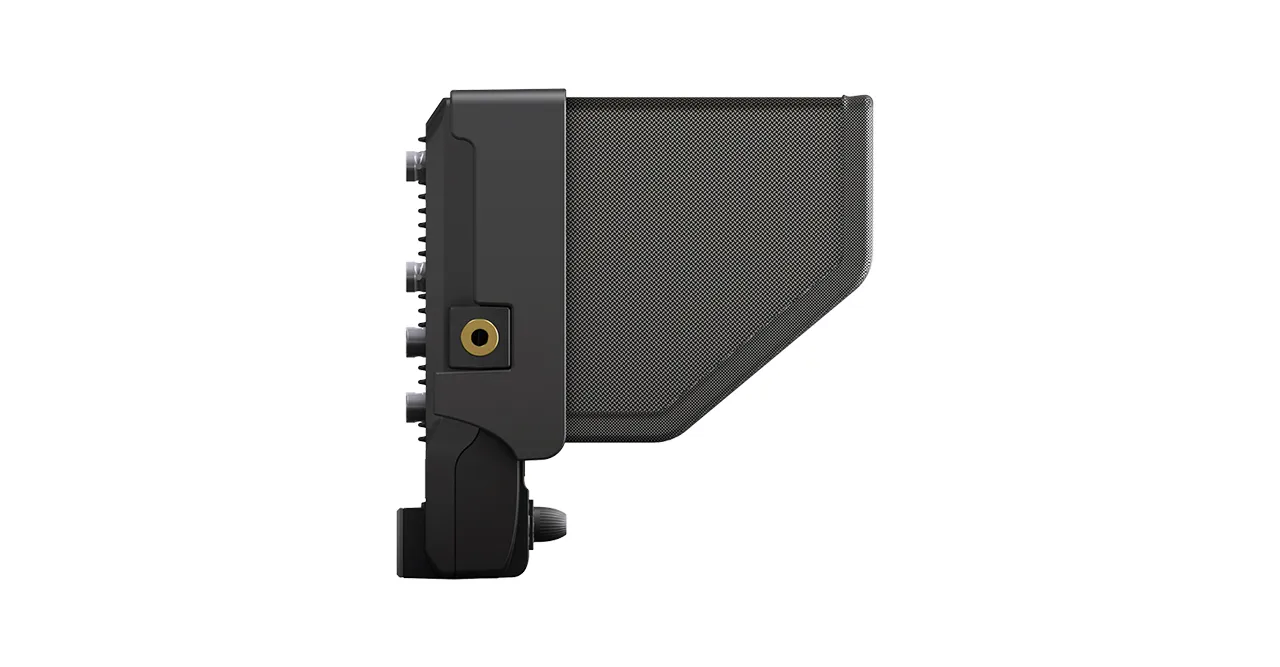

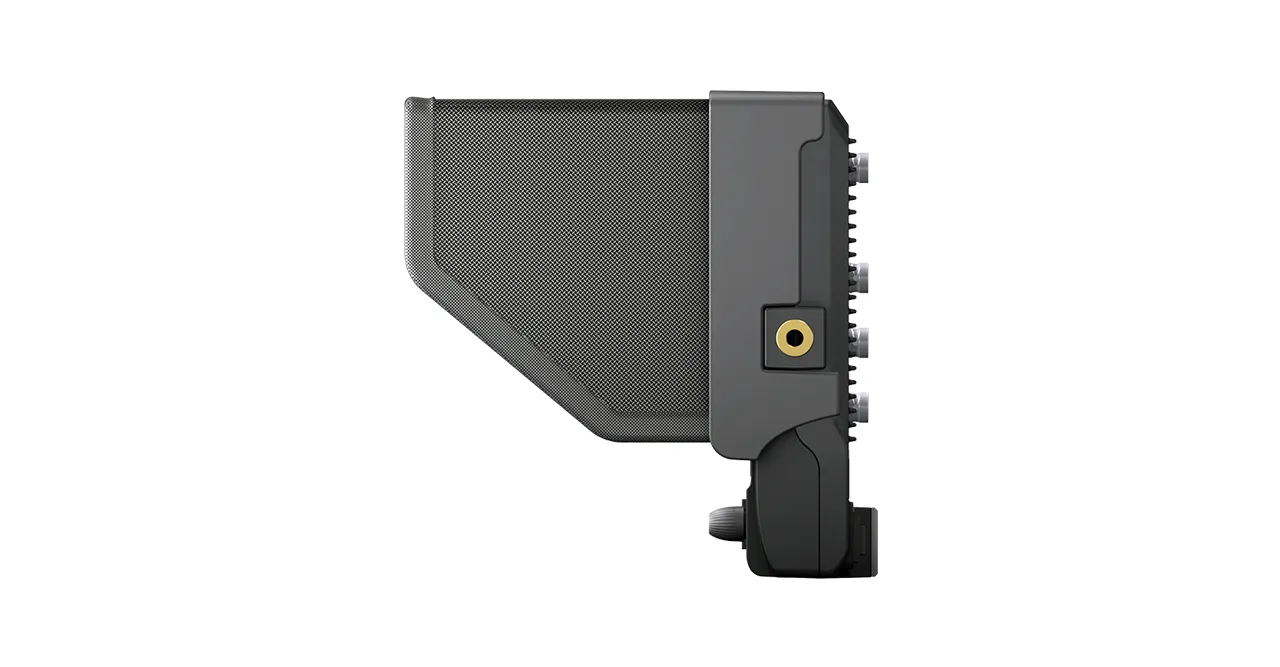

  • ATally (Red, Green) Support, Metal Case, Hood

Product Features

  • Model Number: VZ-070FM-E
  • SDI Embedded 2CH Audio Level Meter
  • SDI to HDMI Cross Conversion
  • Wave / Vectpr Scope
  • Image Flip & Zoom, Histogram
  • Gamma 1.8, 2.0, 2.2, 2.35, 2.4, 2.6, 2.8
  • Front User-Definable Buttons (F1 to F4)
  • Screen Color Mode: Blue, Red, Green & Mono
  • H/V Delay, Peaking, Exposure, False Color(SD/HD SDI)
  • Tally (Red, Green) Support, Metal Case, Hood

Display

Screen Size7″ (IPS Panel)
Max Resolution1280×800 @60Hz
Pixel Pitch0.039 mm x 0.117 mm
Brightness350 cd/m²(Typical)
Contrast Ratio800 : 1
Aspect Ratio16 : 10
Viewing Angle (H/V)178°/178°
Display Color16.7 Million (8bit)

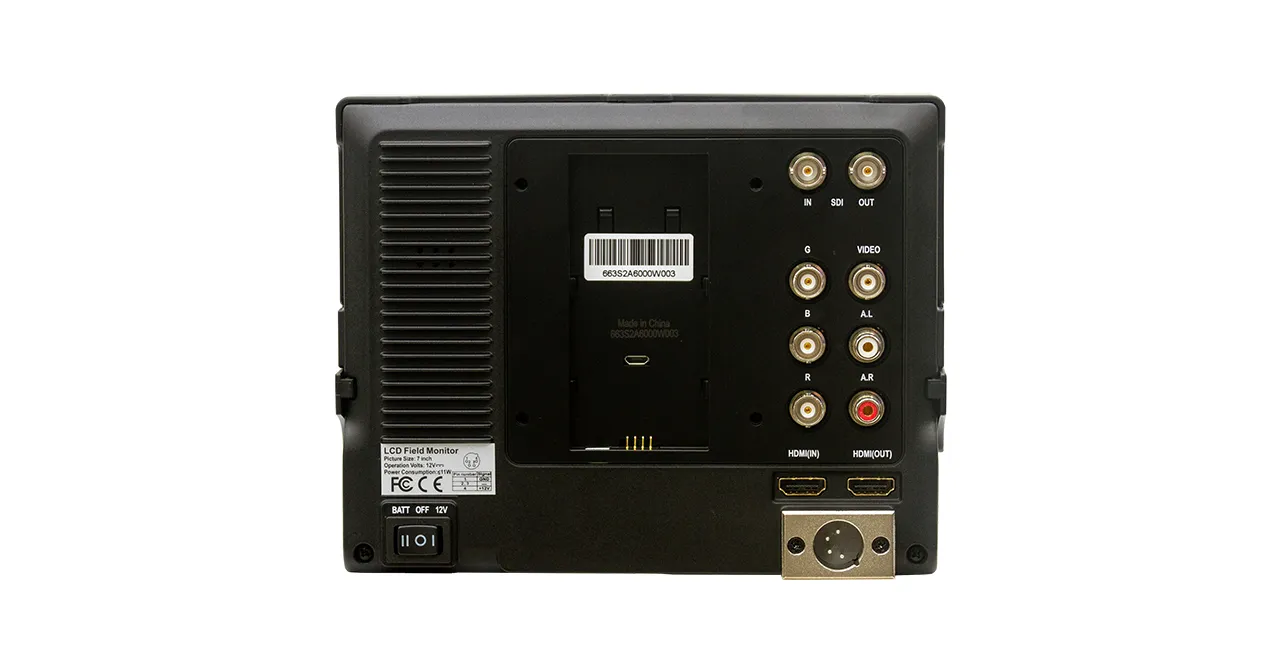

Interface

3G-SDI In / Out1 / 1
HDMI In / Out1 / 1
VGA In (RGB)1
AV (Composite) In1
Audio In / Out1 / 1 (2ch De-Embedded Audio Selected Output)


Audio

Built in speaker2W x 1


Dimensions & Weight

Outline Dimension (W x H x D)7.53 x 5.98 x 1.22 / 5.55″ (w/ Cover) | 191.5 x 152 x 31.5 / 141 mm (w/ Cover)
Net Weight1.598 lbs / 725g
Gross Weight1.98 lbs / 900g


Input Format

SMPTE 425M-AB1920 x 1080p / 60/59.94/50
1920 x 1080i / 60,59.94,50
SMPTE 274M1920 x 1080p / 30,29.97,25,24,23.98 psf
1920 x 1080i / 60,59.94,50
SMPTE 296M1280 x 720p / 60,59.94,50
SMPTE 125M480i / 59.94
ITU-R BT.656576i / 50


General Summary

Power – Electrical RatingsXLR-4p (DC12V) / DC 7 ~ 24V
Power – Consumption≤ 11 W
Warranty – Parts2 Years
Operating Temperature32 – 104°F / 0 – 40°C
RegulationFCC(A), CE

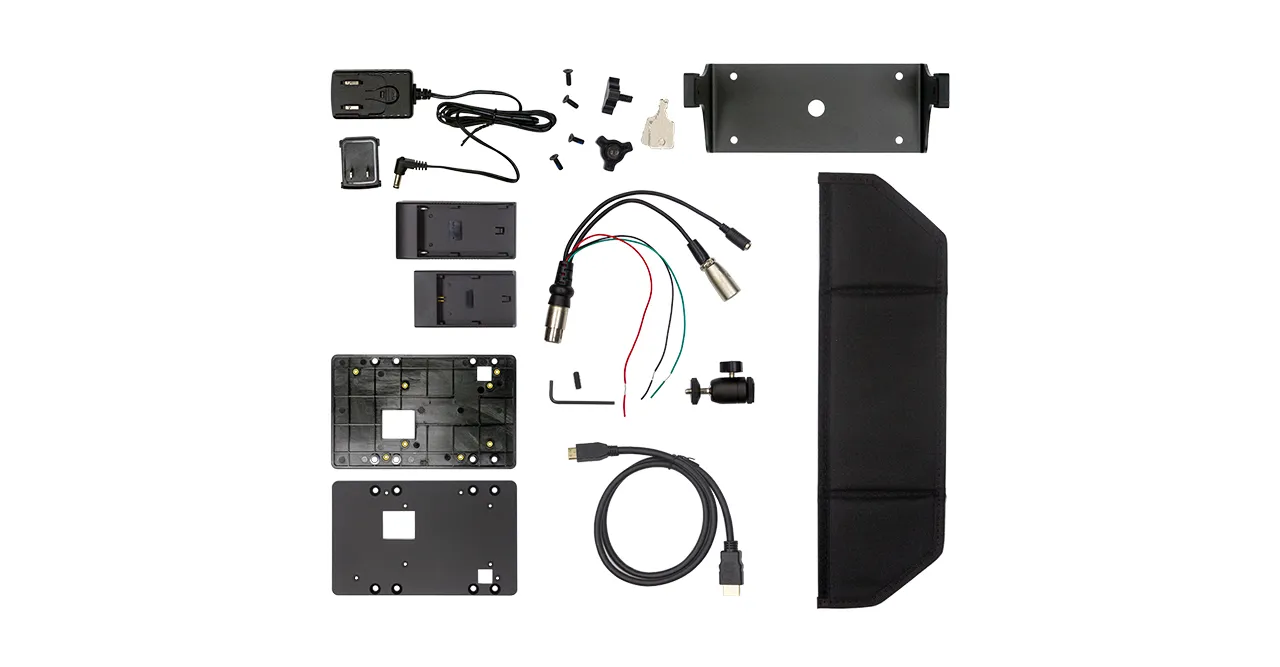

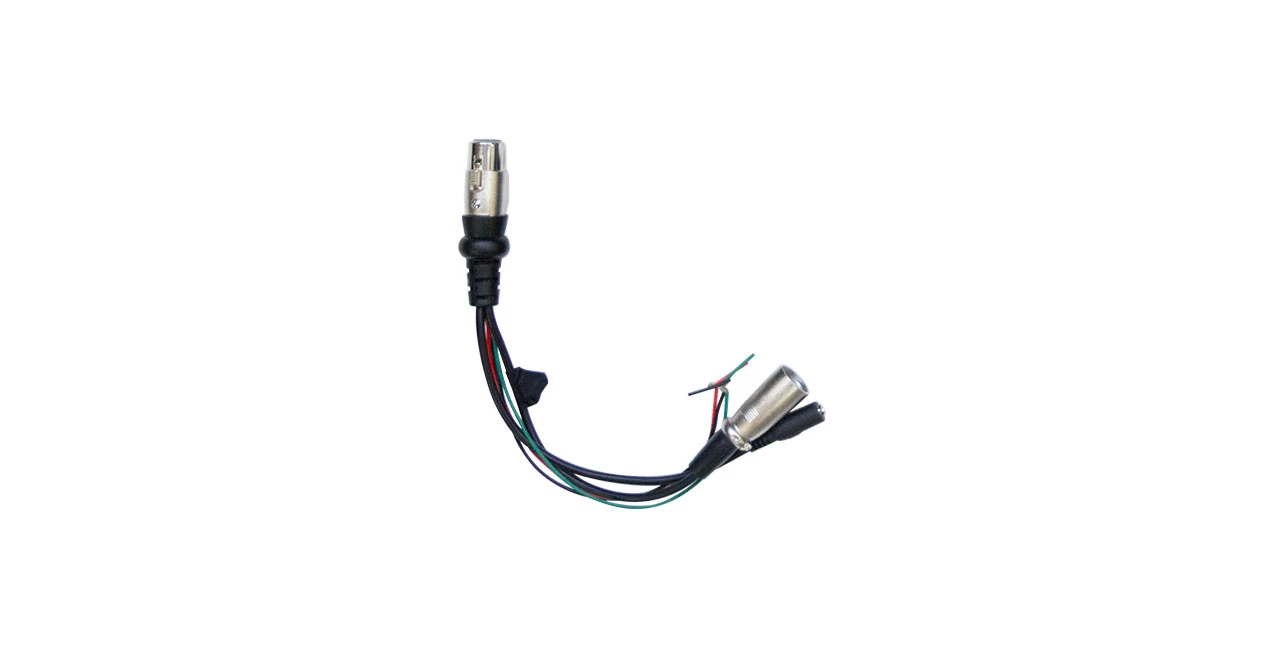

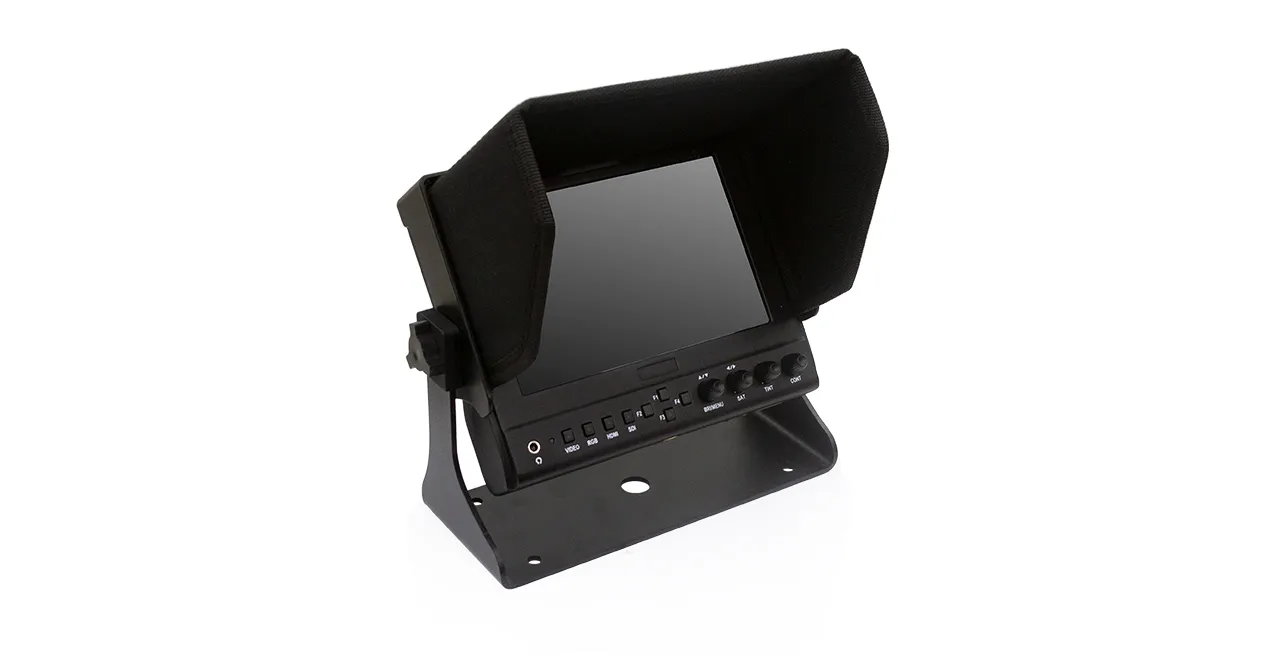

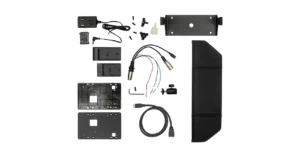

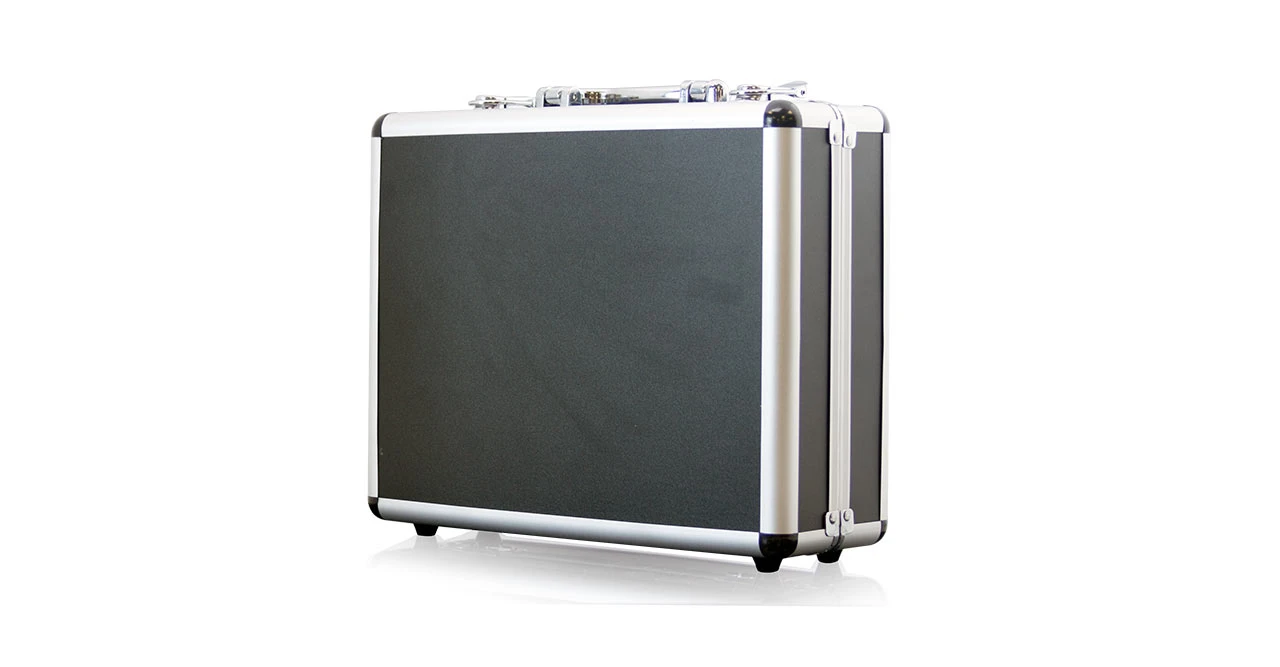

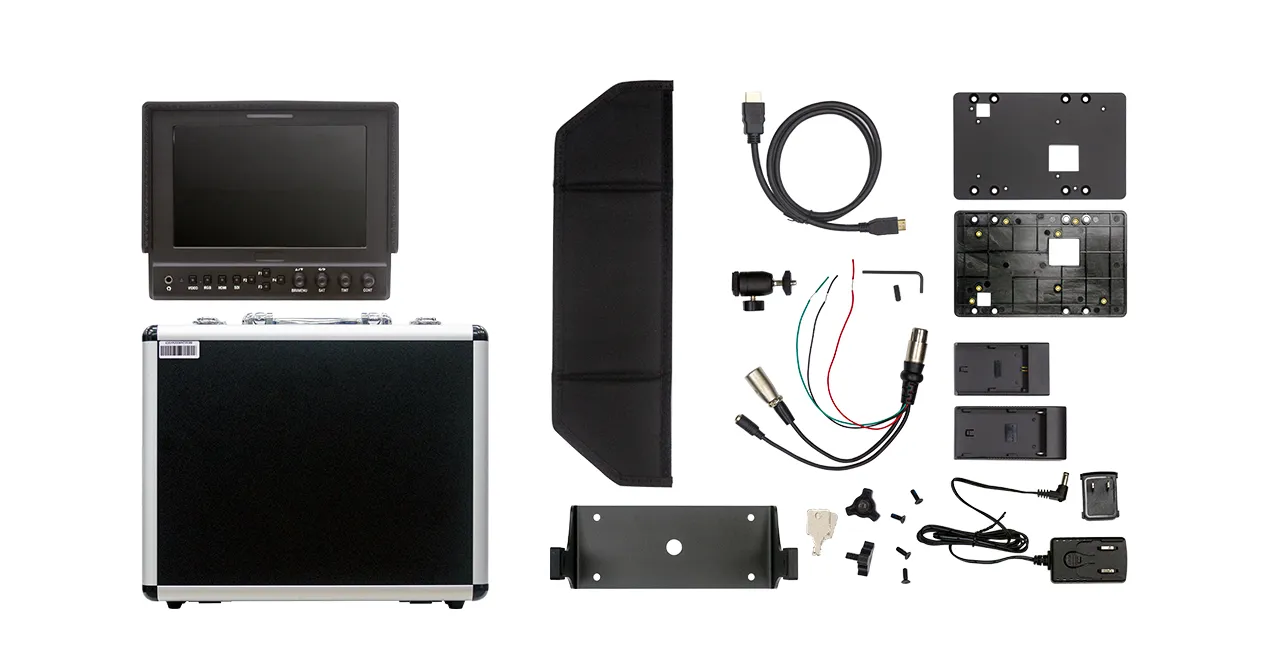

Package IncludeMonitor x1, Hood x1, Gimbal stand x1, Power Adapter x1, Shoe Mount x1, Adapter Panel x1, Power&Tally Cable x1, Carrying Case x1

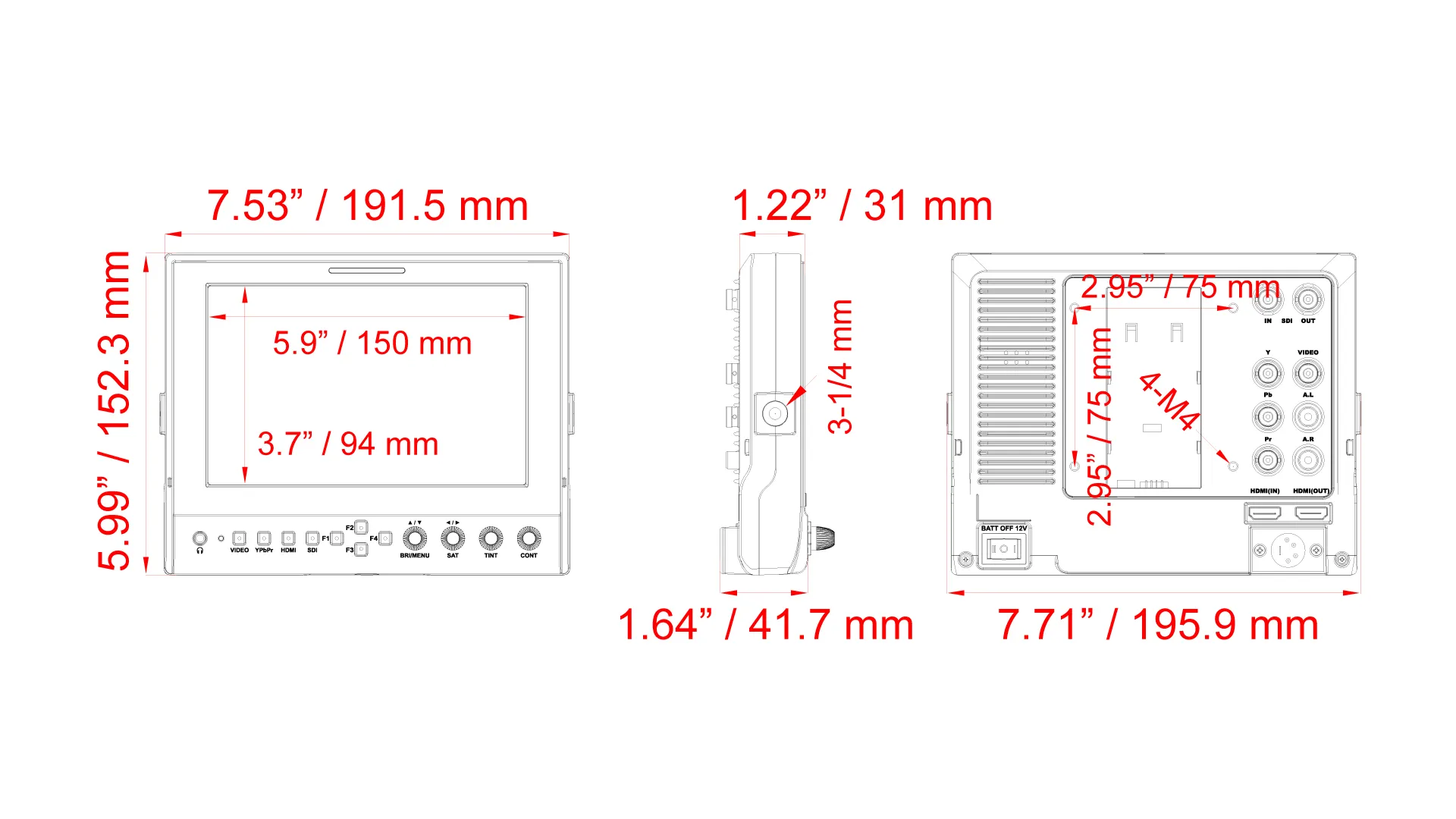

Product Dimension & Weight

Click below to enlarge
