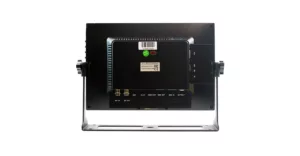

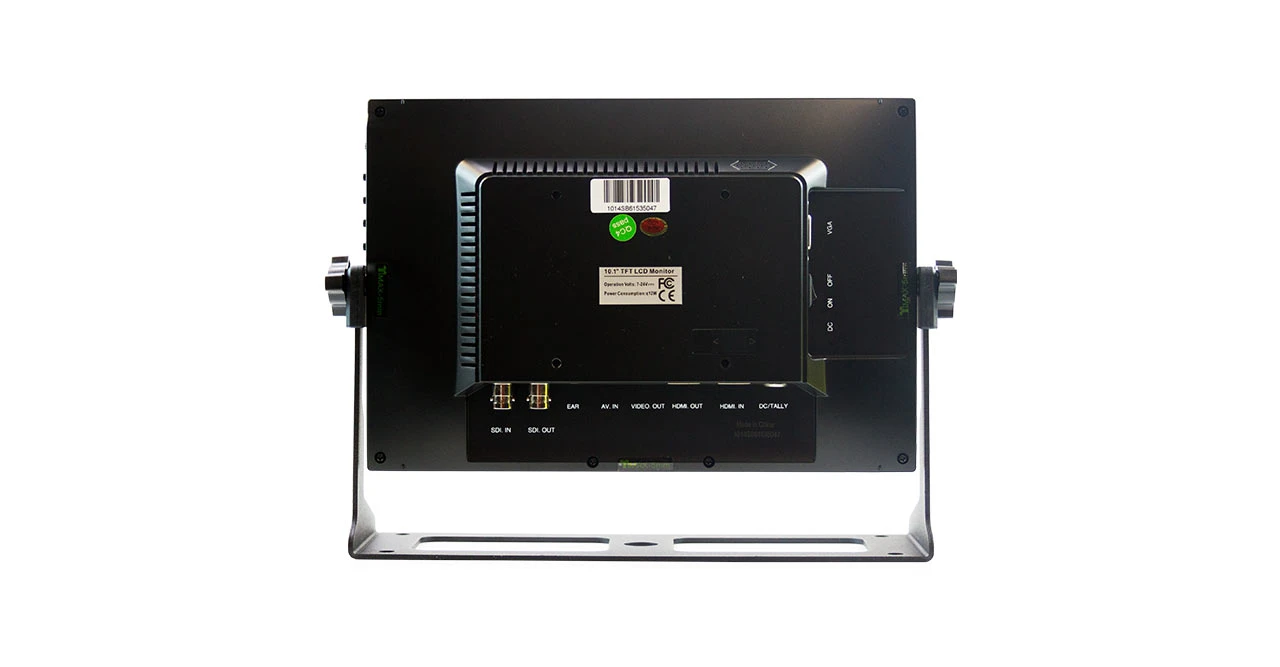

vz101fme2

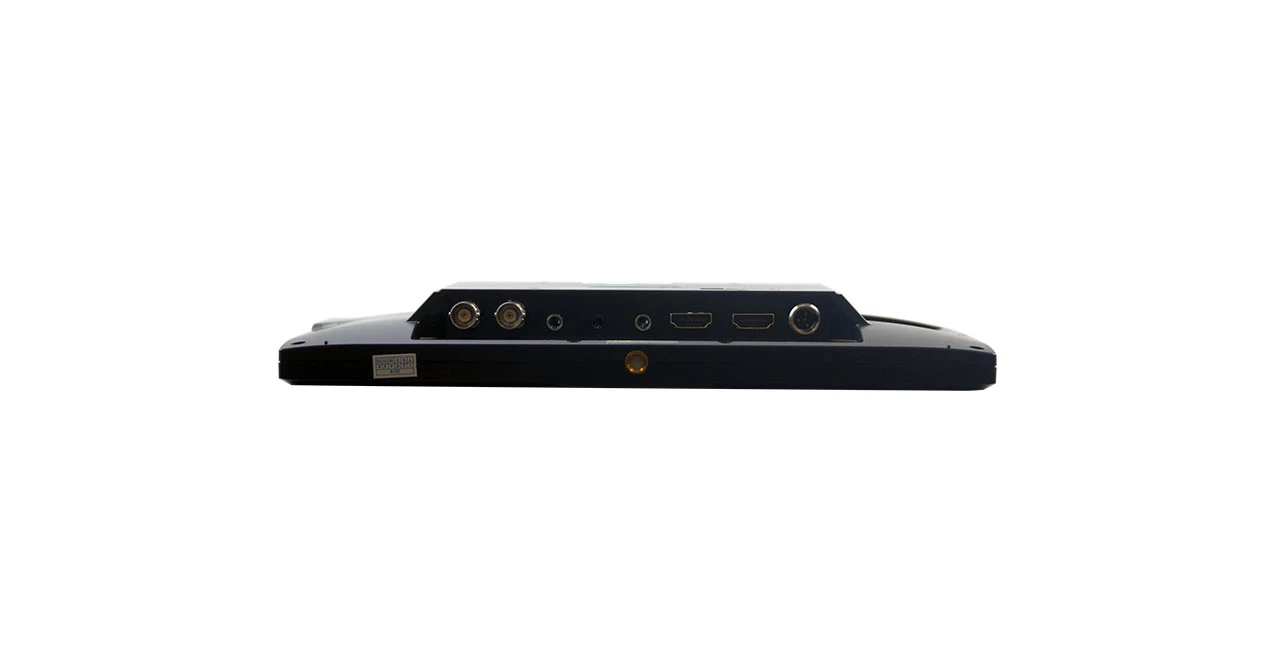

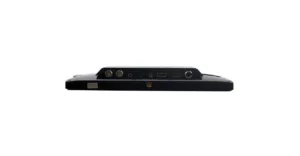

vz101fme3

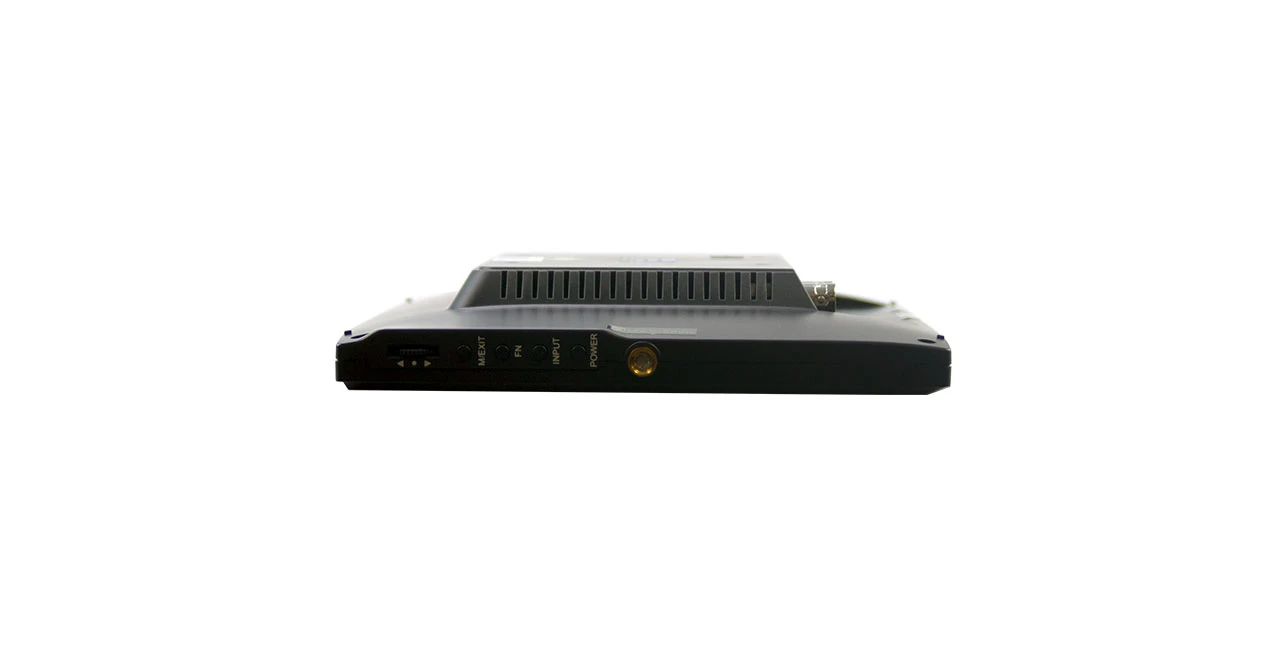

vz101fme4
vz101fme5

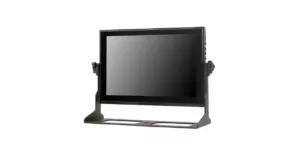

vz101fme8

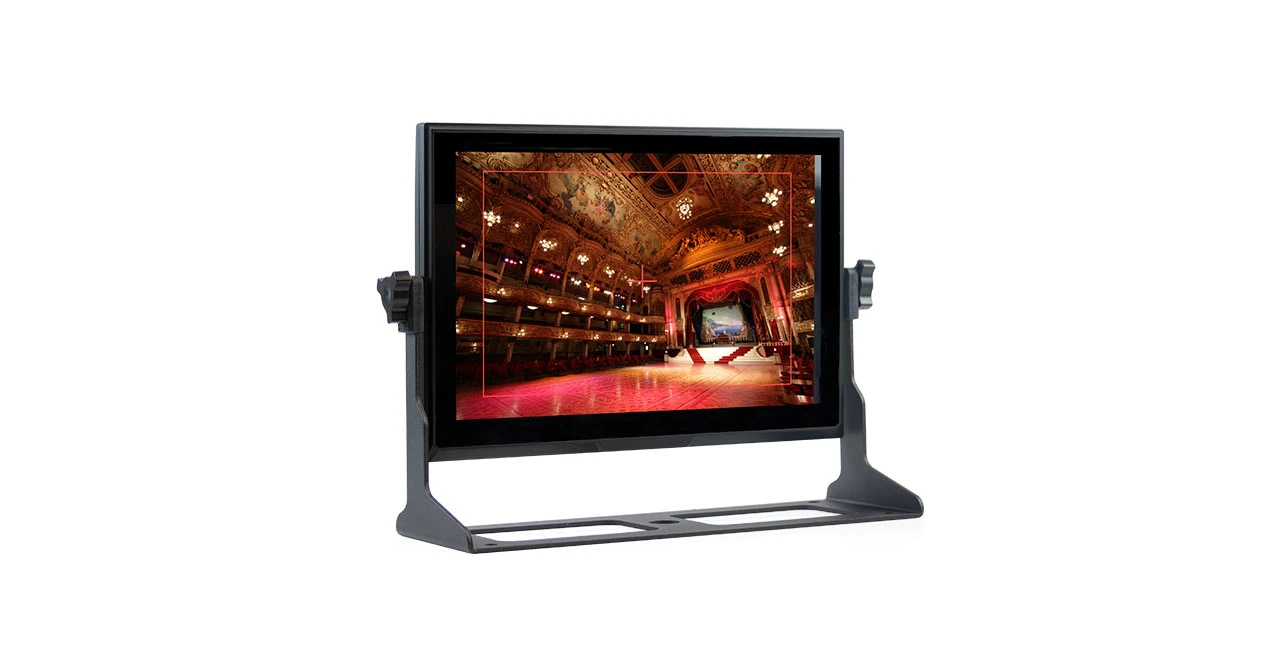

vz101fme7
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

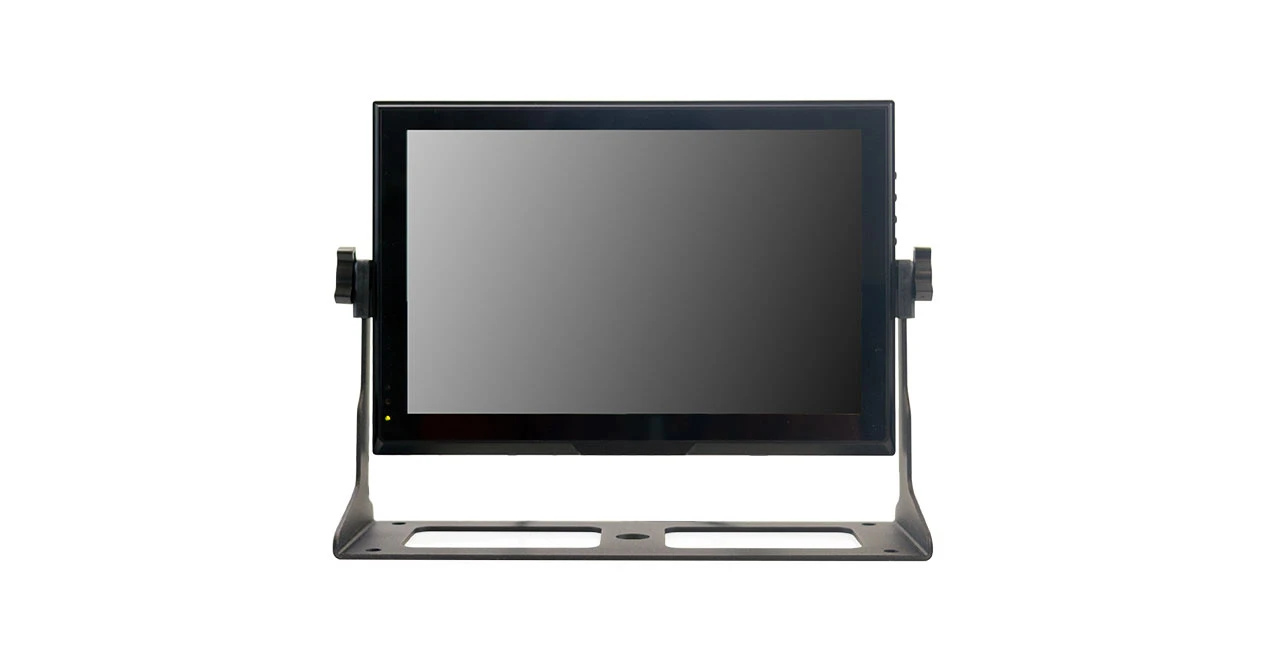

10.1-inch Portable Field 3G-SDI Monitor

  • 10.1” 3G HD-SDI ENG/EFP Monitor
  • SDI/ HDMI Loop-through
  • Lux Auto Brightness, Integrated Dust Proof Front Panel
  • 1280 x 800 Resolution (IPS Panel)
  • 12bit to 8bit Dithering
  • Gamma 2.2-base Calibration
  • Tally, Check Field, Marker, H/V Delay

Product Features

  • Model Number: VZ-101FM-E
  • 3G SDI – SMPTE 425M-A, 274M, 296M, 125M & ITU-R BT.656
  • 12bit to 8bit Processing
  • Resolution ( 1280×800 )
  • Integrated dust proof front panel, Color Temperature
  • Image Flip & Zoom
  • Lux Auto Brightness
  • Various Markers
  • Built-in Speaker
  • Check Field : Red, Green, Blue & Mono
  • Image Flip, Zoom
  • H/V Delay
  • Red/Green/Yellow Mode Tally
  • Zero, Under, Over, Pixel to Pixel Scan
  • Freeze, Clock, Phase
  • Precise White Balance & Gamma
  • On-Screen Menu
  • Shoe Mount, Battery Mount Plate

Display

Screen Size10.1″
Max Resolution1280 x 800
Pixel Pitch0.1695 mm x 0.1695 mm
Brightness350 cd/m²(Typical)
Contrast Ratio800 : 1
Aspect Ratio16 : 10
Viewing Angle (H/V)178°/178°
Display Color16.7 Million (8bit)


Interface

SDI In / Out1 / 1
HDMI In / Out1 / 1
VGA In1
AV (Composite) In / Out1 / 1
Audio In / Out (2ch De-Embedded Audio Selected Output)1 / 1


Audio

Built in speaker1W x 1


Dimensions & Weight

Outline Dimension (W x H x D)9.84 x 6.69 x 1.27″ / 250 x 170 x 32.3 mm
Net Weight1.45 lbs / 660g


Input Format

SMPTE 425M-AB1920 x 1080p / 60,59.95,50,30,29.97,25,24,23.976 psf
SMPTE 274M1920 x 1080p / 30,29.97,25,24,23.976 psf
1920 x 1080i / 60,59.94,50
SMPTE 296M1280 x 720p / 60,59.94,50,30,25
SMPTE 125M480i / 60,59.94
ITU-R BT.656576i / 50


General Summary

Power – Electrical RatingsXLR-4p (DC12V) / DC 7 ~ 24V
Power – Consumption800 mA / ≤ 12 W
Warranty – Parts2 Years
Operating Temperature-4 ~ 140°F / -20 ~ 60°C
Storage Temperature32 ~ 122°F / 0 ~ 50°C
Operating HumidityTa=+40°C, 90%RH, 120hrs

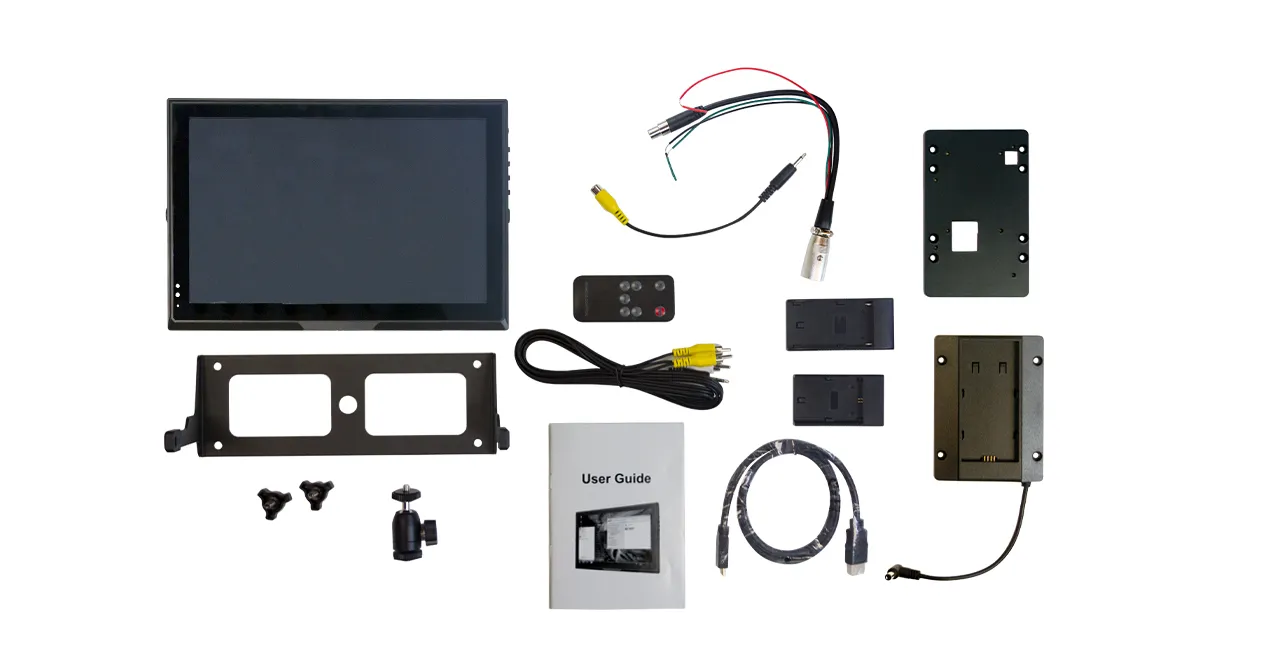

Package IncludeMonitor x1, Gimbal stand x1, 12V-DC Adapter x1, Shoe Mount x1, VESA Battery Plate x1, Manual x1, Battery Plate (F-970 & LP-E6) x2, HDMI Cable x1, Remote Controller x1, Video Out Cable x1, Composite Cable x1, Mini XLR & Tally Cable x1, Mount Plate x1


Product Dimension & Weight
