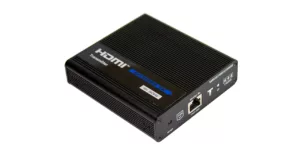

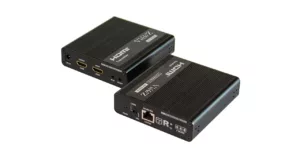

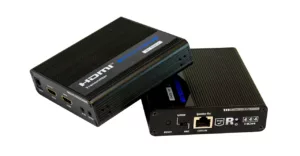

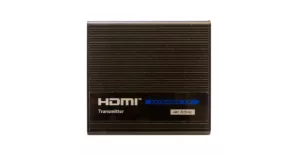

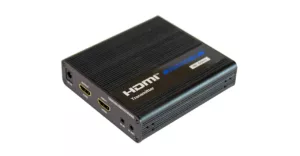

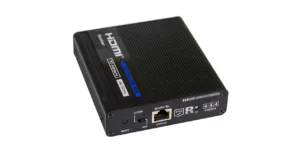

VZ-1TRX-4K extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 230 ft (70 m) at 4K resolution by using a CAT 6/6A/7 cable. It is perfect for videowall or security monitor installation. VZ-1TRX-4K extender uses new technology, ipcolor that stands for global leading UHD video digital transmission, the core of ipcolor is supporting zero latency, 4K resolution uncompressed transmission through 10G Ethernet by using Ethernet cables.
- Lossless Ultra HD 4K Video Transmission
- Support Resolutions up to 4K@60Hz (8 / 10 / 12 bit)
- New IPColor Technology
- Available IR Signal Transmission (IR In / Out)
- Support HDMI Loop-through at Transmitter
- Transmission Length CAT 5/5e – 131ft / 40m
Transmission Length CAT 6/6A/7 – 230ft / 70m - Support HDR (HDR 10 + Dolby)
Specification | Dimension | Spec & Manual
Series : Accessories | Key Features : Extender 4K
Product Features
- Model Number: VZ-1TRX-4K
- Extends HDMI signal over a single network cable
- New IPColor Technology
- Supports
@60Hz – 480i / 480p / 720p / 1080i / 1080p / 4K
@50Hz – 576i / 576p / 720p / 1080i / 1080p / 4K
@30Hz – 4K (3840×2160)
@24/25Hz – 4K (3840×2160, 4096×2160) - Lossless Ultra HD 4K Video Transmission
- Support 4K@60Hz (8 / 10 / 12 bit)
- Available IR Signal Transmission – IR In / Out
- Transmit HDMI Signal over Single CAT 5 / 5e / 6 / 6A / 7 Cable with Standard of IEEE-568B
- Transmission Length CAT 5/5e – 131ft / 40m
- Transmission Length CAT 5e – 230ft / 70m
- Support HDMI Loop-through at Transmitter
- Support HDR (HDR 10 + Dolby), Zero Latency
- DC 5V / 2A
Specification
Resolution | @59.94/60 Hz – 480i / 480p / 720p / 1080i / 1080p / 3840×2160 @50 Hz – 576i / 576p / 720p / 1080i / 1080p / 3840×2160 @30 Hz – 3840×2160, 4096×2160 @23.98 /25 Hz – 3840×2160, 4096×2160 |
HDCP™ Version | HDCP 2.2 |
HDMI Compliance | HDMI 2.0a |
IPColor Technology | Support |
Transmission Distance – CAT 5 / 5E | up to 131ft / 40m |
Transmission Distance – CAT 5 / 5E | up to 230ft / 70m |
Audio Format | LPCM / DTS-H D / DTS / Dolby Digital 5.1ch |
In / Out TDMS Signal | 0.7 ~ 1.2 Vp-p (TDMS) |
In / Out DDC Signal | 5 Vp-p (TTL) |
In / Out HDMI Cable Length | ≤ 8 m (AWG 24) |
Interface
Transmitter TX – Power Input (DC 5V) | 1 |
Transmitter TX – IR In / Out | 1 / 1 |
Transmitter TX – CAT6 (RJ45) Out | 1 |
Transmitter TX – HDMI In / Out | 1 / 1 |

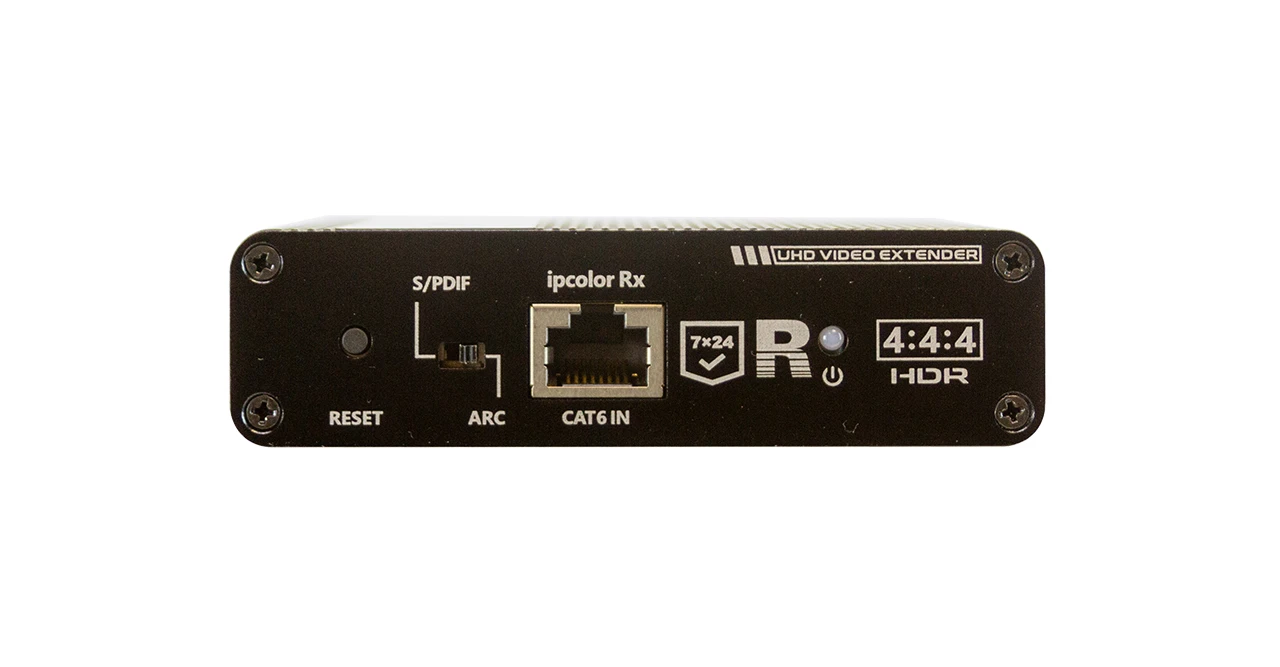

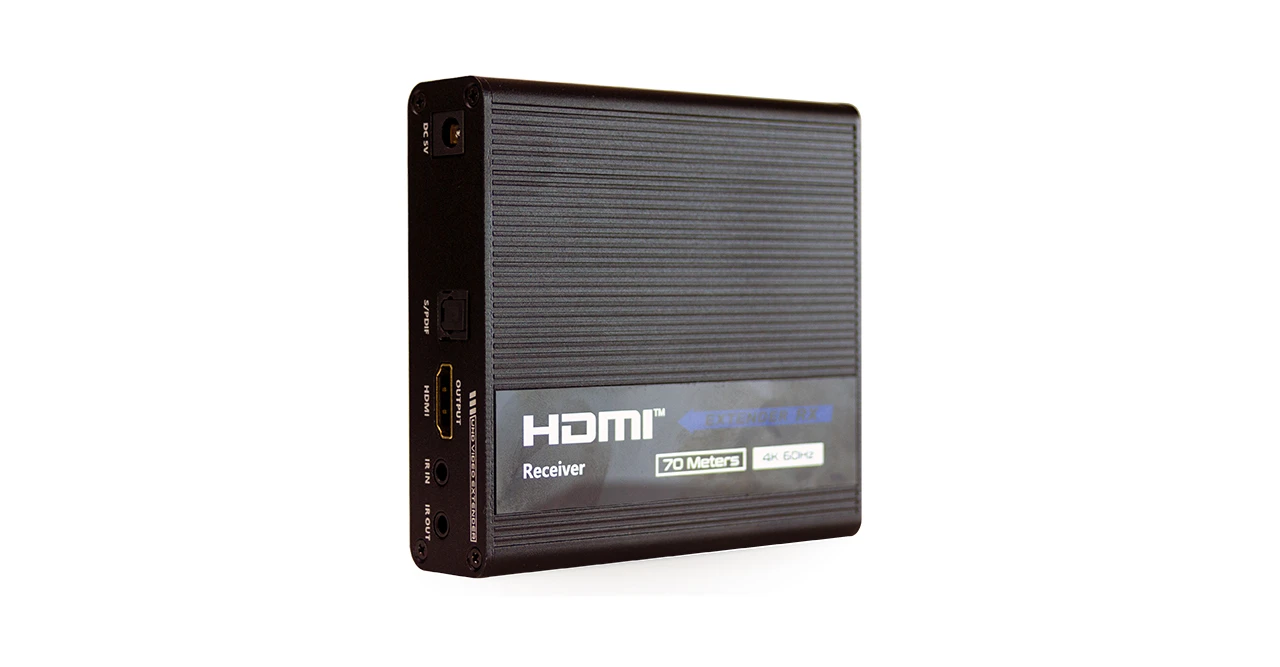

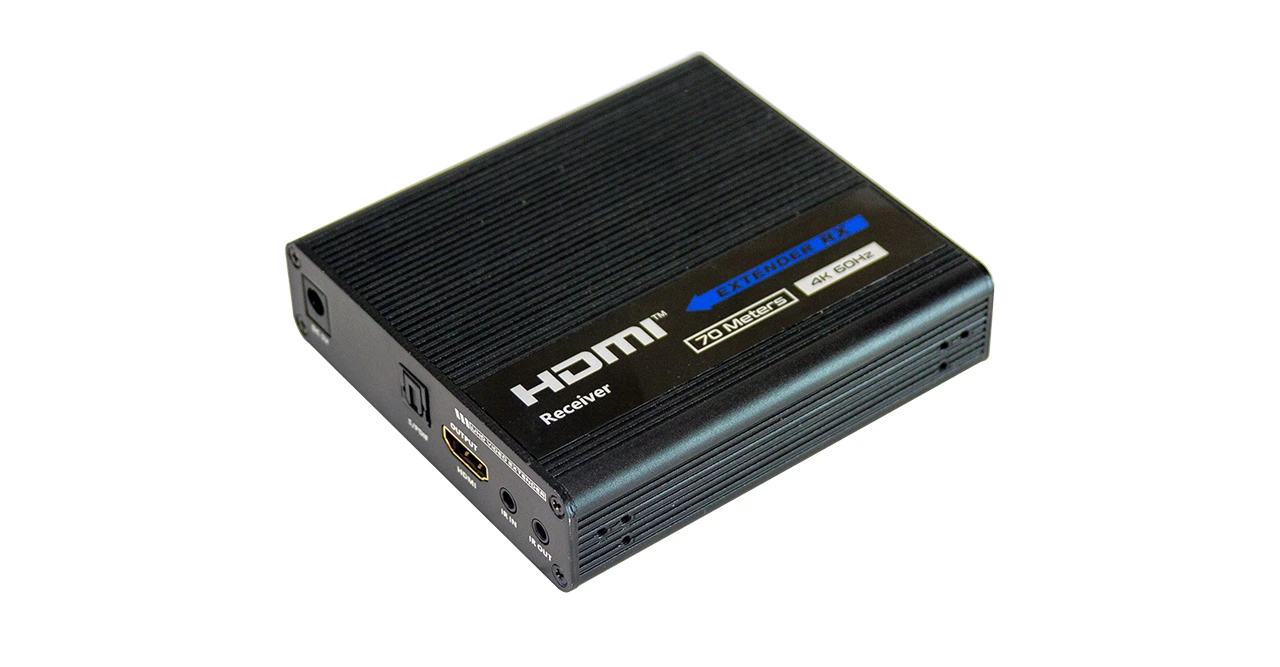

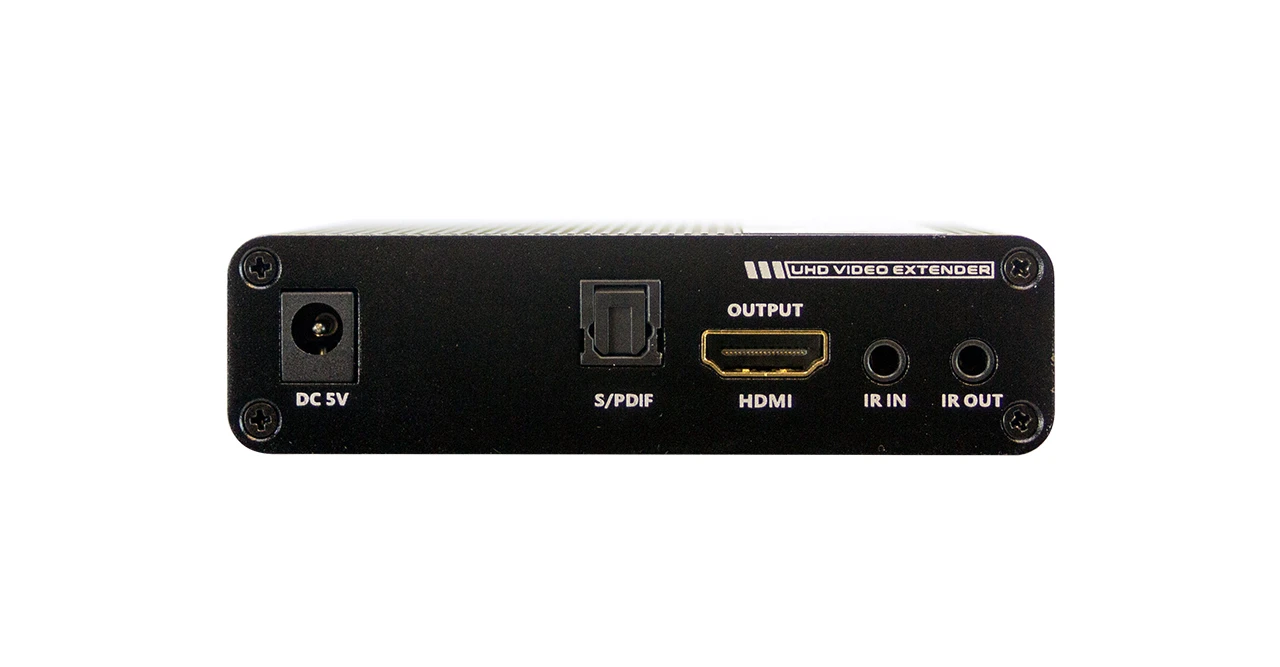

Receiver RX – Power Input (DC 5V) | 1 |
Receiver RX – IR In / Out | 1 / 1 |
Receiver RX – S/PDIF (ARC support) | 1 |
Receiver RX – CAT6 (RJ45) In | 1 |
Receiver RX -HDMI Out | 1 |
Dimensions & Weight
Outline Dimension (W x H x D) | 4.17″ x 1.0″ x 3.9″ / 106 mm x 26.2 mm x 99 mm) |
Net Weight TX | 0.46 lbs / 210g |
Net Weight RX | 0.46 lbs / 210 g |
Gross Weight | 1.85 lbs / 0.83 kg |
General Summary
Power – Electrical Ratings | DC 5V / 2A (100 ~ 240 VAC, 50/60 Hz) |
Power – Consumption | TX : ≤ 4 W / RX: ≤ 4 W |
Operating Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
Storage Temperature | -22 ~ 158°F / -30 ~ 70°C |
Operating Humidity | 0 ~ 90% RH |
Mechanical Construction | Aluminum alloy (Black) |
Protection Level | 1a Contact discharge level 3, 1b Air discharge level 3 implementation of the standard : IEC61000-4-2 |
