VZ-173PM-HDR is a monitor with a 17.3” 10-bit IPS screen that has multiple viewing options, including quad and multi-view. VZ-173PM-HDR provides HDR, 3D LUT and Color Space (Built in Rec.709, EBU, SMPTE-C, DCI-P3).

  • 17.3” 10bit/3G-SDI Monitor
  • 4K HDMI 4 inputs and a loop-through / 3G-SDI Input and a loop-through

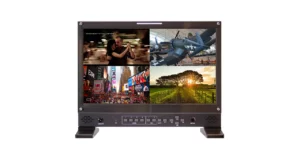

  • Quad / PBP / PIP View
  • 3D-LUT (built in EBU/SMPTE/REC709 /DCI-P3)
  • Gamma 2.2, 2.4 and 2.6 / False Color / Display Swap / Aspect Ratio
  • Center Marker / Safety Area / Color/Mono
  • Tally (Red, Yellow, Green)
  • A Removable Protective Front Glass

Product Features

  • Model Number: VZ-173PM-HDR
  • HDR (HDMI) PQ supported
  • 3G-SDI 2inputs and one loop-through
  • 3G-LUT (built in EBU/SMPTE/REC709 /DCI-P3)
  • 4K HDMI 4 inputs and a loop-through / 3G-SDI Input and a loop-through
  • Gamma 2.2, 2.4 and 2.6
  • False Color, Display Swap, Aspect Ratio
  • Center Marker, Safety Area
  • Color/Mono
  • Tally (Red, Yellow, Green)
  • Battery Power Remain Information
  • A Removable Protective Front Glass

Display

Screen Size 17.3″
Max Resolution 3840 x 2160 (4K) IPS pixel
Pixel Pitch 0.0995 x 0.0995 mm
Brightness 400 cd/m²(Typical)
Contrast Ratio 1000 : 1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178°/178°

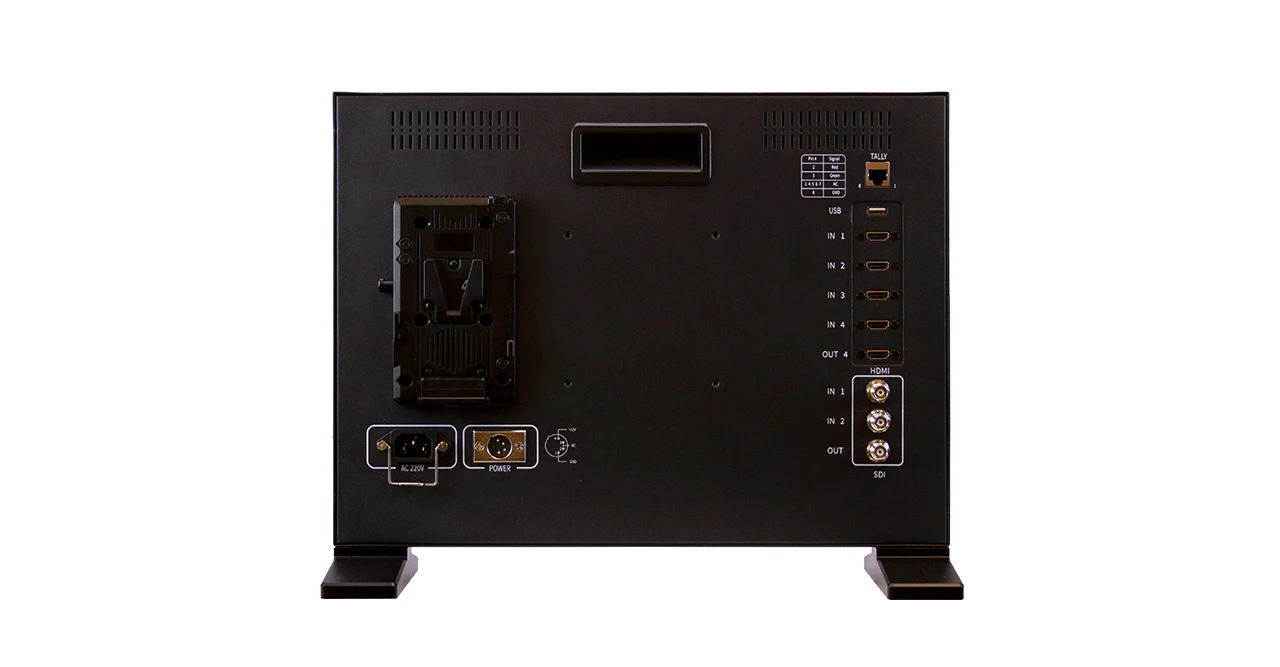

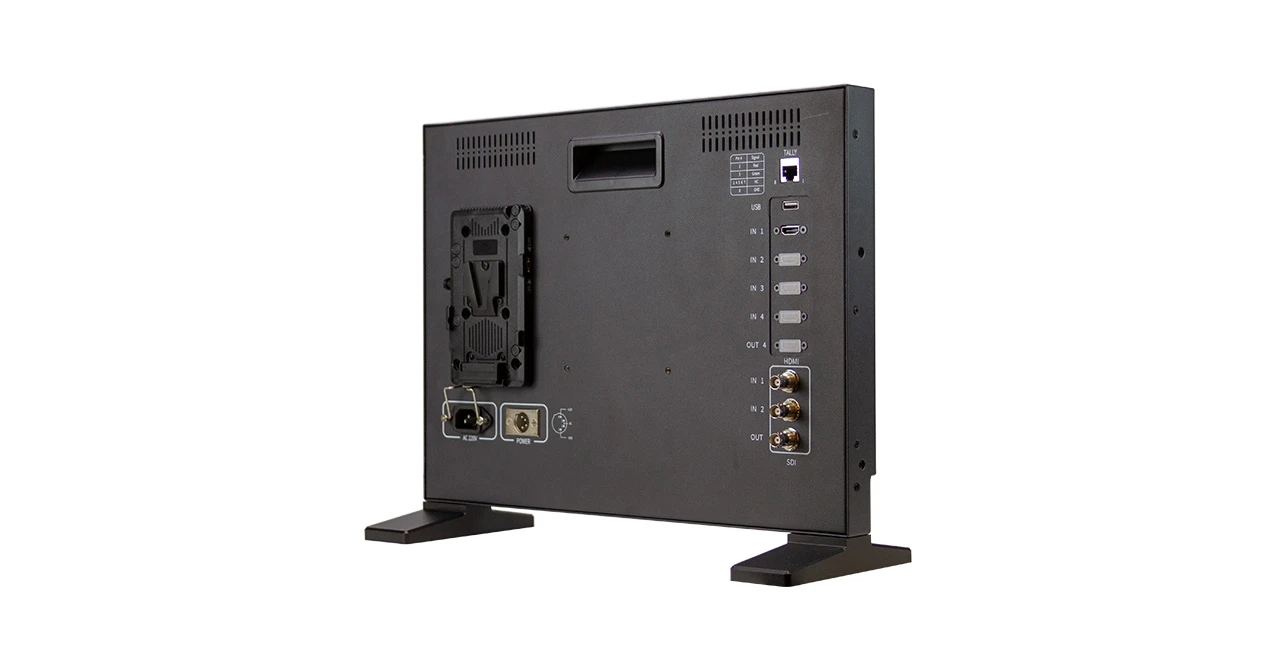

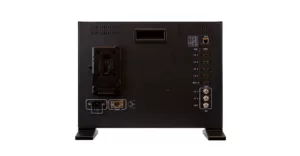

Interface

3G-SDI In / Out 2 / 1 (Loop-through)
HDMI (2.0) In / Out 4 (4K@60Hz) / 1 (Loop-through)
USB In 1
Tally 1


Audio

Built in speaker Support


Dimensions & Weight

Outline Dimension (W x H x D) 16.43 x 12.10 x 1.37″ / 417.4 x 307.4 x 34.8 mm
Net Weight TBD


Input Format

3G-SDI SMPTE-125M 480i (59.94/60)
3G-SDI SMPTE-274M 1080i (50/59.94/60)
1080p (24/25/29.97/30 sF)
3G-SDI SMPTE-292M 1080p (23.98/24/25/29.97/30/50/59.94/60)
3G-SDI SMPTE-296M 720p (50/59.94/60)
ITU-R BT.656 576i (50))
HDMI 720x480i (59.94/60), 720x480p (59.94/60)
720x576i (50), 720x576p (50)
720p (50/59.94/60), 1080i (50/59.94/60), 1080p (24/25/29.97/30 sF)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (24/25/30/59.94/60)
4096×2160p (23.98/24/25/29.97/30/50/59.94/60)


General Summary

Power – Electrical Ratings XLR-4p (DC 12~24V) / AC 100 ~ 240V
Power – Consumption ≤ 21.6 W
Warranty 2 Years
Operating Temperature -4 ~ 140°F / -20 ~ 60°C
Operating Humidity 10~90% RH
Storage Temperature -22 ~ 140°F / -30 ~ 60°C
Battery Plate V-mount (IDX BRACKET)
Package Include Manual x 1, Desktop Stand Set x 1, HDMI Cable x 1, AC Power Cable x 1
Option Aluminium Carrying Case, Field Hood
