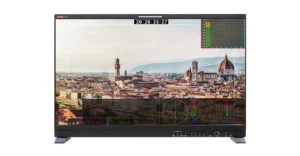

VZ-315PM-8K is a 31.5” 8K monitor with 12G-SDI interface - 4×12G-SDI. VZ- 315PM-8K supports various video formats including 12G-SFP, 12G/6G/3G/ HD-SDI and HDMI 2.0. VZ-315PM-8K provides wide color gamut up to DCI and a full feature set. Input & loop out Quad-Link signals support up to 7680x4320 (60, 59.94, 50, 48, 47.95, 30, 29.97, 25, 24, 23.98p) and 8192x4320 (60, 59.94, 50, 48, 47.95, 30, 29.97, 25, 24, 23.98p).
- 31.5” 8K/12G-SDI Monitor
- All SDI signals Input – 12G-SDI / 6G-SDI / 3G-SDI (Level A, DL-B, DS-B) / HD-SDI/SD-SDI
- Quad SDI | Single SDI
- Loop-Through (SDI)
- HDR – ST2082 / HLG / HDMI 2.0 & 1.4
- Color Calibration (Rec. 709, NTSC & DCI-P3)
- Color Gamut – SMPTE-C / Rec709 / EBU / DCI-P3 / BT2020
- Waveform / Vector Scope / Histogram
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
Specification | Dimension | Spec & Manual
Series : Production Monitor | Key Features : 12G-SDI 4K 8K
Product Features
- Model Number: VZ-315PM-8K
- SDI signals Input – 12G-SDI / 6G-SDI / 3G-SDI (Level A, DL-B, DS-B) /HD-SDI/SD-SDI
- Quad & Single SDI / Color Calibration (Rec. 709, NTSC & DCI-P3)
- HDR – ST2082 / HLG / HDMI 2.0 & 1.4
- Color Gamut – SMPTE-C / Rec709 / EBU / DCI-P3 / BT2020
- Time Code ( LTC / VITC ) / Tally ( Red / Green / Yellow )
- False Color (Default / Spectrum / ARRI / RED) / Exposure
- Color Temperature / Color Space
- Color Space (94% DCI-P3) / UMD / Peaking / RGB Gain
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
- Waveform / Vector Scope / Histogram
- Check Field / Overscan / H/V Delay / Zoom / Freeze
- Audio Level Meter (16ch) / Audio Vector
- Front User definable Buttons F1 ~ F4
- Marker – Center, Safety & Aspect ([16:9], [1.85:1], [2.35:1], [4:3], [3:2],
[2.0X], [2.0X MAG], [Grid], [User].)
Display
| Screen Size | 31.5″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.18159 mm x 0.18159 mm |
| Brightness | 350 cd/m²(Typical) |
| Contrast Ratio | 1300 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.07 B |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User |
| LUT (Look Up Table) | Support (3D LUT – .cube Format) |
| Technology | Calibration to Rec.709 with Optional Calibration Unit |

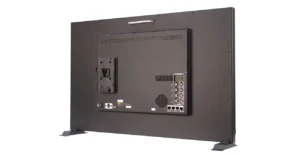

Interface
| 12G-SDI In / Out | 4 / 4 (Loopthrough) |
| HDMI In / Out | 1 / 1 |
| SFP In | 1 x 12G SFP+ ( Fiber Module for Option) |
| RJ45 In | 1 |
| RS422 In / Out | 1 / 1 (Remote Control) |
| GPI In | 1 (Remote Control) |
| USB In | 1 (Remote Control) |
Audio
| Built in speaker | 1W x 2 |
| SDI | 16ch 48kHz 24 bit |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5 mm |
Dimensions & Weight
| Outline Dimension Without Stand (W x H x D) | 28.24 x 18.2 x 2.36″ / 717.5 x 461.7 x 60.1 mm |
| Outline Dimension With Stand (W x H x D) | 28.24 x 18.8 x 2.36″ / 717.5 x 477.2 x 60.1 mm |
| Net Weight | 28.66 lbs / 13 kg |
Input Format
| 12G-SDI | 7680x4320p (24/25/30/50/60), 3840x2160p (24/25/30/50/60), 1920x1080p (24/25/30/50/60), 1920x1080psf (24/25/30), 1920x1080i (50/60) |
| SFP | 3840x2160p (24/25/30/50/60), 1920x1080p (24/25/30/50/60), 1920x1080psf (24/25/30), 1080i (50/60), 720p (50/60) |
| HDMI | 3840x2160p (24/25/30/50/60p), 1920x1080p (24/25/30/50/60p), 1080i (50/60), 720p (50/60) |
General Summary
| Power – Electrical Ratings | XLR-4p (DC 12~24V) |
| Power – Consumption | ≤ 65 W (15V) |
| Warranty | 2 Years |
| Operating Temperature | 32 ~ 122°F / 0 ~ 50°C |
| Operating Humidity | 90% RH for 240 hrs, TA=+ 140°F (60°C) |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Battery Plate | V-mount |
| Package Include | 15V DC Adapter x 1, Manual x 1, VESA Plate x 1, Desktop Stand Set x 1, USB Disk x 1, Battery Plate (V-Mount) x 1 |
| Package Option | SFP Optical Fiber Module x 1, Anton Bauer Mount x 1 |
Product Dimension & Weight
Click below to enlarge
