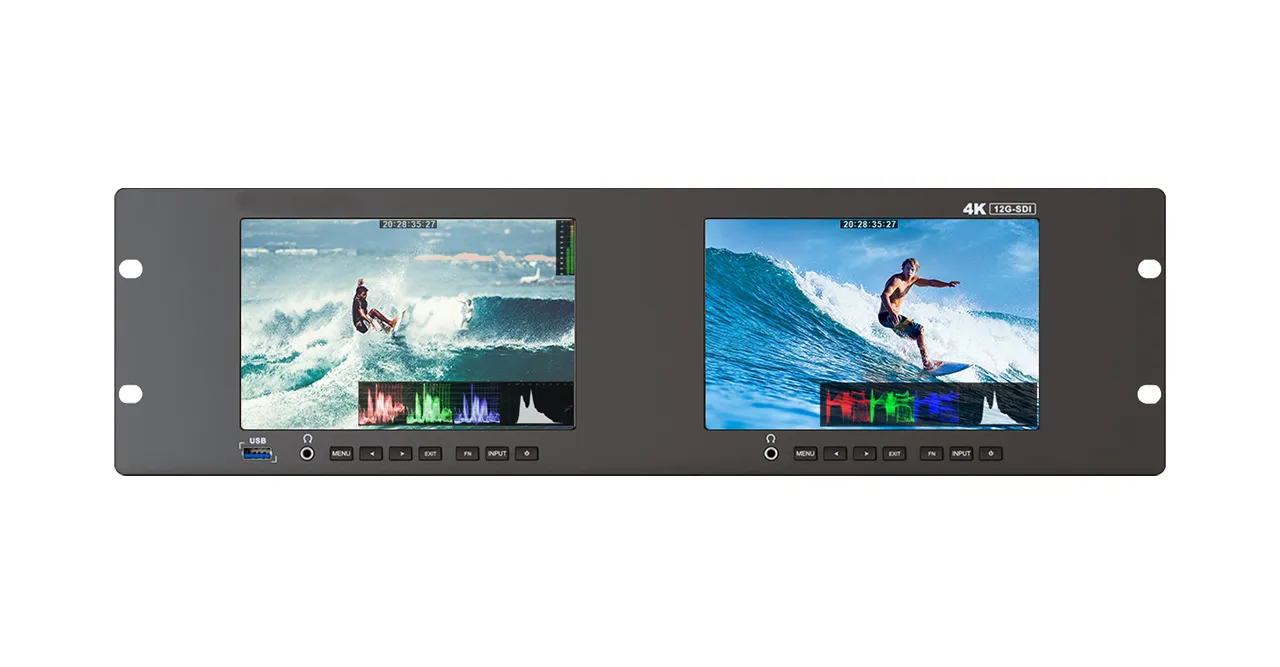

VZ-070RM-12G is a dual 7” rack mountable monitor featuring LTPS screen that provides 12G-SDI and 4K
- 7″ dual rackmount 12G-SDI 4K Monitor
- 1920 x 1200 Resolution (LTPS Panel)
- 12G-SDI and 4K / HDR (HLG/ST 2084 300/1000/10000)
- Tally (Red, Green) Support / Timecode / HDMI EDID
- 16ch Audio Level Meter
Specification | Dimension | Spec & Manual
Series : Rack Mount Monitor | Key Features : 12G-SDI 4K HDR
Product Features
- Model Number: VZ-070RM-12G
- 7” Dual LTPS Panel | LED Backlight Adjustment
- One Front Assignable Function Button | 3RU Rack Mount Monitor
- 3D LUT / HDR (HLG/ST 2084 300/1000/10000 ) Supported
- Waveform, Histogram, Time Code, False Color, Exposure, Peaking,
Check Field, Freeze, H/V Delay - Tally (Red, Green) Support, UMD, HDMI EDID
- 16ch Audio Level Meter
- Overscan, Pixel to Pixel, RGB Gain, Color Bar
- Aspect ([Full], [16:9], [1.85:1], [2.35:1], [4:3], [3:2], [1.3X], [1.5X], [2.0X], [2.0X MAG], [User])
- Marker – Center, Safety([95%], [93%], [90%], [88%], [85%], [80%]) &
Aspect ([16:9], [1.85:1], [2.35:1], [4:3], [3:2], [1.3X], [1.5X], [2.0X], [2.0XMAG], [Grid]) - Screen Color Mode: Blue, Red, Green & Mono
- Color Temperature – 5500K. 6500K, 7500K, 9300K & User
Display
| Screen Size | 7″ (LTPS Panel) x 2 |
| Max Resolution | 1920 x 1200 |
| Pixel Pitch | 0.07875 mm x 0.07875 mm |
| Brightness | 1000 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 10 |
| Viewing Angle (H/V) | 160°/160° |
| Display Color | 1.07 B |
| HDR | ST2084 300/1000/10000/HLG |

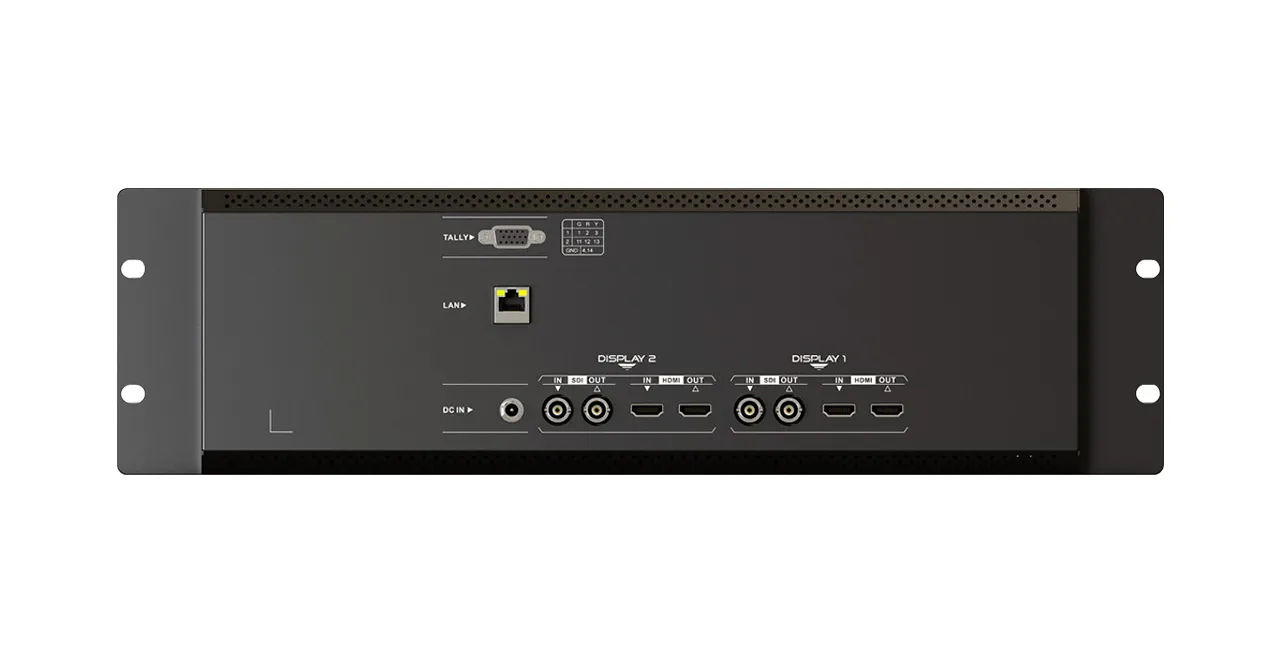

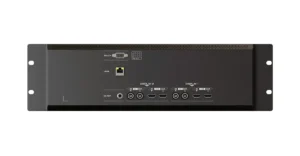

Interface
| 12G-SDI In / Out | (1 / 1) x 2 (supports up to 4K 60Hz) |
| HDMI (2.0) In / Out | (1 / 1) x 2 (supports up to 4K 60Hz) |
| RJ45 (Remote Control) | 1 (Remote Control) |
| USB (Type A) | 1 (Remote Control) |
| Tally | 1 |
| Ear Jack | 2 (3.5 mm) |
Dimensions & Weight
| Outline Dimension (W x H x D) | 18.89 x 5.18 x 1.27″ / 480 x 131.6 x 32.5 mm |
| Net Weight | 4.03 lbs / 1.83 kg |
| Gross Weight | 5.4 lbs / 2.44 kg |
Input Format
| SDI | 3840 x 2160p (24 / 25 / 30 / 50 / 60) 1920 x 1080p (24 / 25 / 30 / 50 / 60) 1920 x 1080i (50 / 60) |
| HDMI | 3840 x 2160p (24 / 25 / 30 / 50 / 60) 1920 x 1080p (24 / 25 / 30 / 50 / 60) 1920 x 1080i (50 / 60) 1280 x 720p (50 / 60) |
General Summary
| Power – Electrical Ratings | DC 12~24V (AC 100 ~ 240V) |
| Power – Consumption | ≤ 21 W |
| Warranty | 2 Years |
| Operating Temperature | 32 – 122°F / 0 – 50°C |
| Humidity at High Operating Temperature | 10 ~ 90% RH |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Package Include | DC Power Adapter x 1, Manual x 1, Tally Connector x 1 |

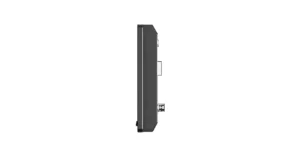

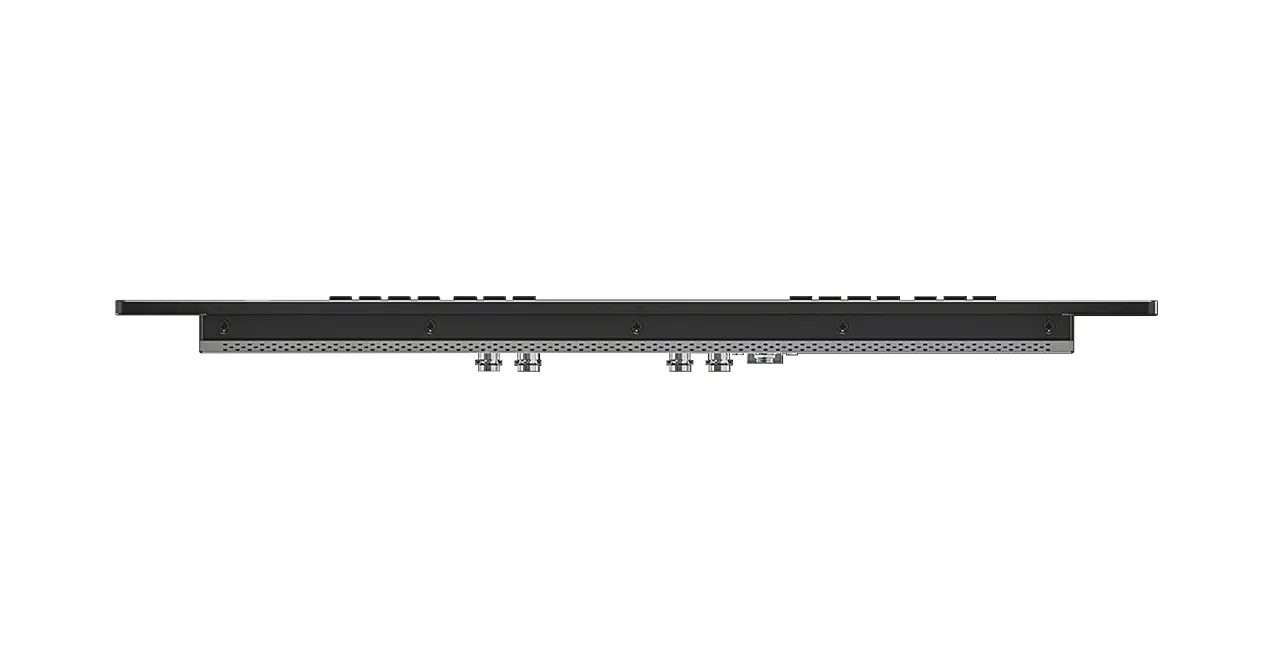

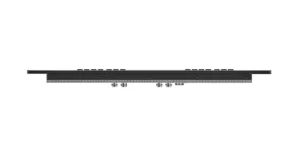

Product Dimension & Weight
Click below to enlarge
