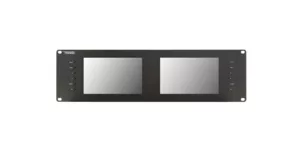

vz070rme1

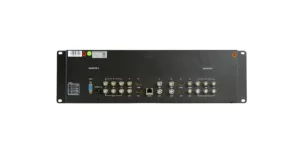

vz070rme2

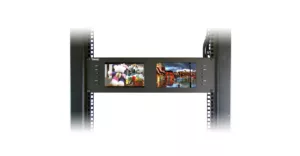

vz070rme3

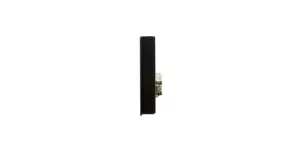

vz070rme6

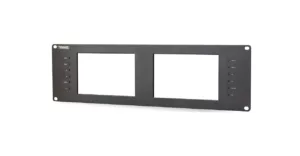

vz070rme5

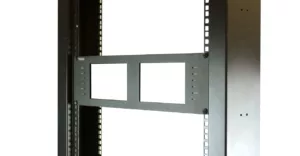

vz070rme7

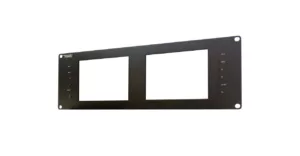

vz070rme4
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

3U 7 inch 3G-SDI Video Production Rack Mount Monitor

  • 7″ 3G HD-SDI ENG/EFP Monitor
  • 1280 x 800 Resolution (IPS Panel)
  • 12bit to 8bit Dithering
  • Gamma 2.2-base Calibration
  • RJ-45 Remote Control
  • 2ch Audio Level Meter

Product Features

  • Model Number: VZ-070RM-E
  • 3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support
  • 3RU Rack Mount 7″ Dual Monitor
  • 12bit to 8bit Processing
  • Resolution ( 1280×800 )
  • Image Flip & Zoom
  • Multi-Format Support
  • False Color ( SD/HD-SDI )
  • Screen Color Mode: Blue, Red, Green & Mono
  • H/V Delay
  • Red/Green Mode Tally
  • Zero, Under, Over, Pixel to Pixel Scan
  • Various Markers
  • Exposure
  • Rj-45 Remote Control
  • On-Screen Menu

Display

Screen Size7″
Max Resolution1280 x 800
Pixel Pitch0.039 mm x 0.117 mm
Brightness350 cd/m²(Typical)
Contrast Ratio800 : 1
Aspect Ratio16 : 10
Viewing Angle (H/V)178°/178°
Display Color16.7 Million (8bit)


Interface

SDI In / Out(1 / 1) x 2
HDMI In / Out(1 / 1) x 2
Component (Y, Pb, Pr) In(3 / 3) x 2
AV (Composite) In / Out(1 / 1) x 2
RJ45 (Remote Control)1 x 2


Dimensions & Weight

Outline Dimension (W x H x D)19 x 5.25 x 0.99″ / 482.5 x 133.5 x 25.3 mm
Net Weight6.35 lbs / 2885 g
Gross Weight6.6 lbs / 2980 g


Input Format

SMPTE 425M-Level A1920 x 1080p / 60,59.94,50
1920 x 1080i / 60,59.94,50
SMPTE 274M1920 x 1080p / 30,29.97,25,24,23.98 psf
1920 x 1080i / 60,59.94,50
SMPTE 296M1280 x 720p / 60,59.94,50
SMPTE 125M480i / 59.94
ITU-R BT.656576i / 50


General Summary

Power – Electrical RatingsDC 12V
Power – Consumption≤ 18 W (1.5A)
Warranty – Parts2 Years
Operating Temperature32 – 104°F / 0 – 40°C
Package IncludeMonitor x1, Power Adapter x1
