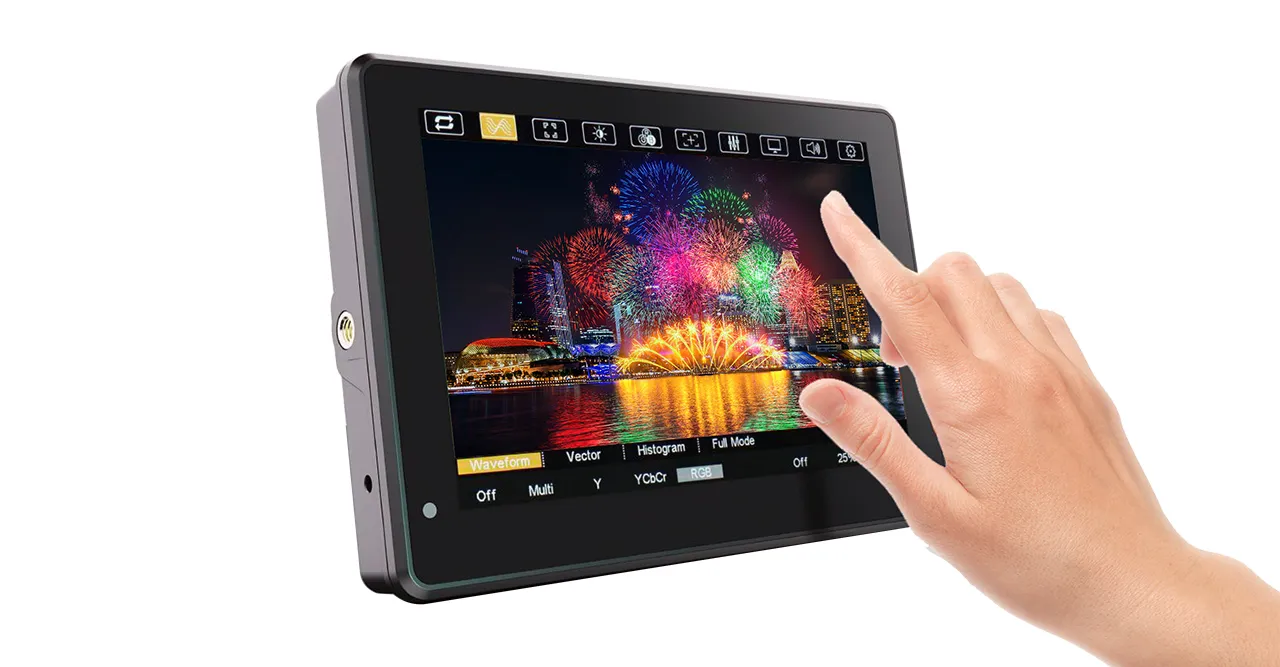

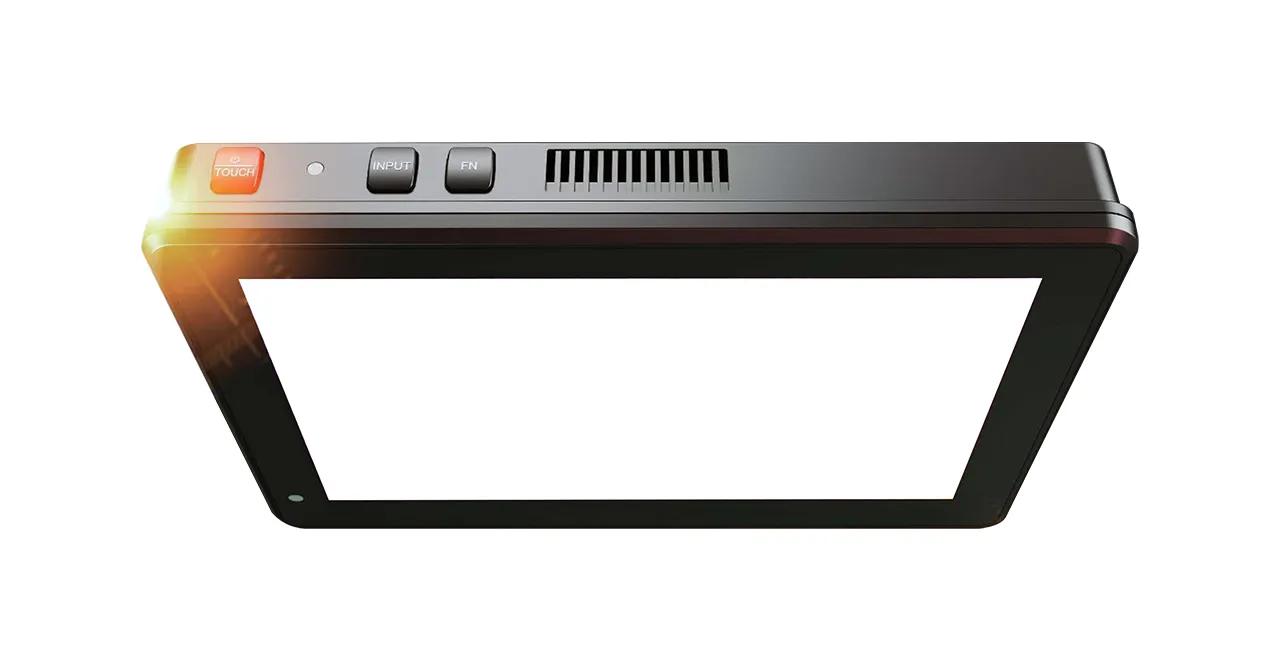

7 inch Touch 3G-SDI Control Monitor
- 1920 x 1200 Resolution (IPS Panel)
- 3D Lut and High Brightness 2000 nits
- HDR (PQ/HLG), Waveform and Vector Scope
- Histogram, False Color, Exposure, Peaking Focus
- Camera Control, H/V Delay, Image Flip
- 2ch Audio Level Meter
Specification | Dimension | Spec & Manual
Series : Field Monitor | Key Features : 3G-SDI Touch Monitor
Product Features
- Model Number: VZ-070FM-HB
- 3G SDI LEVEL A/B Support
- 7″ Touch 3G-SDI Monitor
- High Brightness 2000 cd/m2 and Camera Control
- Resolution ( 1920×1200 )
- HDR(PQ/HLG), 3D-LUT, Waveform, Vector Scope
- Histogram, False Color, Exposure, Peaking Focus
- H/V Delay, Image Flip
- De-squeeze – 1.33X, 1.5X, 1.8X and 2X
- Marker, Freeze, Timecode, Zoom – Off, x2, x4, x6, x8
- Check Field, Audio Level Meter
Display
| Screen Size | 7″ (IPS Panel) |
| Max Resolution | 1920 x 1200 |
| Brightness | 2000 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 10 |
| Viewing Angle (H/V) | 160°/160° |
| HDR Supported | HLG; ST 2084 300/1000/10000 |

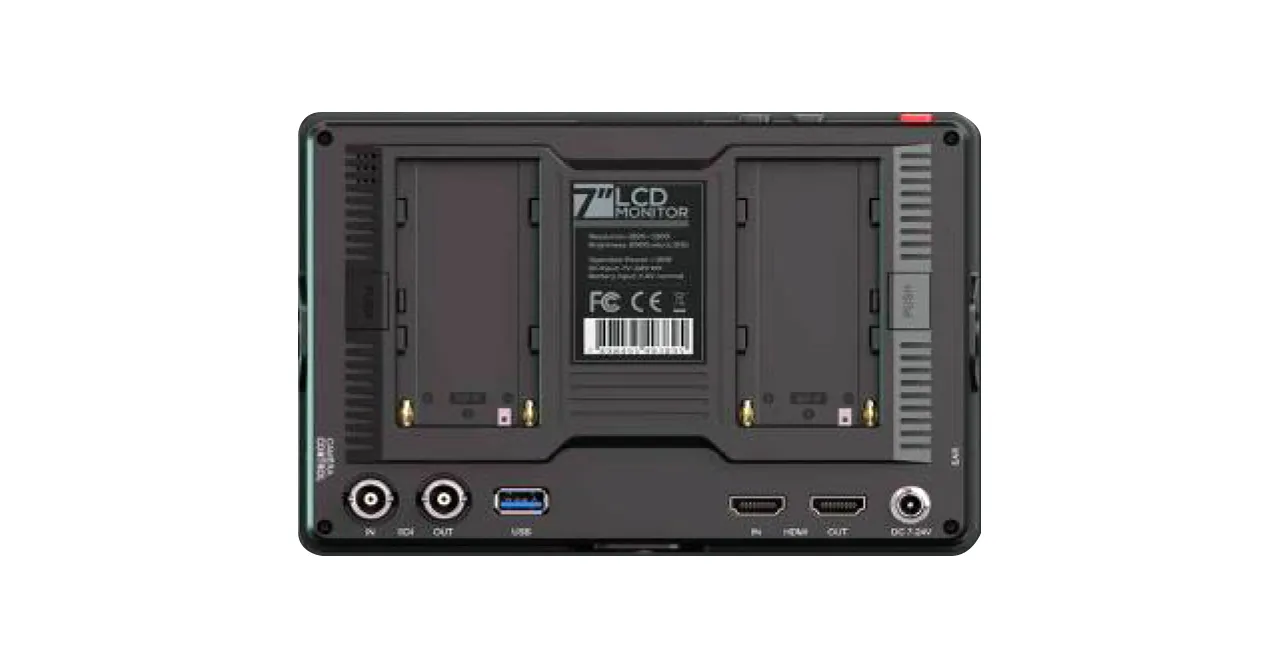

Interface
| 3G-SDI In / Out | 1 / 1 |
| HDMI (2.0) In / Out | 1 / 1 |
| CAMERA (LANC) In | 1 |
Input Format
| 3G-SDI – SMPTE 425M-Level A | 1080p / 60, 50, 30, 25, 24 1080psf / 30, 25, 24 1080i / 60, 50 720p / 60, 50 |
| HDMI | 2160p / 60, 50, 30, 25, 24 1080p / 60, 50, 30, 25, 24 1080i / 60, 50 720p / 60, 50 |
Audio
| Built in Speaker | 1 x 1W |
| SDI | 16ch 48kHz 24 bit |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24 bit |
Dimensions & Weight
| Outline Dimension (W x H x D) | 7.32 x 5.03 x 1.3″ / 186 x 128 x 33.2 mm |
| Net Weight | 1.14 lbs / 0.52 kg |
General Summary
| Power – Electrical Ratings | DC 7~24V (AC 100 ~ 240V) |
| Power – Consumption | ≤ 16 W (15 V) |
| Warranty | 2 Years |
| Operating Temperature | 32 – 122°F / 0 – 50°C |
| Humidity at High Operating Temperature | 10 ~ 90% RH |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |

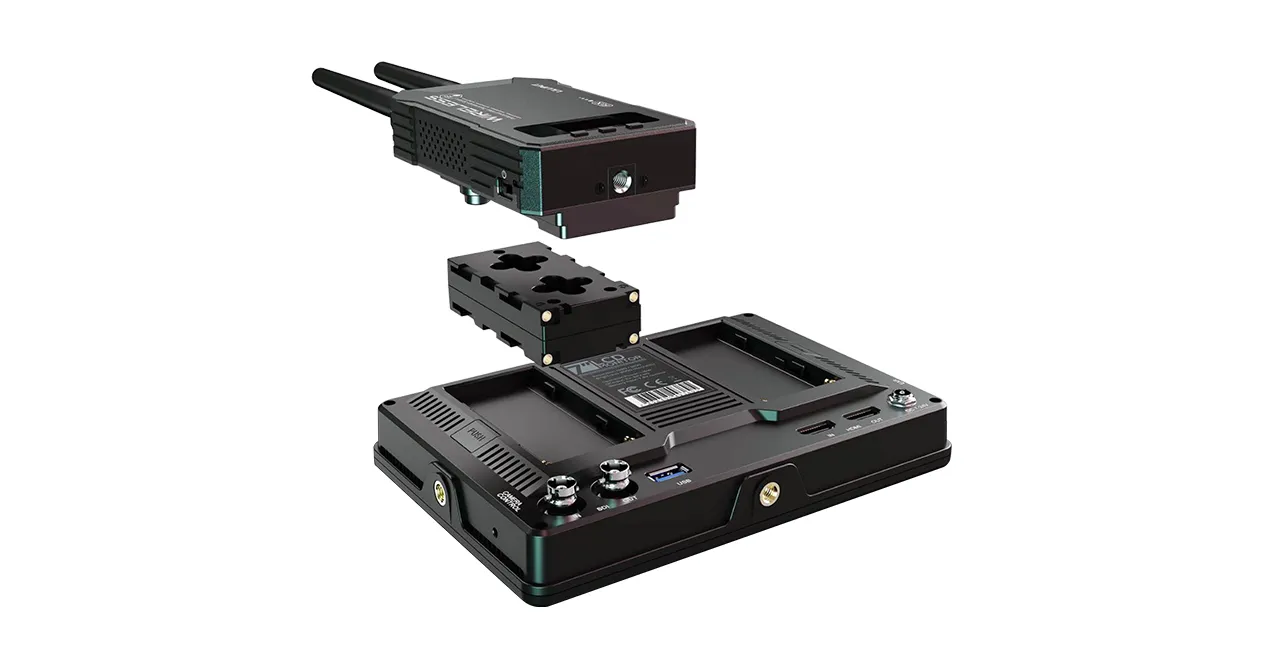

| Package Include | Manual x 1, Hot Shoe Mount x 1, Drive USB x1, 0.8 mm HDMI A-D Cable x 1, Lanc Cable x 1, 12V 2A DC Power Adapter x 1 (Option), Battery Plate Adapter x 1 (Option), Wireless Video Transmission x 1 (Option), Handbag x 1 (Option) |

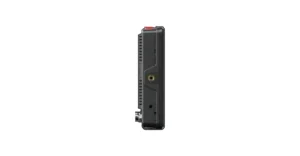

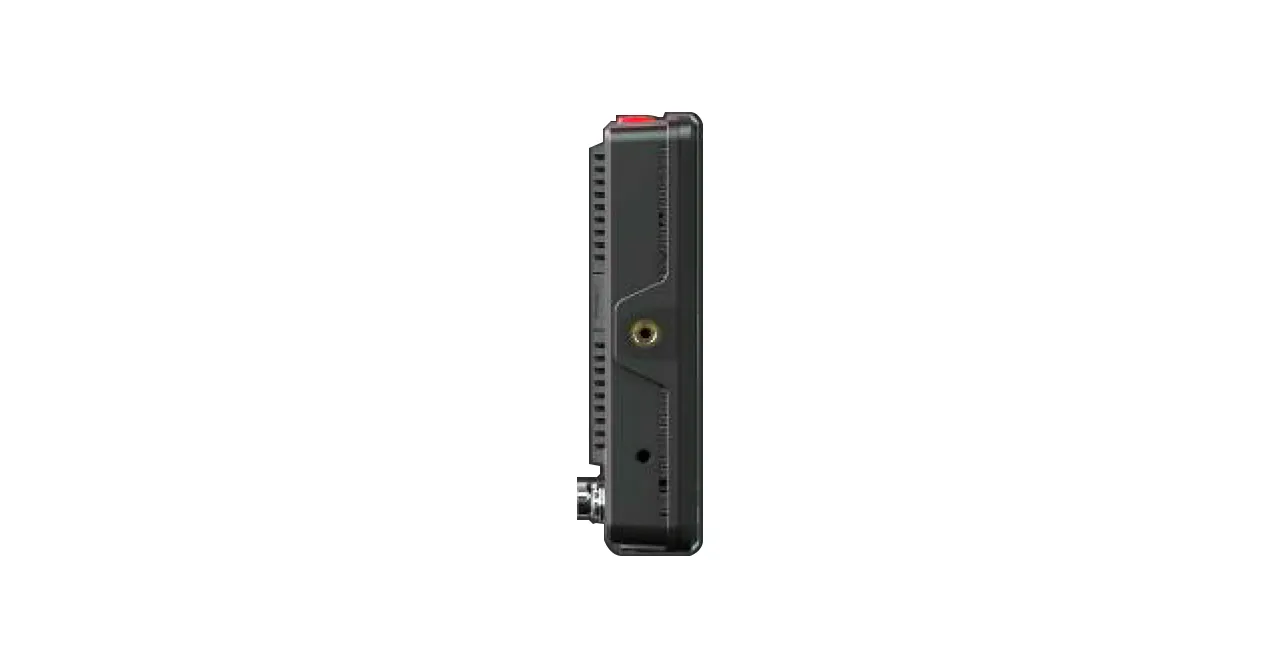

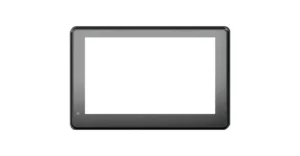

Product Dimension & Weight
Click below to enlarge
