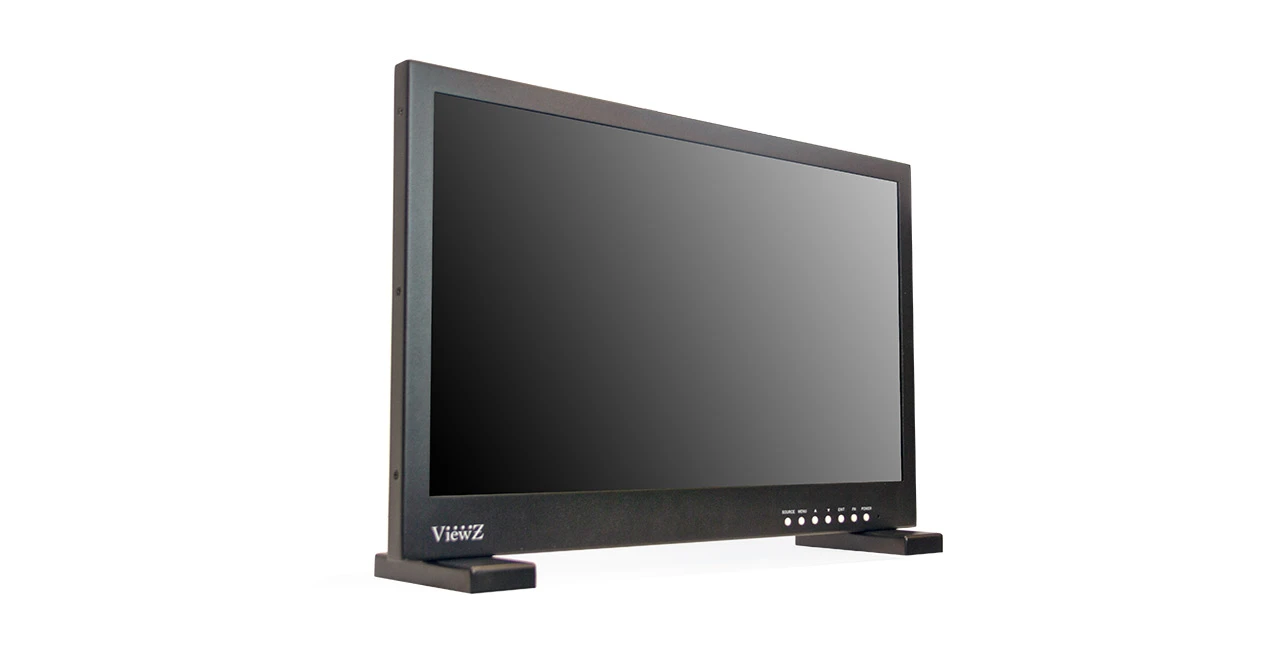

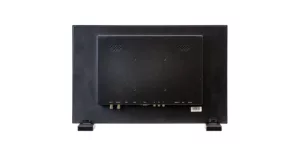

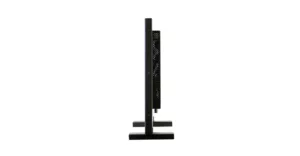

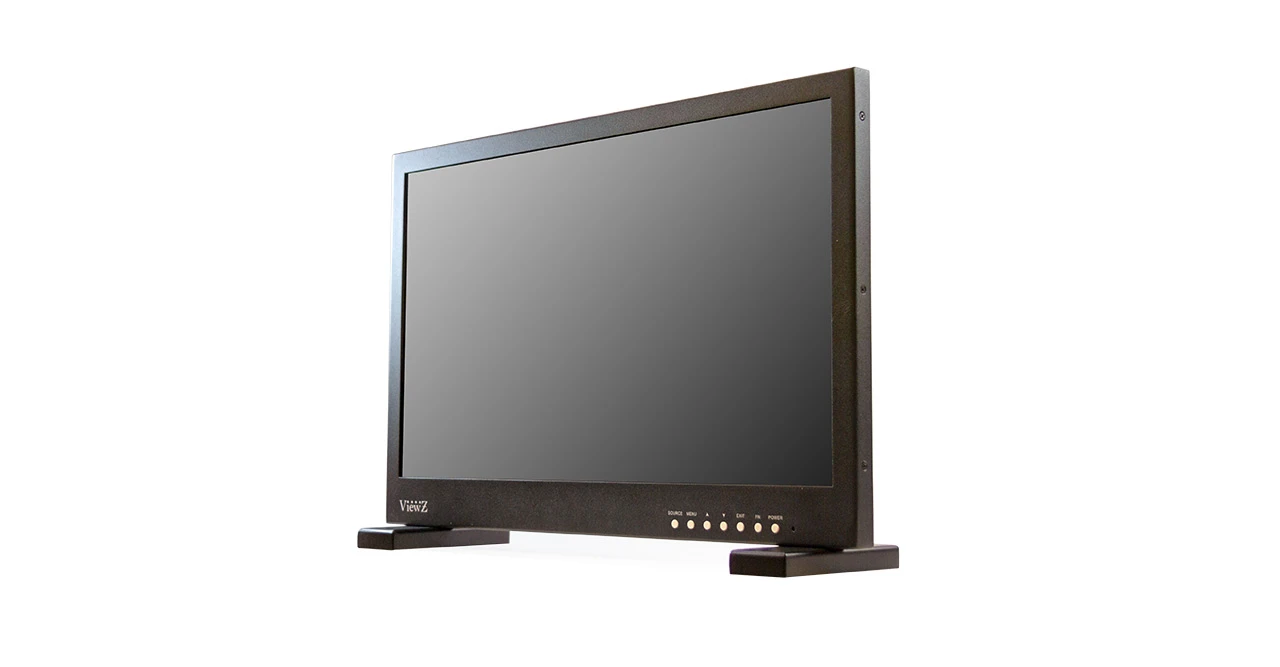

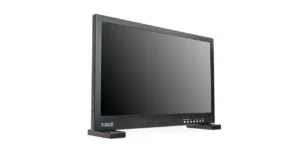

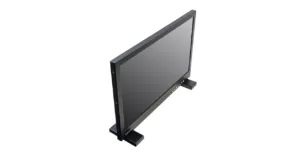

21.5-inch 3G-SDI Economic Video Production Monitor
- 21.5” LED 3G-SDI Monitor
- 3G-SDI IN/OUT Monitor
- SDI Active Loop Through Out
- Available Color Temperature – 6500K, 7500K, 9300K and more
- HDMI, VGA, SD/HD/3G-SDI (Level A/B), COMPONENT
- 12bit to 8bit Dithering
- Marker / Safety Area / Audio Level Meter
- 1920 x 1080 Resolution
Specification | Dimension | Spec & Manual
Series : Production Monitor | Key Features : 3G-SDI Marker
Product Features
- Model Number: VZ-215LED-L1
- 3G SDI 425M-A & B YCbCr 4:2:2 Support
- Factory Color Calibration – GAMUT, GAMMA and COLOR TEMP.
- Scan – Zero, over, pixel to pixel
- LED Backlight Display
- Y Clip Guide Min/Max Select (SD/HD SDI)
- SDI Active Loop Through Out
- Front Function Assignable Button
- Aspect Setting
- Various Markers
- On-Screen Menu
- Screen Color Mode: Blue & Mono
- Built-in Speaker
- SDI Embedded 2CH Audio Level Meter
Display
| Screen Size | 21.5″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.24825 mm x 0.24825 mm |
| Brightness | 250 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/160° |
| Display Color | 16.7 Million (8bit) |
| Response Time | 5 ms |
Interface
| 3G-SDI In / Out | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| Component In | 3 |
| USB In | 1 |
| Speaker Out | 1 |
| PC Stereo In | 1 |
Audio
| Built in speaker | 2W x 2 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 20.32 x 13.65 x 1.72″ / 516.0 x 346.9 x 43.6 mm |
| Net Weight | 8.4 lbs / 3.8 kg |
Special Features
| Line Marker Option | 3:2, 4:3, 1.85:1, 2.35:1, Off |
| Safety Area Option | Off, 80%, 85%, 88%, 90%, 93% and 95% |
| SDI Sound Channel Option | Two (2) Channels out of sixteen (16) channels |
| RGB Gain | -128 to 128 |
| RGB Bias | -128 to 128 |
Input Format
| SMPTE 425M-A & B (YCbCr 4:2:2) | 1920 x 1080p / 60/59.94/50 1920 x 1080i / 60,59.94,50 |
| SMPTE 274M (YCbCr 4:2:2) | 1920 x 1080p / 30/29.97/25/24/23.98 1920 x 1080i / 60/59.94/50 1920×1080 Psf / 30/29.97/25/24/23.98 1280×720 P / 60/59.94/50/30/29.97/25/24/23.98 |
| SMPTE 296M (YCbCr 4:2:2) | 525i / NTSC 59.94 |
| SMPTE 125M (YCbCr 4:2:2) | 625i / PAL 50 |
| ITU-R BT.656 (YCbCr 4:2:2) | 2048 x 1080P / 24/23.98/24sF/23.98sF |
| ANALOG – 2K Format (YCbCr 4:2:2) | 1920 x 1080p / 60/59.94/50, 30/29.97/25/24/23.98 |
| ANALOG – COMPONENT | 2048 x 1080i / 60/59.94/50 720P / 60/59.94/50 |
| HDMI | 480i/480P/576i/576P/1080i/1080P |
| VGA | VGA, SGA, XGA, SXGA, WXGA, WUXGA |
General Summary
| Power – Electrical Ratings | DC12V (AC100 ~ 240V[50/60Hz]) |
| Power – Consumption | ≤ 24 W |
| Warranty | 2 Years |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Regulation | FCC(A), CE |
| Compatible Mounts – Wall | VZ-WM05, VZ-WM11, VZ-AM01 |
| Compatible Mounts – Ceiling | VZ-CM308, VZ-CMKiT-01, VZ-CMKiT-02 |
| Compatible Mounts – Rack | VZ-RMK0 |
Product Dimension & Weight
Click below to enlarge
