VZ-173M-12G is a 15” 4K monitor with 12G-SDI interface - 2×3G-SDI & 2×12G-SDI. VZ-173M-12G supports various video formats including 12G-SFP, 12G/6G/3G/HD-SDI and HDMI 2.0. VZ-173M-12G provides wide color gamut up to DCI and a full feature set. It can support up to 4096x2160 (60,50,30,25 & 24p) and 3840x2160 (60,50,30,25 & 24p) signal.

  • 17.3” 4K/12G-SDI Monitor
  • All SDI signals Input – SDI / 6G-SDI / 3G-SDI (Level A, DL-B, DS-B) /
    HD-SDI/SD-SDI
  • Quad SDI / Dual SDI / Single SDI/HDMI
  • Loop-Through (SDI)
  • ST2084 / HLG / Time Code ( LTC / VITC ) / Tally

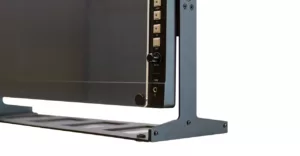

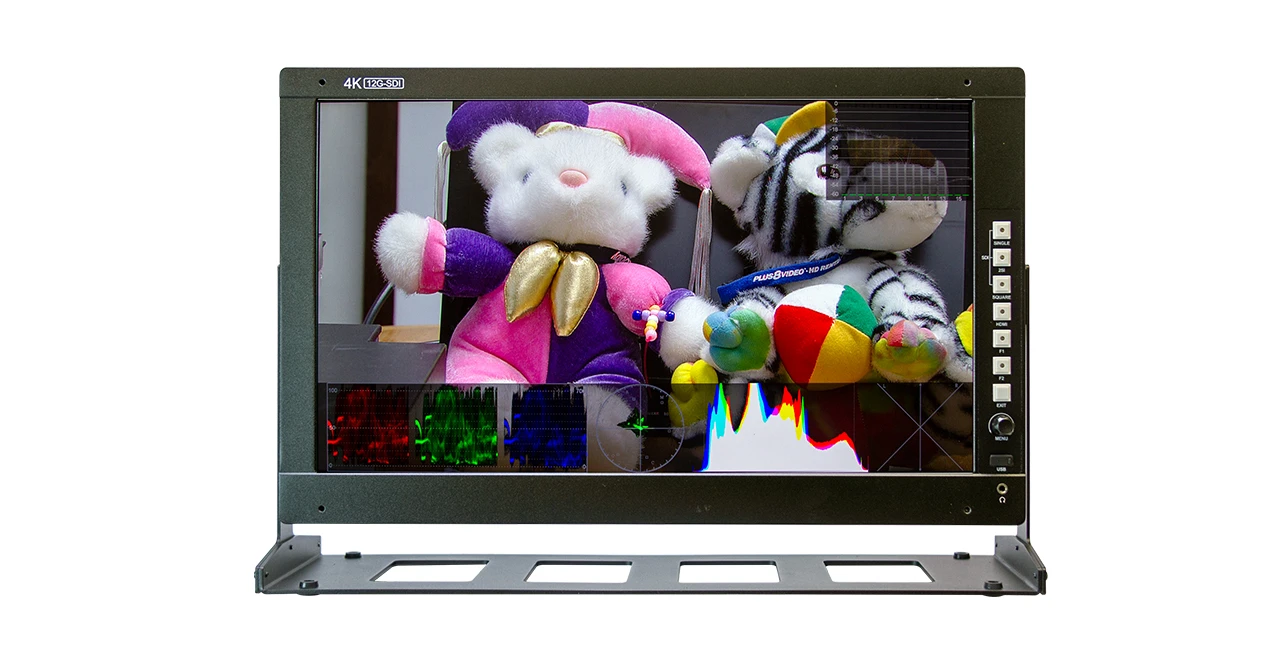

  • Marker / Waveform / Vector Scope / Histogram / UMD
  • Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8

Product Features

  • Model Number: VZ-173PM-12G
  • All SDI signals Input – 12G-SDI/6G-SDI/3G-SDI (Level A, DL-B, DS-B) / HD-SDI/SD-SDI
  • Quad SDI/Dual SDI/Single SDI/HDMI
  • ST2084 / HLG / Time Code ( LTC / VITC )
  • Loop-Through (SDI)
  • False Color / Tally ( Red / Green / Yellow ) / Freeze
  • Audio Channel Output 2ch (out of 16ch)
  • Front User definable buttons F1 and F2
  • Picture / (User) Marker / UMD
  • Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
  • Waveform / Vector Scope / Histogram
  • Check Field / Exposure / HV Delay / Freeze
  • False Color / Color Temperature / Color Space

Display

Screen Size 17.3″
Max Resolution 3840 x 2160 @60Hz
Pixel Pitch 0.1989 mm x 0.1989 mm
Brightness 300 cd/m²(Typical)
Contrast Ratio 1200 : 1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 170°/170°
Display Color 1.07 B
HDR ST2084 300/1000/10000/HLG
Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog /
JLog or Use
LUT (Look Up Table) Support (3D LUT – .cube Format)
Technology Calibration to Rec.709 with Optional Calibration Unit

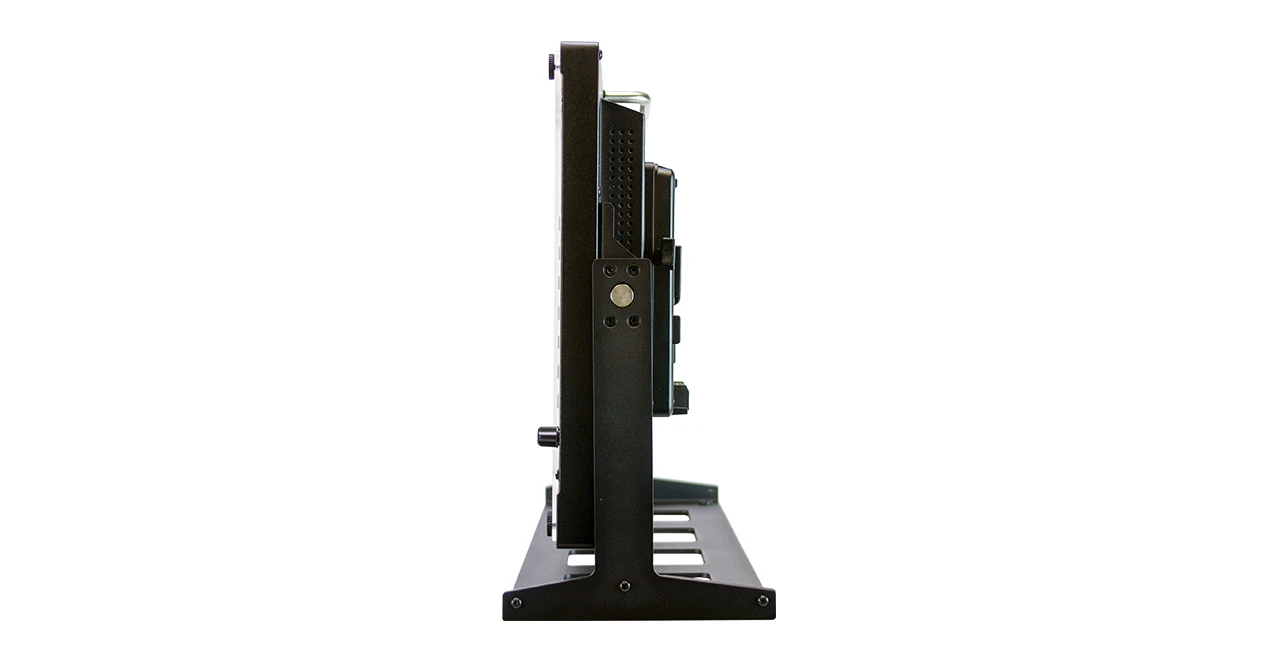

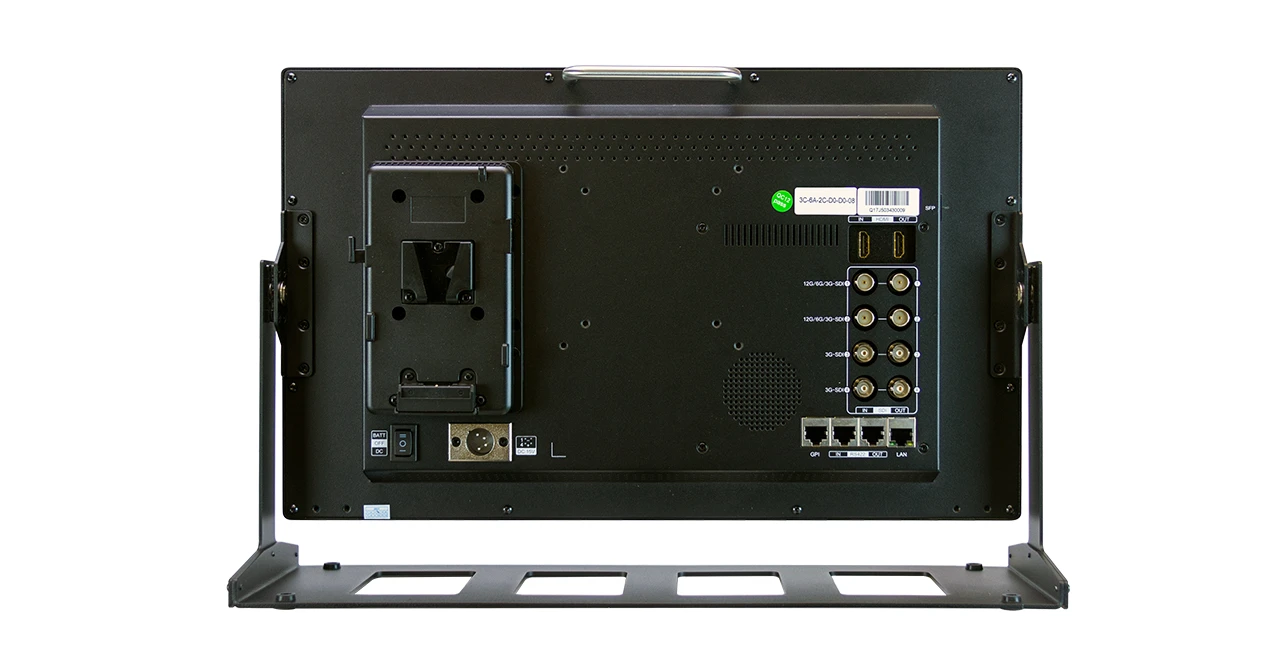

Interface

12G-SDI In / Out 2 / 2 (Loopthrough)
3G-SDI In / Out 2 / 2 (Loopthrough)
HDMI In / Out 1 / 1
SFP In 1 x 12G SFP+ ( Fiber Module for Option)
RJ45 In 1
RS422 In / Out 1 / 1 (Remote Control)
GPI In 1 (Remote Control)
USB In 1 (Remote Control)


Audio

Built in speaker 1W x 2
SDI 16ch 48kHz 24 bit
HDMI 8ch 24 bit
Ear Jack 3.5 mm


Dimensions & Weight

Outline Dimension (W x H x D) 17.08 x 10.35 x 2.38” / 434 x 263 x 60.5 mm
Net Weight 7.05 lbs / 3.2 kg


Input Format

12G-SDI (YCbCr 4:2:2) 3840×2160/4096×2160 (47.95/48/50/59.94/60p)
12G-SDI (YCbCr 4:4:4) 3840×2160/4096×2160 (23.98/24/25/29.97/30p)
DL 6G (YCbCr 4:2:2) 3840×2160/4096×2160 (23.98/24/25/29.97/30p)
DL 6G (YCbCr 4:4:4) 3840×2160/4096×2160 (23.98/24/25/29.97/30p)
6G-SDI (YCbCr 4:2:2) 3840×2160/4096×2160 (23.98/24/25/29.97/30p)
6G-SDI (YCbCr 4:4:4) 1920p/2048×1080 (47.95/48/50/59.94/60p)
2SI-3G (YCbCr 4:2:2) 3840×2160/4096×2160 (47.95/48/50/59.94/60p)
2SI-3G (YCbCr 4:4:4) 3840×2160/4096×2160 (23.98/24/25/29.97/30p)
SQ-HD,2SI DL-3G, SQ DL-3G 3840×2160/4096×2160 (23.98/24/25/29.97/30p)
SQ-3G (YCbCr 4:2:2) 3840×2160/4096×2160 (47.95/48/50/59.94/60p)
SQ-3G (YCbCr 4:4:4) 3840×2160/4096×2160 (23.98/24/25/29.97/30p)
DL 3G-SDI-Level B (YCbCr 4:2:2) 1080p / 2048×1080 (47.95p/48p/50p/59.94p/60p)
720p(23.98/24/25/29.97/30/50/59.94/60p)
DL 3G-SDI-Level B (YCbCr 4:4:4) 1080p (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p//29.97sf/30p/30sf/50i/59.94i/60i)
3G-SDI-Level A (YCbCr 4:2:2) 1080p / 2048×1080 (47.95p/48p/50p/59.94p/60p)
3G-SDI-Level A (YCbCr 4:4:4) 1080p / 2048×1080 (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p/29.97sf/30p/30sf)
720p(23.98p/24p/25p/29.97p/30p/50p/59.94p/60p)
HD 2048×1080/1080P/720P
SD 525i/625i


General Summary

Power – Electrical Ratings XLR-4p (DC 12~24V), 15V
Power – Consumption ≤ 26.5 W
Warranty 2 Years
Operating Temperature 32 ~ 122°F / 0 ~ 50°C
Operating Humidity 90% RH for 240 hrs, TA=+ 140°F (60°C)
Storage Temperature -4 ~ 140°F / -20 ~ 60°C
Battery Plate V-mount / Anton Bauer Mount

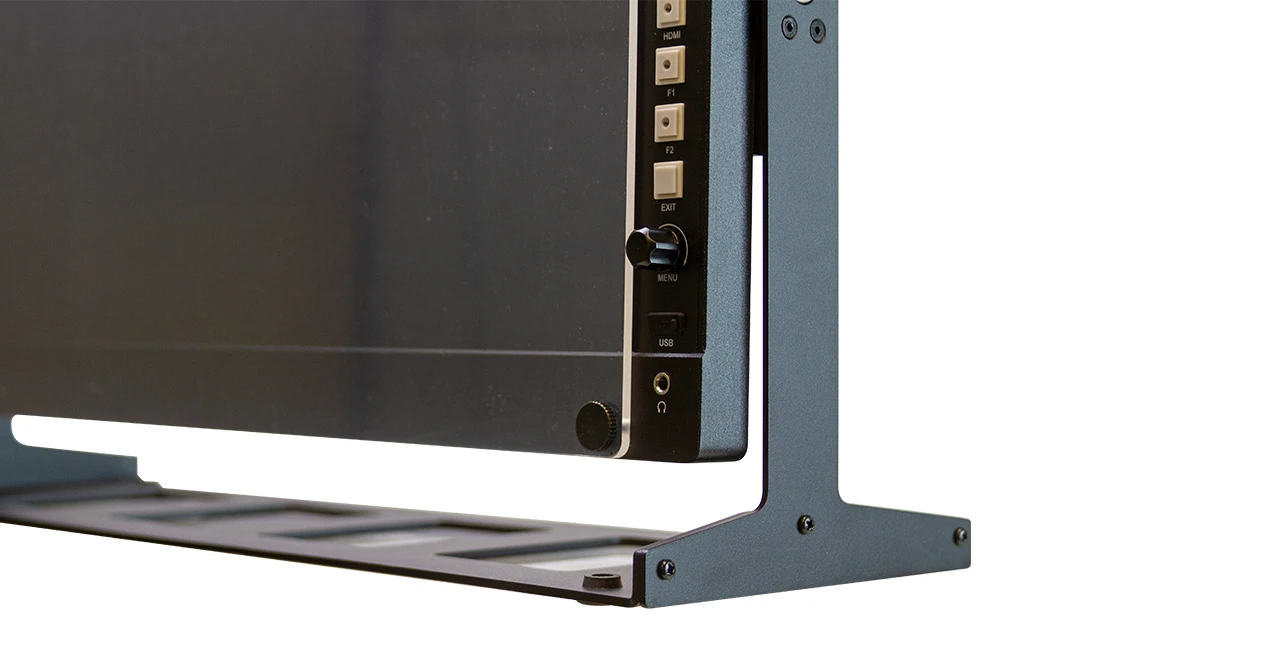

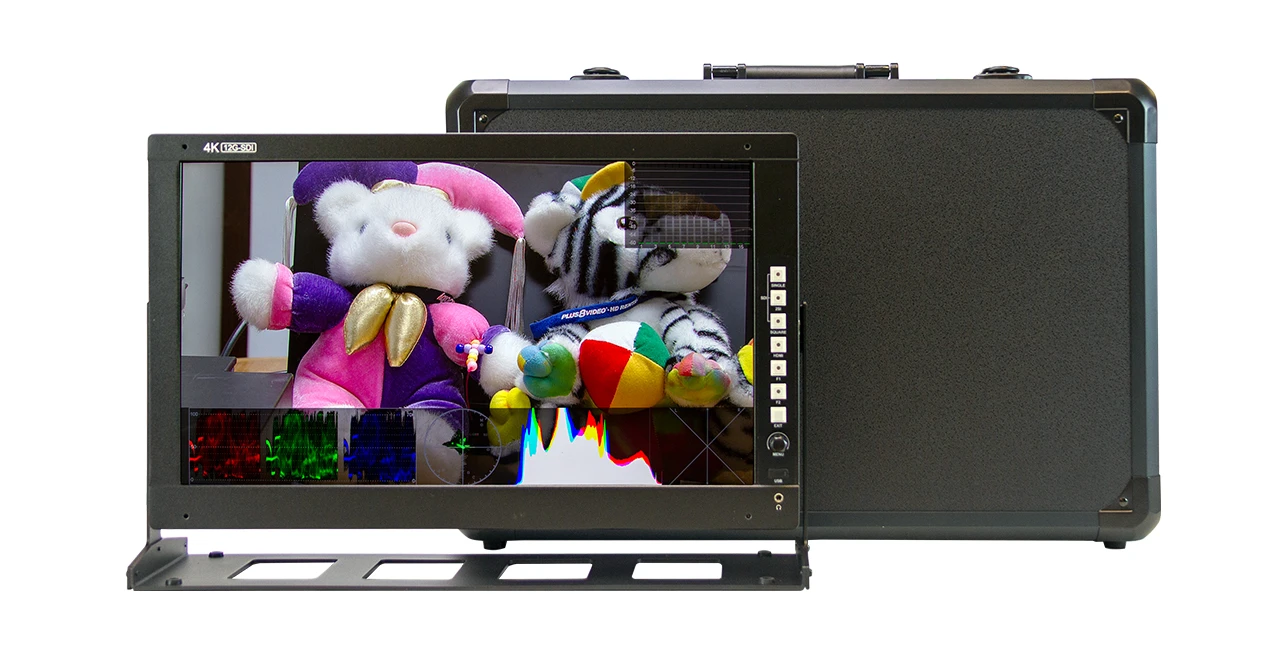

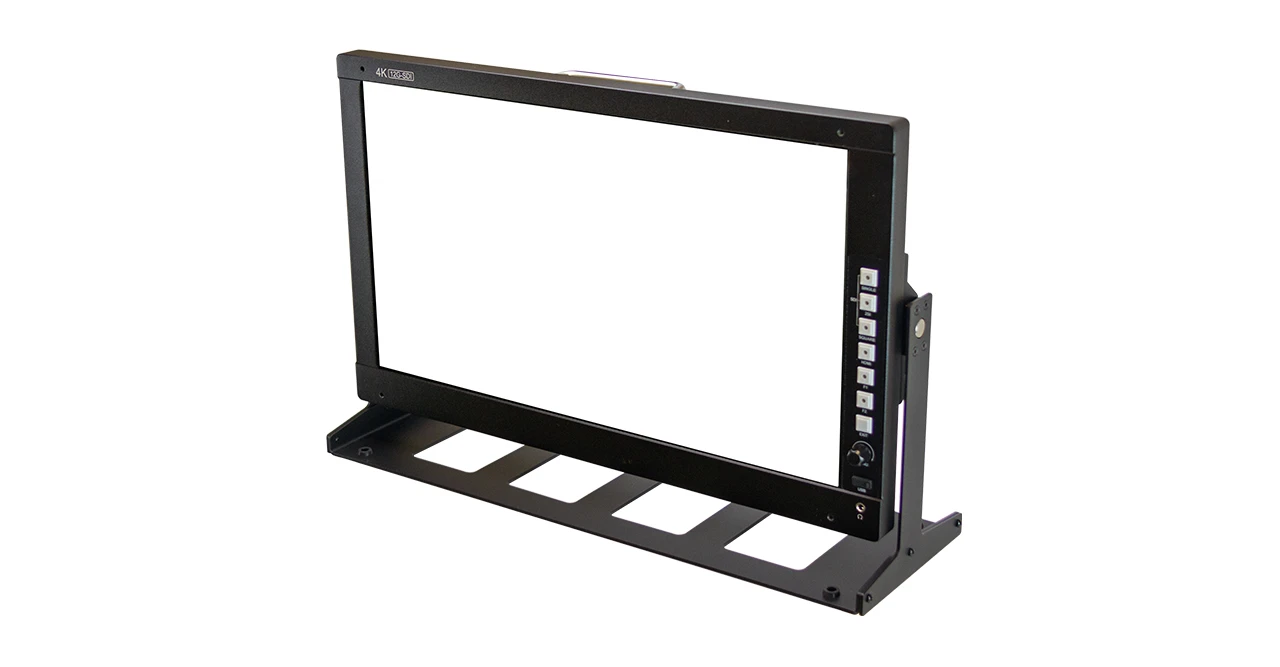

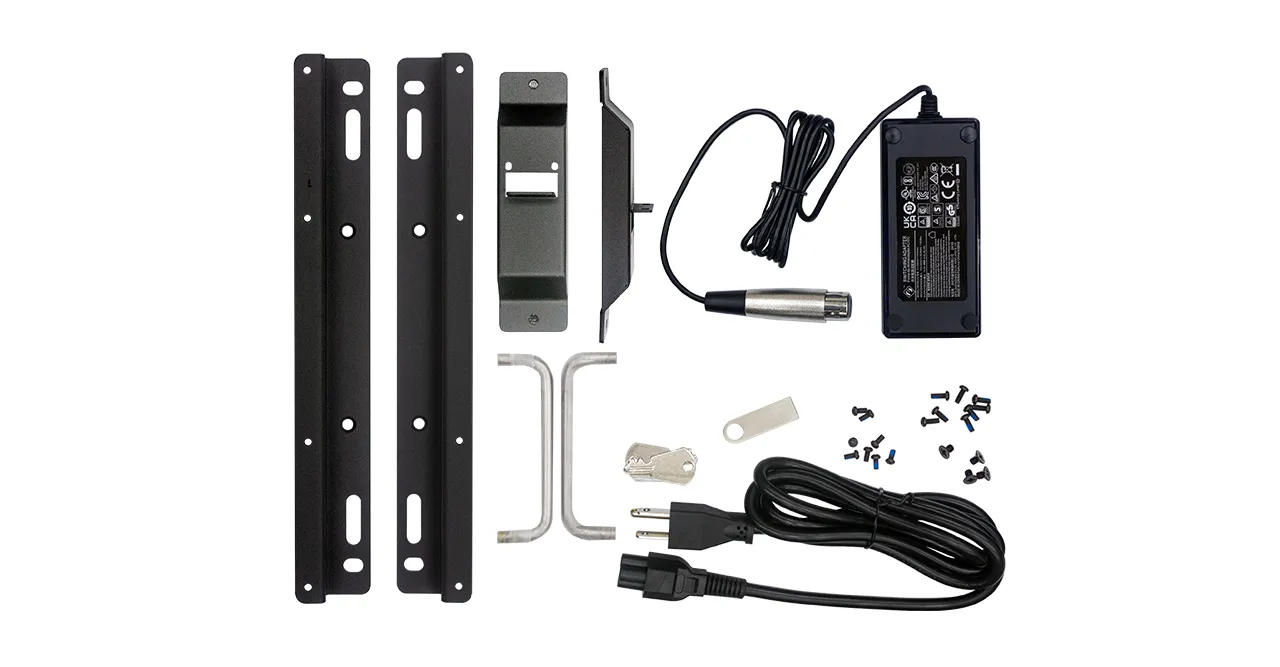

Package Include 15V DC Adapter x 1, Manual x 1, VESA Plate x1,

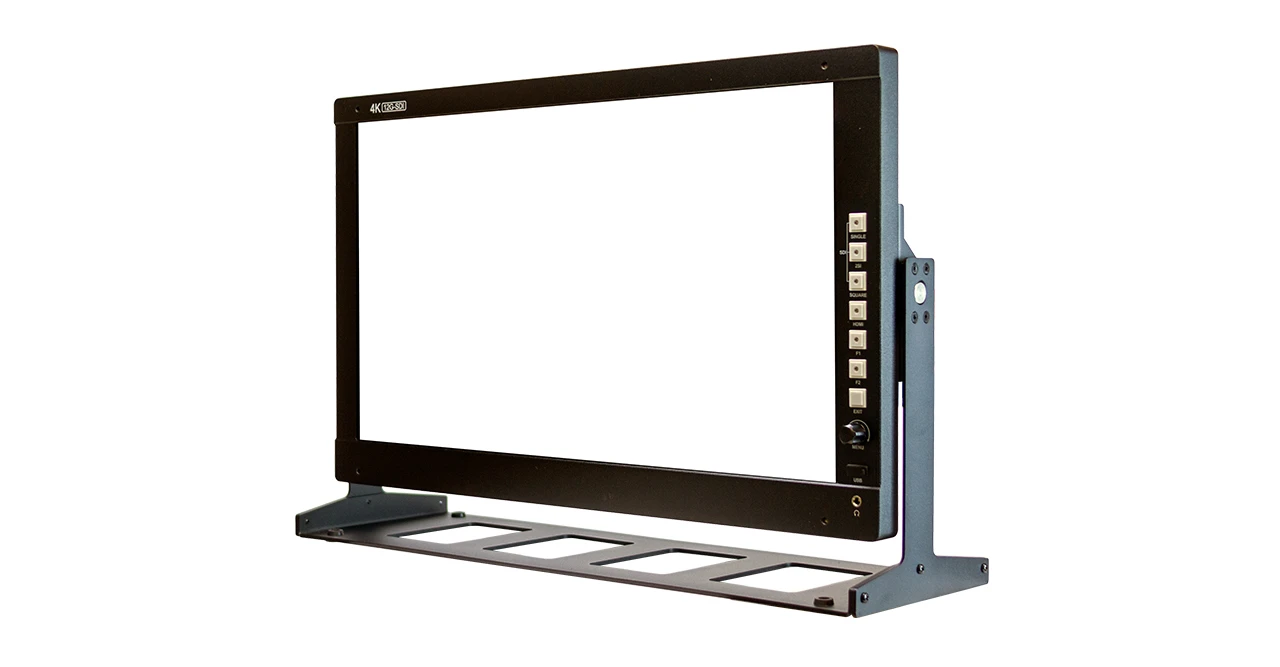

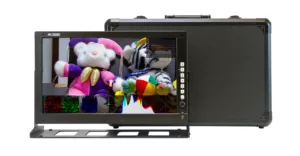

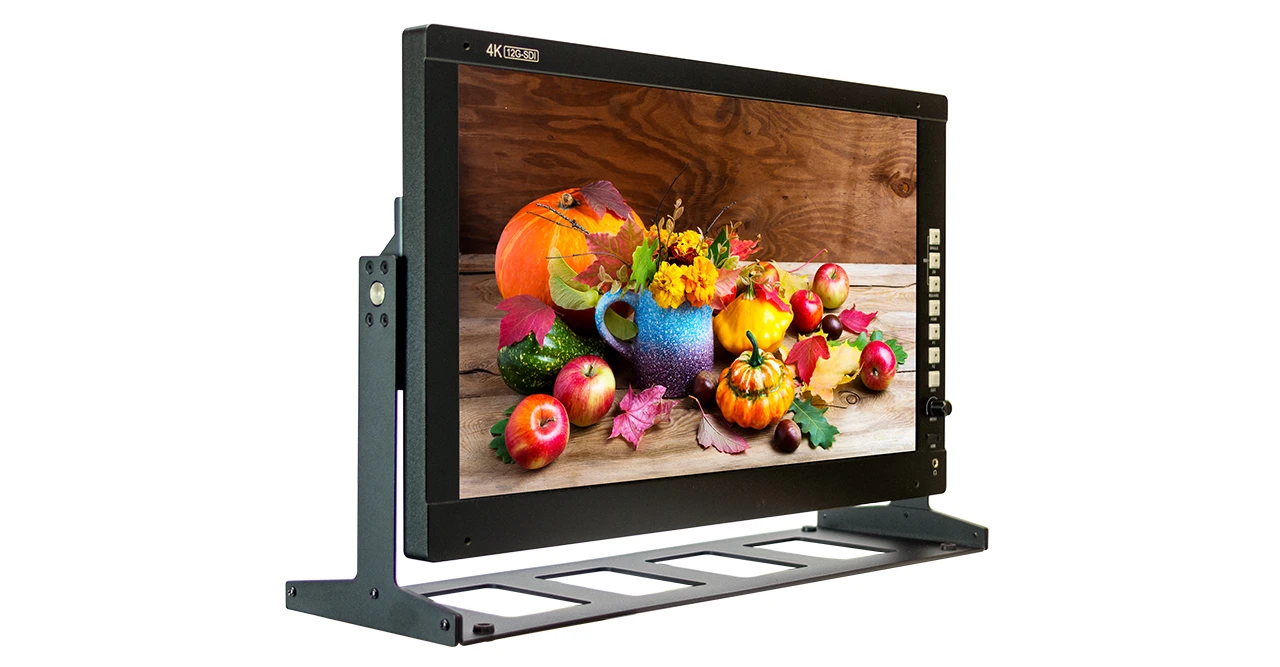

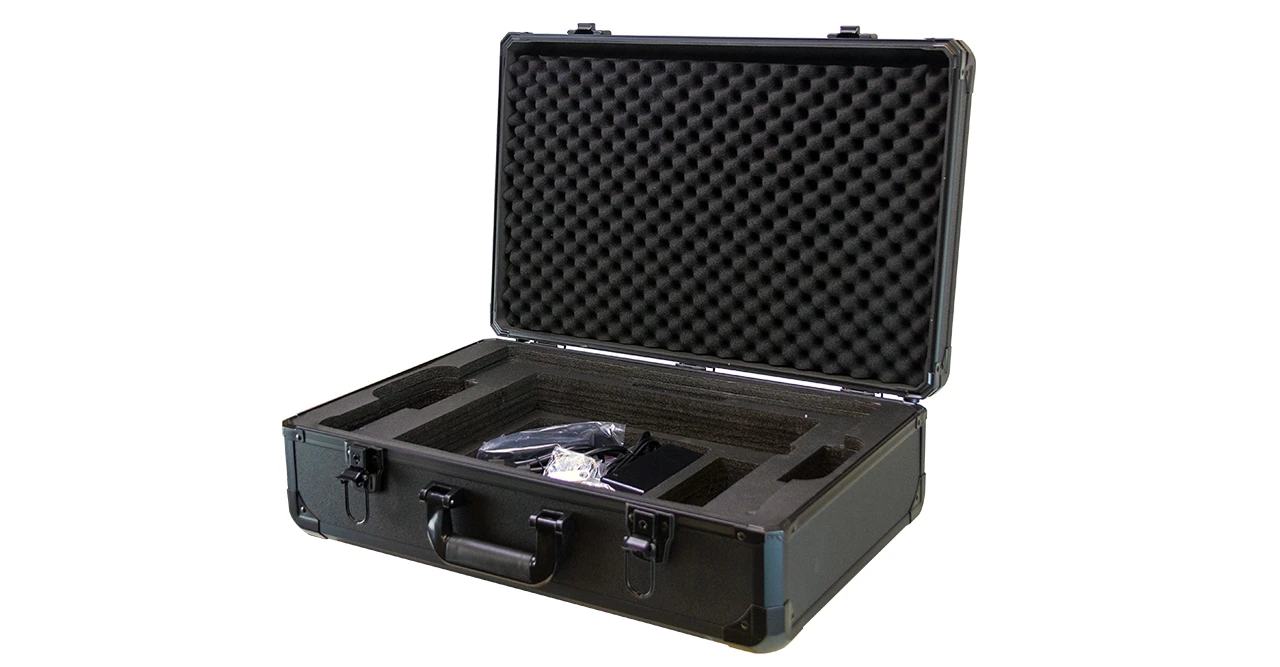

Carrying Case x 1, Acrylic Screen Protector x1,

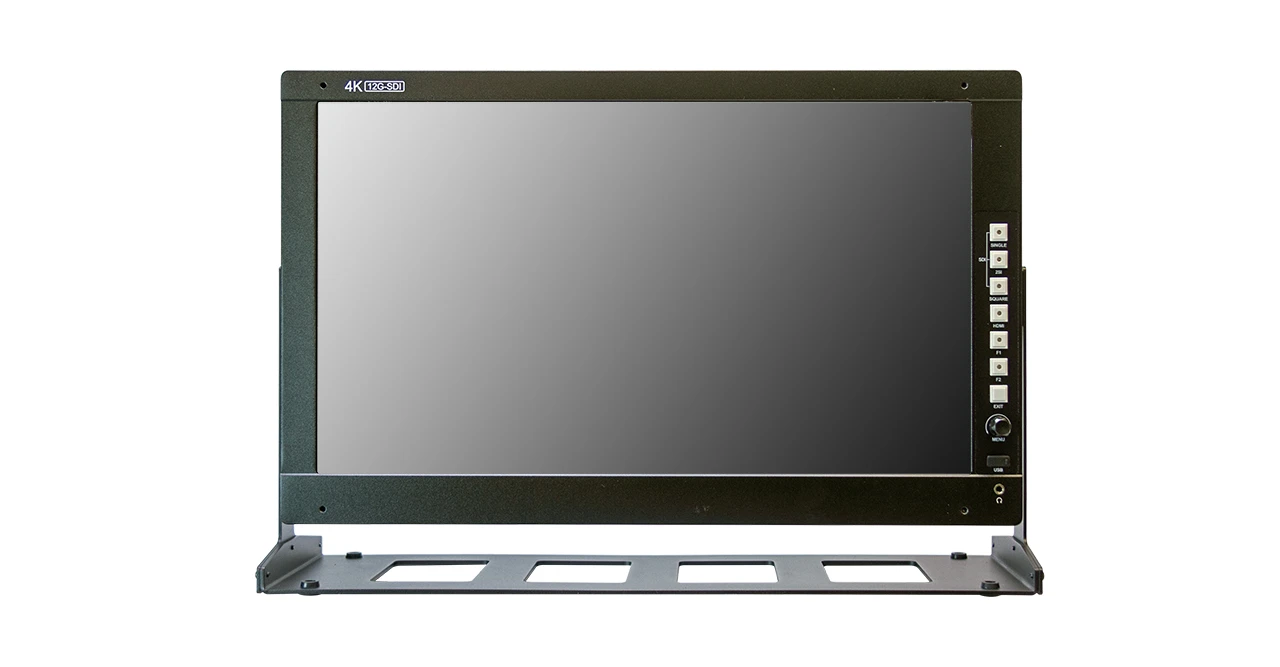

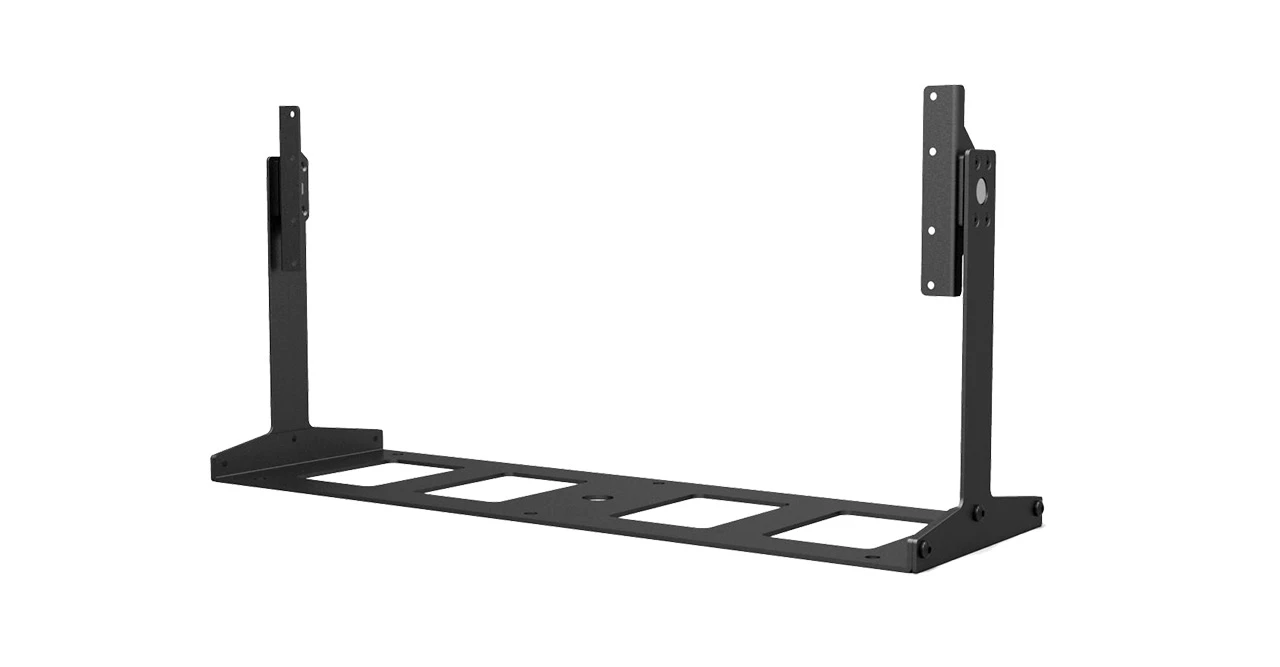

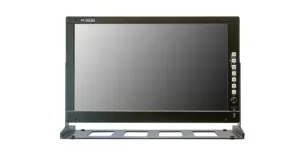

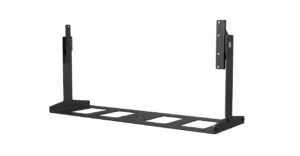

Desktop Stand Set x 1, Gimbal Bracket x1,
USB Disk x1, Battery Plate (V-Mount) x 1 (Option)
