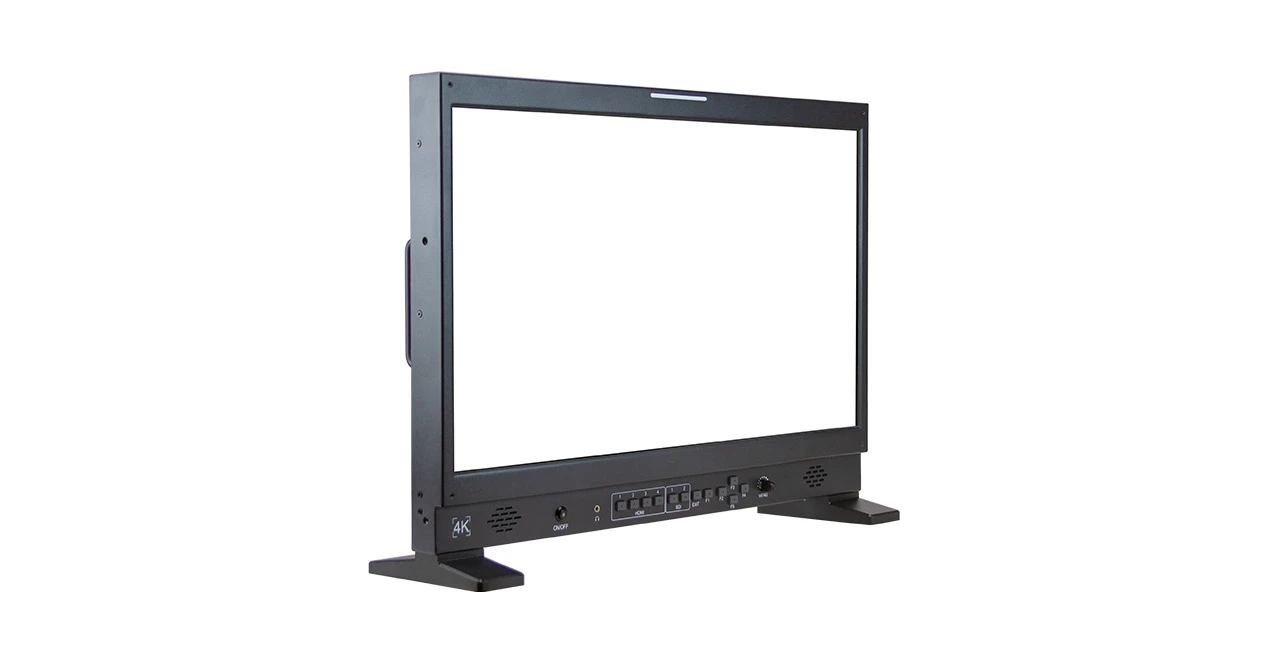

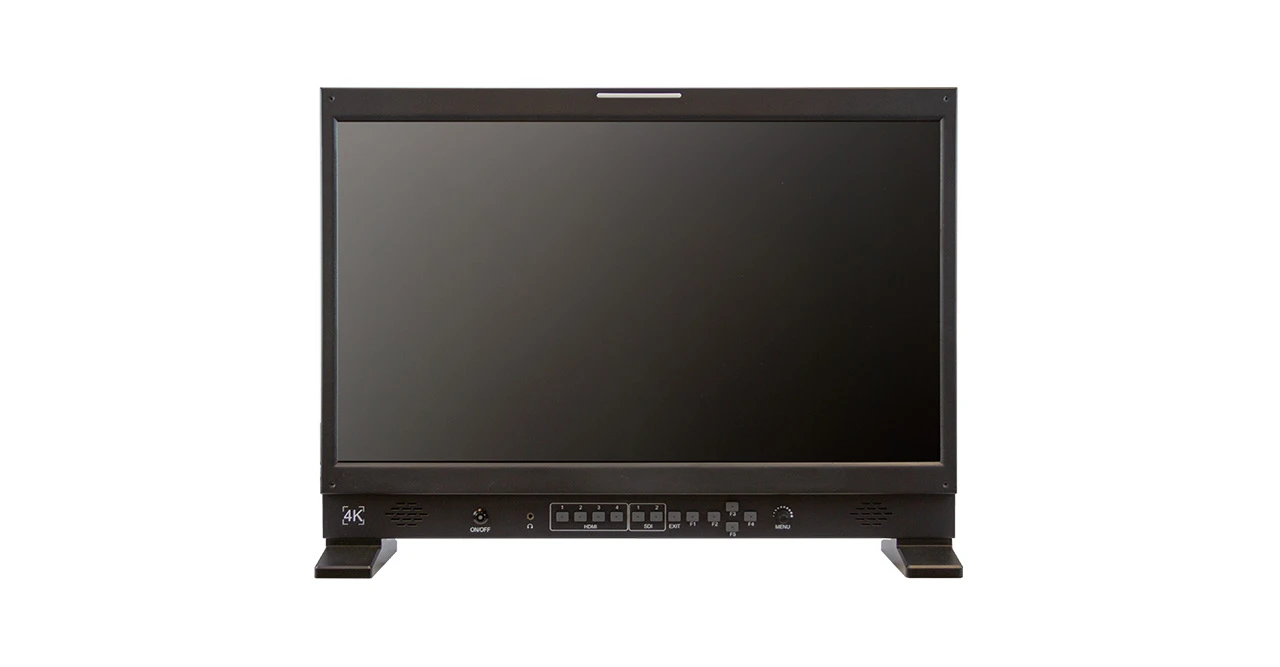

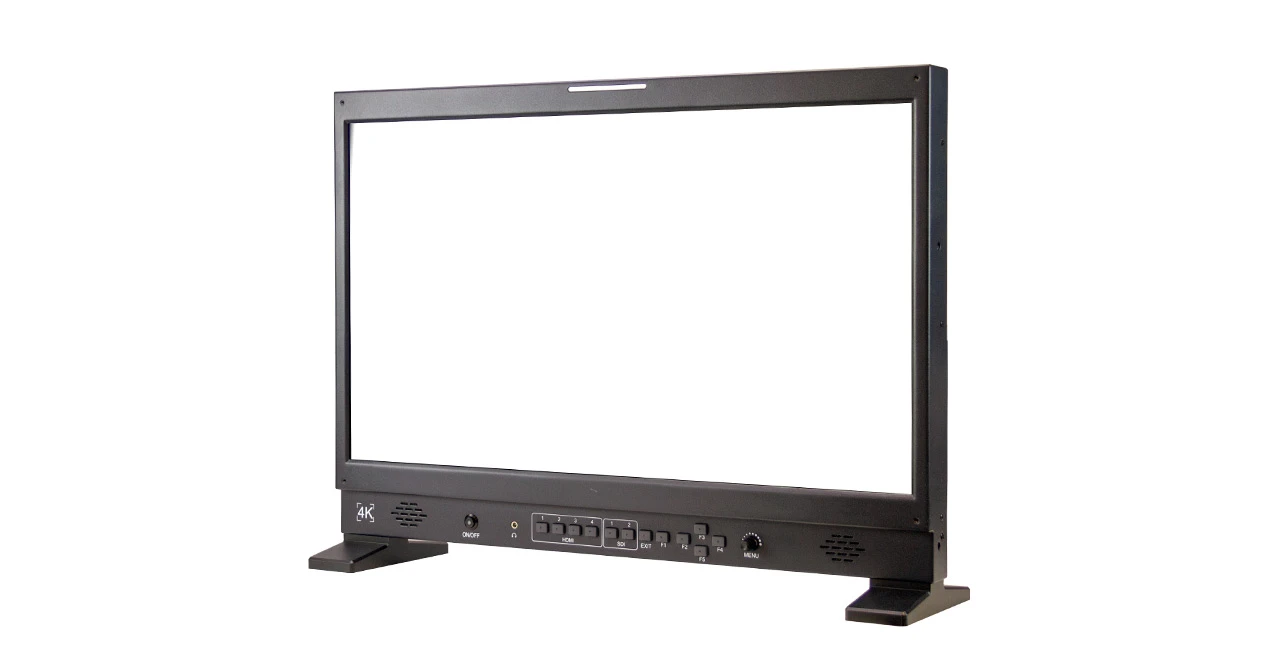

VZ-238PM-HDR is a monitor with a 23.8” 10-bit IPS screen that has multiple viewing options, including quad and multi-view. VZ-238PM-HDR provides HDR, 3D LUT and Color Space (Built in Rec.709, EBU, SMPTE-C, DCI-P3).
- 23.8” 10bit/3G-SDI Monitor
- 4K HDMI 4 inputs and a loop-through / 3G-SDI Input and a loop-through
- Quad / PBP / PIP View
- 3D-LUT (built in EBU / SMPTE / REC709 / DCI-P3)
- Gamma 2.2, 2.4 and 2.6 / False Color / Display Swap / Aspect Ratio
- Center Marker / Safety Area / Color/Mono
- Tally (Red, Yellow, Green)
- A Removable Protective Front Glass
Specification | Dimension | Spec & Manual
Series : Production Monitor | Key Features : 3G-SDI HDR
Product Features
- Model Number: VZ-238PM-HDR
- HDR (HDMI) PQ supported
- 3G-SDI 2inputs and one loop-through
- 3G-LUT (built in EBU / SMPTE / REC 709 / DCI-P3)
- 4K HDMI 4 inputs and a loop-through / 3G-SDI Input and a loop-through
- Gamma 2.2, 2.4 and 2.6
- False Color, Display Swap, Aspect Ratio
- Center Marker, Safety Area
- Color/Mono
- Tally (Red, Yellow, Green)
- Battery Power Remain Information
- A Removable Protective Front Glass
Display
| Screen Size | 23.8″ |
| Max Resolution | 3840 x 2160 (4K) IPS pixel |
| Pixel Pitch | 0.13725 x 0.13725 mm |
| Brightness | 400 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |

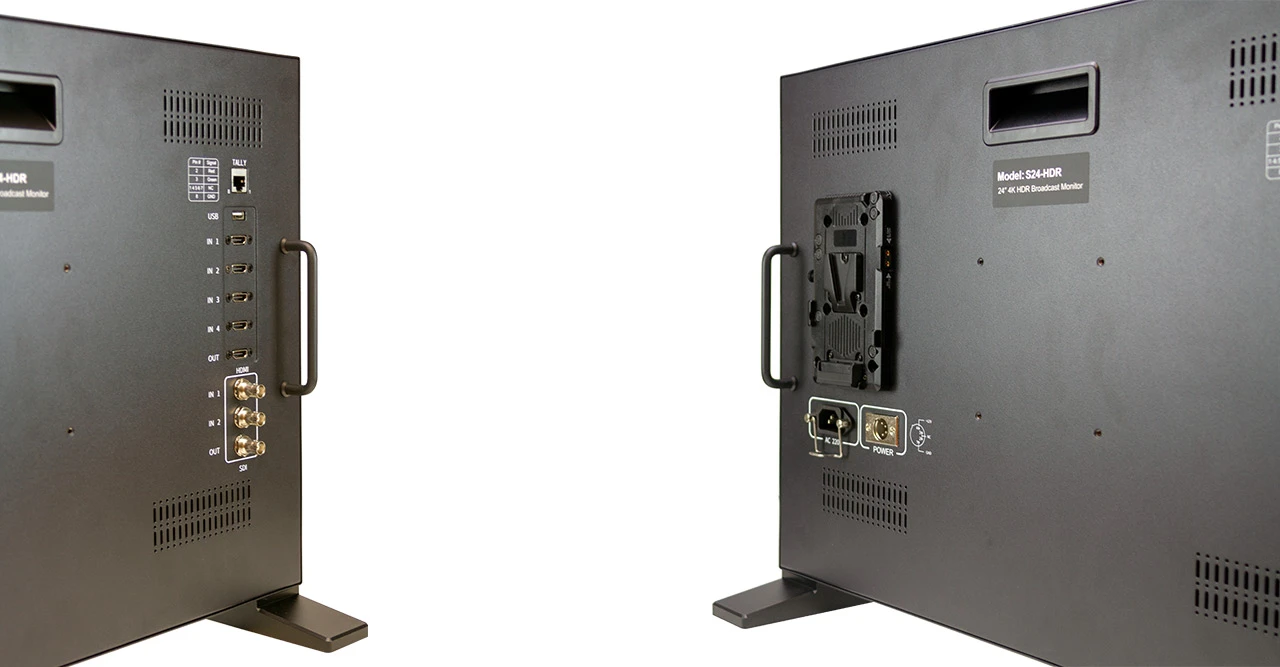

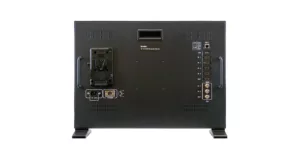

Interface
| 3G-SDI In / Out | 2 / 1 (Loop-through) |
| HDMI (2.0) In / Out | 4 (4K@60Hz) / 1 (Loop-through) |
| USB In | 1 |
| Tally | 1 |
Audio
| Built in speaker | Support |

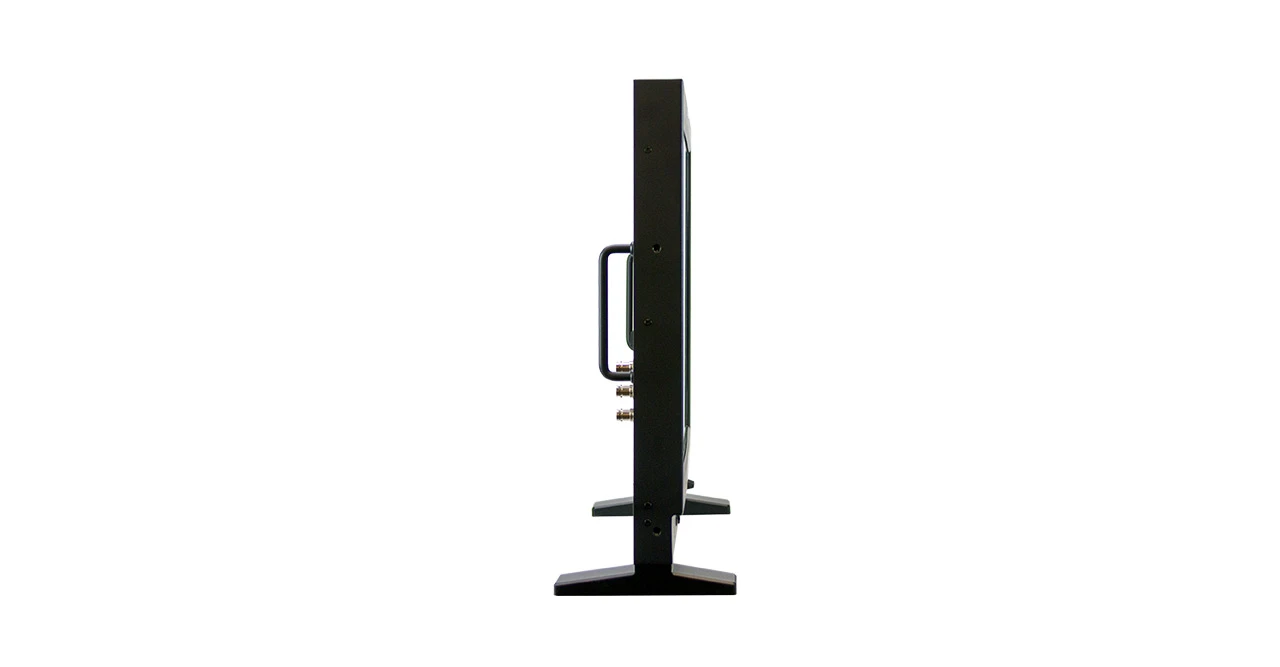

Dimensions & Weight
| Outline Dimension (W x H x D) | 21.96 x 15.55 x 1.6″ / 558 x 395 x 40.8 mm |
| Net Weight | 25.35 lb / 11.5 kg |
Input Format
| 3G-SDI SMPTE-125M | 480i (59.94/60) |
| 3G-SDI SMPTE-274M | 1080i (50/59.94/60) 1080p (24/25/29.97/30 sF) |
| 3G-SDI SMPTE-292M | 1080p (23.98/24/25/29.97/30/50/59.94/60) |
| 3G-SDI SMPTE-296M | 720p (50/59.94/60) |
| ITU-R BT.656 | 576i (50)) |
| HDMI | 720x480i (59.94/60), 720x480p (59.94/60) 720x576i (50), 720x576p (50) 720p (50/59.94/60), 1080i (50/59.94/60), 1080p (24/25/29.97/30 sF) 1920x1080p (23.98/24/25/29.97/30/50/59.94/60) 3840x2160p (24/25/30/59.94/60) 4096×2160p (23.98/24/25/29.97/30/50/59.94/60) |
General Summary
| Power – Electrical Ratings | XLR-4p (DC 12~24V) / AC 100 ~ 240V |
| Power – Consumption | ≤ 36 W |
| Warranty | 2 Years |
| Operating Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Operating Humidity | 10~90% RH |
| Storage Temperature | -22 ~ 140°F / -30 ~ 60°C |
| Battery Plate | V-mount (IDX BRACKET) |
| Package Include | Manual x 1, Desktop Stand Set x 1, HDMI Cable x 1, AC Power Cable x 1 |
| Option | Aluminium Carrying Case, Field Hood |
