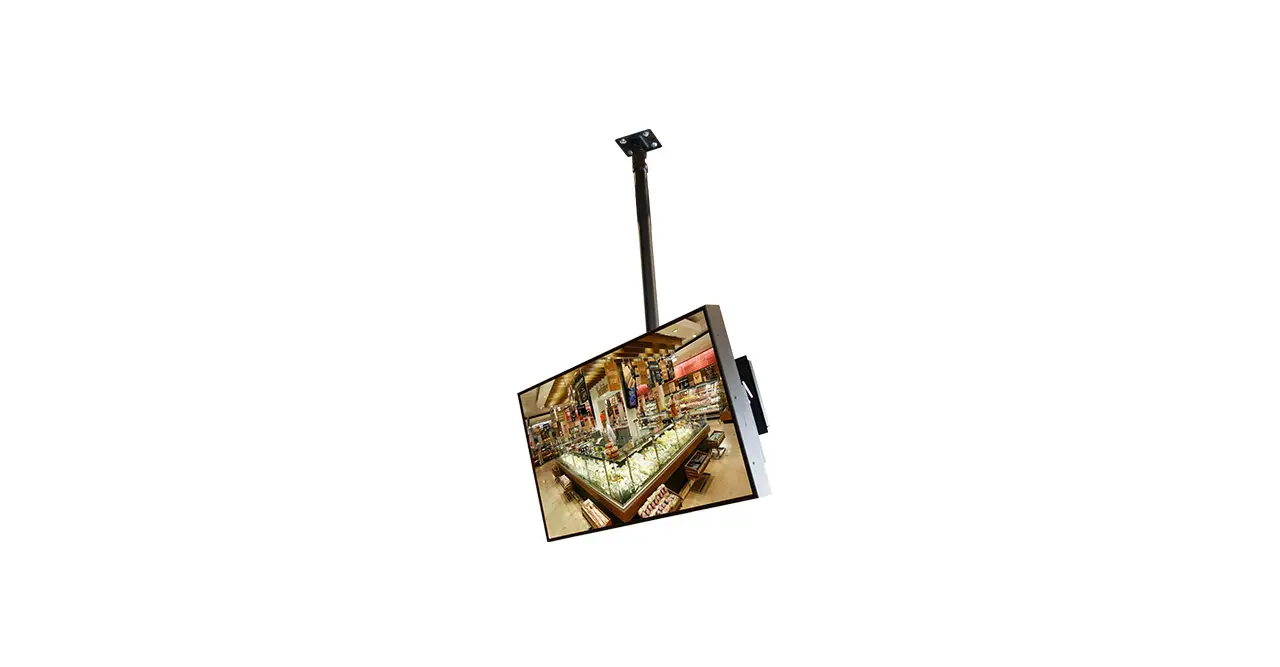

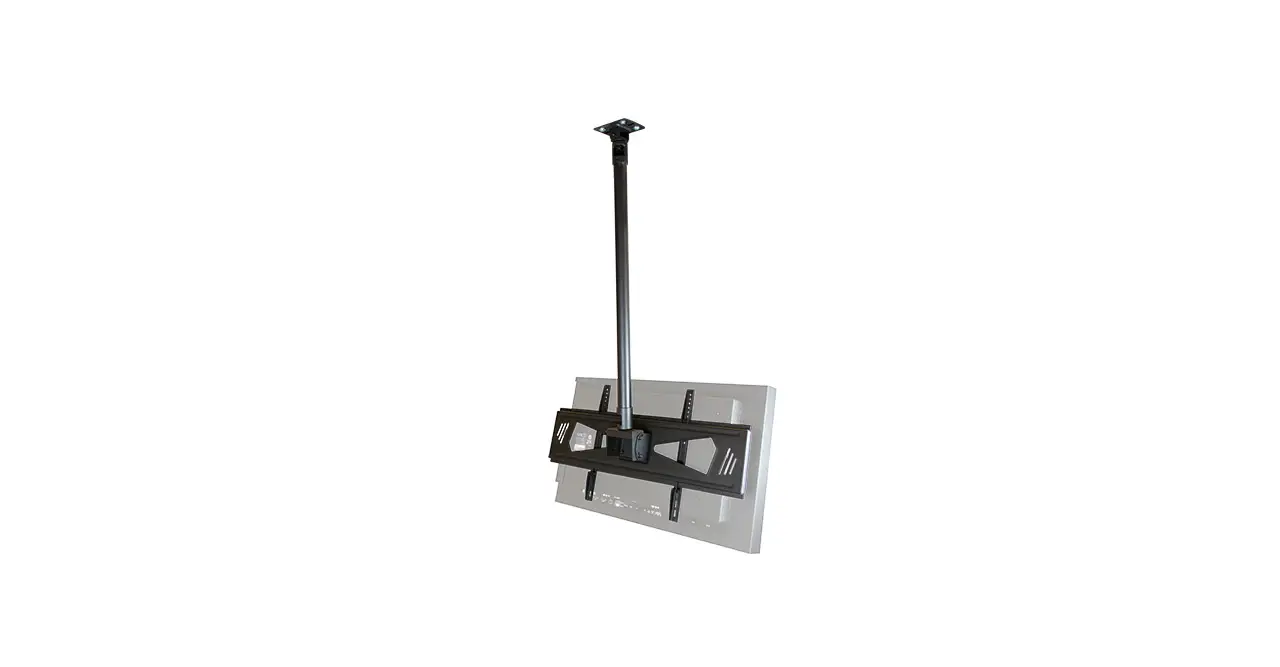

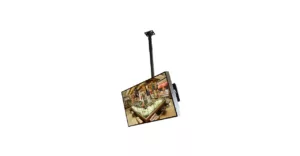

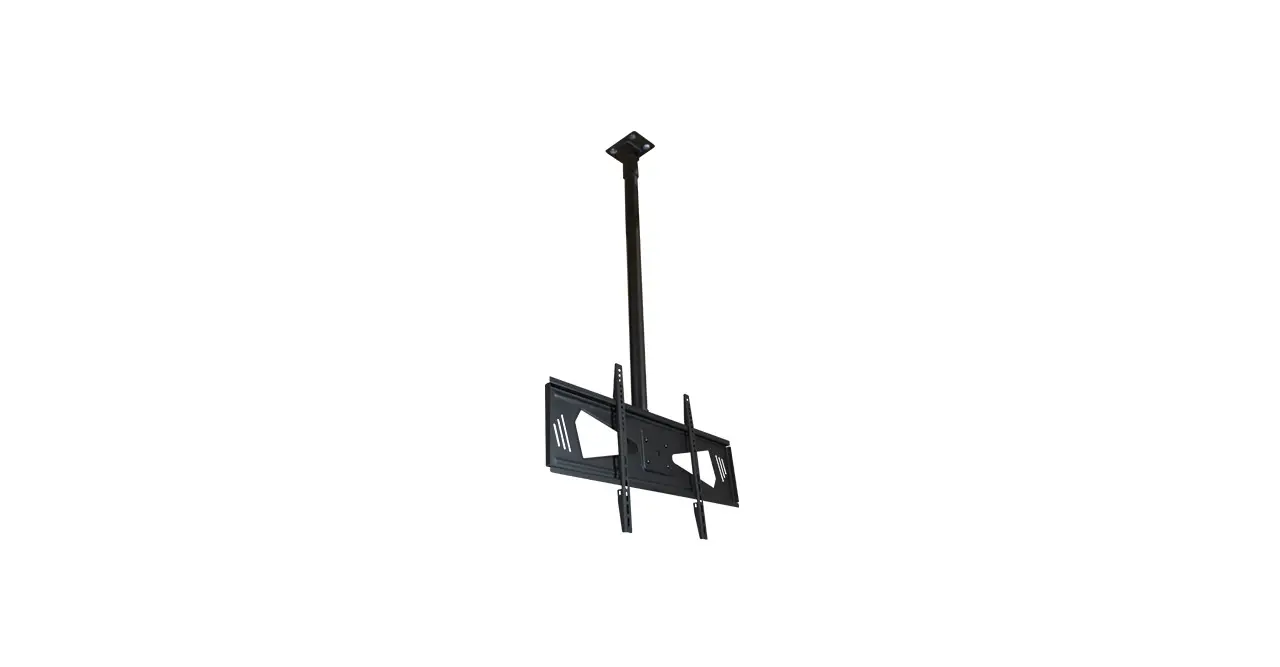

VZ-CMKiT-04
- Mounting Head for 43″ to 65″ CCTV & Video Wall Monitors
- Load Capacity is 110 lbs / 50 kg
- VESA Standard (200×200) & Universal Mounting Support
- Easy Cable Management
- ± 5° Level Adjustment
- 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation For Achieving that Perfect Viewing Angle
Specification | Dimension | Spec & Manual
Series : Ceiling Mount Kit | Key Features : Compatible for 43-65″ Universal Mount
Compatible Monitors
Product Features
- Model Number: VZ-CMKiT-04
- Mounting head for 43″ to 65″ CCTV & Video Wall Monitors
- Load capacity is 110 lbs / 50 kg
- 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation for Achieving that Perfect Viewing Angle
- ± 5° Level Adjustment
- VESA Standard (200×200) and Universal Mounting Support
- Easy Cable Management
- 2 units of VZ-CM-P36 poles can be connected by using VZ-CM-C Pole connector.
* Connecting more than 2 poles is not recommended.
Specification
| Display Range | 43″ ~ 65″ |
| Weight Capacity | 110 lbs / 50 kg |
| Tilt (VZ-CM-V3) | +5° ~ -12° |
| Tilt (VZ-CM-T) | ± 80° |
| PAN Rotation (Swivel) | 360° |
| Level Capability (VZ-CM-V3) | +5° ~ – 5° |
| Mounting Pattern Type | Range |
| Mounting Patterns | 200 x 200 (Min) ~ 800 x 400 (Max) mm |
Dimensions & Weight
| VZ-CM-V3 Plate Size (W x H x D) | 904 mm x 440 mm x 103 mm / 35.59″ x 17.32″ x 4.05″ |
| VZ-CM-V3 Pole ( R x Length ) | Ø 38.1 x 76mm / Ø 1.5 x 3″ |
| VZ-CM-T Plate Size (W x H x D) | 150 mm x 120 mm x 53 mm / 5.9″ x 4.72″ x 2.08″ |
| VZ-CM-T Pole ( R x Length ) | Ø 38.1 x 76mm / Ø 1.5 x 3″ |
| VZ-CM-P36 Pole ( R x Length ) | Ø 48 x 900 mm / Ø 1.88 x 35.43″ |
| VZ-CM-P36 Thread ( R x Length ) | Ø 38.1 mm / Ø 1-1/2″ |
| Net Weight | 17.98 lbs / 8.16 kg |
Product Dimension & Weight
Click below to enlarge
