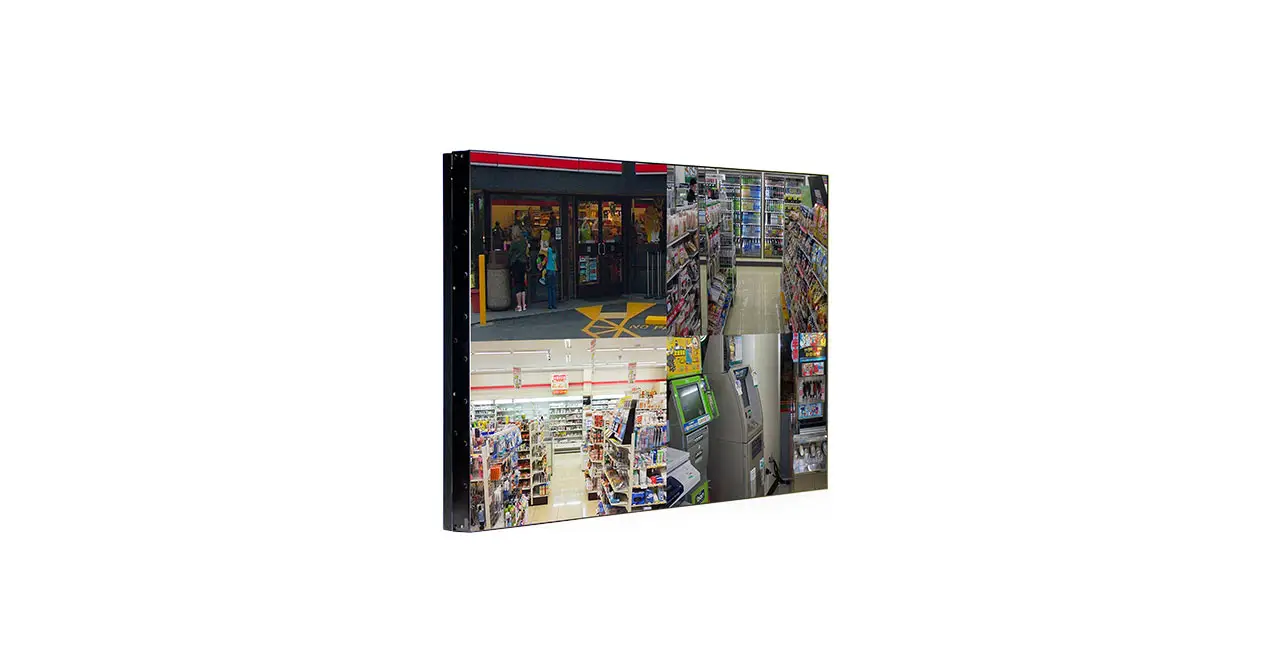

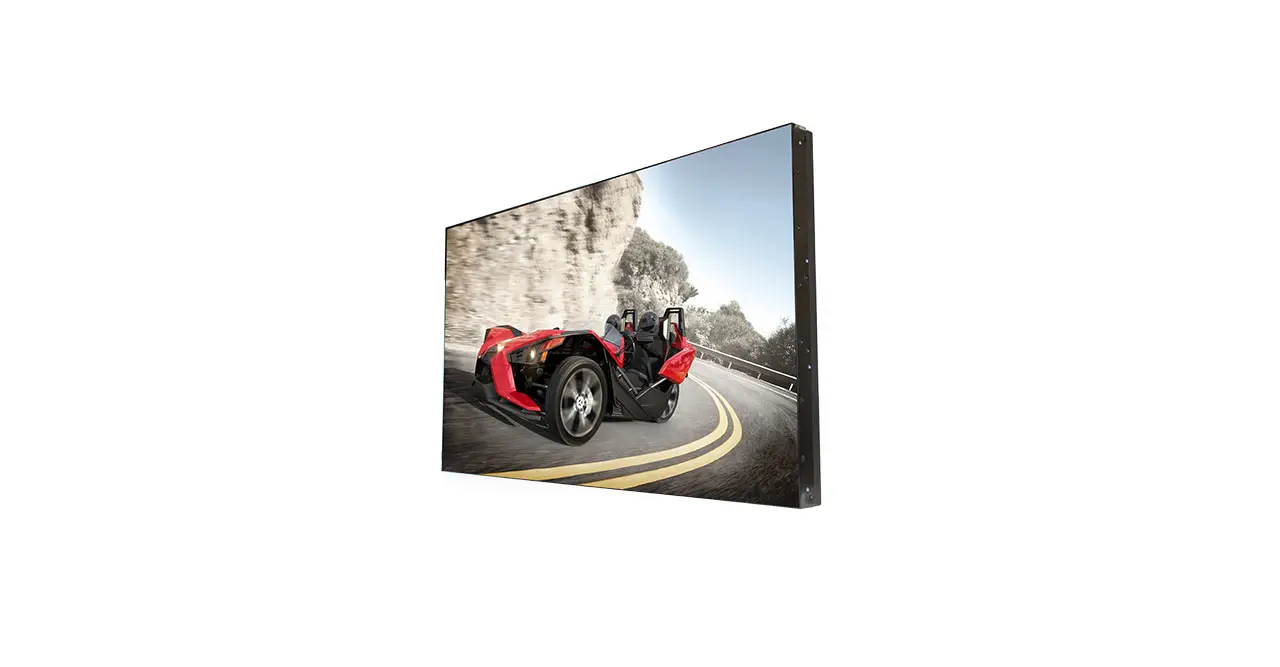

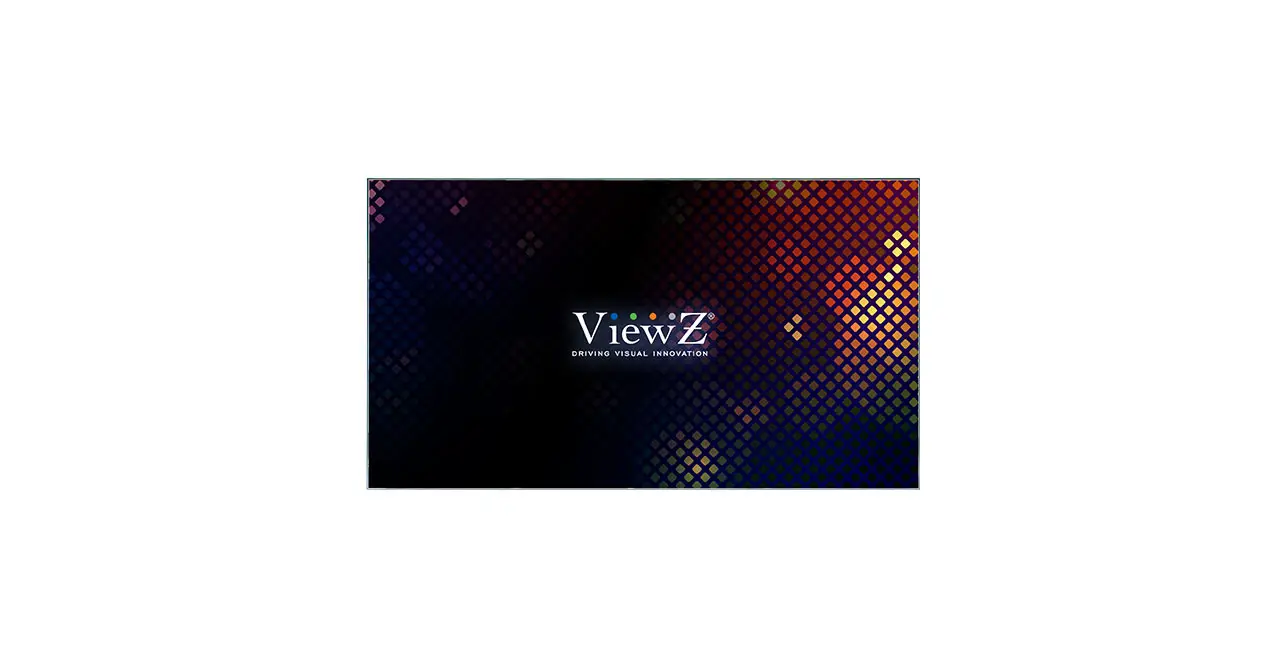

VZ-49UNBS
With a bezel thinner than 2 stacked quarters, the ViewZ UNBS security video wall monitors display brilliant HD images across multiple screens with virtually seamless gaps in-between. Designed to work with ViewZ PRO video wall processor series.
- Full HD 1080p CCTV LED Monitor / 1.06B color IPS Panel
- Ultra Narrow 1.2 mm Metal Bezel
- Supports 4K (3840×2160) Resolution & HDCP 1.4 / 2.2
- Daisy Chain System – HDMI up to 15 x 15
- Landscape or Portrait mode selectable
- Multi Window Display (PBP, PIP, Triple or Quad)
- HDMI (2.0) In/Out, DVI-D In, DP In
- Mullion Compensation Applied
- Auto Source & Power Recovery
- Advanced Heat Management
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Specification | Dimension | Download
Series : UNBS | Key Features : Ultra Narrow Bezel Daisy Chain NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-49UNBS
- 49″ Black All Metal 1.2 mm Ultra-narrow Seamless Bezel
- 1.06 Billion Color IPS Panel (10 bit) / HDCP 1.4 / 2.2
- Supports Max 4K (3840×2160)@60 Video Signal & Serial Control Software
- Daisy Chain System – HDMI up to 15 x 15
- Landscape or Portrait mode selectable
- Multi Window Display (PBP, PIP, Triple or Quad)
- HDMI (2.0) In/Out, DVI-D In, DP In
- Auto Power and Source Recovery
- Mullion Compensation Applied
- Advanced Heat Management
- AC100 ~ 240V(50/60Hz)
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Display
| Screen Size | 49″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.55926 mm x 0.55926 mm |
| Brightness | 450cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.06 B (10 Bit) |
| Response Time | < 8 ms |
| Active Display area ( H x V ) | 1074.1 mm × 604.3 mm |
| Color Gamut | 72 % |
Interface
| DVI-D In | 1 |
| DP In | 1 |
| HDMI (1.4) In | 1 |
| HDMI (2.0) In / Out (Daisy Chain) | 1 / 2 |
| USB In (Upgrade) | 1 |
| RS-232 (RJ-45) In | 1 (Serial Control / IR Receiver) |
| RS-232 (RJ-45) Out | 1 (Serial Control) |
| Audio Out | 1 |
Support Refresh Rate
| HDMI 1 (1.4) In | 3840 x 2160 @ 30Hz |
| HDMI 2 (2.0) In / Out | 3840 x 2160 @ 60Hz |
| DP (1.2) In | 3840 x 2160 @ 50Hz |
| DVI-D In | 1920 x 1080 @ 60Hz |
Special Features
| Bezel Width – TOP and LEFT Side | 0.090” / 2.3 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.047” / 1.2 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.137” / 3.5 mm (Bezel to Bezel) |
| Advanced Anti-Image Residual Function | Support |
| Landscape or Portrait mode selectable | Support |
| Multi Window Display (PBP, PIP, Triple or Quad) | Support |
| Language | English, Spanish, French and Portuguese |
Dimensions & Weight
| Outline Dimension (W x H x D) | 42.42 x 23.92 x 4.63” / 1077.58 x 607.8 x 117.7 mm |
| Net Weight | 54.89 lb / 24.5 kg |
| Gross Weight | 74.73 lb / 33.9 kg |

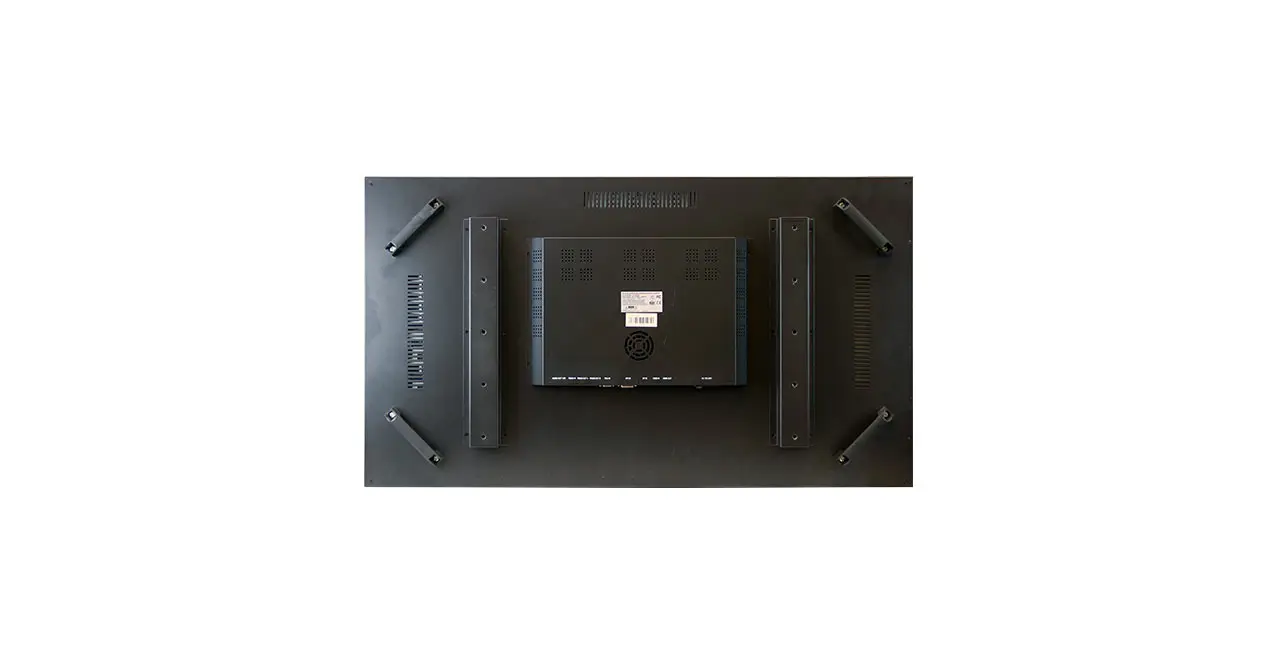

Mount
| Vesa | 600 x (100 x 4) mm / M8 x L10 screws |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | ≤ 150 W (Max) / 0.5 W (Standby) |
| Regulations | FCC(A), NDAA, RoHS |
| Operating Temperature | Humidity | 14 ~ 149°F / -10 ~ 65°C | 5 ~ 95% RH |
| Storage Temperature | Humidity | 32°F ~ 140°F / 0°C ~ 60°C |
| Compatible Mounts – Wall | VZ-XMS, VZ-WM71 |
| Compatible Mounts – Ceiling | VZ-CMKiT-04, VZ-CMKiT-07 |
| Compatible Mounts – Free Standing Mount | VZ-FSM2x2, VZ-FSM3x2 |
| Accessories | AC110V Power Cable x 1, HDMI Cable x 1, Manual x 1, CAT5 Cable (RS232) x 1, Remote Controller x 1, IR Receiver x 1, Converter (RJ45 to RS232) x 1 |

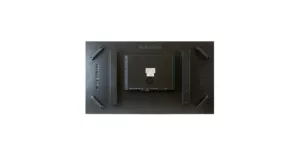

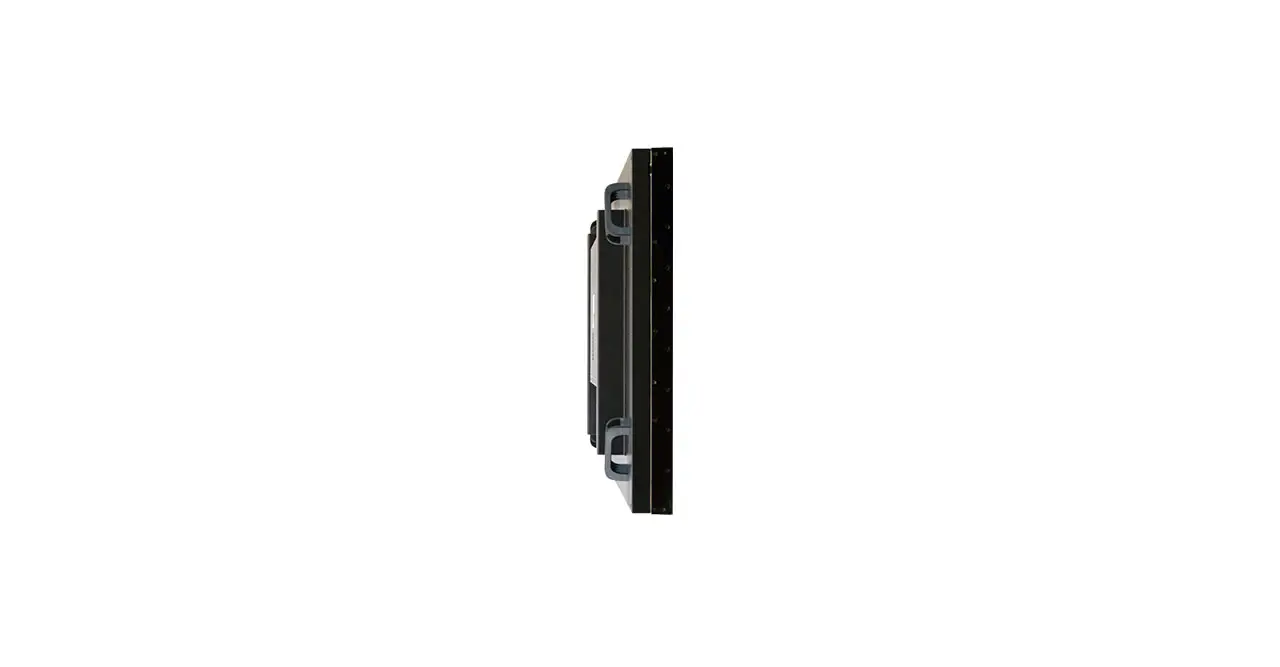

Product Dimension & Weight
Click below to enlarge
