VZ-156LED-HDR - 15.6” 3G-SDI/HDMI HDR PROFESSIONAL MONITOR
- 15.6” 10bit/3G-SDI Monitor
- Multiple Video Interface – 3G-SDI, HDMI, VGA and Analog Video
- HDR supports HDR10-300 / HDR-1000 / HDR-10000 / HLG under SDI and HDMI modes
- Markers Center Marker and Safety Markers 95%, 93%,90%, 88%, 85%, 80%
- Aspect Ratio – Full, 1.85 : 1, 2.35 : 1, 4 : 3, 3 : 2
- Zoom – x1.5, x2, x3, x4
- Image Flip – H, V, H & V
- Freeze On & Off
- Front Function Button enable to assign one of functions – Center Marker, Display Scan, Aspect Ratio, Freeze, HDR and Image Flip
Specification | Dimension | Spec & Manual
Series : Production Monitor | Key Features : 3G-SDI HDR
Product Features
- Model Number: VZ-156LED-HDR
- HDR supports HDR10-300 / HDR-1000 / HDR-10000 / HLG
under SDI and HDMI modes - 3G-SDI 1 input and output loop-through
- Markers – Center Marker and Safety Markers 95%, 93%,90%, 88%, 85%, 80%
- Aspect Ratio – Full, 1.85 : 1, 2.35 : 1, 4 : 3, 3 : 2
- Zoom – x1.5, x2, x3, x4
- Image Flip – H, V, H & V
- Freeze On & Off
- Multiple Video Interface (3G-SDI, HDMI, VGA and Analog Video)
- Front Function Button enable to assign one of functions – Center Marker, Display Scan, Aspect Ratio, Freeze, HDR and Image Flip
Display
| Screen Size | 15.6″ |
| Max Resolution | 1920 x 1080 (Full HD) IPS pixel |
| Pixel Pitch | 0.17925 x 0.17925 mm |
| Brightness | 1000 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 M |
| Color Space | 101% Rec. 709 |
| HDR | ST2084 300/1000/10000/HLG |
Interface
| 3G-SDI In / Out | 1 / 1 (Loop-through) |
| HDMI (1.4) In | 1 |
| VGA In | 1 |
| USB | 1 |
Audio
| Built in speaker | 1W x 2 |
| SDI | 16ch 48kHz 24 bit |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5 mm – 2ch 48kHz 24 bit |
Dimensions & Weight
| Outline Dimension (W x H x D) | 15.31 x 10.23 x 1.48″ / 389 x 260 x 37.6 mm |
| Net Weight | 6.32 lbs / 2.87 kg |
Input Format
| SD-SDI/HD-SDI/3G-SDI (Level A&B) | 1080p (24/25/30/50/60p), 1080i (50/60p), 720p(50/60p) |
| HDMI | 2160p (24/25/30p), 1080p (24/25/30/50/60p), 1080i (50/60p), 720p(50/60p) |
General Summary
| Power – Electrical Ratings | DC 12~24V |
| Power – Consumption | ≤ 24 W (15V) |
| Warranty | 2 Years |
| Operating Temperature | -22 ~ 158°F / -30 ~ 70°C |
| Operating Humidity | 90% RH for 240 hrs, TA=+ 140°F (60°C) |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Battery Plate | V-mount / Anton Bauer Mount (Option) |
| Package Include | 12V DC Adapter x 1, Manual x 1, VGA Cablex1, HDMI A/A Cable x1, AV Cable x1, Rack Mount Bracket Set x1, Desktop Stand Set x 1 |

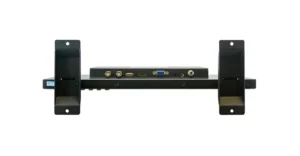

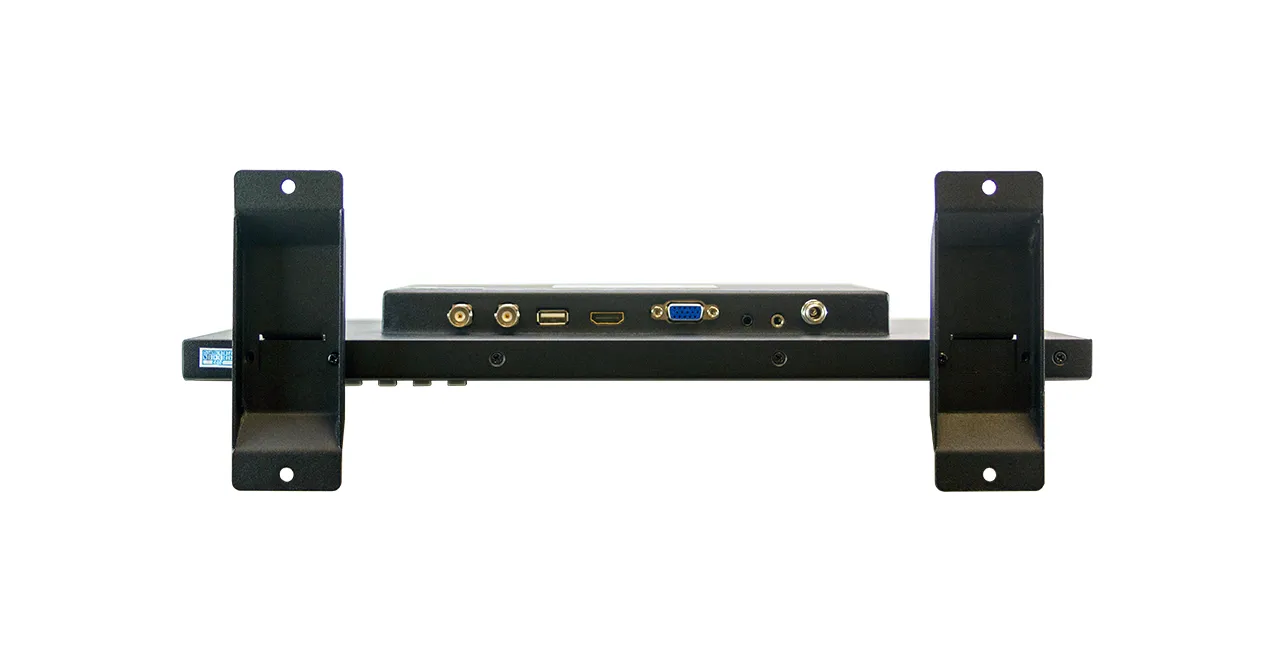

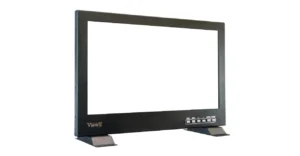

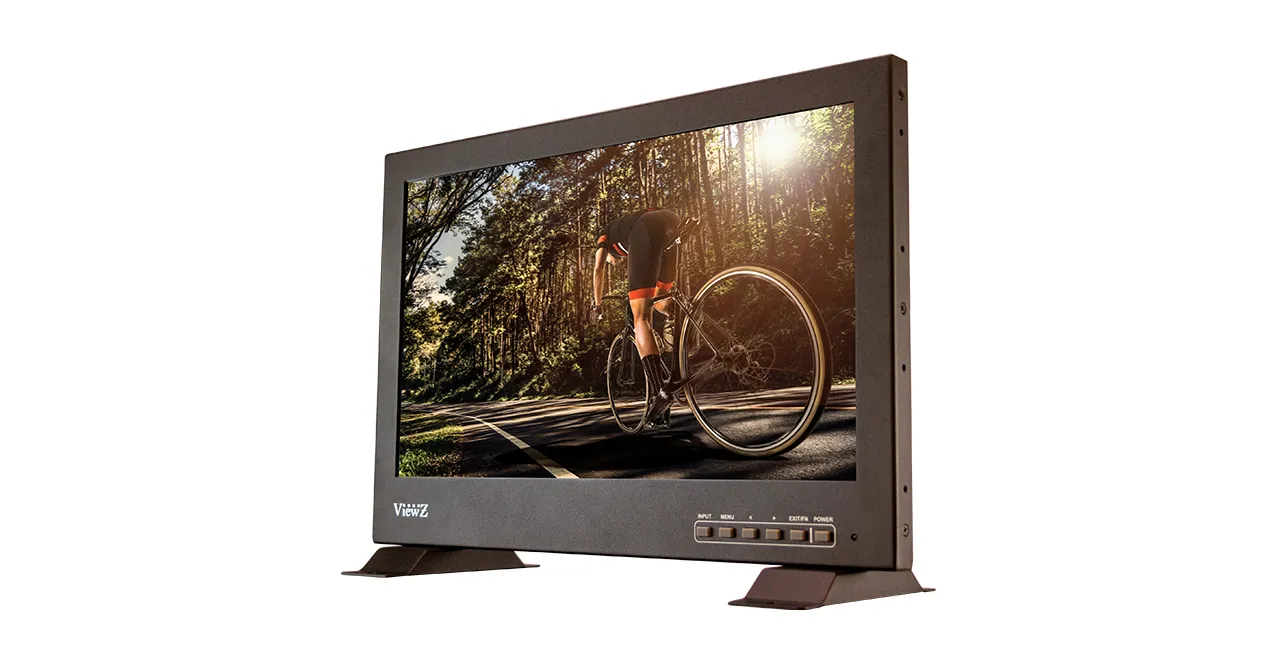

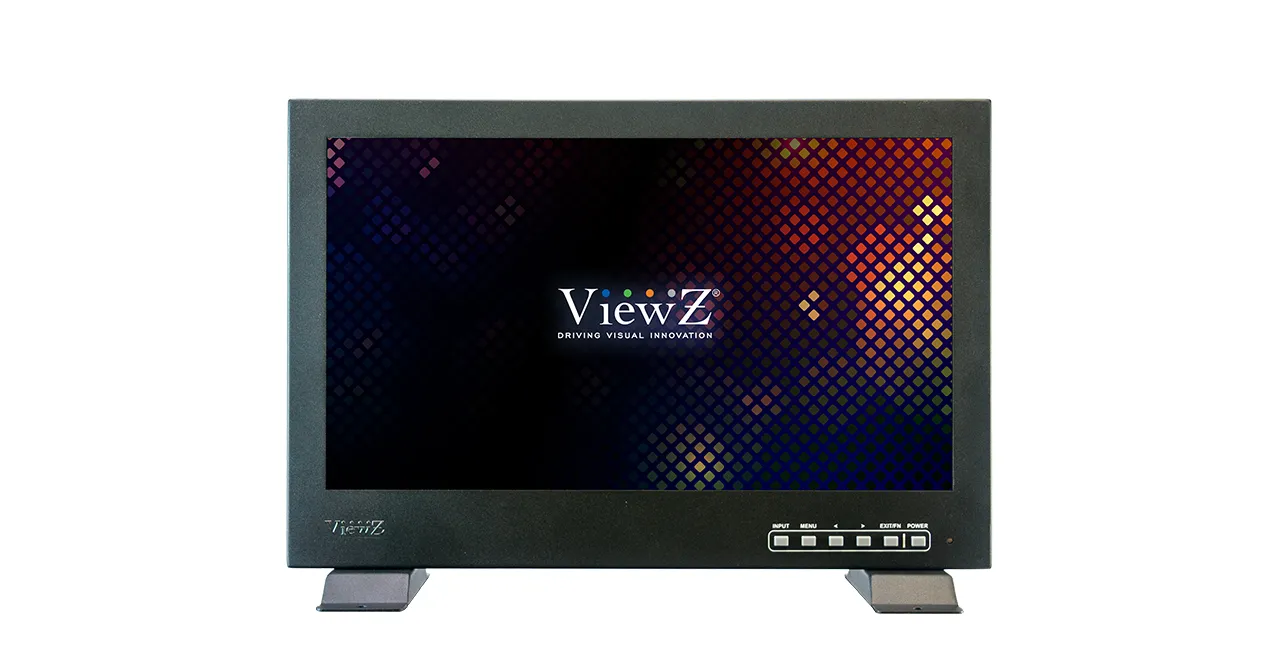

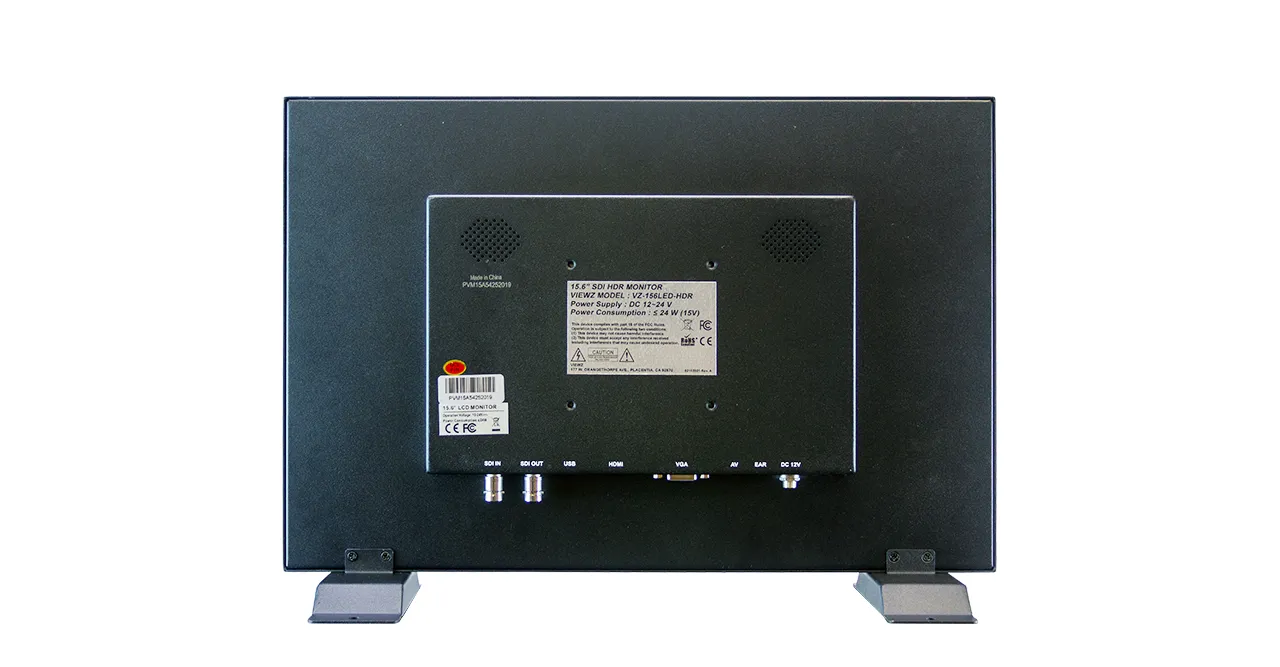

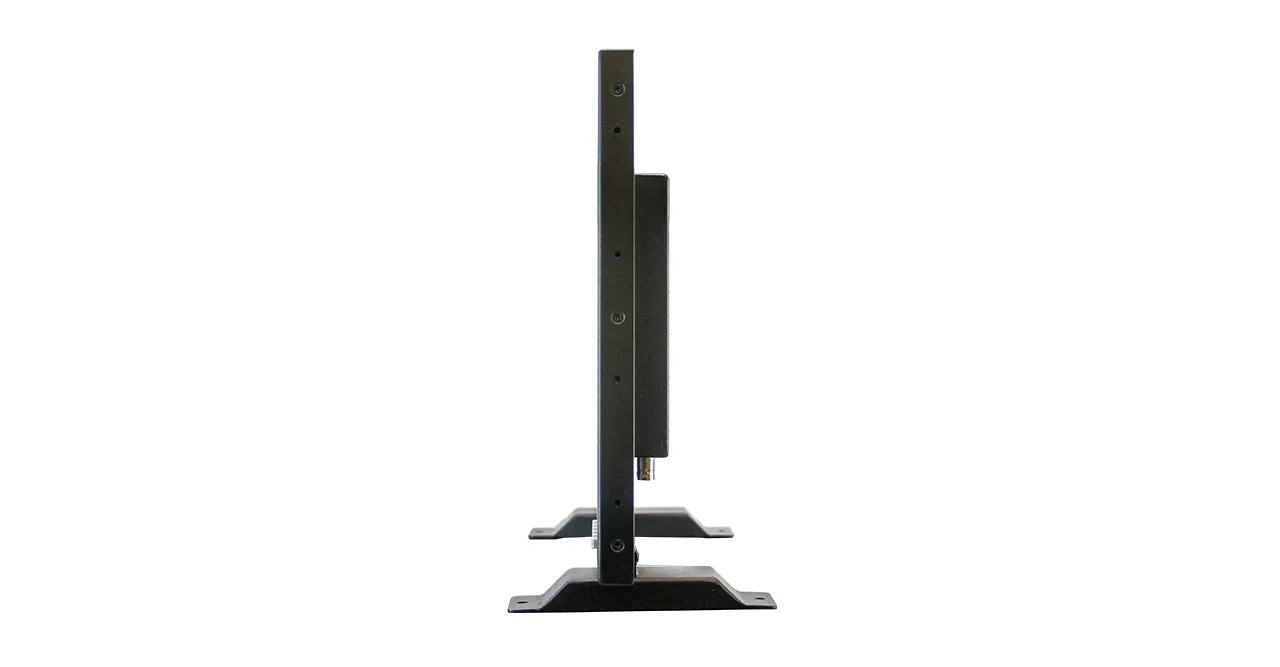

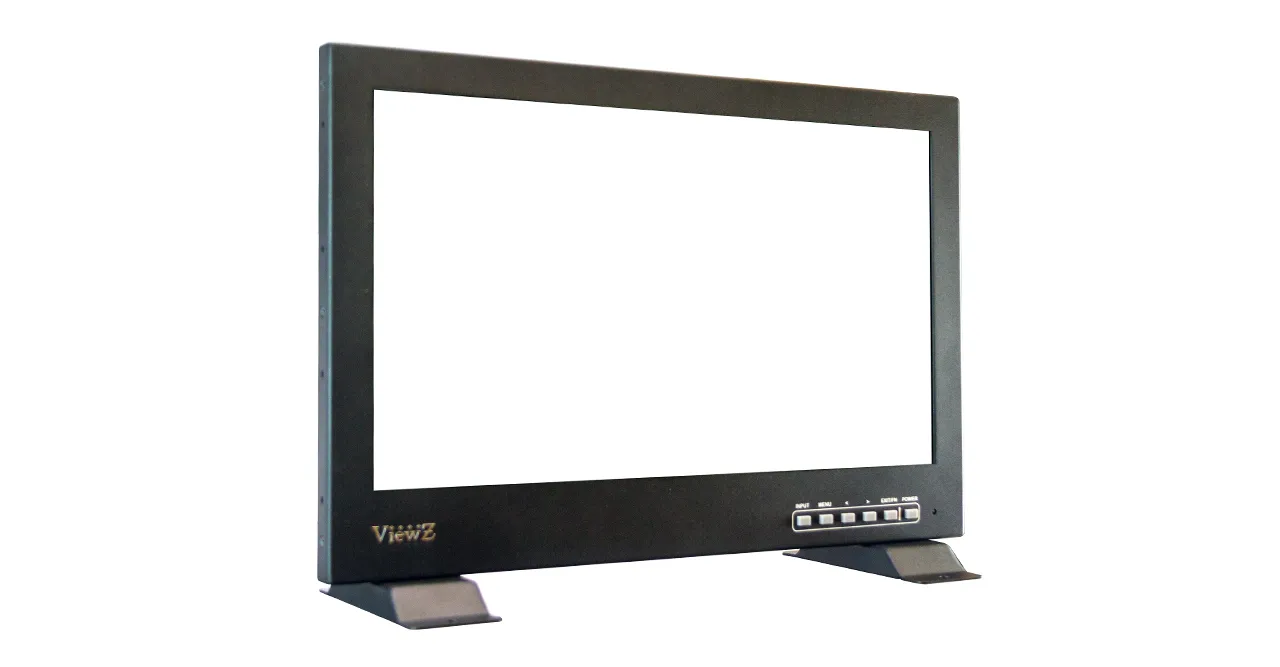

Product Dimension & Weight
Click below to enlarge
