VZ-156PM-12G is a 15” 4K monitor with 12G-SDI interface - 2×3G-SDI & 2×12G-SDI. VZ-156PM-12G supports various video formats including 12G-SFP, 12G/6G/3G/HD-SDI and HDMI 2.0. VZ-156PM-12G provides wide color gamut up to DCI and a full feature set. It can support up to 4096x2160 (60,50,30,25 & 24p) and 3840x2160 (60,50,30,25 & 24p) signal.
- 15.6” 4K/12G-SDI Monitor
- All SDI signals Input – SDI | 6G-SDI | 3G-SDI (Level A, DL-B, DS-B) / HD-SDI/SD-SDI
- Quad SDI | Dual SDI | Single SDI/HDMI
- Loop-Through (SDI)
- ST2084 / HLG / Time Code ( LTC / VITC ) / Tally
- Marker / Waveform / Vector Scope / Histogram / UMD
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
Specification | Dimension | Spec & Manual
Series : Production Monitor | Key Features : 12G-SDI 3G-SDI Tally
Product Features
- Model Number: VZ-156PM-12G
- All SDI signals Input – 12G-SDI/6G-SDI/3G-SDI (Level A, DL-B, DS-B) / HD-SDI/SD-SDI
- Quad SDI | Dual SDI | Single SDI/HDMI
- ST2084 / HLG / Time Code ( LTC / VITC )
- Loop-Through (SDI)
- False Color / Tally ( Red / Green / Yellow ) / Freeze
- Audio Channel Output 2ch (out of 16ch)
- Front User definable buttons F1 and F2
- Picture / (User) Marker / UMD
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
- Waveform / Vector Scope / Histogram
- Check Field / Exposure / HV Delay / Freeze
- False Color / Color Temperature / Color Space
Display
| Screen Size | 15.6″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.08970 mm x 0.08970 mm |
| Brightness | 330 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 176°/176° |
| Display Color | 16.7 M |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use |
| LUT (Look Up Table) | Support (3D LUT – .cube Format) |
| Technology | Calibration to Rec.709 with Optional Calibration Unit |
Interface
| 12G-SDI In / Out | 2 / 2 (Loopthrough) |
| 3G-SDI In / Out | 2 / 2 (Loopthrough) |
| HDMI In / Out | 1 / 1 |
| SFP In | 1 x 12G SFP+ ( Fiber Module for Option) |
| RJ45 In | 1 |
| RS422 In / Out | 1 / 1 (Remote Control) |
| GPI In | 1 (Remote Control) |
| USB In | 1 (Remote Control) |
Audio
| Built in speaker | 1W x 2 |
| SDI | 16ch 48kHz 24 bit |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5 mm |
Dimensions & Weight
| Outline Dimension (W x H x D) | 15.47 x 10.51 x 2.42″ / 393 x 267 x 61.5 mm |
| Net Weight | 6.39 lbs / 3.4 kg |
Input Format
| 12G-SDI (YCbCr 4:2:2) | 3840×2160/4096×2160 (47.95/48/50/59.94/60p) |
| 12G-SDI (YCbCr 4:4:4) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| DL 6G (YCbCr 4:2:2) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| DL 6G (YCbCr 4:4:4) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| 6G-SDI (YCbCr 4:2:2) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| 6G-SDI (YCbCr 4:4:4) | 1920p/2048×1080 (47.95/48/50/59.94/60p) |
| 2SI-3G (YCbCr 4:2:2) | 3840×2160/4096×2160 (47.95/48/50/59.94/60p) |
| 2SI-3G (YCbCr 4:4:4) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| SQ-HD,2SI DL-3G, SQ DL-3G | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| SQ-3G (YCbCr 4:2:2) | 3840×2160/4096×2160 (47.95/48/50/59.94/60p) |
| SQ-3G (YCbCr 4:4:4) | 3840×2160/4096×2160 (23.98/24/25/29.97/30p) |
| DL 3G-SDI-Level B (YCbCr 4:2:2) | 1080p / 2048×1080 (47.95p/48p/50p/59.94p/60p) 720p(23.98/24/25/29.97/30/50/59.94/60p) |
| DL 3G-SDI-Level B (YCbCr 4:4:4) | 1080p (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p//29.97sf/30p/30sf/50i/59.94i/60i) |
| 3G-SDI-Level A (YCbCr 4:2:2) | 1080p / 2048×1080 (47.95p/48p/50p/59.94p/60p) |
| 3G-SDI-Level A (YCbCr 4:4:4) | 1080p / 2048×1080 (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p/29.97sf/30p/30sf) 720p(23.98p/24p/25p/29.97p/30p/50p/59.94p/60p) |
| HD | 2048×1080/1080P/720P |
| SD | 525i/625i |
General Summary
| Power – Electrical Ratings | XLR-4p (DC 12~24V) |
| Power – Consumption | ≤ 32.5 W |
| Warranty | 2 Years |
| Operating Temperature | 32 ~ 140°F / 0 ~ 60°C |
| Operating Humidity | 90% RH for 240 hrs, TA=+ 140°F (60°C) |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Battery Plate | V-mount / Anton Bauer Mount |
| Package Include | 15V DC Adapter x 1, Manual x 1, VESA Plate x1, Desktop Stand Set x 1, Gimbal Bracket x1, USB Disk x1, Carrying Case x 1 (Option), Acrylic Screen Protector x1 (Option), Battery Plate (V-Mount) x 1 (Option) |

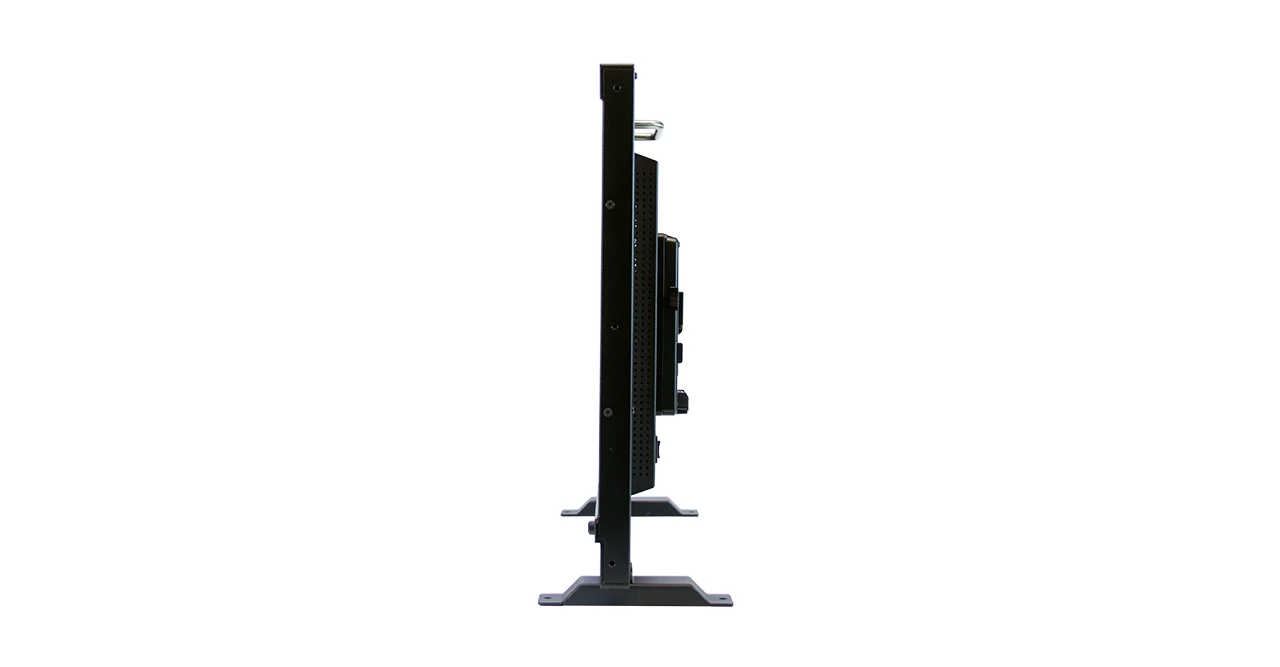

Product Dimension & Weight
