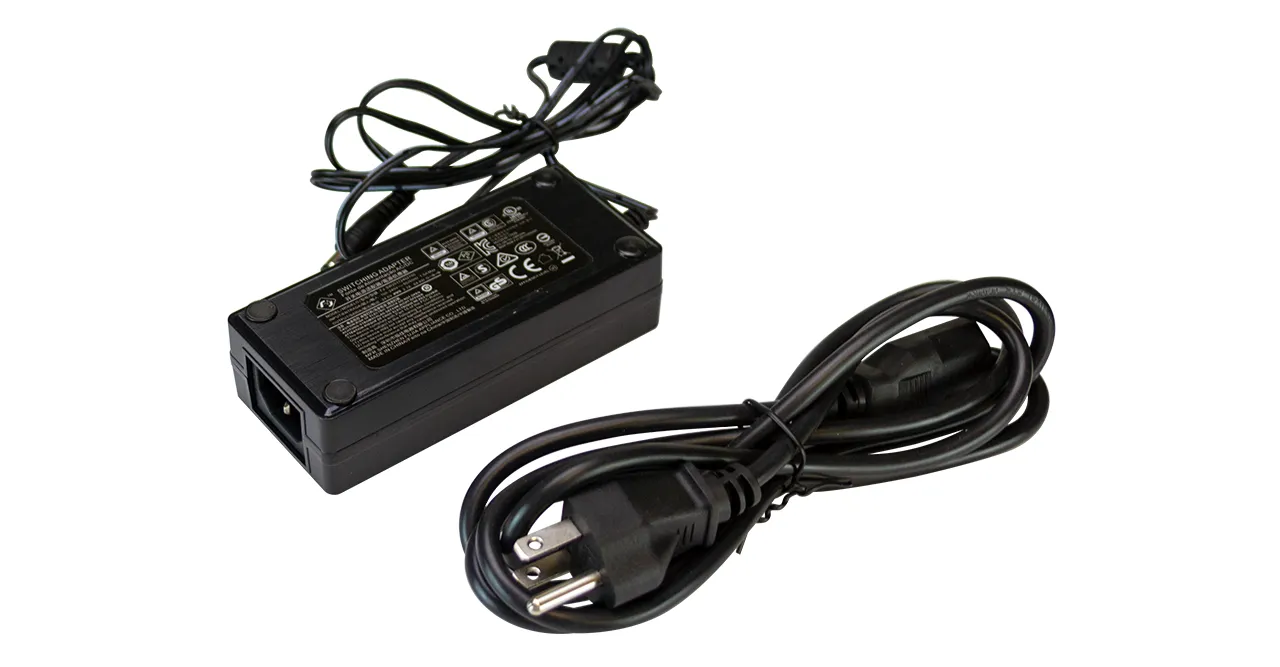

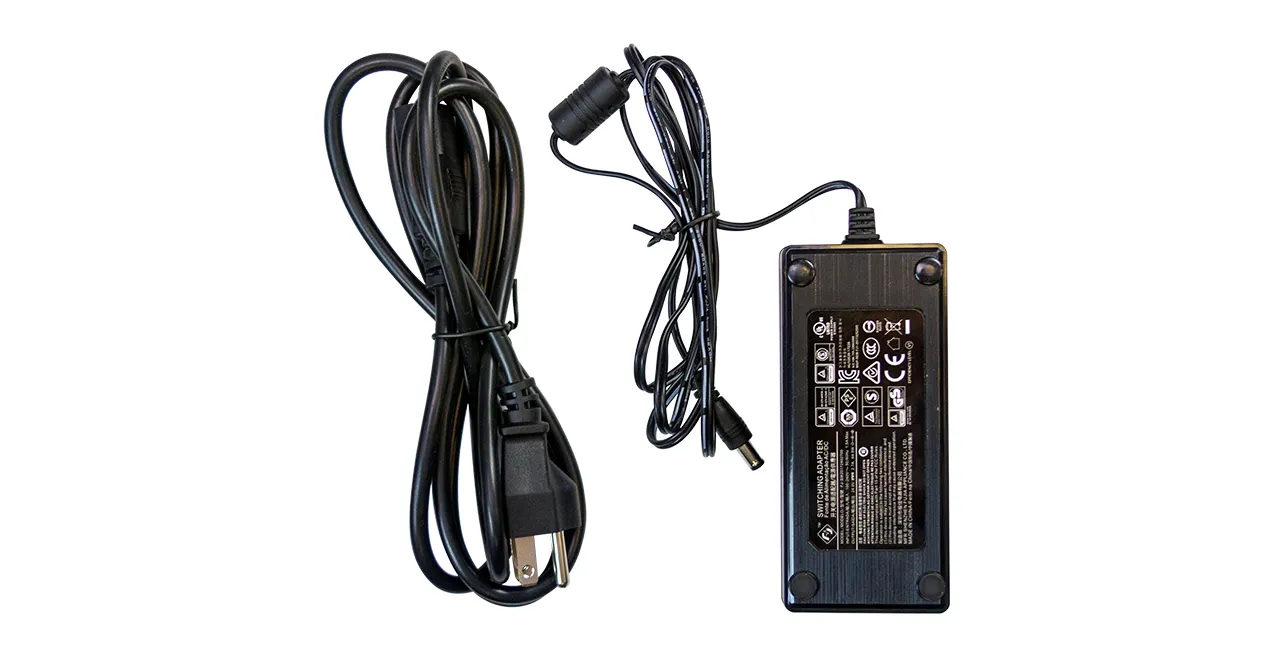

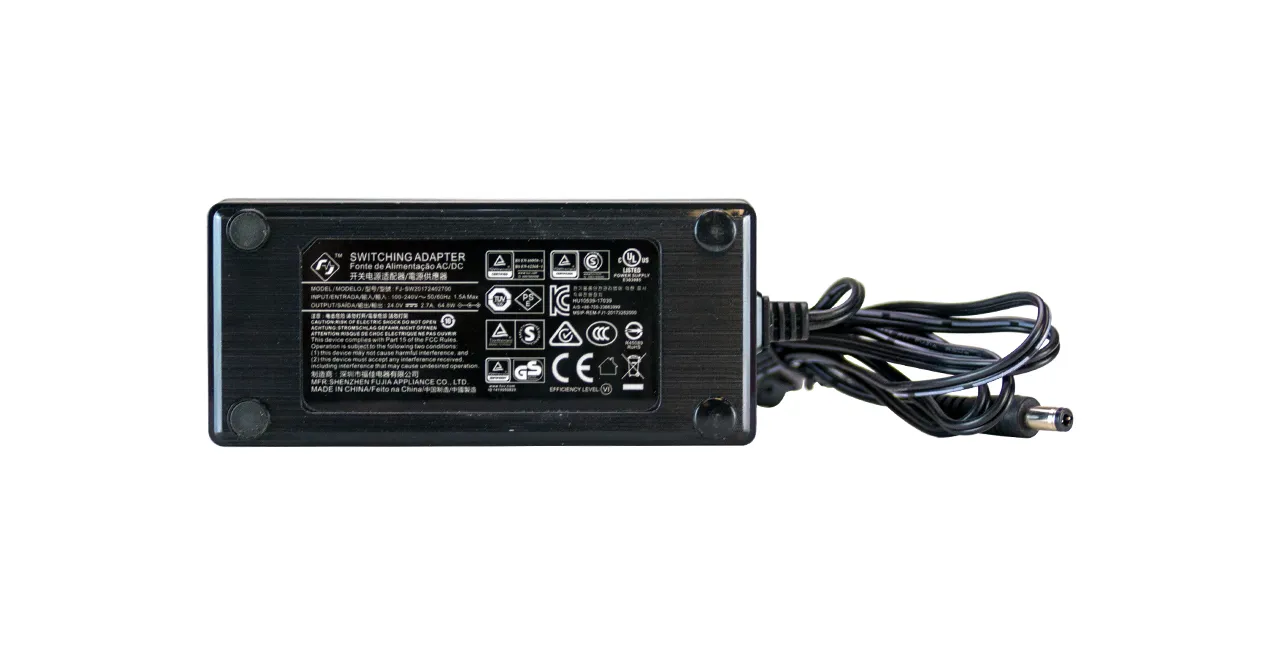

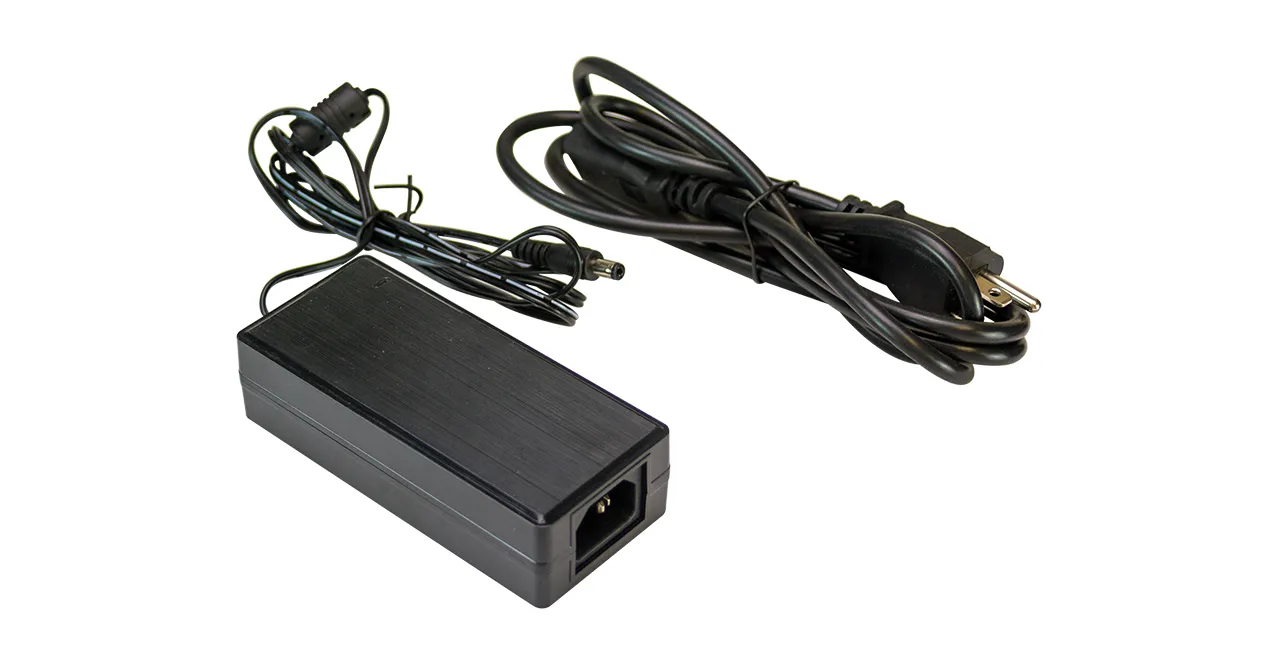

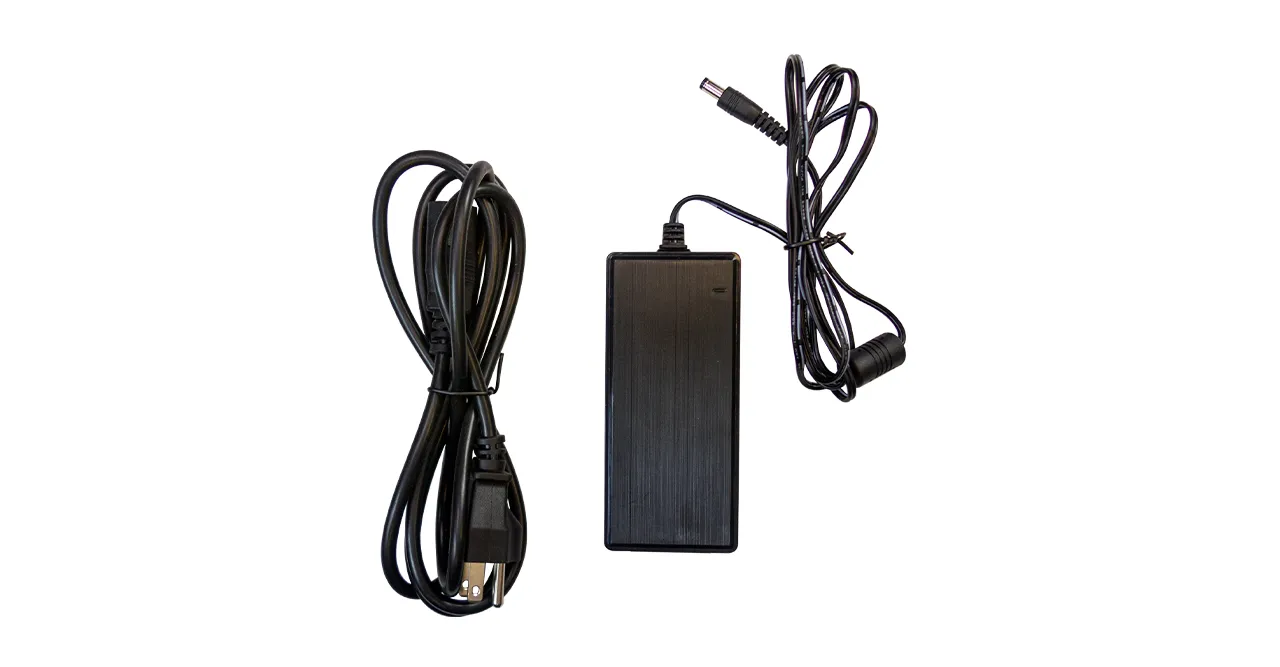

VZ-PSU3N-24
AC 120V to DC 24V Adapter for 32” Monitors
- Output : 24V DC / 48W / 2.7A
- Input : 100~ 240VAC / 50~60Hz / 1.5A Max
- Fully tested for 32″ CMP
- Safe & Reliable
- Complies with Environmental Protection Requirements
- Long Product Life
Specification | Dimension | Spec & Manual
Series : Power Adapter
Compatible Monitors
Product Features
- Model Number: VZ-PSU3N-24
- Fully testified for 32″ CMP
- DC output 24V / 2.7A / 64.8W
- AC 100~240V / 50 or 60Hz / 1.5A Max
- Green Power On LED
- Energy efficiency rating: VI
- Compact & Light-Weight
- Safe & Reliable
- Complies with International Safety Standards & Environmental Protection Requirements
- Over voltage / Overload / Over current / Short Circuit Protection
- Complies with Environmental Protection Requirements
- Wide Voltage Compatibility
- Long Product Life
- Safety Certification: cULus, CB, GS, KC, CCC, PSE
- EMC Compliance: FCC Part 15 Class B, EN 55032 (CISPR 32) Class B, EN 55035
- Regulatory Compliance: CE, UKCA, RCM
- Environmental Compliance: RoHS, REACH, CA65
Specification
| Input – Voltage range | current | 100 ~ 240V AC, 50/60Hz | 1.5A |
| Output – Voltage | 24V DC |
| Output – Watt | 64.8 W |
| Output – Rated current | 2.7 A |
Protection
| Short Circuit Protection | The Power Supply will be auto recovered when short circuit faults remove. |
| Over Current Protection | Over Current Point Limited: 120~200% of rated current (Input: 110~230V AC), when the over current, the output will enter the hiccup mode, when the over current situation is relieved, the product will automatically return to normal |
| Over Voltage Protection | The Power Supply shell be self-recovering when the fault condition is removed |
Regulation - Safety & EMI Standards
| Safety Standards | cULus(UL62368-1), CB(IEC62368-1), GS/LVD(62368-1), BS/UKCA(62368-1 UKCA), FCC+ICES-003(PART15 CLASS B), CCC (GB4943.1), SAA (62368-1), RCM (62368-1), PSE(J62368-1), KC (62368-1), S-Mark(62368-1) |
| EMI STANDARDS | FCC Part 15 Class B, EN55032 (CISPR 32) Class B, EN55035 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 1.84 x 4.25 x 1.24″ / 46.8 x 108 x 31.6 mm |
| Net Weight | 0.529 ± 0.04 lbs / 0.240 ± 0.02 kg |
Interface

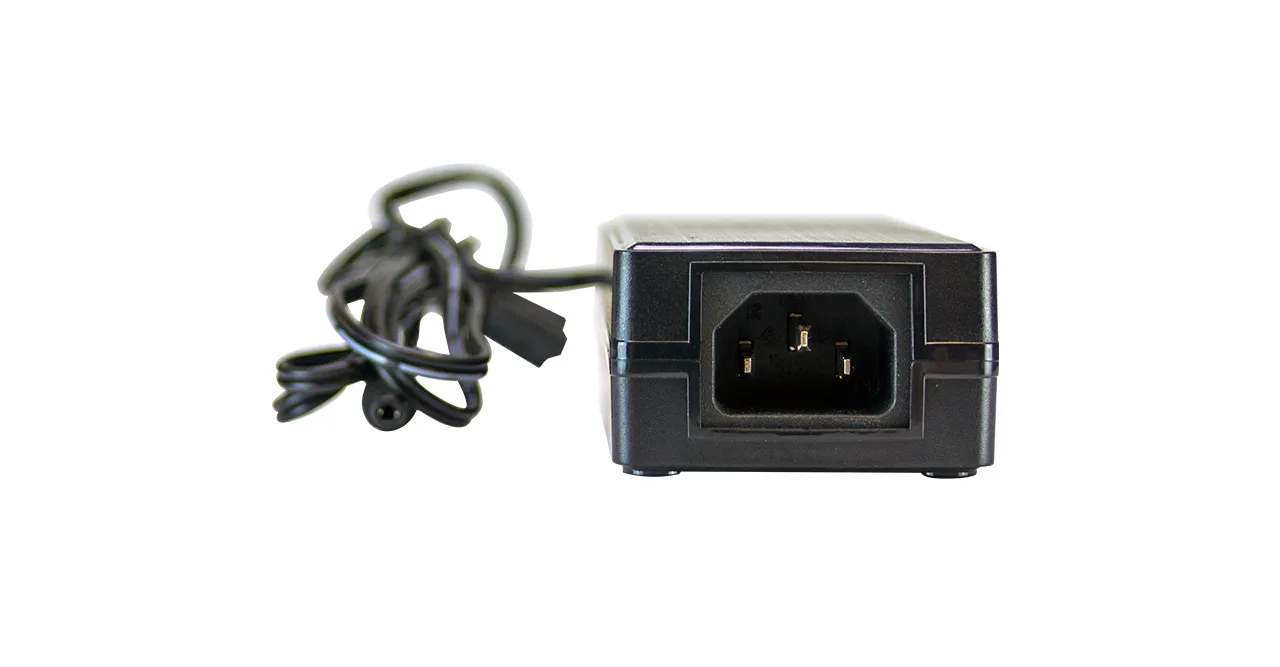

| Input Plug Type | IEC 721-3-2 2M2 – C14 AC PIN |
| Output Cord | WIRE: 20 AWG / 1500 ± 50 mm | PLUG: JACK PLUG ø5.5 x 10.5 mm |
General Summary
| Construction | PC, ABS, or equivalent |
| Cable | AWM Style 2464 – 20 AWG |
| Cooling | Cooling shall be with natural convection cooling |
| Operating Temperature | Humidity | 32 ~ 104°F / 0 ~ +40°C | 5 ~ 90% RH. Non-condensing |
| Storage Temperature | Humidity | -4 ~ 158°F / -20 ~ +70°C | 20 ~ 90% RH. Non-condensing |
Product Dimension & Weight
Click below to enlarge
