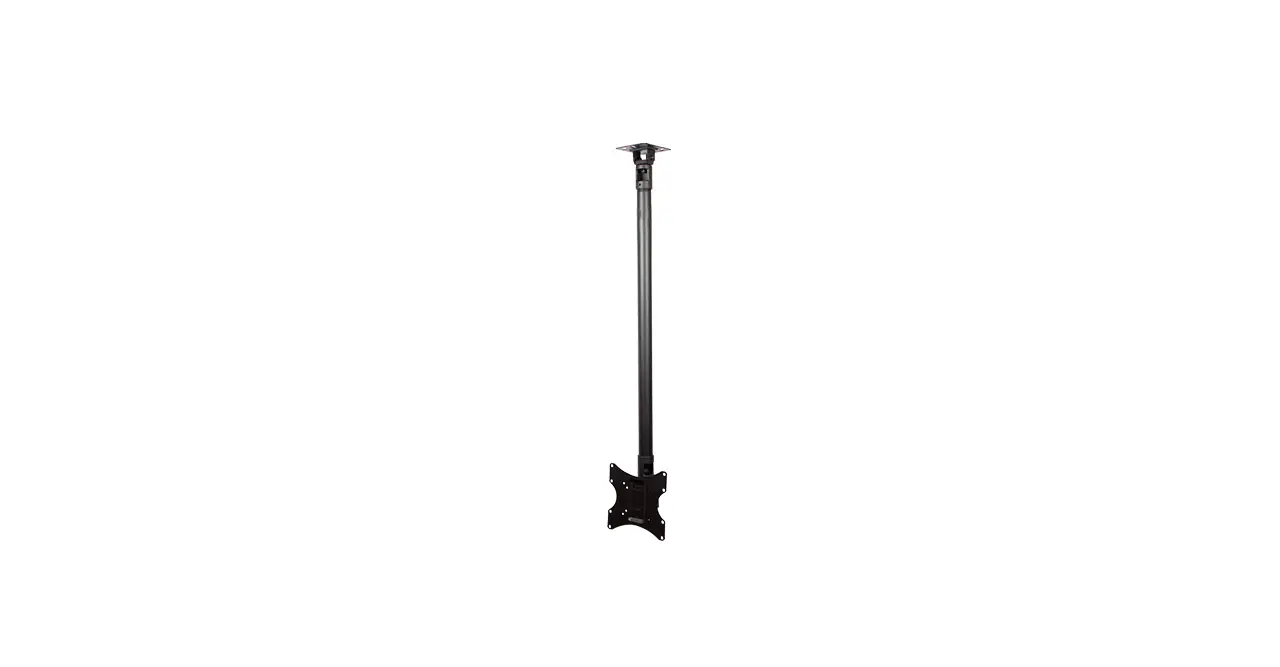

vzcmkit02_4

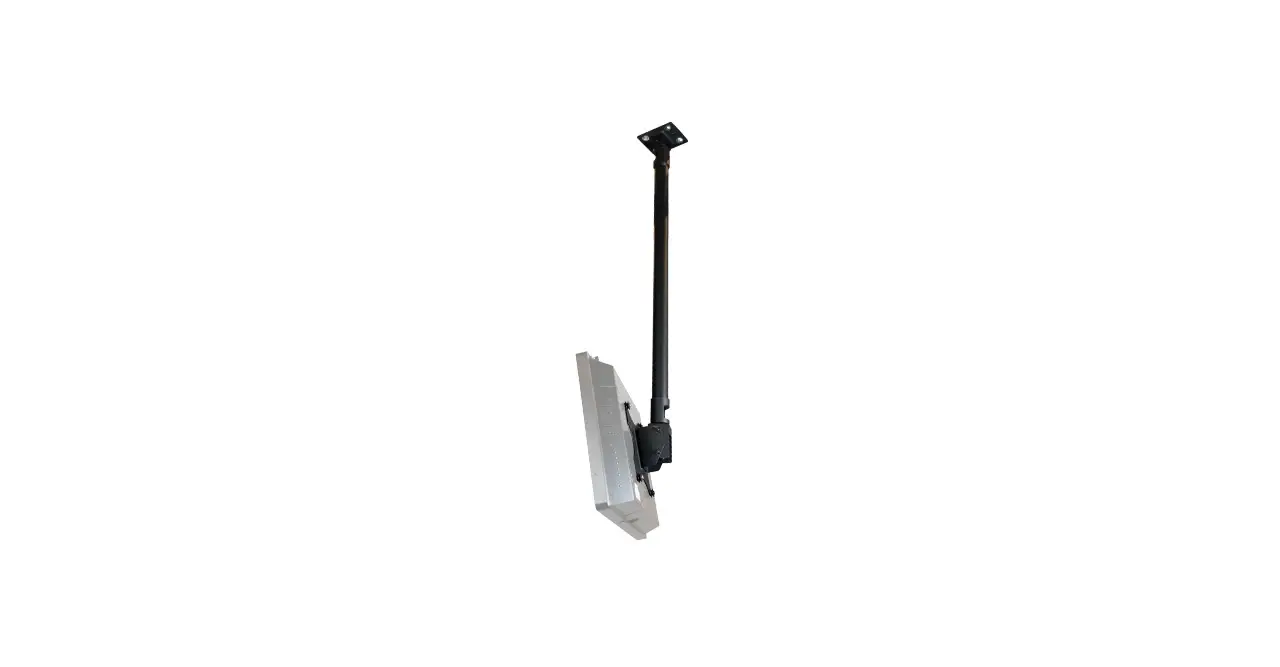

vzcmkit02_1

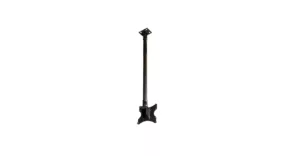

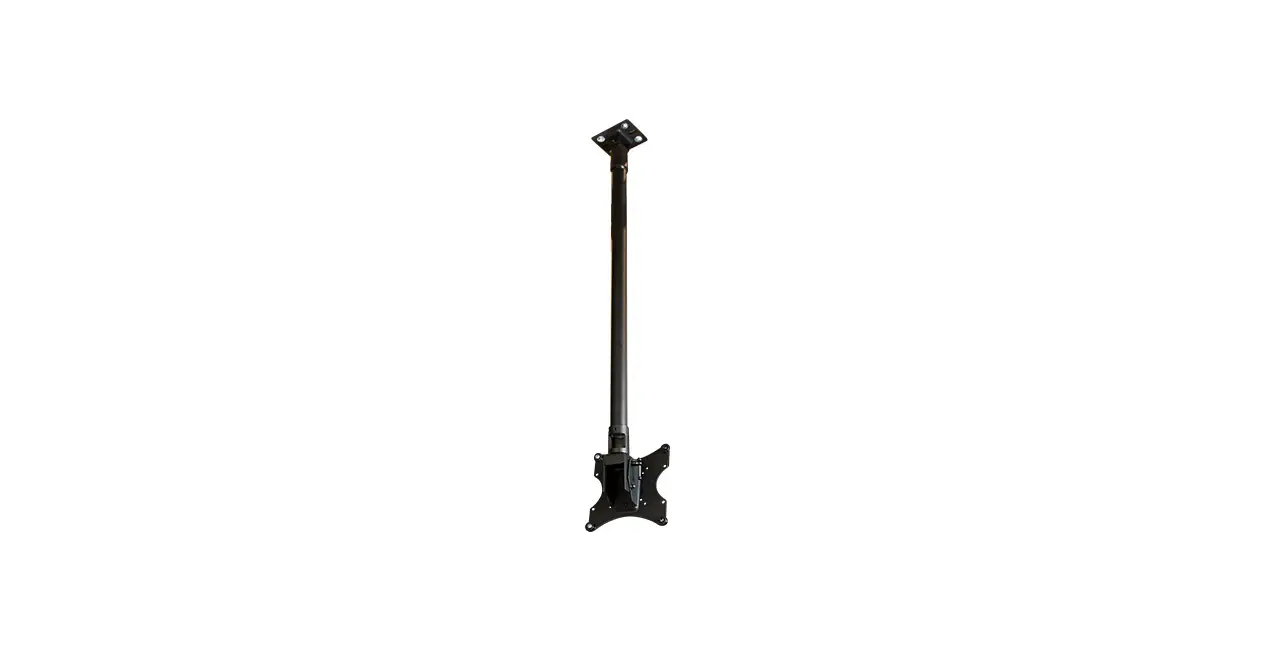

vzcmkit02_2

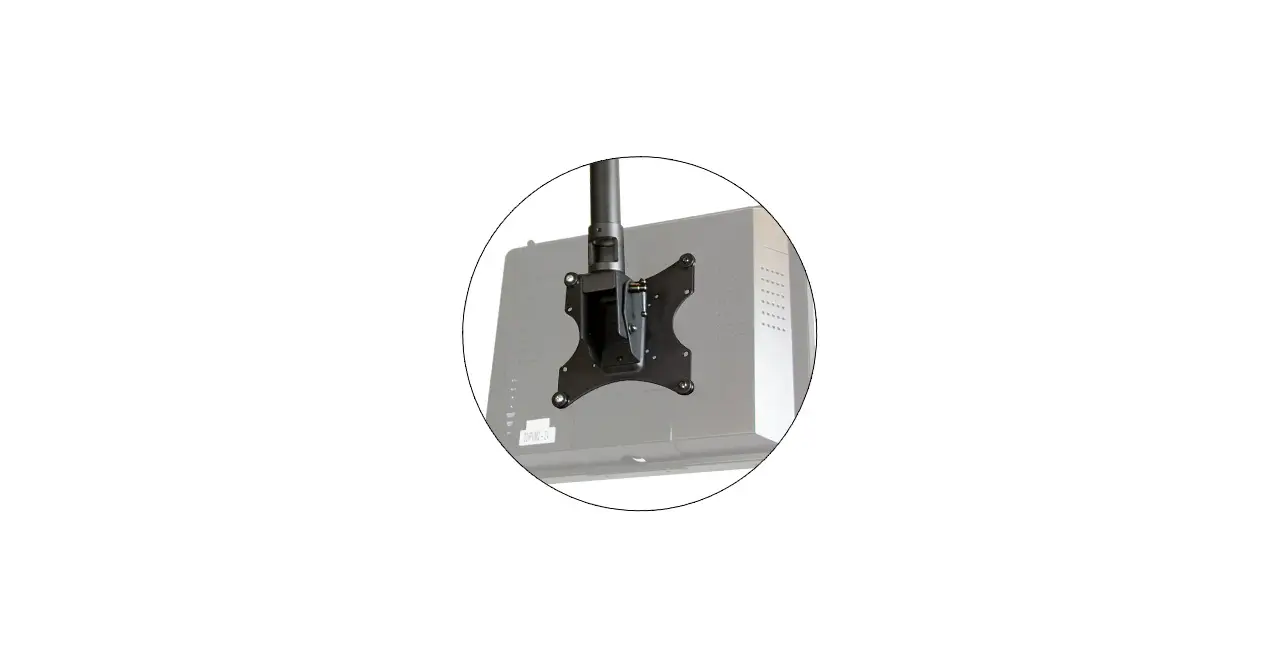

vzcmkit02_3
vzcmkit02_4 vzcmkit02_1 vzcmkit02_2 vzcmkit02_3

VZ-CMKiT-02

23~43`` VESA Ceiling Mount Kit

  • Mounting Head for 23″ to 43″ CCTV & Video Wall Monitors
  • Load Capacity is 110 lbs / 50 kg
  • VESA Standard – 75×75, 100×100, 200×100 and 200×200
  • Easy Cable Management
  • Connects to Standard Pole sizes – 1-1/2″
  • 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation For Achieving that Perfect Viewing Angle

Compatible Monitors

Product Features

  • Model Number: VZ-CMKiT-02
  • Mounting Head for 23″ to 43″ CCTV & Video Wall Monitors
  • Load Capacity is 110 lbs / 50 kg
  • 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation  for Achieving that Perfect Viewing Angle
  • VESA Standard – 75×75, 100×100, 200×100 and 200×200
  • Easy Cable Management
  • Supported Pole Sizes – NPT Size 1-1/2″ (38.1mm)
  • 2 units of VZ-CM-P36 poles can be connected by using VZ-CM-C pole connector.

* Connecting more than 2 poles is not recommended.

Specification

Display Range 23″ ~ 42″
Weight Capacity 110 lbs / 50 kg
Tilt (VZ-CM-V1) +5° ~ -12°
Tilt (VZ-CM-T) ± 80°
Rotation 360°
Mounting Pattern Type VESA
Mounting Patterns 75×75, 100×100, 200×100, 200×200


Dimensions & Weight

VZ-CM-V1 Plate Size (W x H x D) 220 mm x 252 mm x 90 mm / 8.66″ x 9.92″ x 3.54″
VZ-CM-V1 Pole ( R x Length ) Ø 38.1 x 76 mm / Ø 1.5 x 3″
VZ-CM-P36 Pole ( R x Length ) Ø 48 x 900 mm / Ø 1.88 x 35.43″
VZ-CM-P36 Thread ( R x Length ) Ø 38.1 mm / Ø 1-1/2″
VZ-CM-T Plate Size (W x H x D) 150 mm x 120 mm x 53 mm / 5.9″ x 4.72″ x 2.08″
VZ-CM-T Pole ( R x Length ) Ø 38.1 x 76mm / Ø 1.5 x 3″
Net Weight 10.78 lbs / 4.89 kg


Product Dimension & Weight
