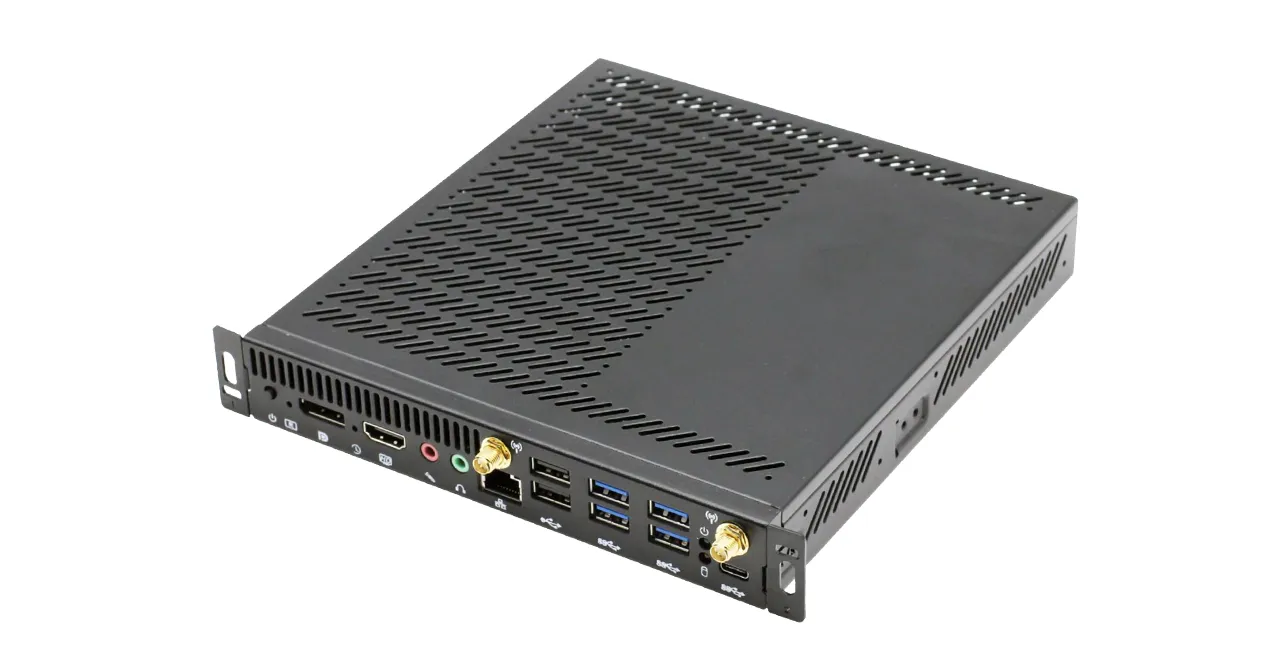

VZ-OPS-N
OPS-C Based WINDOWS PC Unit
- Compatible with VZ-UHD and VZ-IBX-T Series
- Custom Interface / Specification is available
- Complete Network support WiFi 2.4GHz/5GHz, Bluetooth, and Gigabit LAN Ethernet
- Support HDMI Out 4K @30Hz & DP Out 4K @60Hz
- Support USB 3.0 x4, USB 2.0 x2 & USB Type-C x1
- Plug & Play System
- NDAA Compliant
Specification | Dimension | Spec & Manual
Key Features : 4K
Compatible Monitors
Product Features
- Model Number: VZ-OPS-N
- Compatible with VZ-UHD and VZ-IBX-T Series
- Custom Interface / Specification is available
- Powerful System with the Intel® Core™ i7-8750H Processor, 8GB DDR4 RAM 2666MHz & 128GB SSD Storage
- Complete Network support WiFi 2.4GHz/5GHz, Bluetooth, and Gigabit LAN Ethernet
- Support HDMI Out 4K @30Hz & DP Out 4K @60Hz
- Support USB 3.0 x4, USB 2.0 x2 & USB Type-C x1
- Key M NGFF M.2 Interface, Expandable SSD Module
- Key A NGFF M.2 Interface, Scalable WiFi+Bluetooth
- Plug & Play System
Specification
| Processor | Intel® Core™ i7-8750H – 4 Core & 8 Threads 2.2 G Hz (Up to 4.1 G Hz) |
| Motherboard | OPS-8750 H |
| BIOS | AMI 128Mbit, support Write-Protection, Diskless Boot, Wake-on-LAN, Power-ON, Timed Boot, Watchdog Remote Power ON/OFF, Device Intelligent Recognition & other functions |
| RAM | 8GB DDR4 2400 / 2666M Hz |
| Storage | 128GB SSD |
| Graphic | Integrated Intel® UHD Display (Built-in) |
| Graphic – HDMI Out | Display Resolution up to 4096×2304 @30Hz |
| Graphic – DP Out | Display Resolution up to 4096×2304 @60Hz |
| Graphic – OPS Out | Display Resolution up to 4096×2304 @60Hz |
| NETWORK – Onboard RJ45 | RTL 8111H (10/1000M) x1 |
| NETWORK – Wireless + Bluetooth | M.2 A Key x1 |
| Operating System | Windows 11 |
| Watch Dogs – Function | Reboot the System when it goes down |
| Watch Dogs – Interval | 1 ~ 65535 sec |

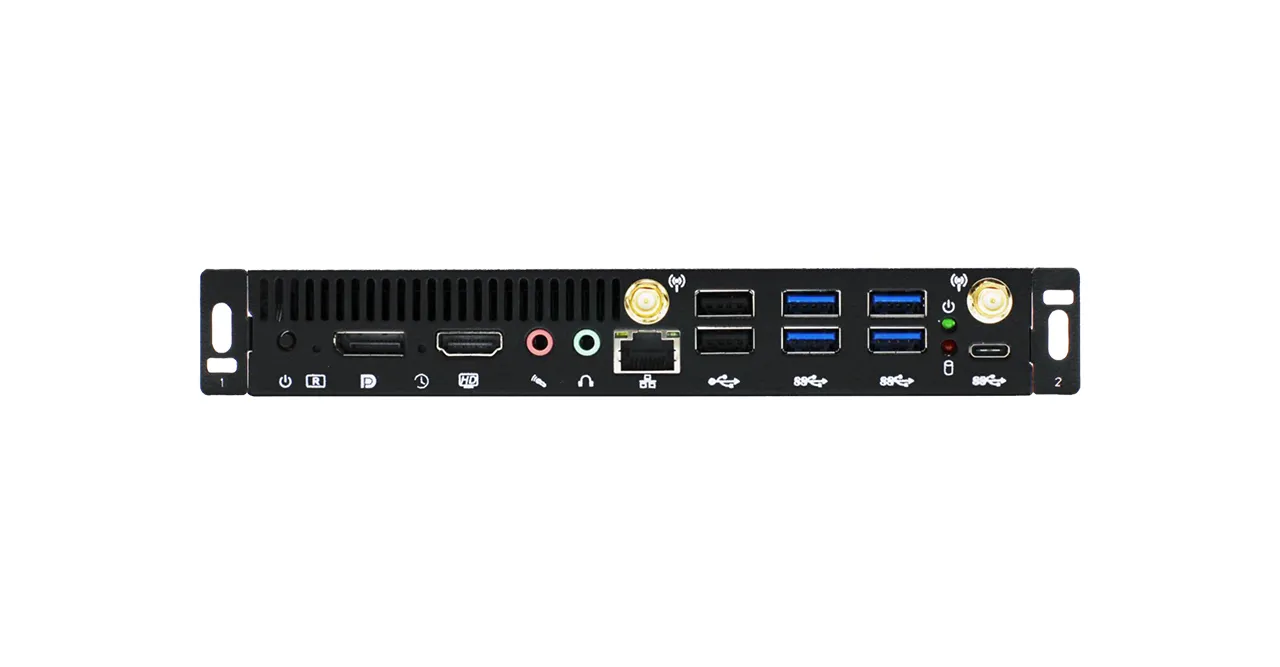

Interface
| HDMI (1.4) Out | 1 |
| DP (1.2) Out | 1 |
| USB 2.0 (Type A) In | 2 |
| USB 3.0 (Type A) In | 4 |
| USB (Type-C) In | 1 |
| RJ45 (10/100/1000 M) In (Gigabit LAN) | 1 / 1 |
| OPS 80 Pin / DC Power Socket | 1 / 1 |
| Mic In / Line Out | 1 / 1 |
| Power Button | 1 / 1 |
| Reset Button | 1 (Short press to restart Long press CLR-CMOS) |
| 1 (Ghost key (One-Click System Restoration)) | |
| Power LED / HDD LED | 1 / 1 |
Dimensions & Weight
| Outline Dimension With Bracket (W x H x D) | 8 x 1.2 x 8.82” / 203.2 x 30.5 x 224.1 mm |
| Outline Dimension Without Bracket (W x H x D) | 7.1 x 1.2 x 7.79” / 180.2 x 30.5 x 197.9 mm |
| Net/Gross Weight | TBD |
General Summary
| Electrical Ratings | DC 12~19V DC |
| Power – Consumption | TBD |
| Warranty – Parts / Labor | 3 Year / 3 Year |
| Operating Temperature | 32 ~ 140°F / 0°C ~ 60°C |
| Operating Humidity | 5 ~ 90% RH |
| Storage Temperature | -4 ~ 158°F / -20°C ~ 70°C |
Product Dimension & Weight
Click below to enlarge
