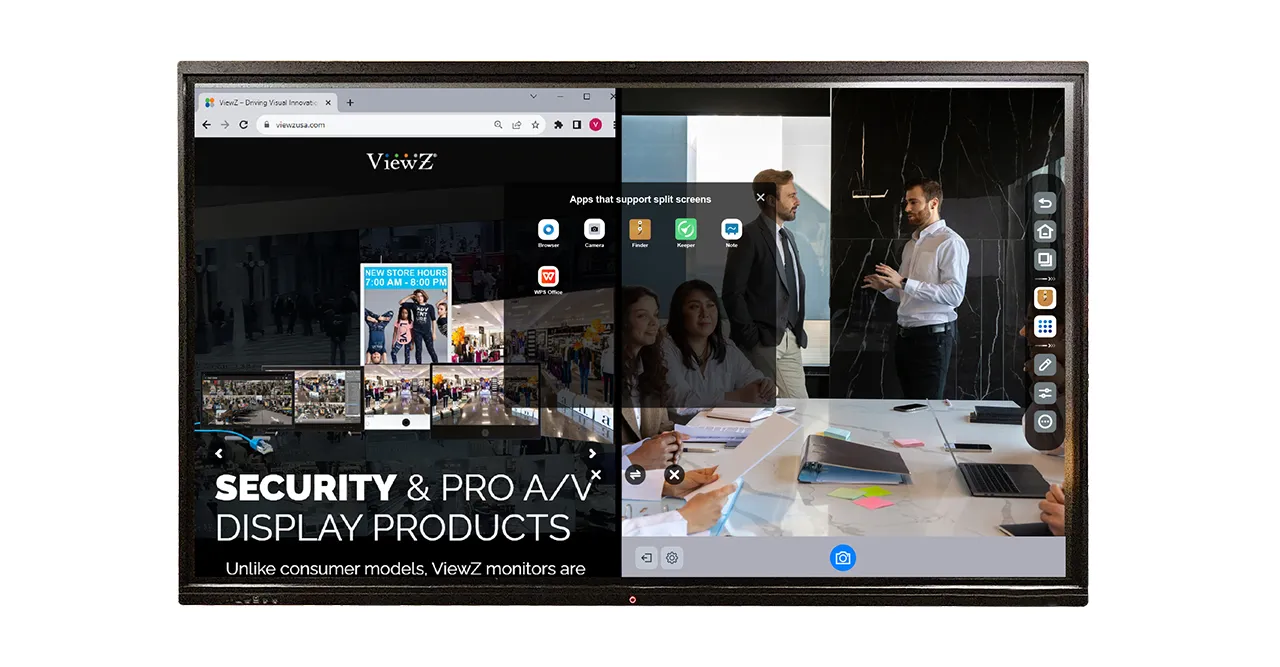

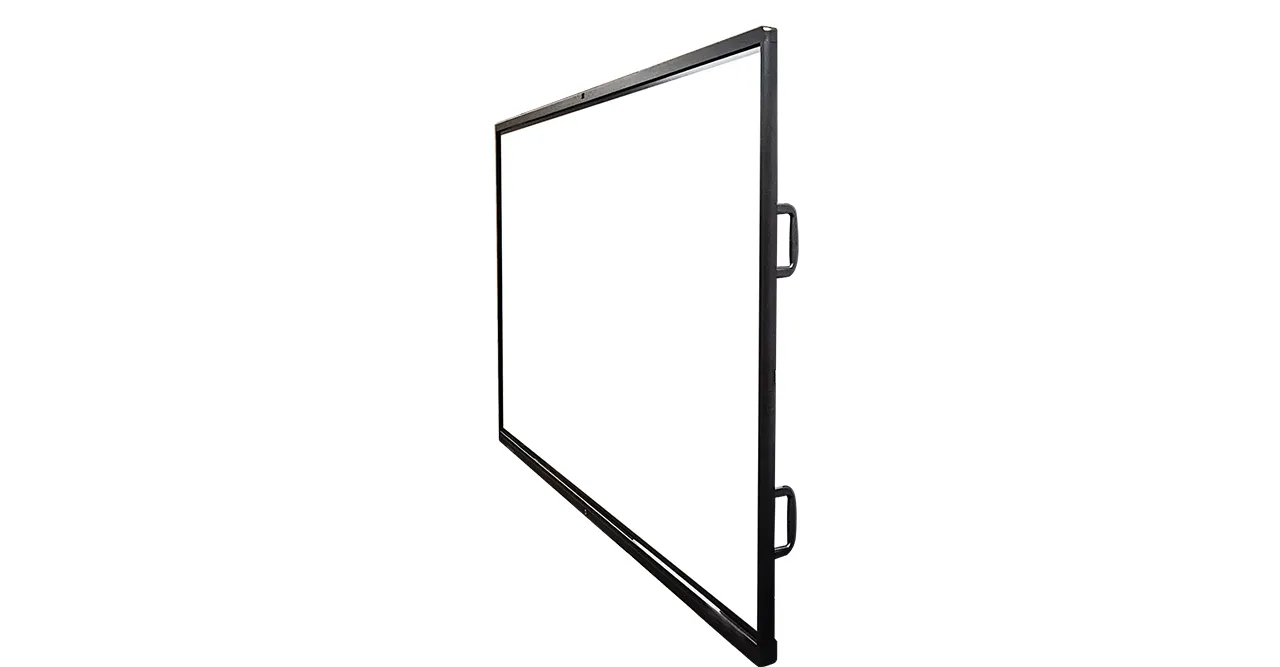

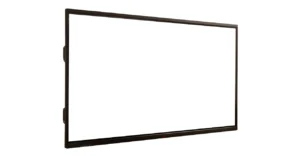

VZ-86IBX-T

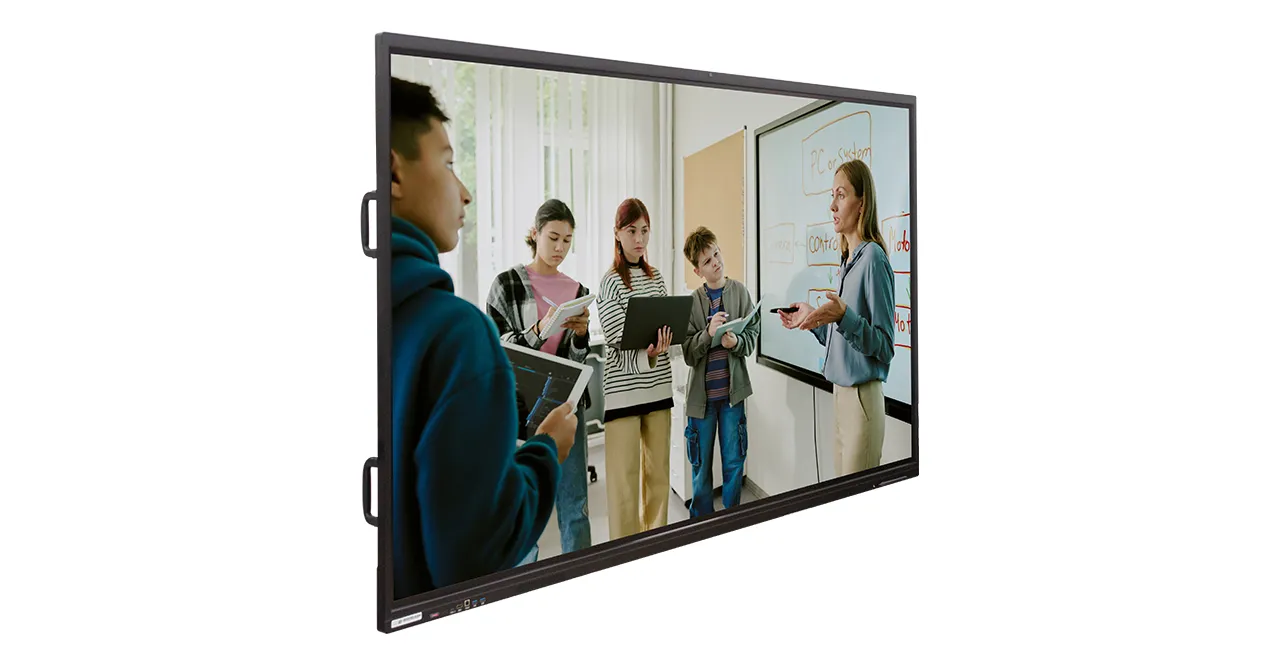

VZ-IBX-T series can unleash new and exciting possibilities at the touch of a finger. These large size 4k monitors are touch screen, making them perfect for school and presentation digital whiteboards while also catering to digital signage and security application. The future is now with IBX series touch screen monitors.
- 86” 4K UHD LED Monitor
- Supports 4K (3840X2160) Resolution
- 20-Point Multi Touch Interactive Screen
- Supports Screen Sharing Software
- Supports Play Store (Google)
- Supports Zoom Meeting & Microsoft Teams
- Supports Touch Screen & Conference System (Built-in Camera, Mic)
- Supports OPS (Option)
- NDAA Compliant
- Wide Viewing Angle (IPS Panel)
- 1.07G Color & QFHD
- Built to run 24/7/365
Specification | Dimension | Download
Series : IBX-T | Key Features : 4K Touch Screen
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-86IBX-T
- 85.6” 4K UHD LED Panel
- Supports 4K (3840X2160) Resolution
- Supports Screen Sharing Software
- Supports Play Store (Google)
- Supports Zoom Meeting & Microsoft Teams
- Supports Touch Screen & Conference System (Built-in Camera, Mic)
- Supports OPS (Option)
- 20-Point touch interactive panel
- Wide Viewing Angle (IPS Panel)
- Universal Wall Mounting
- NDAA Compliant
Display
| Screen Size | 86″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.4935 mm x 0.4935 mm |
| Brightness | 350 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 (1.78 : 1) |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.07B (10 bit) |
| Response Time | < 8ms |
Interface
| HDMI (2.0) In / Out | 3 / 1 |
| DP In | 1 |
| VGA In | 1 |
| RJ45 In | 2 |
| RS232 (DB 9) In | 1 |
| USB Type-C In | 2 |
| USB 3.0 (Type-A) In | 4 |
| USB 2.0 (Type-A) In | 1 |
| USB 2.0 (Type-B) In | 1 |
| Touch (USB 2.0, Type B) | 1 |
| Earphone (Line Out) | 1 |
| PC Audio In | 1 |
Android Board Spec
| Android OS | Ver 11.0 |
| Processor – CPU / Core | A55 / 4 Cores |
| Processor – GPU | G52 x 2 |
| Processor – Frequency | 1.9 GHz |
| RAM | 4GB DDR4 / 32GB eMMC |
| Chip Solution | Amlogic |
| WiFi | 2.4G / 5G |
| Bluetooth | Ver 5.0 |
OPS (OPTION)
| CPU | Intel Haswell i5 ( i3/ i7 Optional ) |
| Memory | DDR3 4G ( 8G Optional) |
| Hard Disk | SSD 128G ( 256G / 512G Optional) |
| OS | Windows 10 Pro |
| HDMI OUT | 1 |
| VGA OUT | 1 |
| USB 2.0 In | 2 |
| USB 3.0 In | 2 |
| Power Supply | 60W (12V – 19V, 5A) |
Special Features
| Image Retention | Support |
CAMERA & MIC
| Camera Type | 1 (2MP) |
| Image Sensor | 1 / 3” |
| Focal Length | 2.1 mm |
| Microphone | 6-Groups |
Media Player
| Video Codec | MPEG1/2, MPEG4, DivX 3.11/4.12/5.x/5, XviD, H.263, H.264, MVC, AVS, WMV3, VC1, Motion JPEG, VP8/9, RV30/40 |
| Video Format | MPEG, AVI, MOV, MP4, MKV, RM, 3GP, FLV, WebM, ASP |
| Image Format | JPEG, PNG, BMP |
| Music Format | mp3, mp4, wma |
Touch
| Sensor Type | Non-contact infrared sensing technology |
| Infrared Touch | 20 Points |
| Surface Protection | 4mm – physical tempered Mohs level 7 |
| Glass Transmittance | > 88% |
| Touch Depth | 3 ± 0.5mm |
| Touch Accuracy | ≤ 1 mm |
| Input Mode | Opaque object (Finger, Pen, etc) |
| Theoretical Hit | Same position 60 million times above |
| Power Supply | USB (USB power supply) |
| Supply Voltage | DC 5.0 ± 5% |
| Frame Material | Aluminum alloy frame, PCBA |
| Light Resistance | Incandescent lamp (220V, 100W) |
Refresh Rate
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
| DP In | 3840 x 2160 @ 60Hz |
| VGA In (15Pin D-Sub) | 1920 x 1080 @ 60 Hz |
Audio
| Built in Speaker | 12W x 2 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 76.9” x 45.32” x 3.62” / 1953.36 mm x 1151.3 mm x 92 mm |
| Net Weight | 147.71 lbs / 67.0 kg |
| Gross Weight | 180.779 lbs / 82.0 kg |
Mount
| Universal Wall Mount | 800 x 400 mm / M8 x 4 |
General Summary
| Transmitter – IR Remote Control | Yes |
| Housing | Aluminium Alloy Frame / Sheet Metal Back Cover |
| Power – Electrical Ratings | AC 100-240V (50/60Hz) |
| Power – Consumption | ≤ 400 W / ≤ 0.5 W (Standby) |
| Regulations | CE, FCC(A), RoHS |
| Operating Temperature | Humidity | 32 ~ 104°F / 0 ~ 40°C | 10 ~ 90% RH |
| Storage Temperature | Humidity | -4 ~ 140°F / -20 ~ 60°C |
| Language (OSD) | English |
| Accessories | Manual (1pc), Power Cable (1pc), Remote Controller (1pc), Wall Mount (1set), Touch Pen (1pc), Mobile Stand (Option) |
