VZ-AI PVM-A4B3/A4W3-N
Full HD Resolution, Built-in 2MP IP Camera compatible with many leading VMS's and NVRs and packed with a long list of other great surveillance and digital signage featured

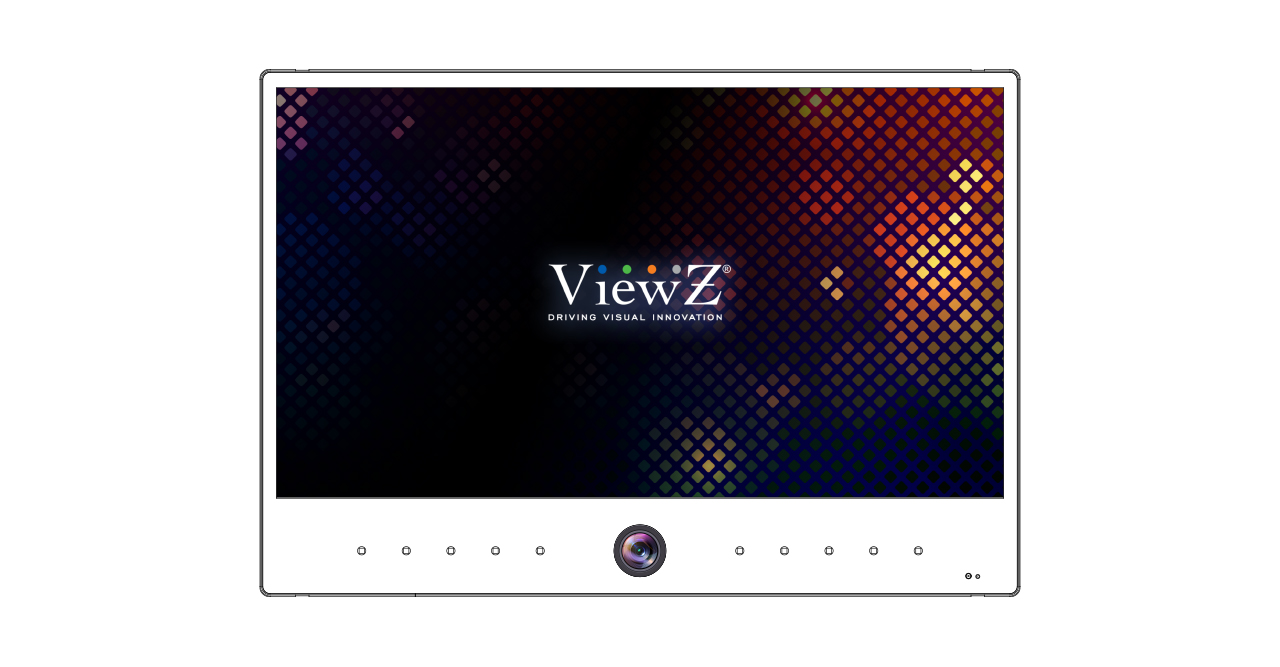

- 32” Mega Pixel Full HD 1080p IP Public View Monitor
- Onvif Profile-S Compliant & NDAA Compliant

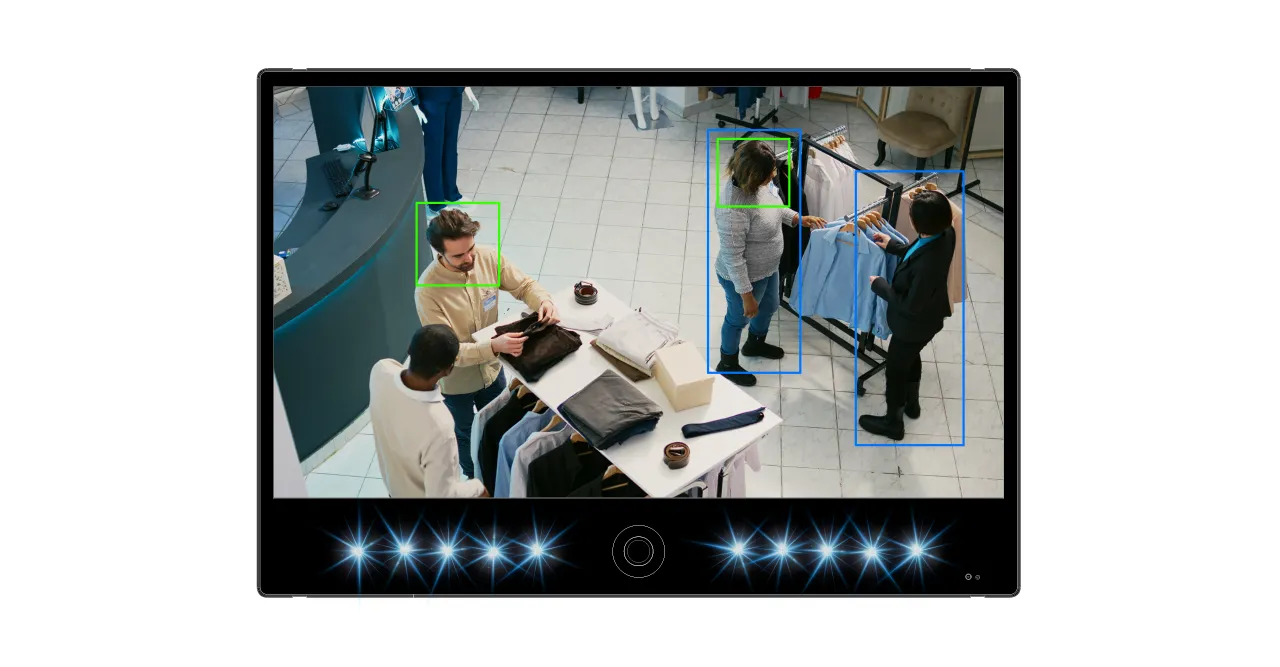

- Gun Detection / Face Detection (Display Detection Boxes)
- People Count / Emergency Alert / Customized Banner
- 10 RGBW LED Flashing Lights
- Recording Available with Micro SD
- PoE Protocol: IEEE 802.3 bt
- Protective Glass & IMS (CMS) Software to manage Alert & Data.
- 2 MP Camera & DC Auto Iris 2.8-12 mm Varifocal Lens
- Blinking Message – “Recording in Progress”
- Auto Power / Source Recovery
- Supports Dual Voltage (PoE and 24V DC)
- Built to run 24/7/365
Specification | Dimension | Spec & Manual
Series : AI PVM | Key Features : IP Onvif NDAA Compliant People Count
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-PVM-A4 _ _ N
- 32” Mega Pixel IP Full HD 1080p Resolution
- Onvif Profile S Compliant
- Gun Detection & Face Detection (Display Detection Boxes)
- People Count, Emergency Alert & Customized Banner
- IMS (CMS) Software to manage Alert & etc.
- 10 RGBW LED Flashing Lights
- PoE Protocol: IEEE 802.3 bt
- On-Screen Banner Overlay Message “Recording”
- Auto Power & Source Recovery
- Time Interval Based Source Switching
- Built-in 2 MP IP Camera + Analog Output (600 TV Line )
- Camera Recording Available with Micro SD
- BNC(NTSC/PAL), VGA, HDMI, RJ-45, Alarm, DC 12V Out
- Protective Glass, Supports Dual Voltage (PoE and 24V DC)
- DC Power Supply included as standard
- NDAA Compliant
- Built to run 24/7/365
- 3-Year Warranty
Ordering Information : Parts #
| Model Features | Family | Series | Size | Color | Voltage | |
| 32″, Black, AC 110V / DC 24V / PoE | VZ-PVM- | A | 4 | B | 3 | N |
| 32″, White, AC 110V / DC 24V / PoE | VZ-PVM- | A | 4 | W | 3 | N |
- Series: Z (HD PVM) , I (IP PVM) , A (AI PVM)
- Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch) , 5 (43inch)
- Color: B (Black) , W (White)
- Voltage: 1 (AC110V) , 2 (AC24V), 3 (AC 110V / DC 24V), 4 (PoE)
Display
| Screen Size | 32″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.36375 mm x 0.36375 mm |
| Brightness | 250 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 8 ms |
Interface
| AV (Composite) In | 1 |
| Camera (CVBS) Out | 1 |
| Ethernet 10 / 100 (PoE) | 1 |
| VGA In (15Pin D-Sub) | 1 |
| HDMI In | 1 |
| Alarm In/Out | 1 / 1 |
| Micro SD In (Recording) | 1 |
| USB (Media Player) | 1 |
| DC12V Out (Camera Use) | 1 |
IP Features
| Ethernet Interface | 10/100Base-T |
| Web Client Protocol | TCP / IP |
| Supported Protocol | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
Special Features
| Gun, Face & Full Body Detection | Support |
| People Count & Emergency Alert | Support |
| On-Screen Banner & Customizing Banner | Support |
| Multi-Lingual Language | English, Spanish, French, Portuguese, Japanese |
Dimensions
| Outline Dimension (W x H x D) | 28.86 x 20.01 x 2.17” / 733.2 x 508.3 x 55.3 mm |
| Net Weight | 33.06 lbs / 15.0 kg |
| Gross Weight | 39.68 lbs / 18.0 kg |
Mount
| Vesa | 200 mm x 200 mm / M6 x L8 Screws |
Camera
| Image Sensor / Encoder Chipset | SONY IMX307 / NT98520 |
| Lens | DC Auto Iris 2.8~12mm Vari-focal Lens |
| Total / Effect Pixel | 1920(H) x 1080p(V) 30fps |
| Camera Type | 2 Mega Pixel IP Camera |
| Function | 2D/3D NR, HLC/BLC, Defog, WDR, White Balance, Gain, Noise Reduction, Aisle Mode, Smart IR, Mirror, Privacy Masking, Digital Zoom, True WDR, Day/Night (Auto ICR), Removal Optical Filter |
| Video Compression | H.264 (Main profile), H.265, MJPEG, CBR, VBR |
| Video Out | 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output |
| Gun / Face / Full Body / Motion Detection | Support |
| Network Protocol | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
| Ethernet Port | 10 / 100 Base-T |
| Web Application | Support Firefox, Chrome, Edge |
| Intelligent Detection | Smart Motion, Single/Double Line Crossing, Multi-Loitering, Wrong Way, General Parameters, Single Bad, Gun Detect, People Count, Intrusion |
| Integration Protocol | ONVIF 22.06 (supported), SDK, CGI |
| MAX. User Access | 10 Users |
| Recording Capacity – TF Card (EXT4 format, MAX 256G) | 2MP (H.265 w/256G) – 30fps (11 days) / 15fps (15 days) 2MP (H.264 w/256G) – 30fps (5 days) / 15fps (7 days) |
Media Card Reader
| Support Type | Photo, Music, Video |
| External Storage | Support SD/SDHC CARD (Max 128GB), USB 2.0 HOST |
| Video File Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| Video Resolution | 1080P @60/50Hz, 1080i @60/50Hz, 720P @60/50Hz |
| Audio File Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| Image File Format | JPEG, TIF, PNG, BMP |
| VIDEO Play Control | AUTO, REPEAT, ZOOM, RESUME, TIME |
General Summary
| Transmitter – IR Remote Control | Yes |
| Dual Voltage Power – Electrical Ratings | PoE ++ (Type 4) 48V DC | 24V DC / 3A (AC 110V-240V (w/ DC adaptor)) |
| Power – Consumption | ≤ 65 W |
| Warranty – Parts / Labor | 3 Year / 3 Year |
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
| Operating Humidity | 5 ~ 90% RH |
| Compatible Mounts – Wall | VZ-WM05, VZ-AM02-A, VZ-WM50 |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM308 |
| Regulation | FCC(A), CE, NDAA, RoHS |

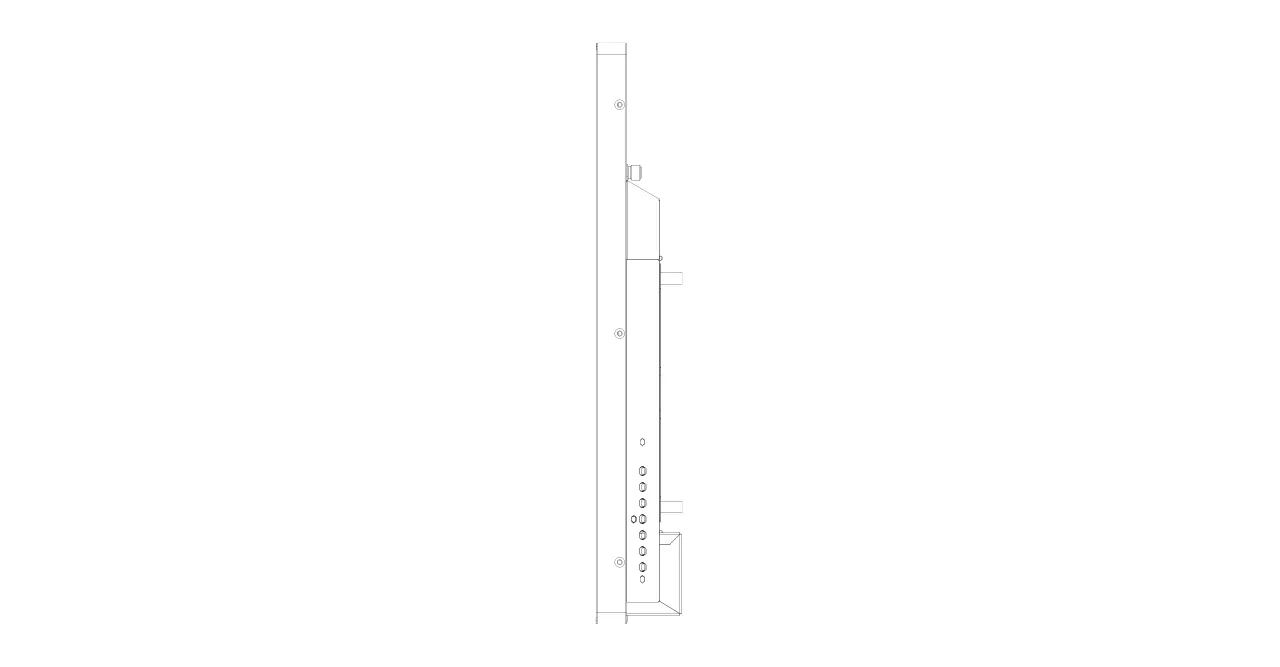

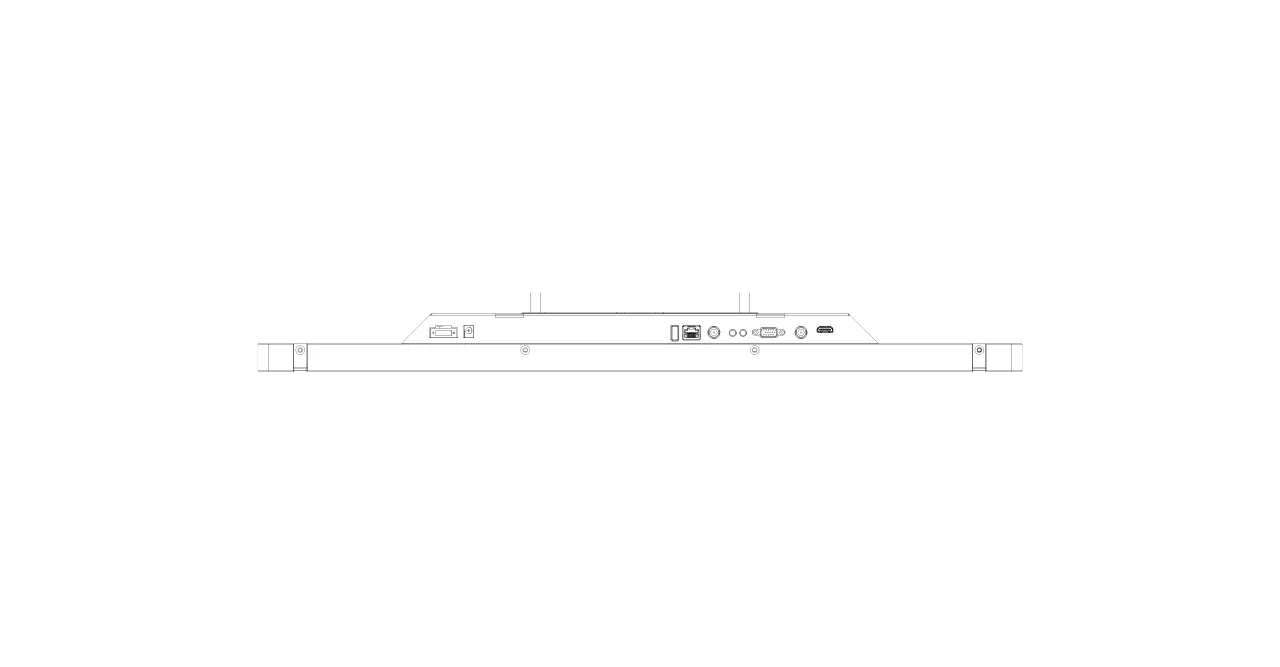

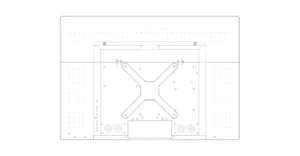

Product Dimension & Weight
Click below to enlarge
