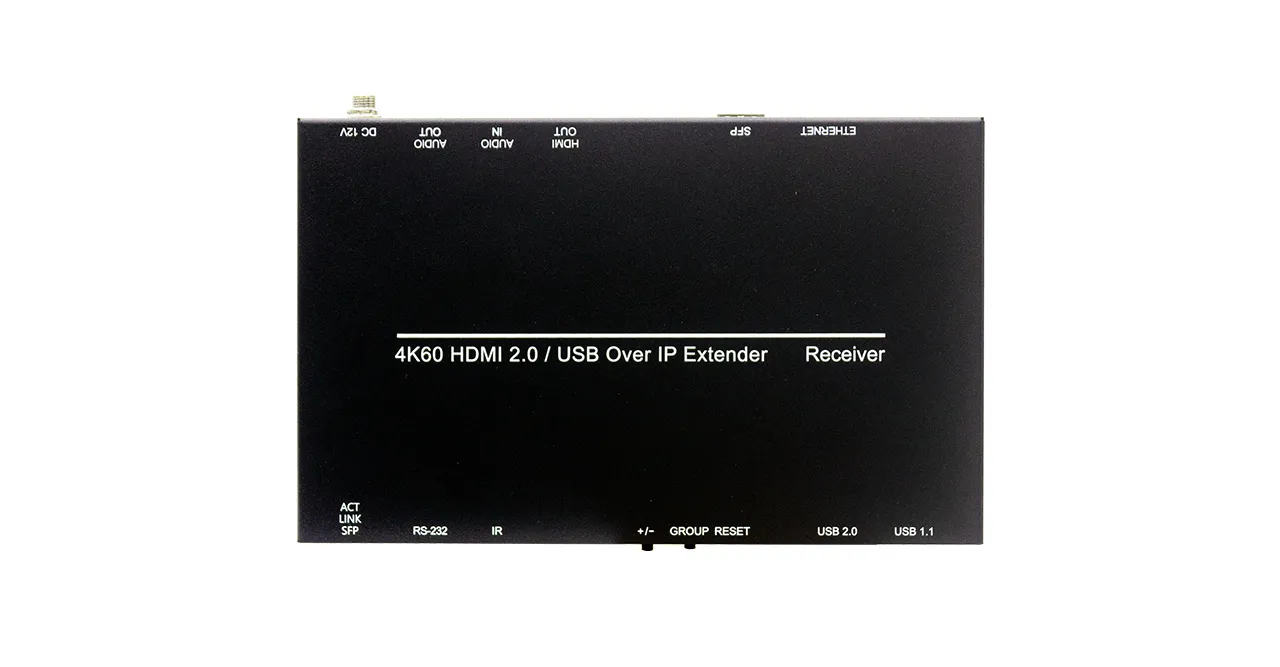

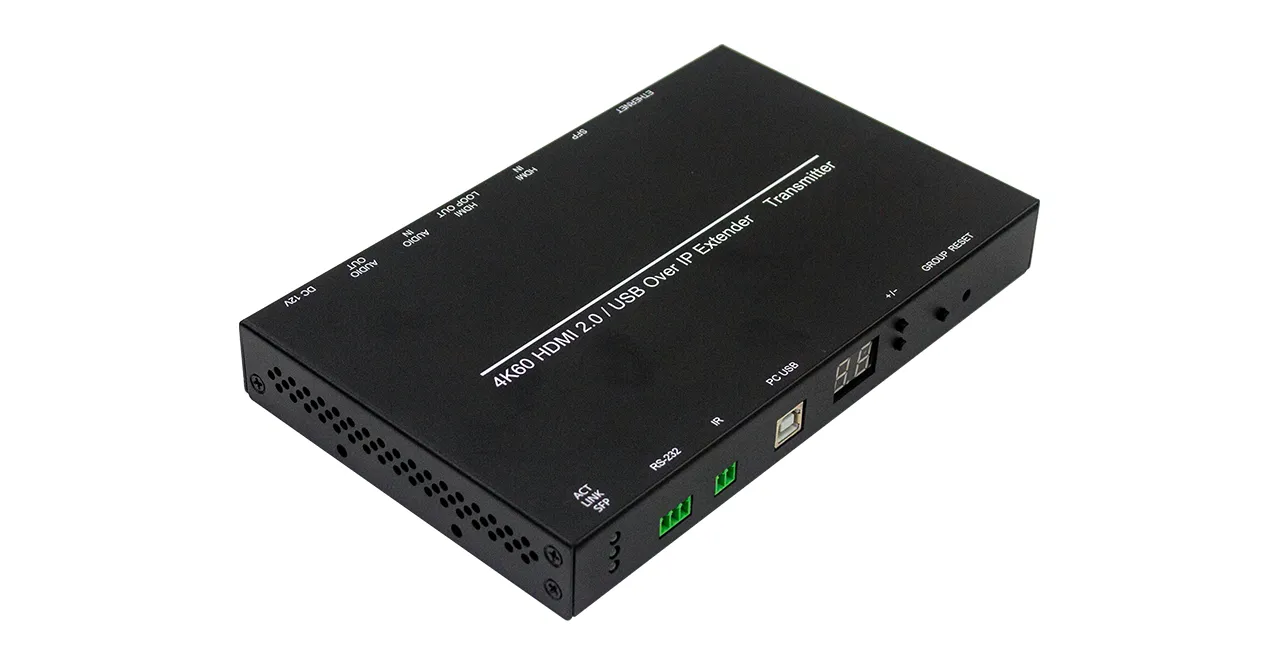

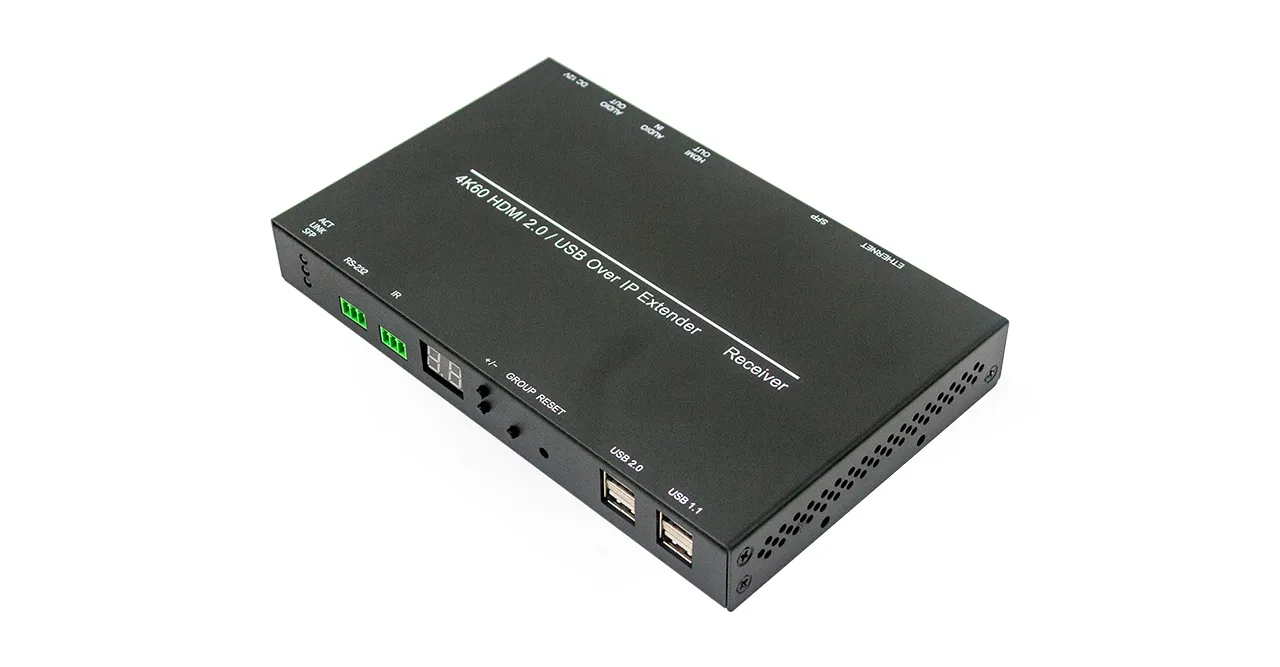

VZ-1TRX-IP

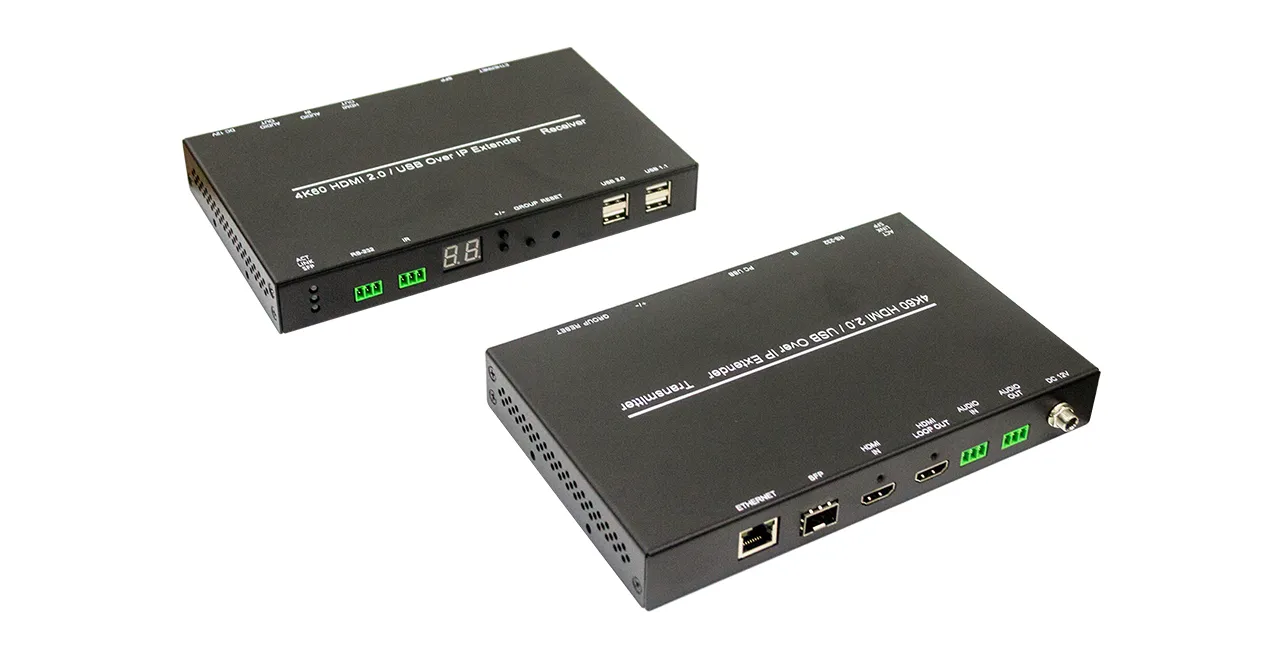

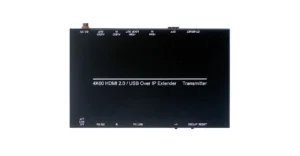

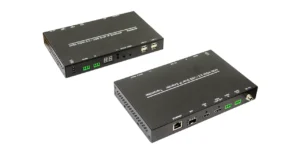

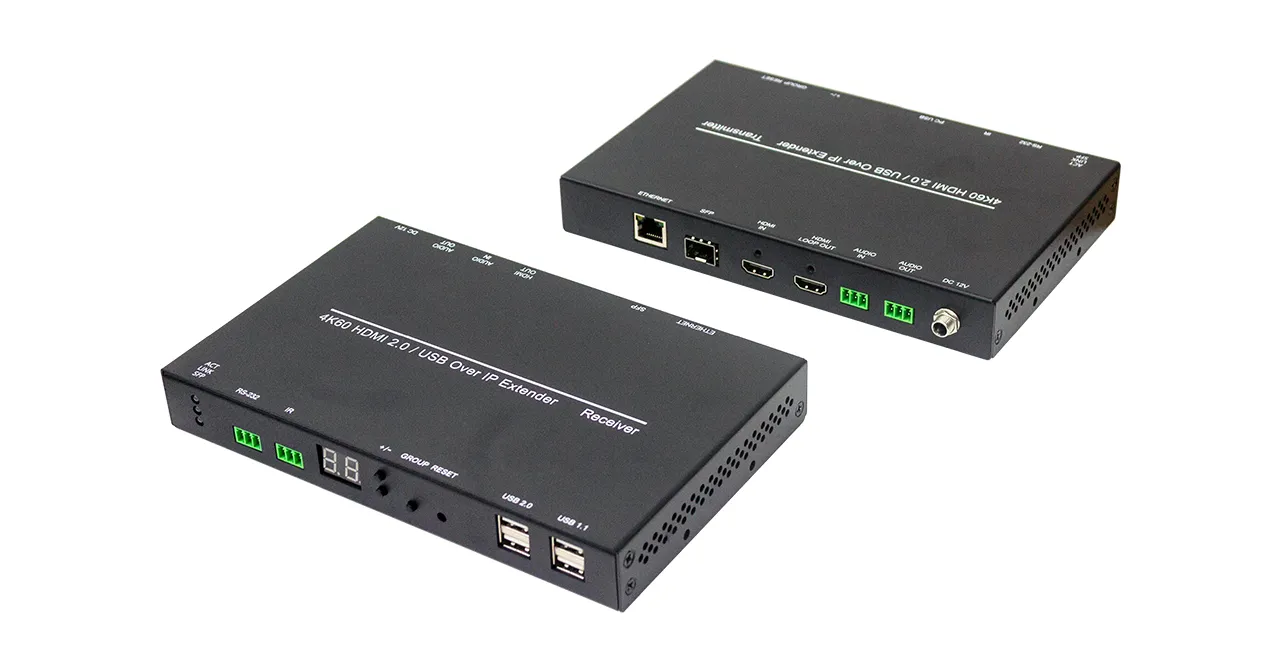

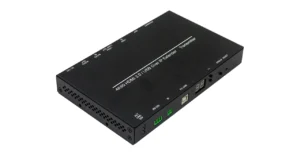

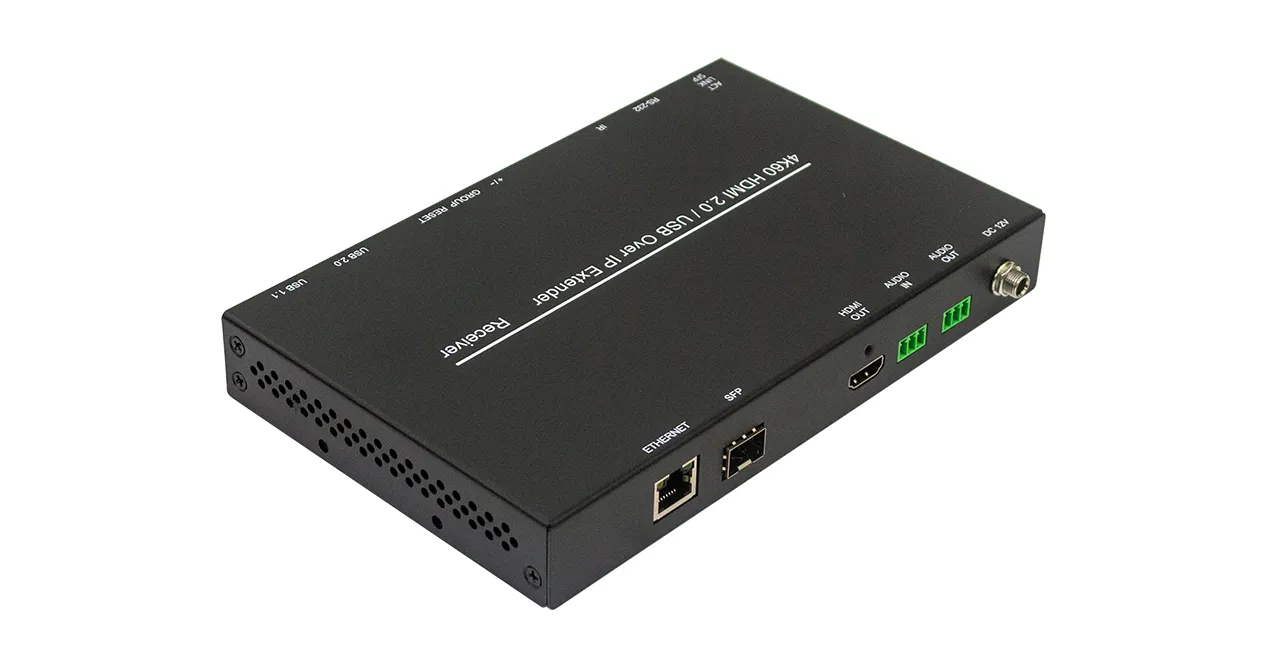

VZ-1TRX-IP 4K60 HDMI2.0 / USB KVM over IP Extender is composed of transmitter (VZ-1TRX-IP-TX-POE) & receiver (VZ-1TRX-IP-RXPOE) to extend HDMI, USB, RS232, and IR signals over IP via CATx cable and Gigabit Ethernet switch. It can be applied for point to point Unicast, point to multi-point or multi-point to multi-point multi-cast and video wall. Easy installation with networking Giga Ethernet switch and CAT-5e/6 cable for building up the extension or broadcast system.
- Supports Resolutions up to 4K/ HDCP 1.4, 2.0 & 2.3
- Support HDMI loop-through on TX
- Support HDR 10 / HDR 10+ / Dolby Vision
- Support Extension, Unicast, Multicast & Videowall
- KM over IP Roaming / Seamless KM Switching on TX & RX
- Automatic EDID Configuration
- Transmits to Distance up to 328 feet (100 m)
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : TRX – Signal Extender
Compatible Monitors
Product Features
- Model Number: VZ-1TRX-IP
- Supports Resolutions up to 4K/ HDCP 1.4, 2.0 & 2.3
- Support HDMI loop-through on TX
- Support HDR 10 / HDR 10+ / Dolby Vision
- Support Extension, Unicast, Multicast & Videowall
- Seamless KM Switching on TX & RX
- Automatic EDID Configuration
- KM over IP Roaming
- Transmits to Distance up to 328 feet (100 m)
- PoE (DC 12V / 2A)
Specification
| HDMI Input Resolution | 4K (3840 x 2160) – 60. 30, 24 Hz 1080p (1920 x 1080 ) – 60, 50, 30, 25 Hz 1080i (1920 x 1080 ) – 60, 50 Hz 720p (1280 x 720) – 60, 50 Hz 480p (1280 x 720) – 60, 50 Hz 480i (1280 x 720) – 60, 50 Hz |
| HDMI Output Resolution | 4K (3840 x 2160) – 60. 30, 24 Hz 1080p (1920 x 1080 ) – 30, 25 Hz 1080i (1920 x 1080 ) – 60, 50 Hz 720p (1280 x 720) – 60, 50 Hz 480p (1280 x 720) – 60, 50 Hz 480i (1280 x 720) – 60, 50 Hz |
| HDMI Loopout Resolution | 4K (3840 x 2160) – 60. 30, 24 Hz 1080p (1920 x 1080 ) – 30, 25 Hz 1080i (1920 x 1080 ) – 60, 50 Hz 720p (1280 x 720) – 60, 50 Hz 480p (1280 x 720) – 60, 50 Hz 480i (1280 x 720) – 60, 50 Hz |
| IP Protocol | TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4 |
| HDMI Compliance | HDCP 1.4, 2.0 & 2.4 |
| Video Compression | JPEG2000 |
| Transmission Distance – CAT 5 / 6 / 6A / 7 | Support CAT 5 / 6 ≤ 100 m (328 ft) |
| Audio Format | LPCM up to 12-channels, Dolby Digital Plus, Dolby True HD, DTS HD Master Audio, Dolby ATMOS |
| Audio Separation | Support RX S/PDIF Audio Separation |
| Bi-Directional IR | Support bi-directional IR pass back, Support 20-60khz IR devices |
| ARC | Support ARC back to TX |
| HDMI Loop-out | Support TX Loop-out of HDMI |
| CEC | Support CEC Control |
| EDID | Support EDID Pass-through |

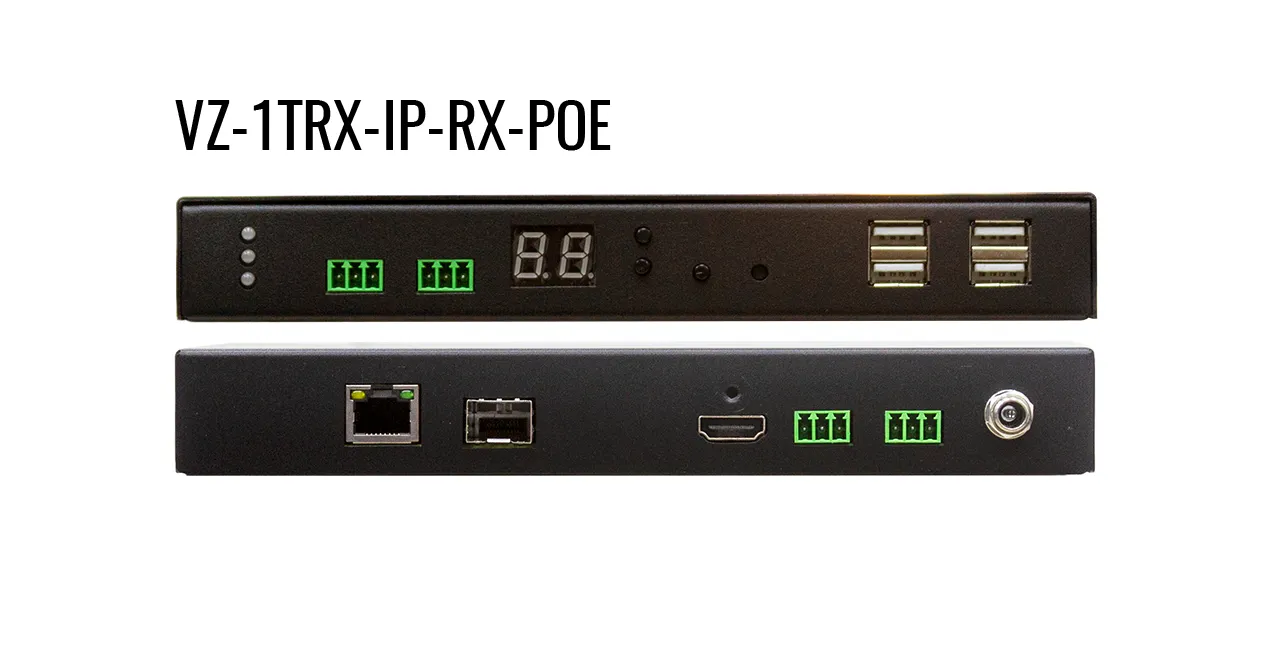

Interface

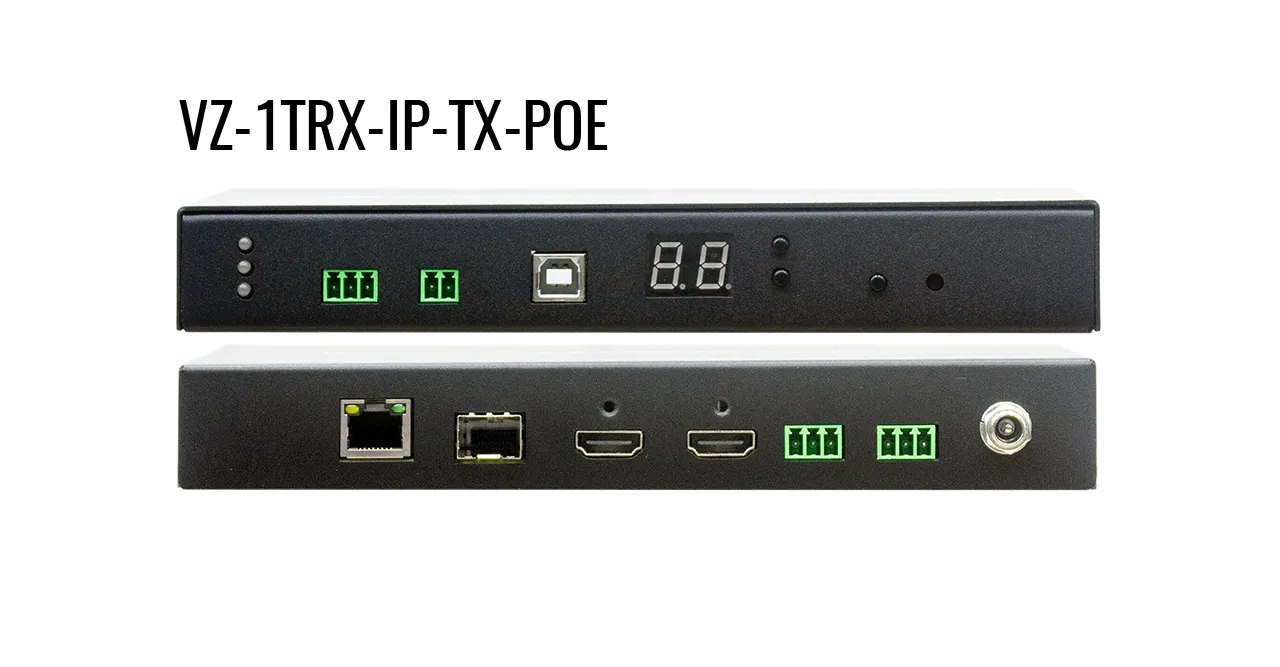

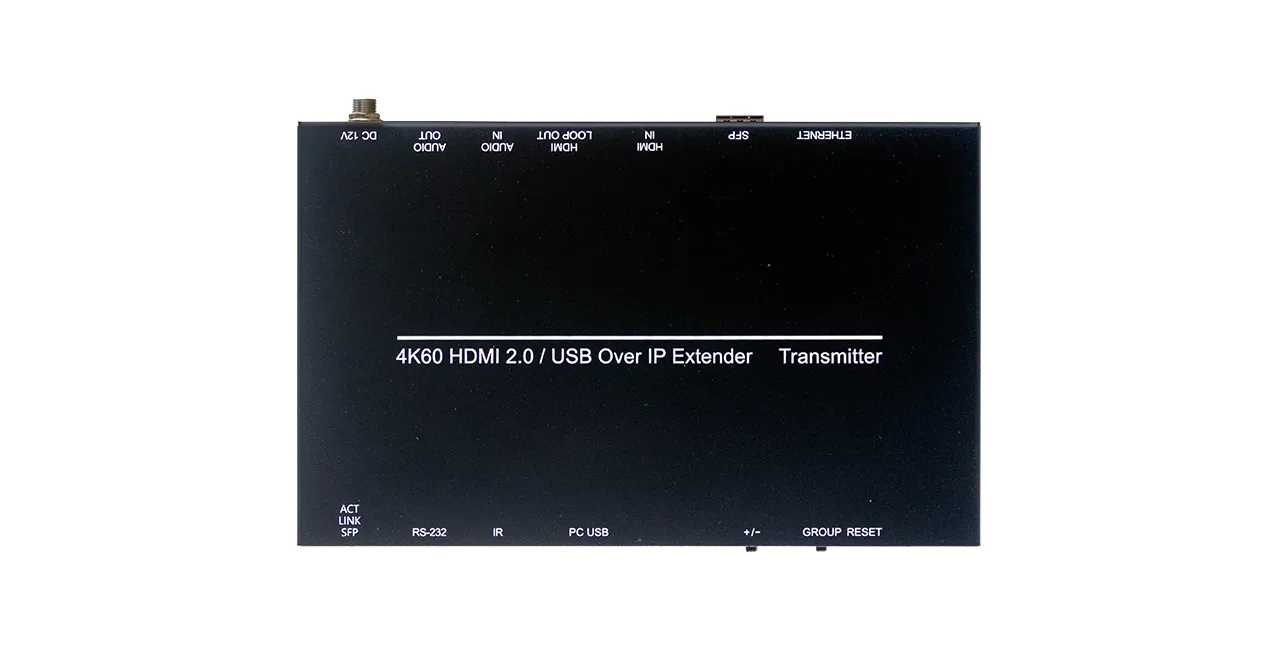

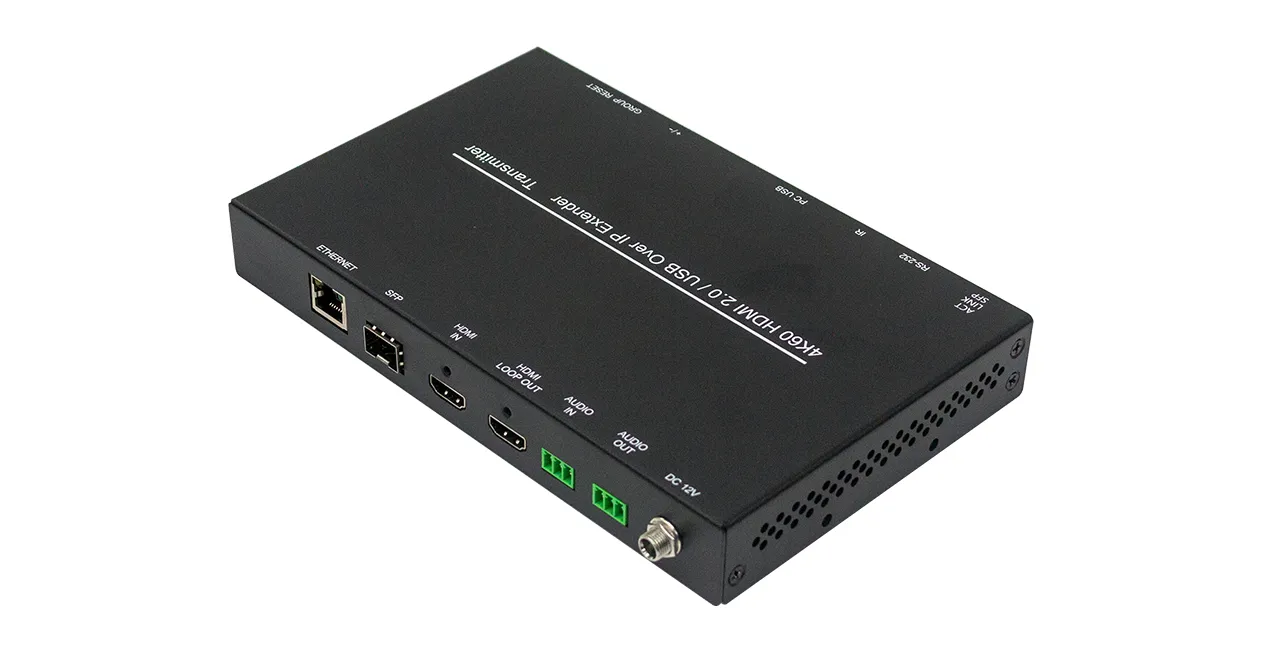

| Transmitter TX – Power Input (PoE) | 1 |
| Transmitter TX – AUDIO In / Out (Pig Tale) | 1 / 1 |
| Transmitter TX – FIBER | 1 (SFP) – Multi & Single Mode |
| Transmitter TX – USB (Type B) 2.0 | 1 (KM USB) |
| Transmitter TX – RS-232 (Pig Tale) | 1 |
| Transmitter TX – IR (Pig Tale) | 1 |
| Transmitter TX – HDMI In / Out | 1 / 1 |
| Transmitter RX – Power Input (PoE) | 1 |
| Transmitter RX – AUDIO In / Out (Pig Tale) | 1 / 1 |
| Transmitter RX – S/PDIF (ARC support) | 1 |
| Transmitter RX – USB (Type A) 2.0 | 2 |
| Transmitter RX – USB (Type A) 1.1 | 2 |
| Transmitter RX – FIBER | 1 (SFP) – Multi & Single Mode |
| Transmitter RX – RS-232 (Pig Tale) | 1 |
| Transmitter RX – IR (Pig Tale) | 1 |
| Transmitter RX – HDMI Out | 1 |
Dimensions & Weight
| Outline Dimension (L x W x H) | 8.07 x 1.18 x 4.21” / 205 x 30 x 107 mm |
| Net/Gross Weight TX | 1.6 lbs ( 0.72 kg ) / 2.5 lbs ( 1.13 kg ) |
| Net/Gross Weight RX | 1.6 lbs ( 0.72 kg ) / 2.35 lbs (1.06 kg) |
General Summary
| Power – Electrical Ratings | PoE & DC 12V / 2A (100 ~ 240 VAC, 50/60 Hz) |
| Power – Consumption | TBD |
| Operating Temperature | 32°F ~ 131°F / 0°C ~ 55°C |
| Storage Temperature | -4 ~ 185°F / -20 ~ 85°C |
| Operating Humidity | 0 ~ 95% RH |
| Mechanical Construction | Aluminum Alloy (Black) |

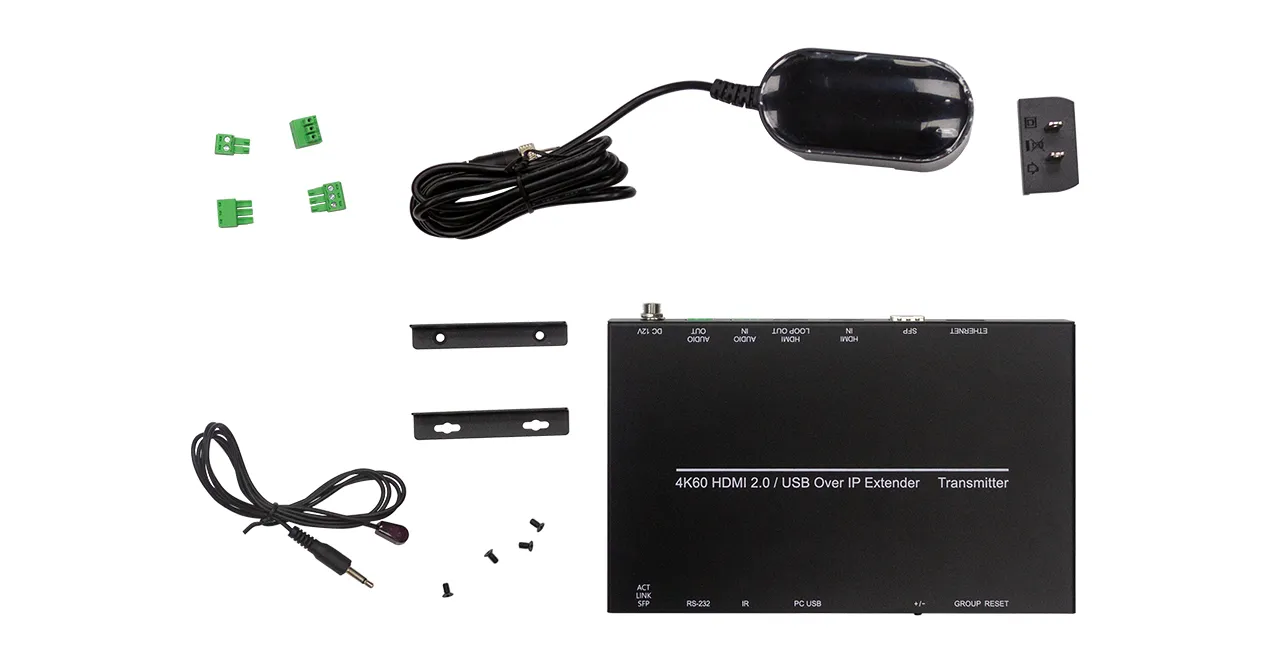

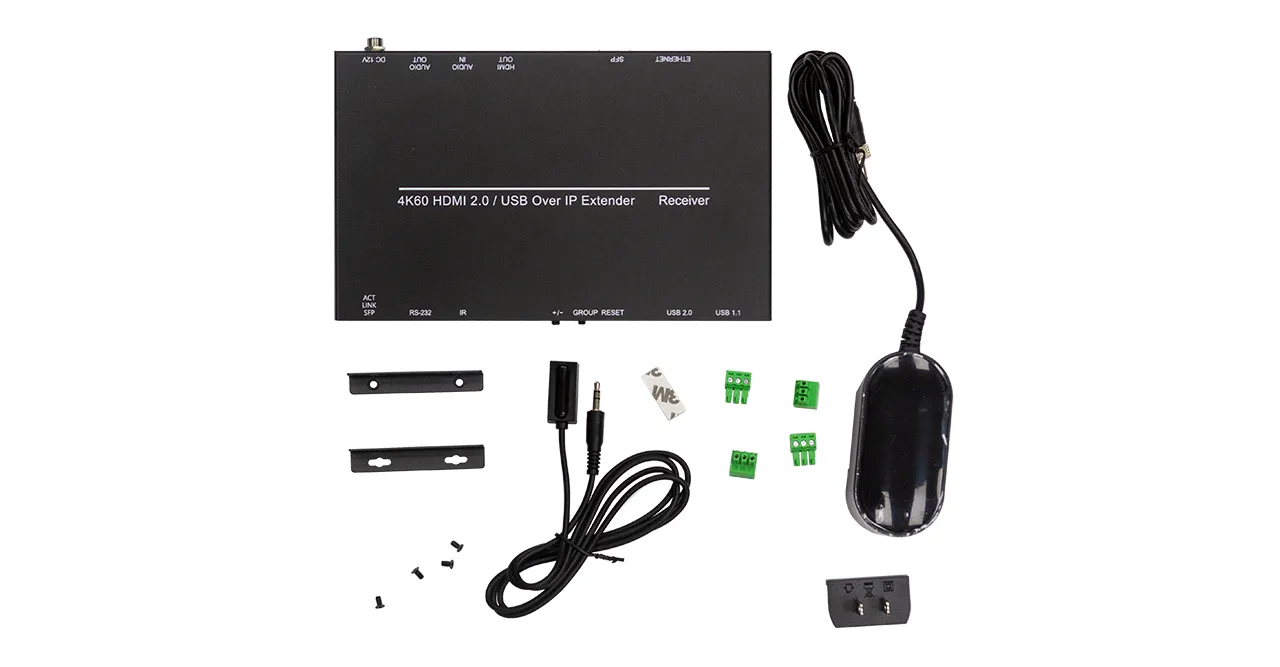

| Package Include | IP Based HDMI Extender Transmitter x1, IP Based HDMI Extender Receiver x1, User Manual x1, DC 12V/2A Power Adaptor x2, Screw Bag x2, Rack Mount Bracket x2 sets, IR Receiver Cable x1, IR Emitter Cable x1, Pig tales x2 sets |

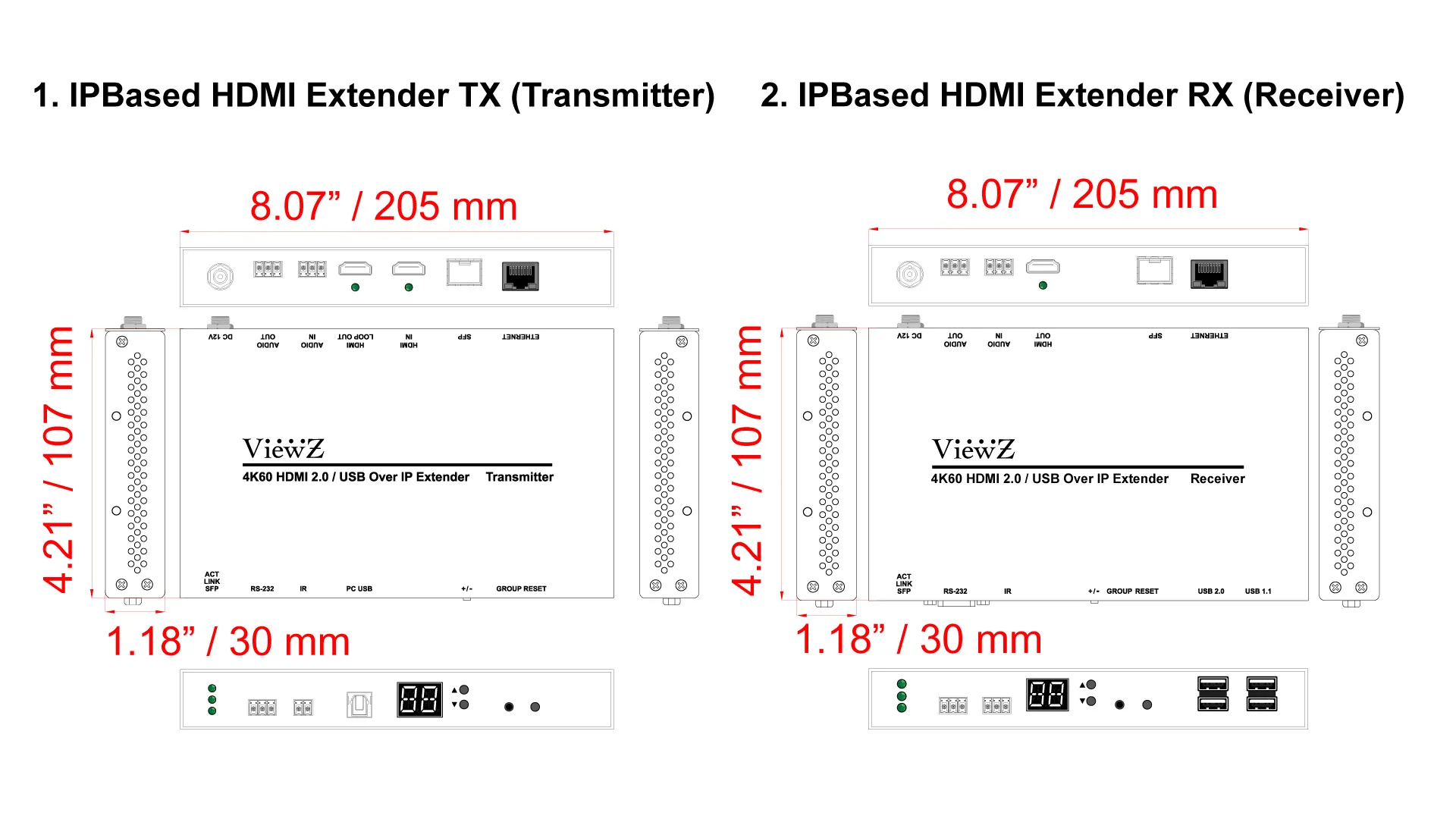

Product Dimension & Weight
Click below to enlarge
