VZ-08HVR
ViewZ HVR series are standard 8 / 16 CH 1080P high definition hybrid DVRs with the ability to connect analogue and IP cameras simultaneously. The HVR’s adopt standard H.264 high profile compression format and the most advanced PENTAPLEX system. The PENTAPLEX system allow to simultaneous live and playback while still continuing to record, network transfer, and backup.
- AHD/TVI 1080P front-end real-time encoding
- Each BNC accepts AHD / TVI / CVBS analog
- Also accepts IP camera signals at maximum 1080p
- App provides easy network setup & remote monitoring
- H.264 high profile compression
- PENTAPLEX: simultaneous live and playback while still continuing to record, network transfer, and backup
- App Available at GOOGLE PLAY STORE for Android devices and APP STORE for Apple devices
Compatible Monitors
Product Features
- Model Number: VZ-08HVR
- TRUE hybrid DVR
- Real time display & recording for all analog channels
- Encoding & Decoding : 1080p/15fps
- H.264 high profile compression
- HDMI and VGA output (1080p)
- Backup Options : USB drive, internal SATA HDD (optional), network
- Backup Format : BMP, AVI, proprietary format
- Hard Drive Max Capacity: 6 TB / each
- Digital Zoom, DLS (Day Light Saving)
- Audible E-mail notification
- App Available at GOOGLE PLAY STORE for Android devices and APP STORE for Apple devices
Video Input
| Total | 8 Ch BNC (AHD / TVI / CVBS), TCP / IP |
| Pure Analog | 1920 x 1080 @60Hz |
| Mixed | 7CH 1080P (Analog) + 1CH 1080P (Network) 6CH 1080P (Analog) + 2CH 1080P (Network) 1CH 1080P (Analog) + 7CH 1080P (Network) |
| Pure Network | 8CH 1080P / 8CH 960H / 8CH 3M / 8CH 5M |
Video Output
| Video Output – Main Monitor | HDMI and VGA (1920 x 1080) |
Alarm
| Sensor Input | 4 |
| Alarm Output | 1 |
Operation
| Pentaplex | Live / Record / Playback / Backup / Network |
Record & Playback
| Compression | H.264 (High Profile) |
| Recording Mode | Manual, Event, Timer |
| Playback | 8CH (Pure Local Input Mode) |
| Multi-Decoding | 1, 4, 8 |
| Playback Speed | x0.25, x0.5, x2, x4, x8, x16, x32, x64 |
Storage
| HDD Interface | Serial ATA II |
| Max. Capacity of 1 HDD | 6TB |
| Internal HDD number | 2EA ( 1 EA w/o ODD) |
| Backup Media | USB External HDD, Network |
| Backup Format | BMP, AVI, Proprietary Format |
| USB Port | 2EA (Rear 2) |
| Usage – 1920 x 1080 Input | 20 ~ 30Gb / Day by Channel- 15 fps/ch |
| Usage – 1280 x 720 (720p) Input | 0 ~ 20 Gb / Day by Channel- 15 fps/ch |
| Usage – 960H (Analog) Input | 12 ~ 20Gb / Day by Channel- 15 fps/ch |
| Usage – Audio | 691.2 MB / Day by Channel |

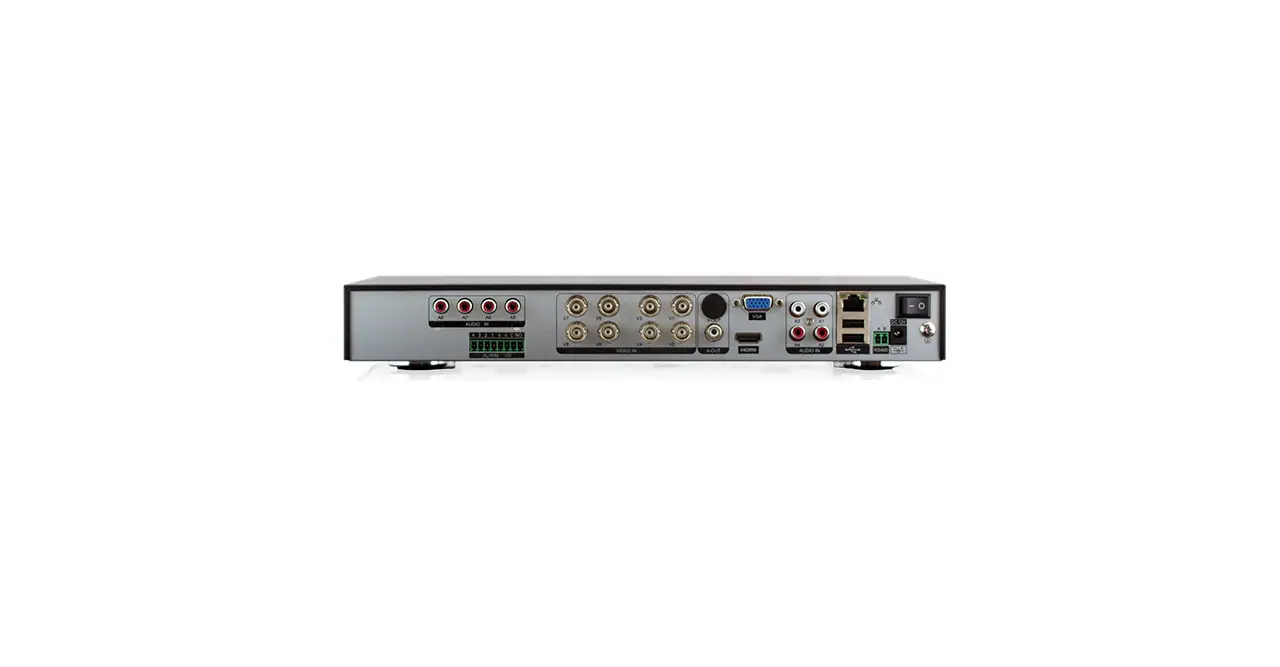

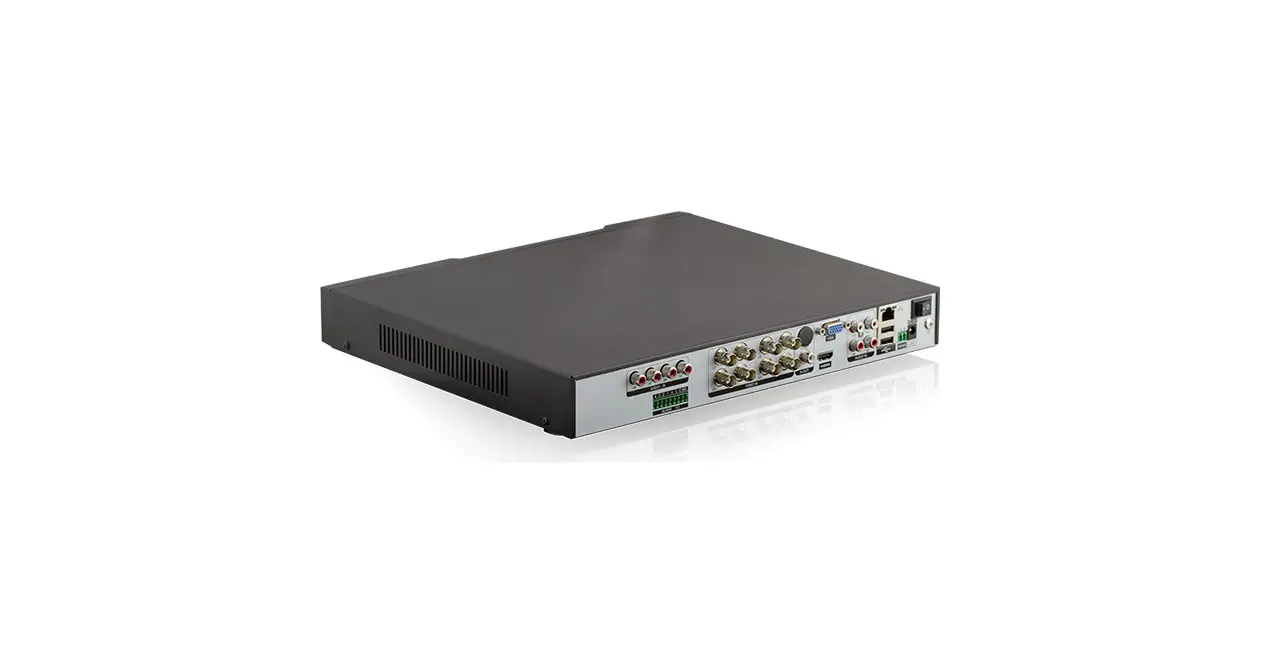

User Interface
| Video Input | 8 CH BNC ( AHD / TVI / CVBS ) |
| Video Output | 1 CH VGA, 1 CH HDMI |
| Audio Input / Output | 8 CH RCA / 1 CH RCA |
| Network Interface | 1 EA – RJ45 10M/100M Adaptive Ethernet Port |
| USB | Front – 1 EA, Rear – 2 EA |
| PTZ Control | RS485 – 1 EA |
Access Viewer
| Apple / Android App Viewer | Support iOS / Android – Live / Playback |
| Web Viewer | Live / Playback / Remote Setup / Support Browser at Windows OS – Firefox |
Serial / Network
| PTZ Control | RS485, Support Multiple PTZ Protocols – 1EA |
| Termination | 1 |
| Dynamic DNS | Support (Free DDNS) |
| Dual Encoding for Network | Support |
| Network Interface | 10/100 base-TX Ethernet (RJ-45) |
Features
| Digital Zoom | Support |
| DLS (Day Light Saving) | Support |
| Internal Beep | Support |
| E-mail Notification | Support |
Dimension & Weight
| Outline Dimension (W x H x D) | 13.77″ x 11.61″ x 1.77″ / 350.0mm x 295.0mm x 45.0mm |
| Net Weight | 4.40 lbs / 2.0 kg |
| Gross Weight | 6.40 lbs / 2.9 kg |
General Summary
| Power – Electrical Ratings | DC 12V, 2A (1 HDD) / 4A (2 HDD) |
| Power – Consumption | < 15 W (Excluding HDD) |
| Operation Temperature | 14°F ~ 104°F / -10 °C ~ 40°C |
| Storage Temperature | 14°F ~ 122°F / -10°C ~ 50°C |
| Operation Humidity | 20 – 80 % (Non-condensing) |
