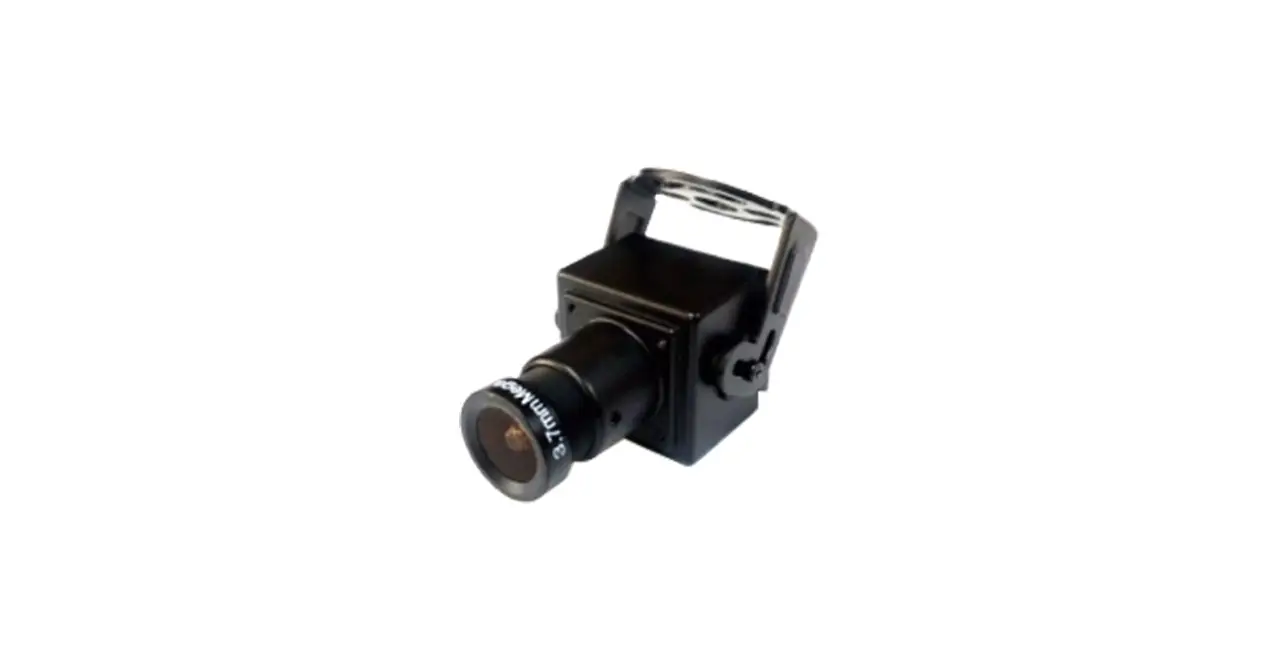

VZ-FMS-2 | 2.1 M 3G/HD-SDI Full HD Miniature Box Camera

product Description
vzfms2_1
vzfms2_1

2.1MP Full HD Mini Box Camera provides maximum coverage for seeing activity in complete darkness.

  • Full HD 1080p over coaxial cable, BNC connection
  • 1/3” 2.1MP Progressive Scan CMOS Sensor
  • SDI/HDMI: 1080p (29.97, 59.94fps) / 1080i (29.97, 59.94fps) / 720p (29.97, 59.94fps)
  • CVBS: NTSC, PAL / Color Bar
  • Digital WDR, AGC, BLC, DNR
  • Privacy Masking, Motion Detection
  • Minimum Illumination 0.1 Lux ( F1.2 )

Product Features

  • Model Number: VZ-FMS-2
  • Full HD 1080p over coaxial cable, BNC connection
  • 1/3” 2.1MP Progressive Scan CMOS Sensor
  • Up to 1920 x 1080 / NTSC, PAL Composite (1.0Vp-p ,75ohm)
  • 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
  • More than 1000 TVL, WDR, Privacy Masking, Motion Detection
  • No additional installation cost. (Compatible with existing coaxial cables)
  • Video outputs for diverse applications. ( 3G/HD-SDI )
  • DNR (Digital Noise Reduction)
  • Built in OSD Control Switch
  • DC 12V, 400mA

Specification

Imaging Sensor 2.1 Megapixel CMOS Sensor
HD Scanning System 1/3” Progressive Scan
S/N Ratio More than 50dB (AGC Off)
HD Video Output / Resolution HD-SDI, 3G-SDI, 1080p (29.97, 59.94fps), 1080i ( 59.94fps), 720p (29.97, 59.94fps), Composite(1.0Vp-p ,75ohm), Color Bar Signal
Image Frame NTSC, PAL Composite (1.0Vp-p ,75ohm)
Min. Illumination 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
Horizontal TVL More than 1000 TVL
Electronic Shutter Speed AUTO / MANUAL ( 1/30(25) sec ~ 1/30,000 sec )
Auto White Balance AUTO / AUTOEXT / PRESET / Manual (R-Gain, B-Gain)
Digital Noise Reduction DNR (Off / Low / Middle / High)
Backlight Compensation BLC (Off / On)
Wide Dynamic-Range WDR (Off / Low / Middle / High)
SENS-UP OFF / x2 / x3 / x4
AGC Adjustable 0 ~ 10
Color Temperature / R-Gain / B-Gain Adjustable
Mirror Image MIRROR, FLIP (Off / On)
Privacy Masking Support
Motion Detection Support
Digital Zoom Support
Camera ID Support


Interface

HD/3G-SDI 1
DC 12V / Auto-Iris Connector 1


Dimensions & Weight

Outline Dimension (W x H x D) 0.9” x 0.9” x 1.45” / 23.0 mm x 23.0 mm x 37.0 mm
Net Weight 0.11 lbs / 50g (Without Cable)


General Summary

OSD Language English ( Selectable )
Construction Aluminum Alloy
Power – Supplied Voltage DC12V 150mA
Power – Consumption 1.8 W
Operating Temperature | Humidity 14 ~ 122°F / -10°C ~ 50°C | 0% to 90% Non-condensing
Storage Temperature -4 ~ 158°F / -20°C ~ 70°C
LENS Mount Fix 1/2.5” 3.6mm, M12 (Option: 6mm)
