VZ-BCHS-2 | Compact HD-SDI / HDMI Full HD Box Camera 59.94i

product Description

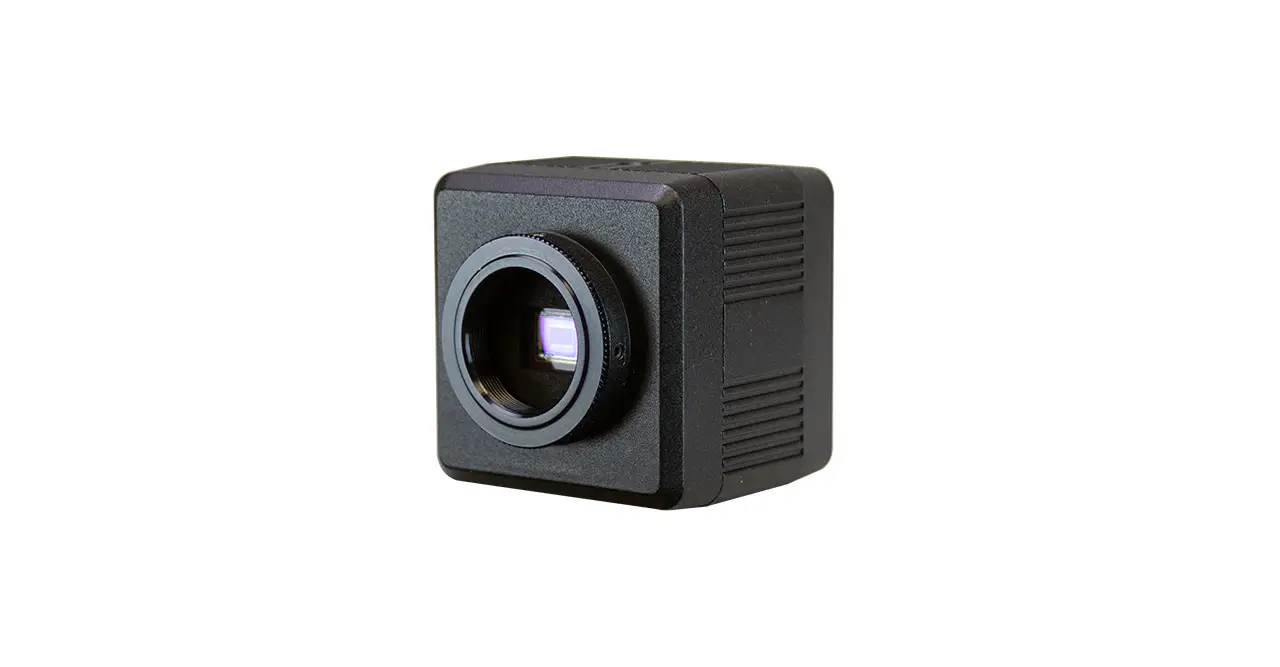

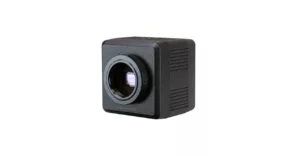

vzbchs2_16

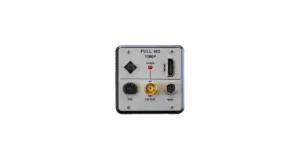

vzbchs2_14

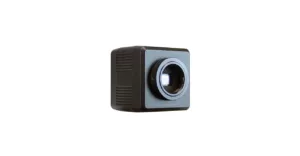

vzbchs2_15

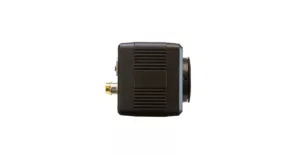

vzbchs2_13

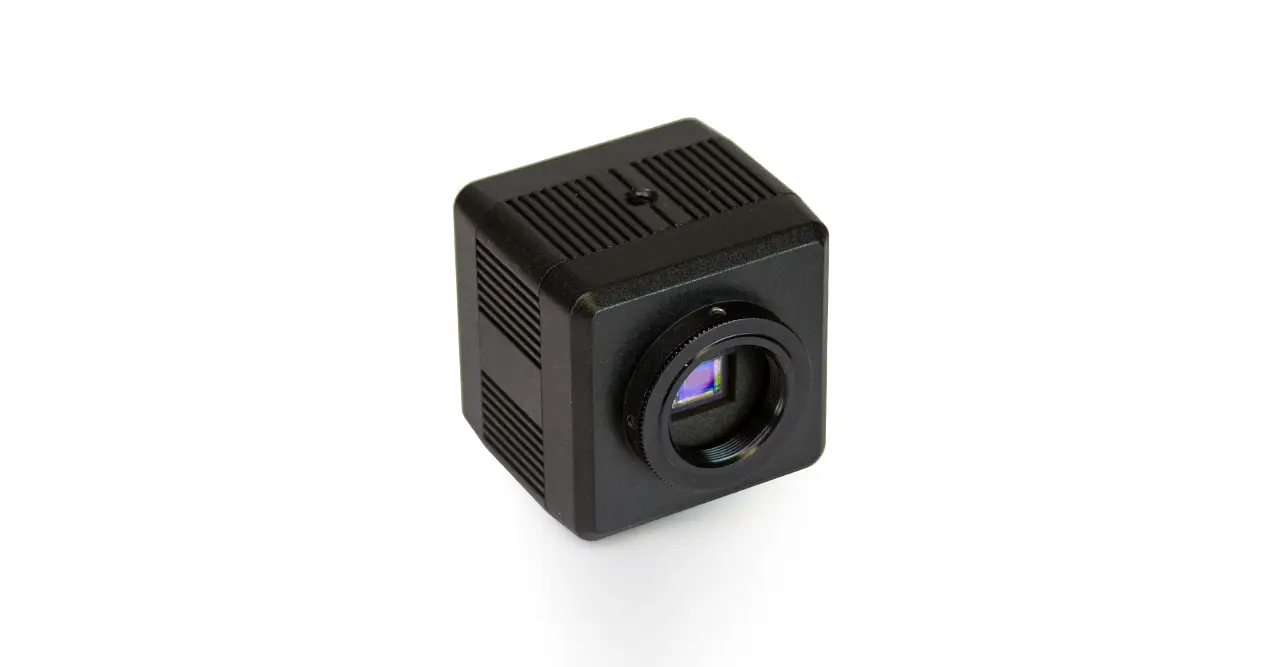

vzbchs2_11

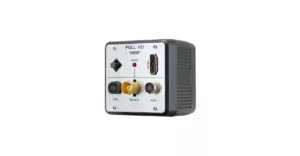

vzbchs2_12
vzbchs2_16 vzbchs2_14 vzbchs2_15 vzbchs2_13 vzbchs2_11 vzbchs2_12

2.1MP Full HD Mini Box Camera provides maximum coverage for seeing activity in complete darkness.

  • Full HD 1080p over coaxial cable, BNC connection
  • 1/3” 2.1MP Progressive Scan CMOS Sensor
  • SDI/HDMI: 1080p (29.97, 50, 59.94, 60fps) / 1080i (50, 59.94, 60fps) / 720p (50, 59.94, 60fps)
  • CVBS: NTSC, PAL / Color Bar
  • Digital WDR, AGC, BLC, DNR
  • Privacy Masking, Motion Detection
  • Minimum Illumination 0.1 Lux ( F1.2 )

Product Features

  • Model Model Number: VZ-BCHS-2
  • Full HD 1080p over coaxial cable, BNC connection
  • 1/3” 2.1MP Progressive Scan CMOS Sensor
  • Up to 1920 x 1080 / NTSC, PAL Composite (1.0Vp-p ,75ohm)
  • 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
  • More than 1000 TVL, WDR, Privacy Masking, Motion Detection
  • No additional installation cost. (Compatible with existing coaxial cables)
  • Video outputs for diverse applications. ( 3G/HD-SDI, HDMI, CVBS )
  • DNR (Digital Noise Reduction)
  • Built in OSD Control Switch
  • DC 12V, 400mA

Specification

Imaging Sensor 2.1 Megapixel CMOS Sensor
HD Scanning System 1/3” Progressive Scan
S/N Ratio More than 50dB (AGC Off)
HD Video Output / Resolution HD-SDI, 3G-SDI, 1080p (25, 30, 50, 60fps), 1080i (50, 60fps), 720p (50, 60fps), HDMI, Color Bar Signal
Image Frame NTSC, PAL Composite (1.0Vp-p ,75ohm)
Min. Illumination 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
Horizontal TVL More than 1000 TVL
Electronic Shutter Speed AUTO / MANUAL ( 1/30 sec ~ 1/30,000 sec )
Digital Noise Reduction DNR (Off / Low / Middle / High)
Backlight Compensation BLC (Off / On)
Wide Dynamic-Range WDR (Off / Low / Middle / High)
SENS-UP OFF / x2 / x3 / x4
AGC Adjustable 0 ~ 10
Color Temperature / R-Gain / B-Gain Adjustable
Mirror Image MIRROR, FLIP (Off / On)
Privacy Masking Support
Motion Detection Support
Digital Zoom Support


Interface

HD/3G-SDI 1
HDMI 1
CVBS ( BNC ) 1
DC 12V / Auto-Iris Connector 1


Dimensions & Weight

Outline Dimension (W x H x D) 2.32” x 2.32” x 4.02” / 58.93 mm x 58.93 mm x 102.1 mm
Net Weight 0.44 lbs / 200g


General Summary

OSD Language English ( Selectable )
Construction Aluminum Alloy
Power – Supplied Voltage DC12V 400mA
Power – Consumption 4.8 W
Operating Temperature | Humidity 14 – 131°F / -10°C – 55°C | 0% to 90% Non-condensing


Product Dimension & Weight
