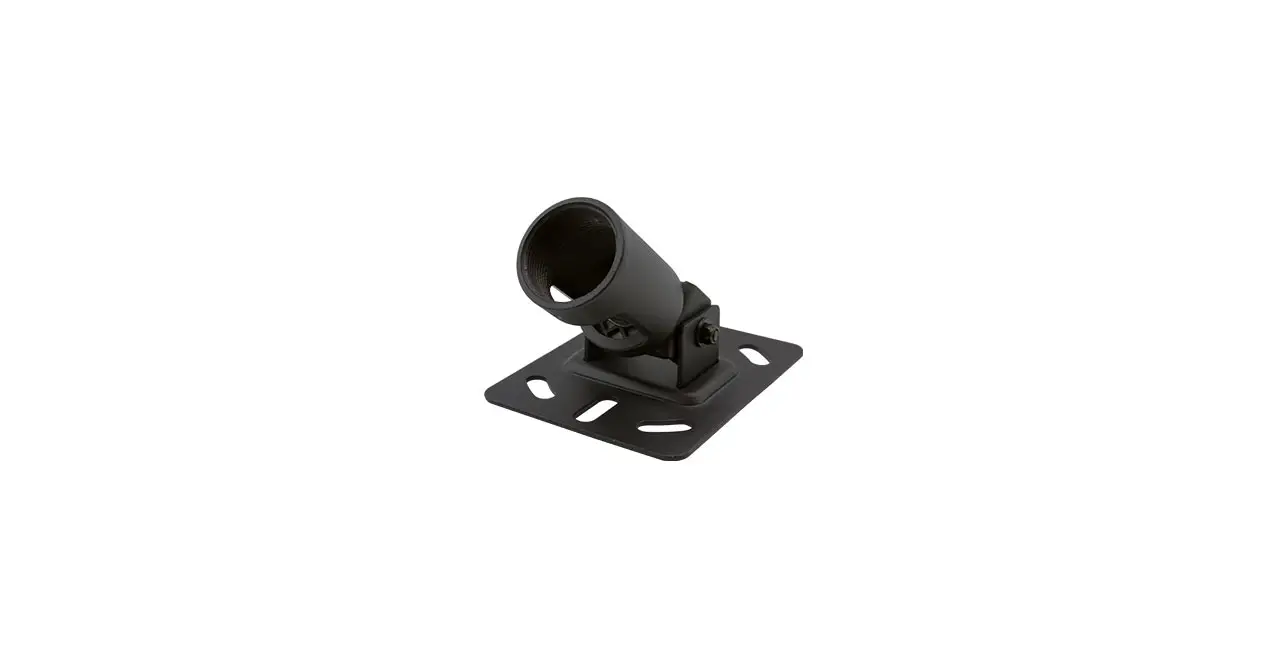

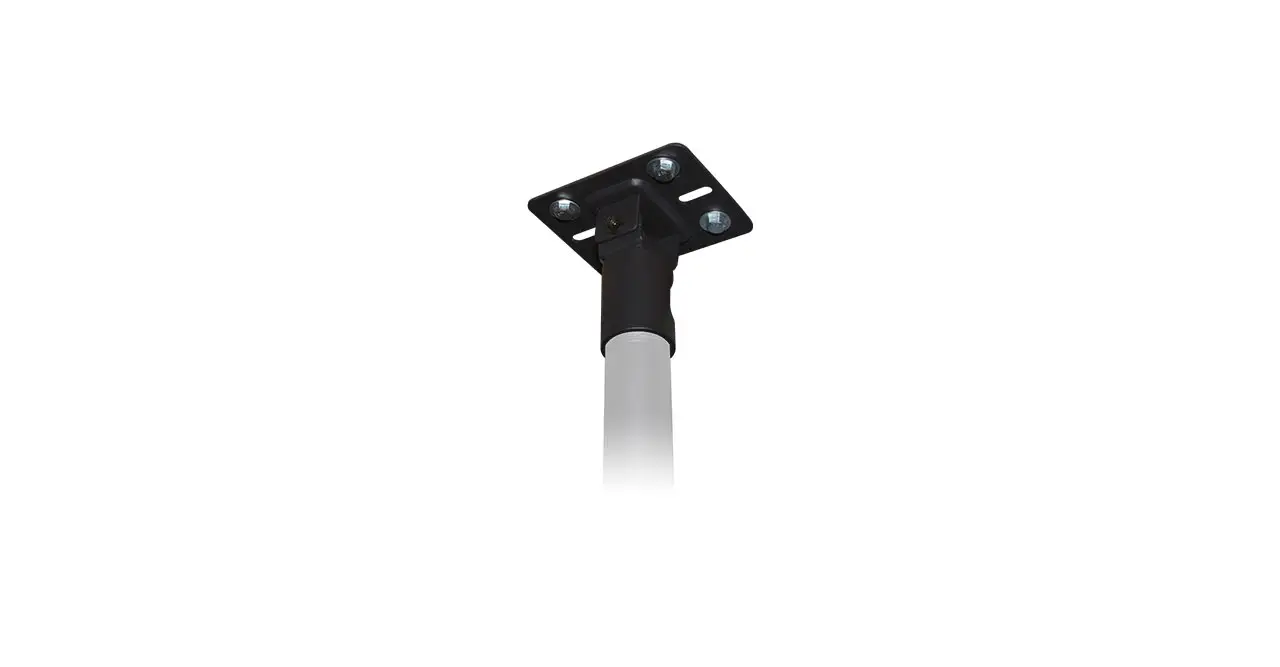

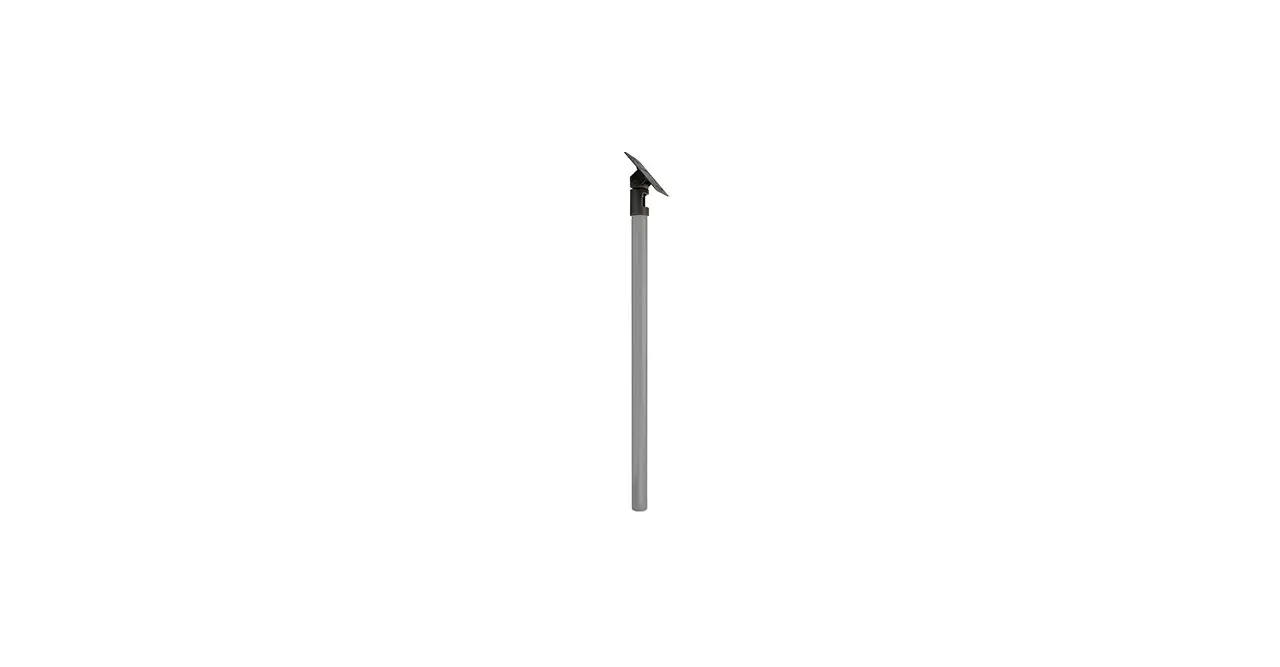

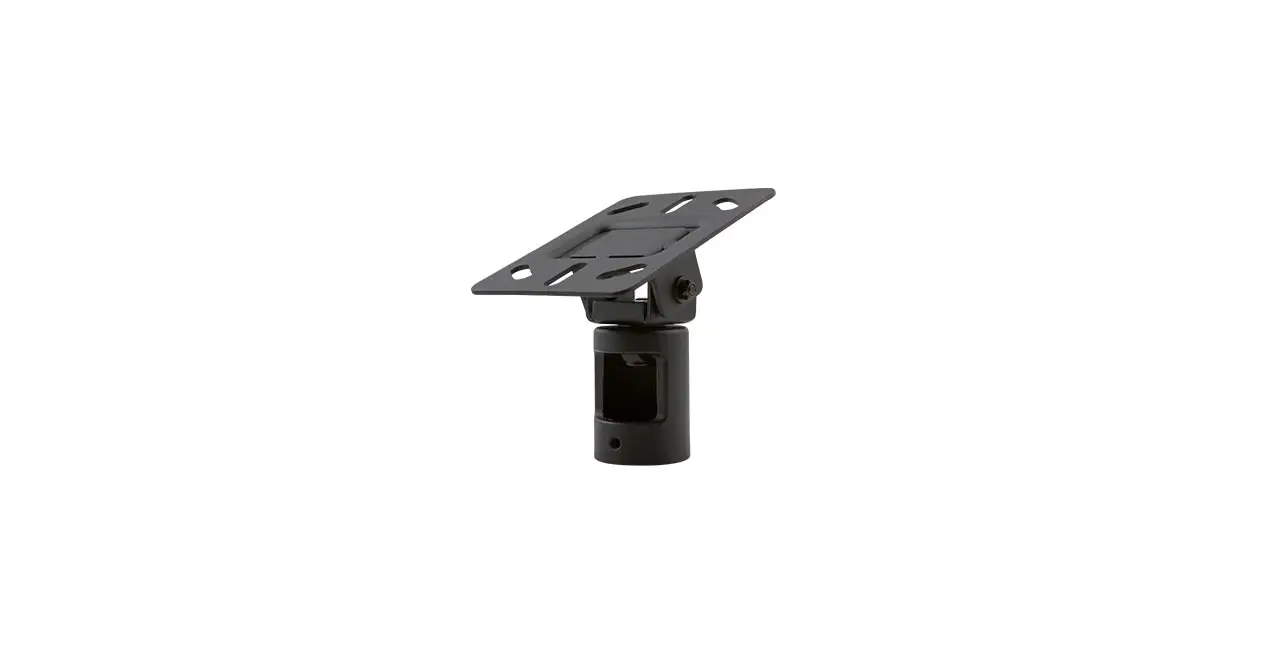

VZ-CM-T
The Tilting Ceiling Mount Plate allows for Quick and Precise Installations on Bevel Type Ceiling
- Load Capacity is 110 lbs / 50 kg and 90.5 mm Profile to Mount
- ±80° Tilt Adjustment along with 360° Pan Rotation for Achieving that Perfect Viewing Angle
- Fast and Easy Connection
- Connects to NPT Standard Pole Sizes – 1-1/2″ (38.1mm)
Specification | Dimension | Spec & Manual
Series : Ceiling Mount Kit
Designed specifically for
Product Features
- Model Number: VZ-CM-T
- The Tilting Ceiling Mount Plate allows for Quick and Precise Installations on Bevel Type Ceiling
- Load Capacity is 110 lbs / 50 kg and 90.5 mm Profile to Mount
- ±80° Tilt Adjustment along with 360° Pan Rotation for Achieving that Perfect Viewing Angle
- Easy Cable Management
- Connects to NPT Standard Pole Sizes – 1-1/2″ (38.1mm)
- Designed specifically for VZ-CM-P15 & VZ-CM-P36
Specification
| Total Weight Capacity | 110 lbs / 50 kg |
| PAN Rotation | 360° |
| Tilt Capability | ± 80° |
Dimensions & Weight
| Outline Dimension (W x H x L) | 5.9″ x 4.72″ x 2.08″ / 150 mm x 120 mm x 53 mm |
| Pole ( R x Length ) | Ø 38.1 x 76mm / Ø 1.5 x 3″ |
| Ceiling Plate Profile | 130.5 mm / 5.13″ |
| Net Weight | 2.35 lbs / 1.07 kg |
Product Dimension & Weight
Click below to enlarge
