VZ-49CGM
49`` 5120x1440 32:9 Dual QHD R3800 Curved Security Monitor
- 49” Curved LED Panel
- Supports Dual QHD (5120×1440) Resolution
- Display Port (1.2) In x1, HDMI (2.0) In x1, Audio Out x1
- USB Type C (Video & 65W PD) x1, USB Type B x1, USB Type A x2
- Ultrawide 3800R Curved Screen
- High Response Time – 1ms / Support MPRT
- Tilt 5° ~ -15°, Swivel ± 45°
- Supports HDR
- Built to run 24/7/365
- 1-Year Warranty
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : CGM | Key Features : Curved Monitor PIP / PBP NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-49CGM
- 49” Curved LED Panel
- Supports Dual QHD (5120×1440) Resolution
- Ultrawide 3800R Curved Screen

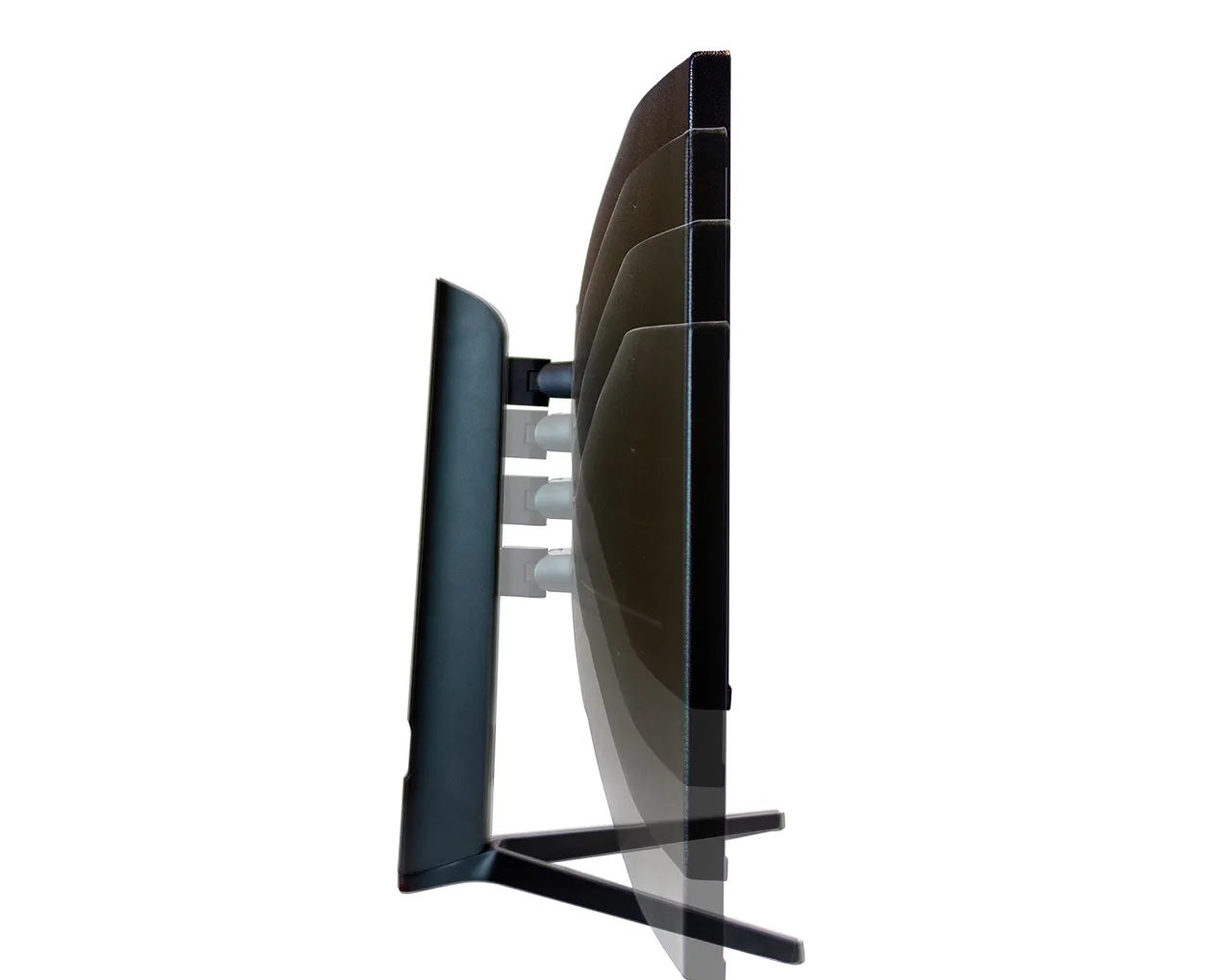

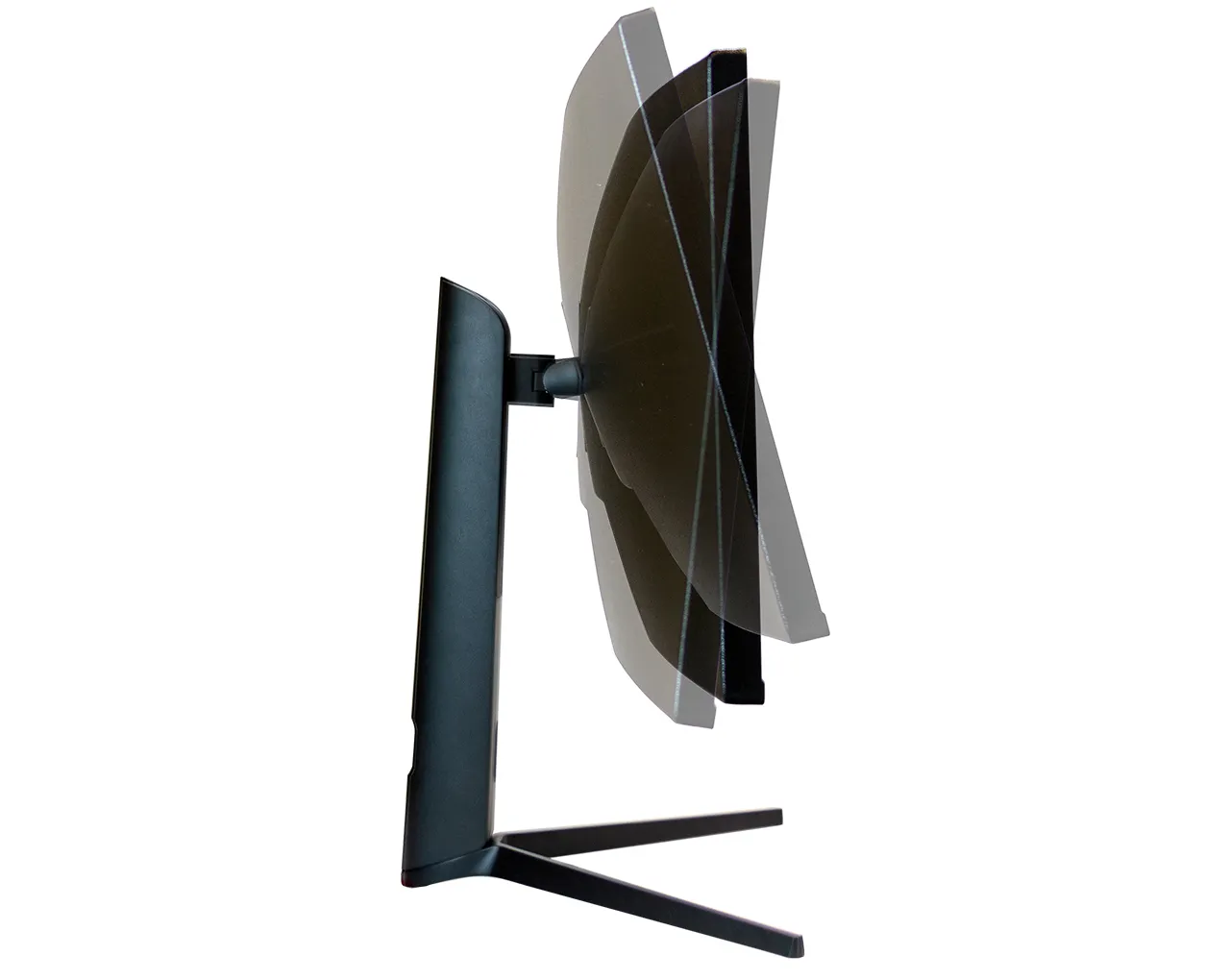

- Tilt 5° ~ -15°, Swivel ± 45°
- High Response Time – 1ms / Support MPRT
- Supported Display Port (1.2) In x1, HDMI (2.1) In x1, Audio Out x1
- Supported USB Type C (Video & 65W PD) x1, USB Type B x1, USB Type A x2
- Supports HDR
- Wide Viewing Angle (IPS Panel)
- Built to run 24/7/365
- 1-Year Warranty
- NDAA Compliant
Display
| Screen Size | 49″ |
| Max Resolution | 5120 x 1440 |
| Pixel Pitch | 0.234 mm x 0.234 mm |
| Brightness | 350 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 32 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.07 B |
| Response Time | < 8 ms / MPRT 1 ms |
Interface
| HDMI(2.1) In | 1 |
| Display Port(1.4) In | 1 |
| Audio Out | 1 |
| USB (Type C – Video & 65W PD) In | 1 |
| USB (Type B) In | 1 |
| USB (Type A) In | 4 |
Special Features
| Flicker Free | Support |
| MPRT (Moving Picture Response Time) | Support |
| Over Drive | Support |
| Blue Light Filter | Support |
| HDR | Support |
| PIP / PBP | Support |
Dimensions & Weight
| Outline Dimension (W x H x D)- without stand | 47.91” x 14.44” x 4.46” / 1217 mm x 367 mm x 113.4 mm |
| Outline Dimension (W x H x D)- with stand | 47.91” x 23.03” x 12.02” / 1217 mm x 585 mm x 305.5 mm |
| Net Weight | 25.35 lbs / 11.5 kg |
| Gross Weight | 33.95 lbs / 15.4 kg |
Mount
| VESA | 100 mm x 100 mm * M4 |
General Summary
| Power – Electrical Ratings | DC 24 V (AC100 ~ 240V (50/60Hz)) / 3A |
| Power – Consumption | ≤ 62 W |
| Regulations | FCC(A), CE, NDAA, RoHS |
| Operating Temperature | Humidity | 32 – 122°F / 0°C ~ 50°C | 20 ~ 85% RH |
| Compatible Mounts – Wall | VZ-WM50 |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM308 |
| Accessories | Stand (1set), Manual (1pc), Power Adapter (1pc), DP Cable (1pc) |

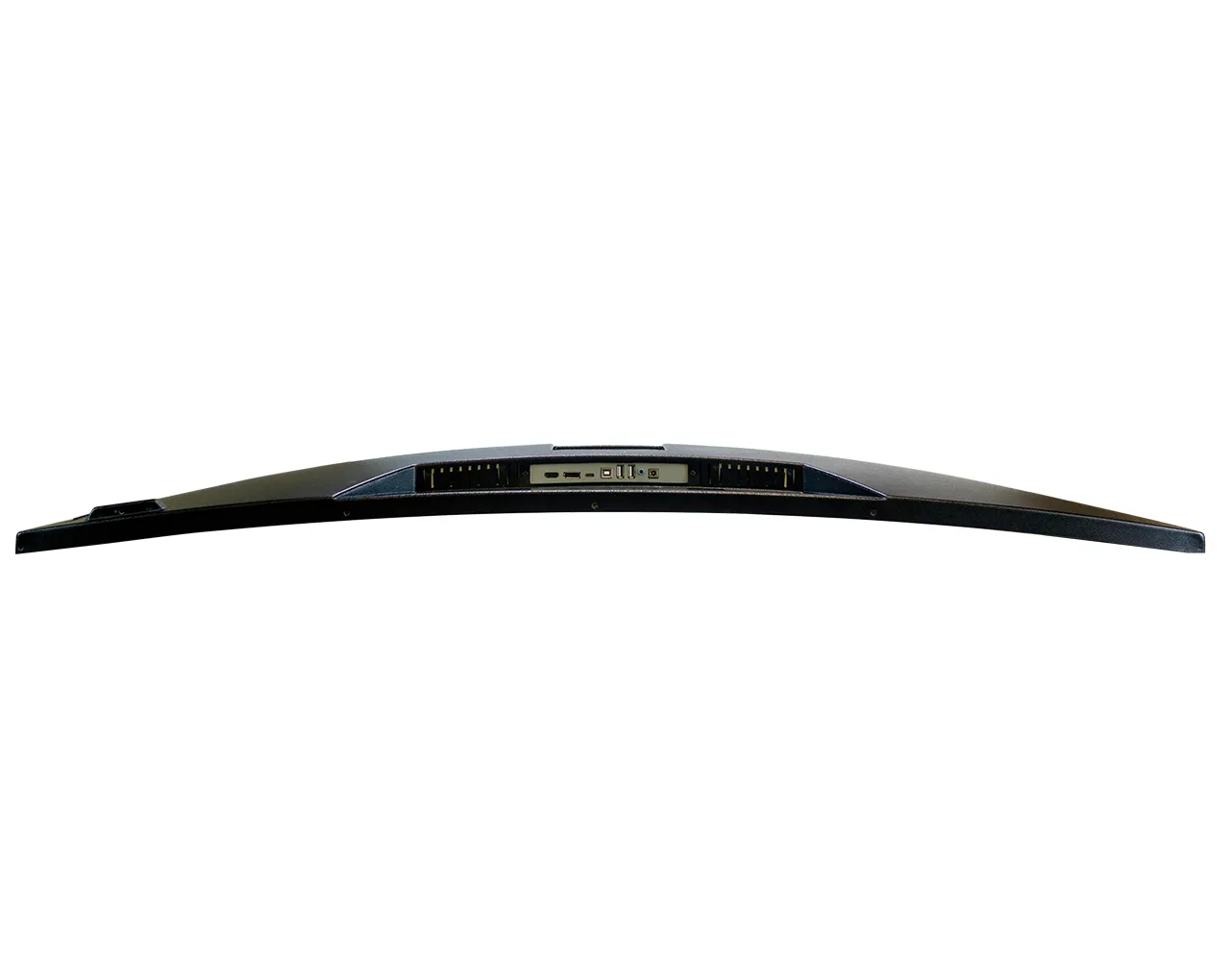

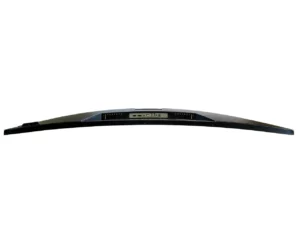

Product Dimension & Weight
Click below to enlarge
