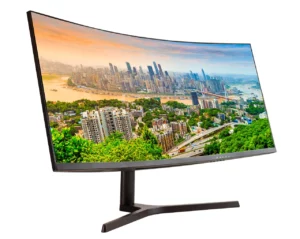

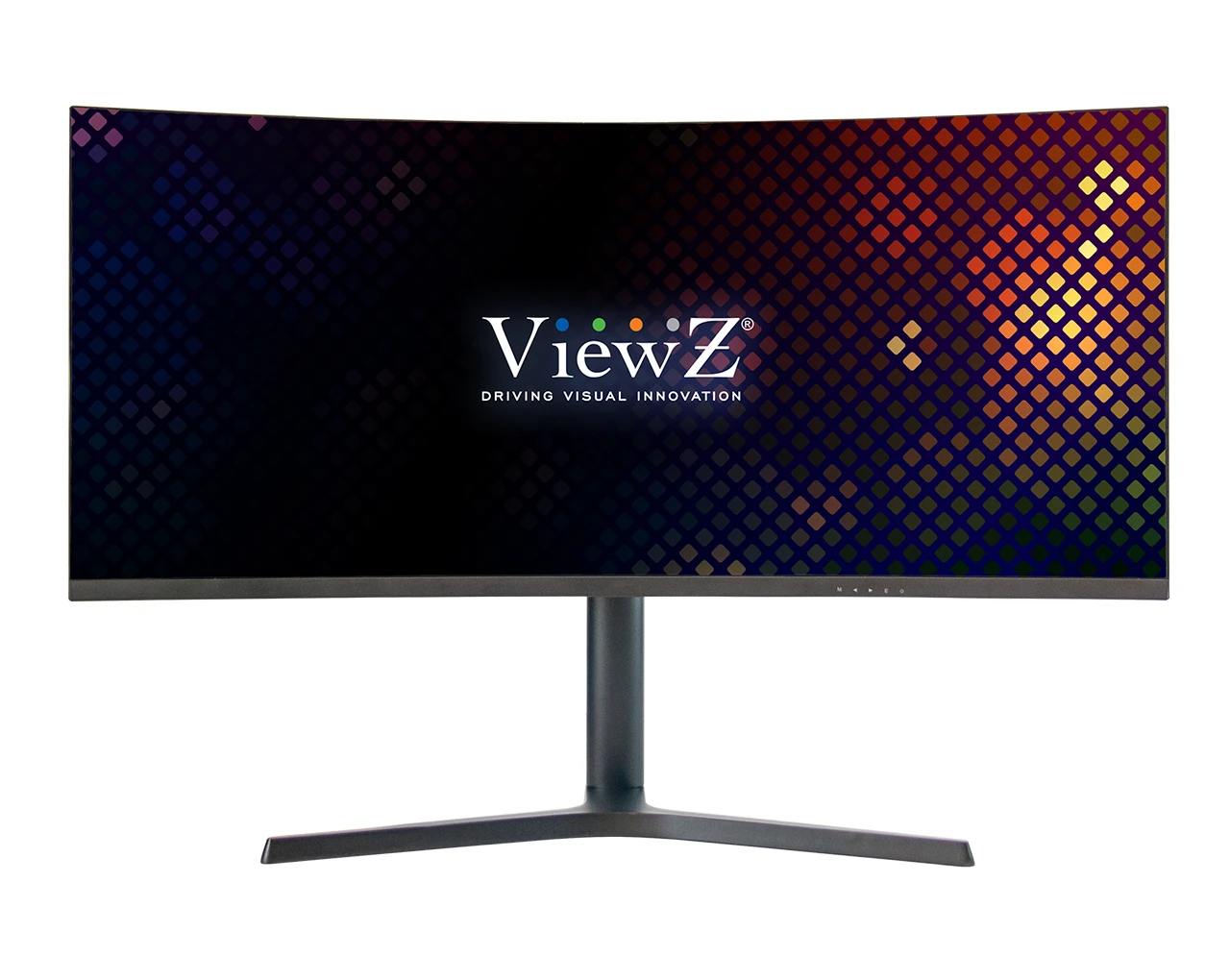

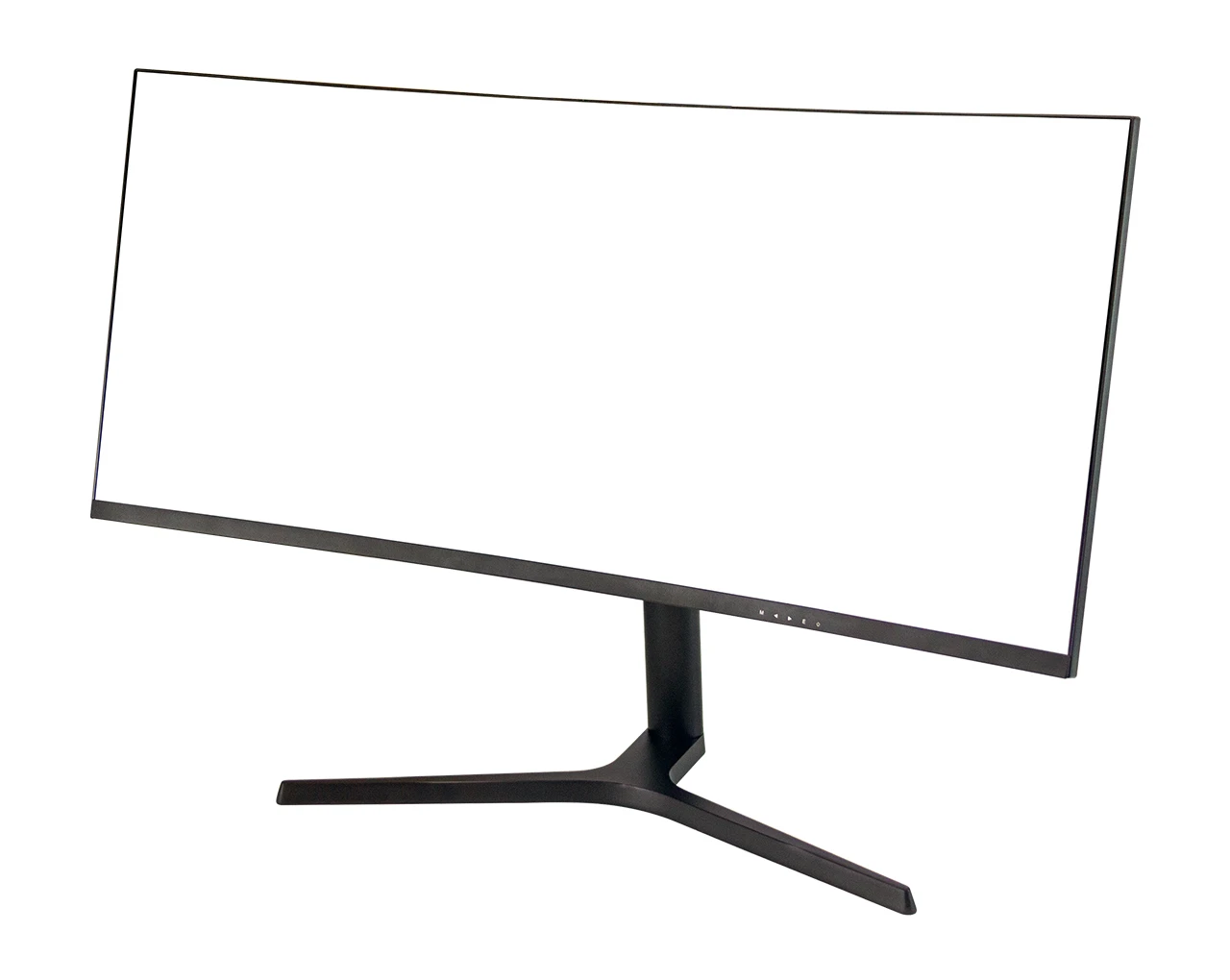

VZ-34CGM
34`` 3440x1440 21:9 UWQHD R1500 Curved Security Monitor
- 34” Curved LED Panel
- Supports UWQHD (3440×1440) Resolution

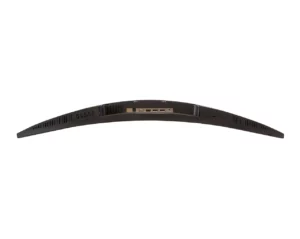

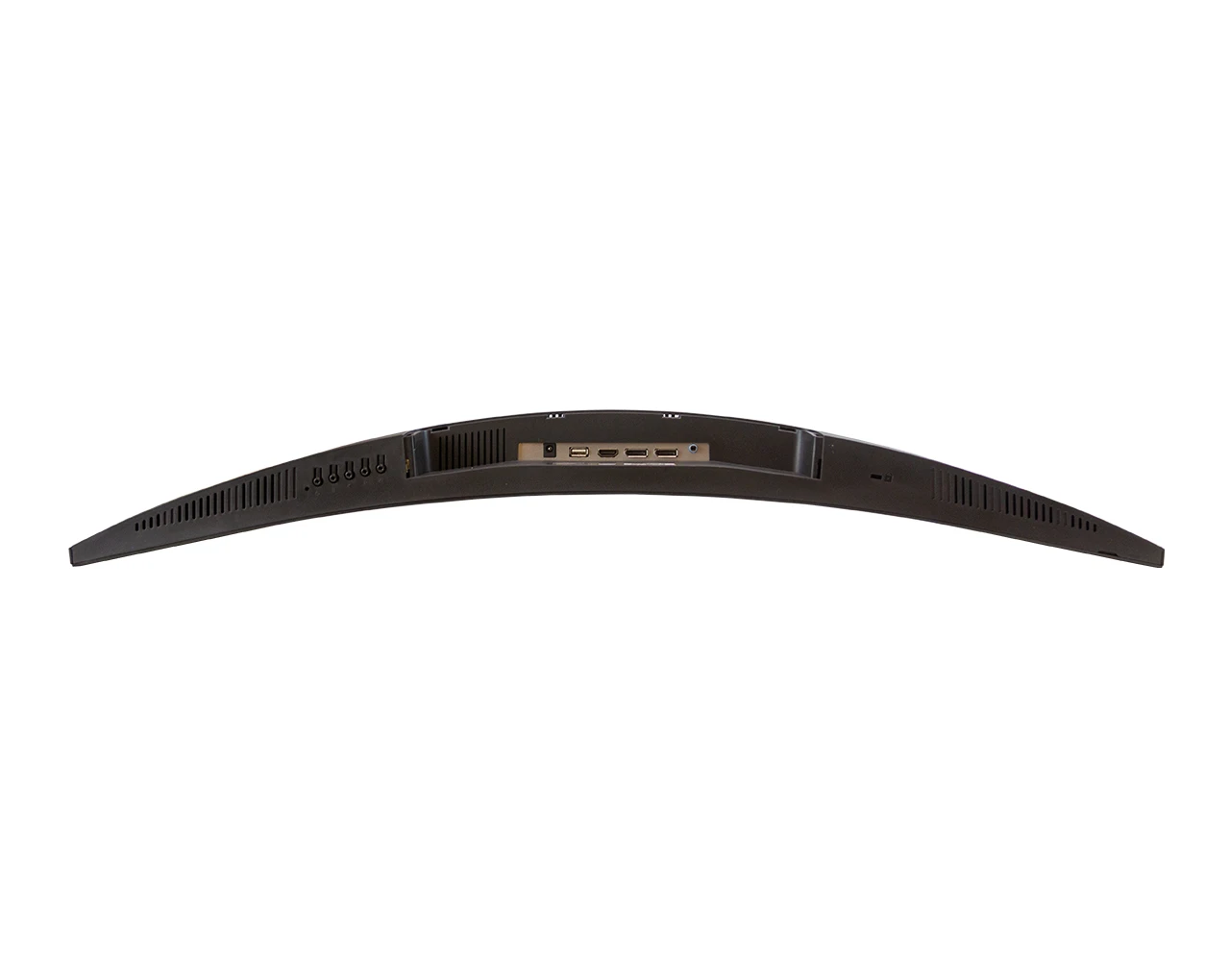

- Display Port (1.2) In x2, HDMI (2.0) In x1, Audio Out x1
- Ultrawide 1500R Curved Screen
- High Response Time – 1ms / Support MPRT

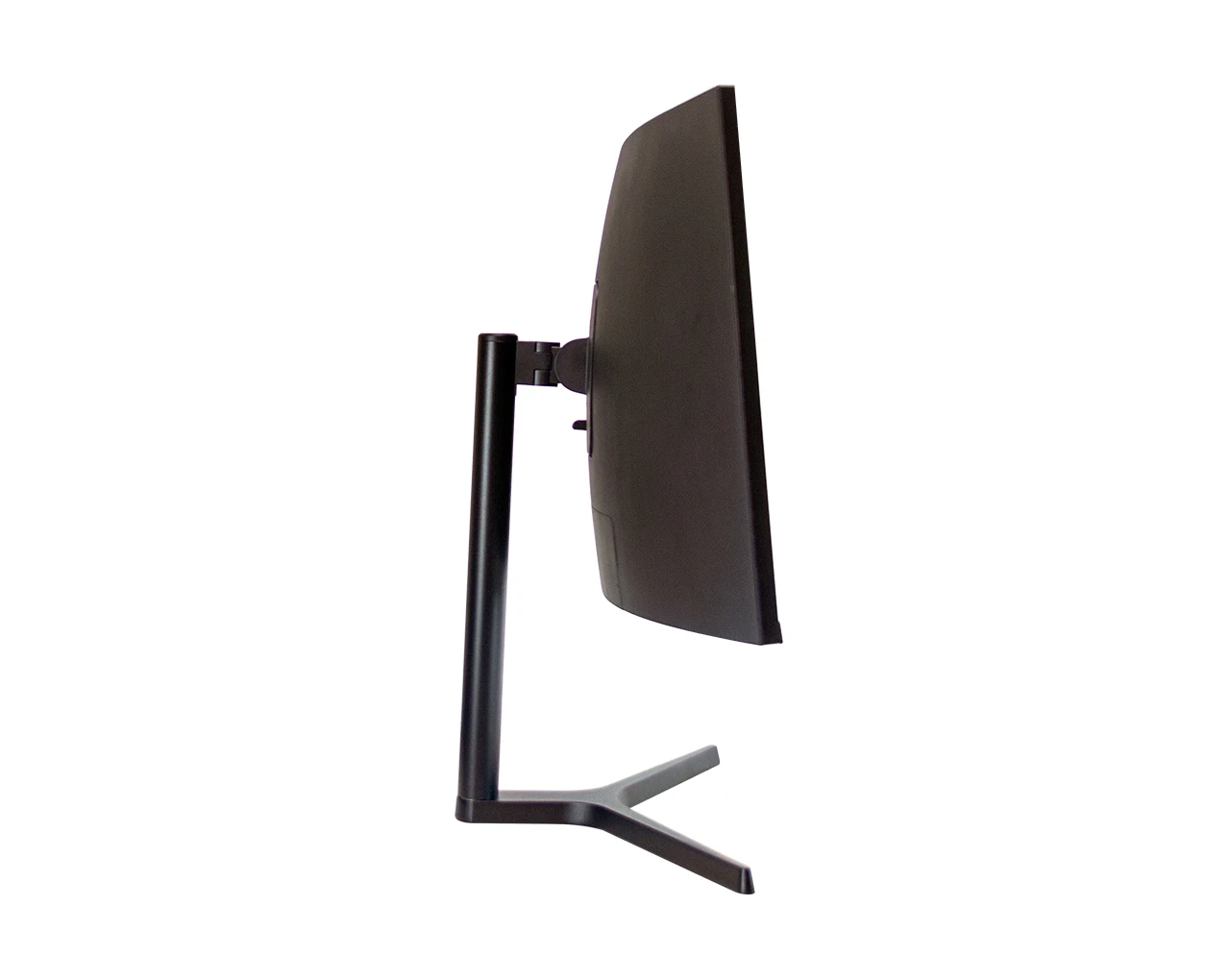

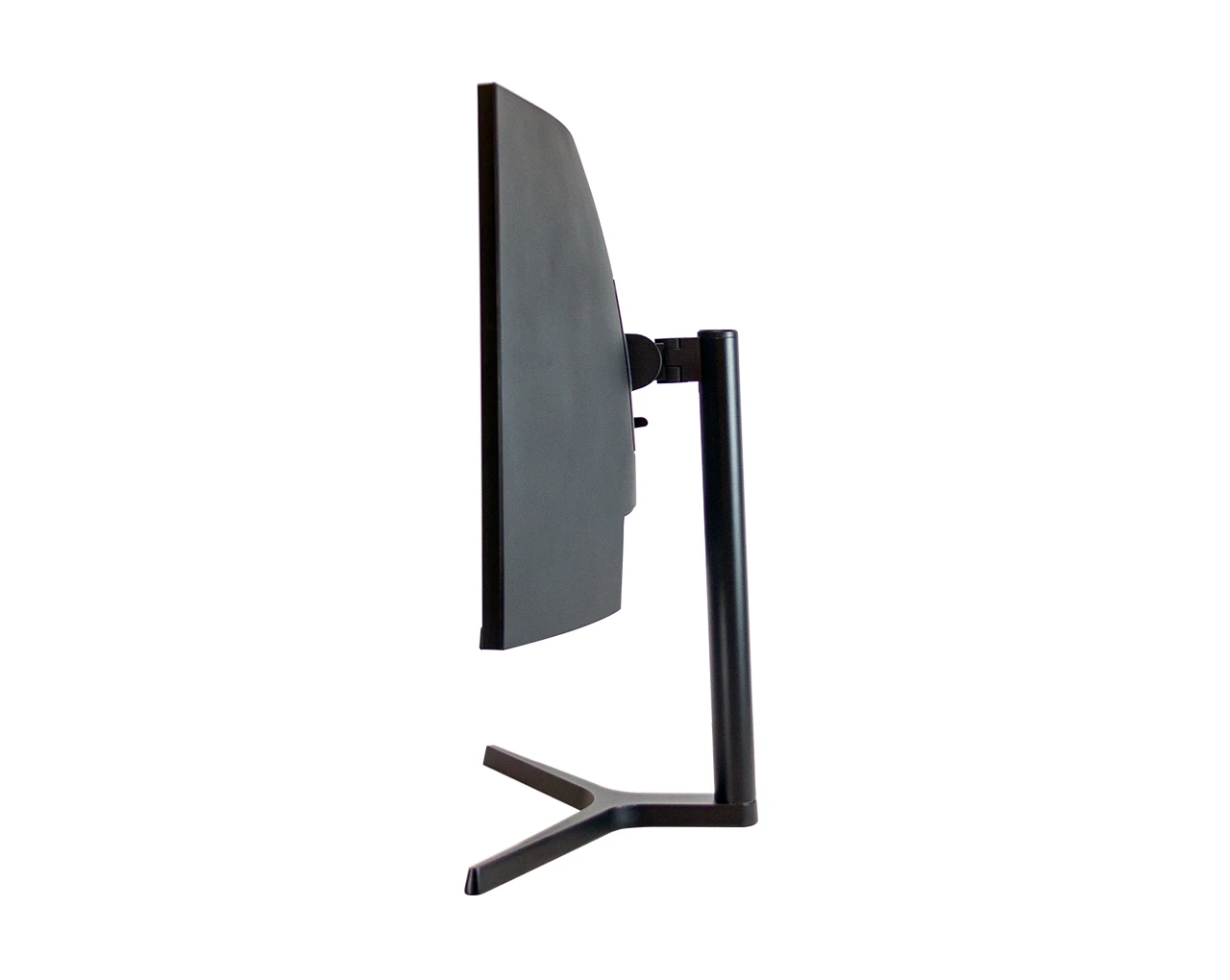

- Tilt 20° ~ -5°, Swivel ± 45°, Height Adjustment 4.48” (114 mm)
- Supports HDR
- Built to run 24/7/365
- 1-Year Warranty
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : CGM | Key Features : Curved Monitor Full HD
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-34CGM
- 34” Curved LED Panel
- Supports UWQHD (3440×1440) Resolution
- Ultrawide 1500R Curved Screen
- Tilt 20° ~ -5°, Swivel ± 45°, Height Adjustment 4.48” (114 mm)
- High Response Time – 1ms / Support MPRT
- Supported Display Port (1.2) In x2, HDMI (2.0) In x1, Audio Out x1
- Supports HDR
- Wide Viewing Angle (IPS Panel)
- Built to run 24/7/365
- 1-Year Warranty
- NDAA Compliant
Display
| Screen Size | 34″ |
| Max Resolution | 3440 x 1440 |
| Pixel Pitch | 0.23175 mm x 0.23175 mm |
| Brightness | 400cd/m²(Typical) |
| Contrast Ratio | 3000 : 1 |
| Aspect Ratio | 21 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 1 ms |
Interface
| HDMI In | 1 |
| Display Port In | 2 |
| Audio Out | 1 |
| USB | 1 |
Special Features
| DDC/CI (Command) | Support |
| MPRT (Moving Picture Response Time) | Support |
| Advanced DCR (Dynamic Contrast Ratio) | Support |
| Adaptive Sync | Support |
| Blue Light Filter | Support |
| HDR | Support |
| PIP / PBP | Support |
Dimensions & Weight
| Outline Dimension (W x H x D) | 31.78” x 14.24” x 4.5” / 807.4 mm x 361.81 mm x 114.37 mm |
| Net Weight | 17.85 lbs / 8.09 kg |
| Gross Weight | 19.1 lbs / 8.66 kg |
Mount

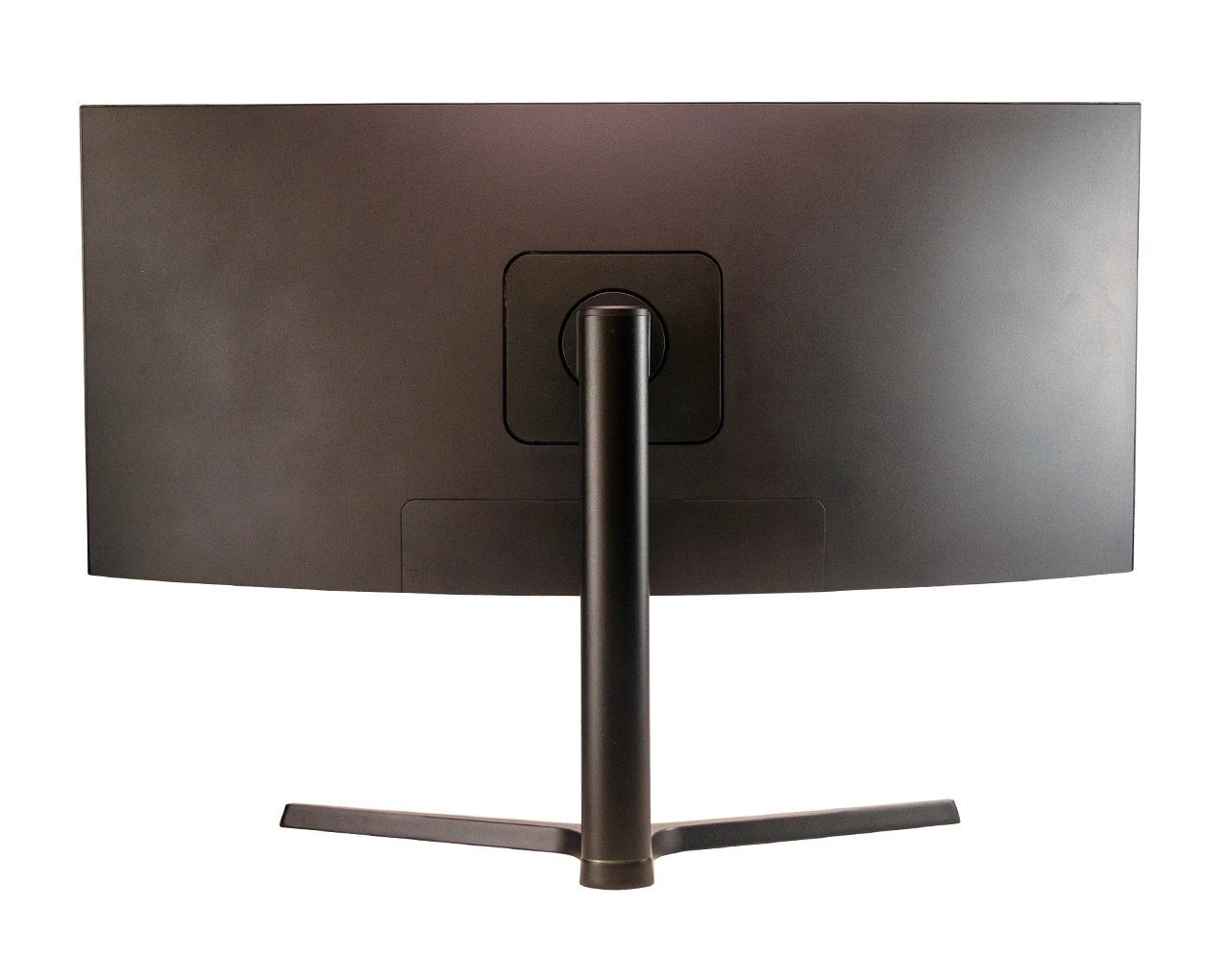

| Vesa | 100 mm x 100 mm * M4 |
General Summary
| Power – Electrical Ratings | DC 12V (AC100 ~ 240V (50/60Hz) ) |
| Power – Consumption | ≤ 45 w |
| Regulations | FCC(A), CE, RoHS |
| Operating Temperature | Humidity | 32 – 122°F / 0°C ~ 50°C | 20 ~ 85% RH |
| Compatible Mounts – Wall | VZ-WM50, VZ-AM02-A |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CM308 |
Product Dimension & Weight
Click below to enlarge
