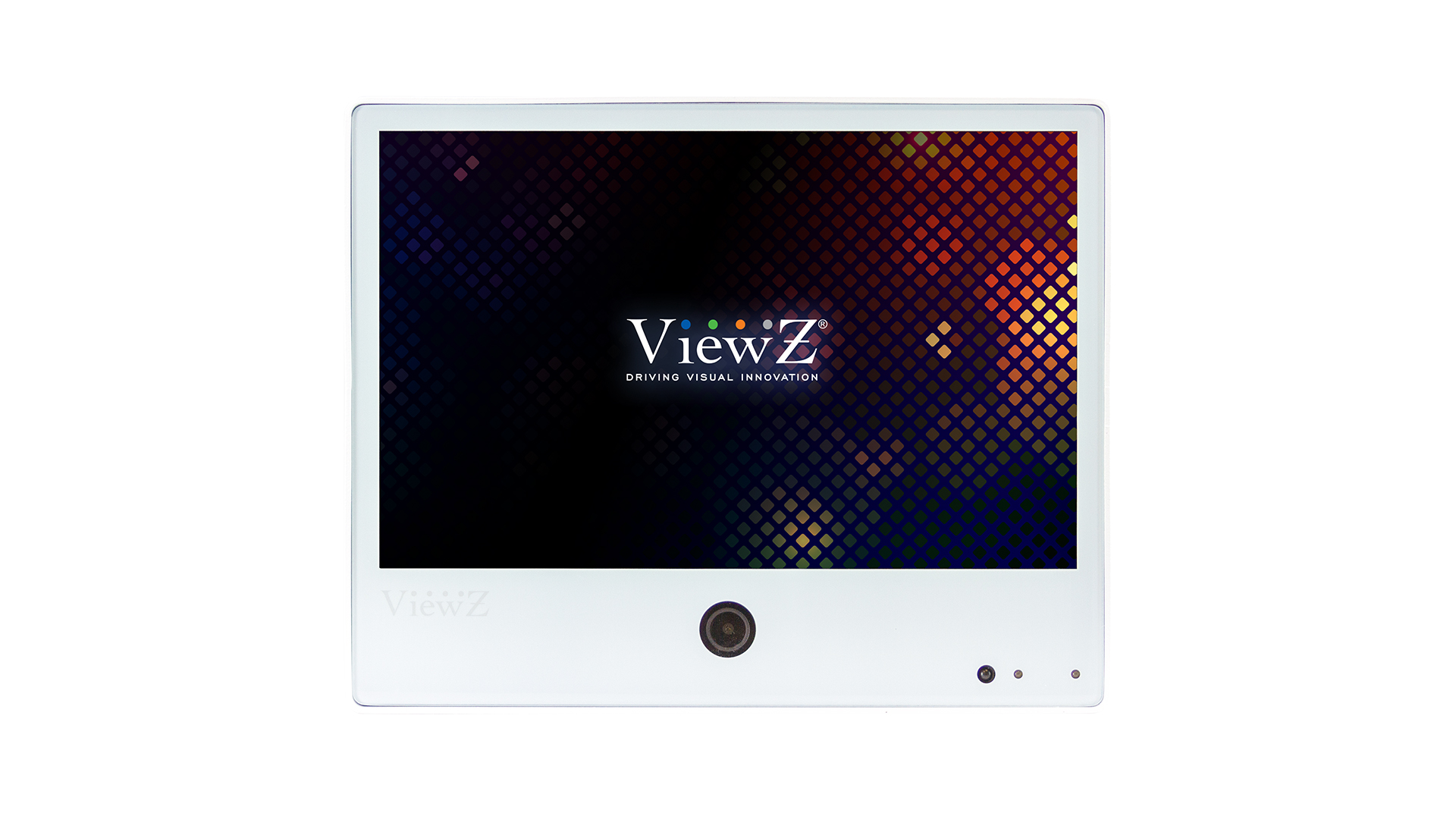

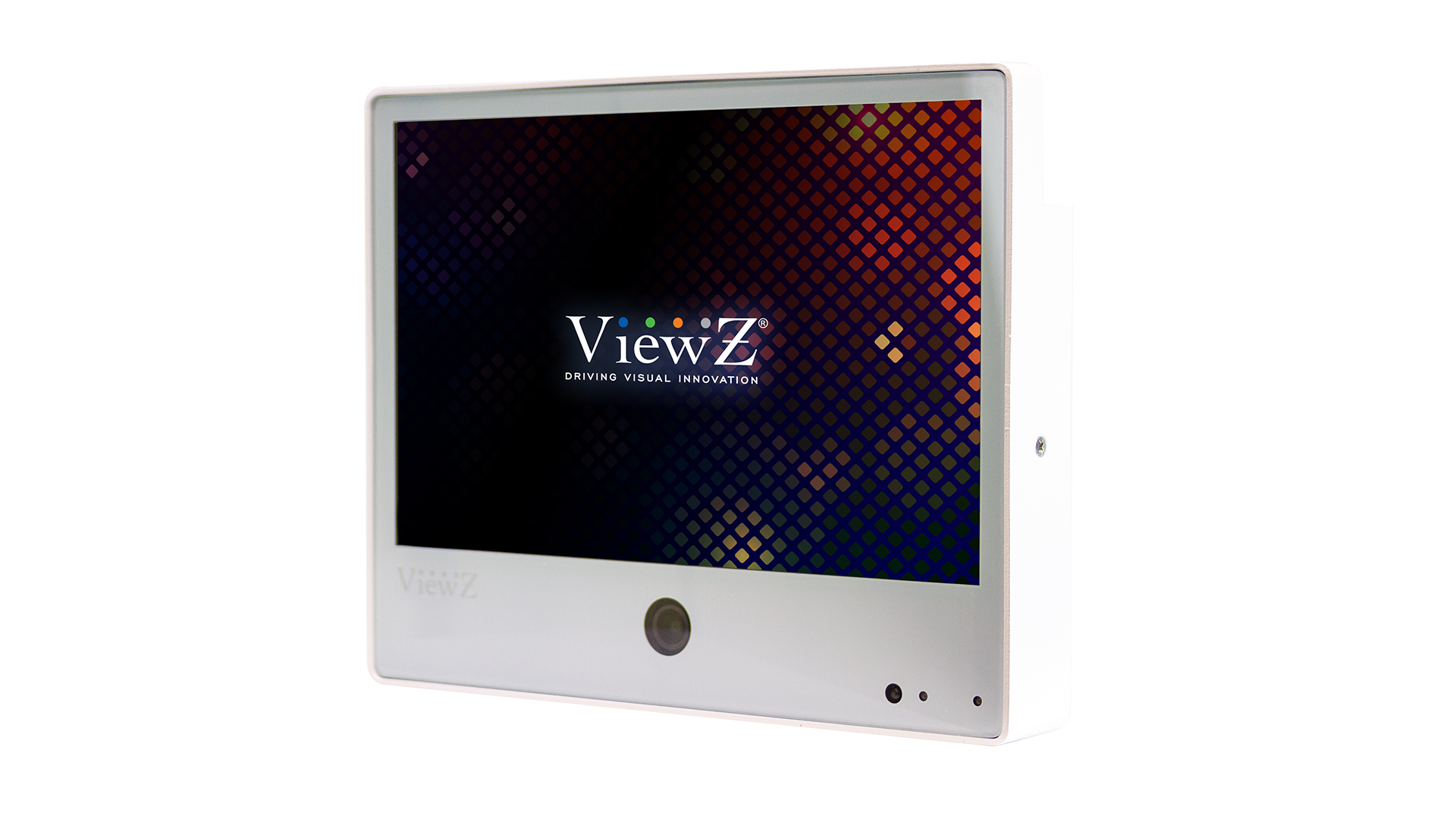

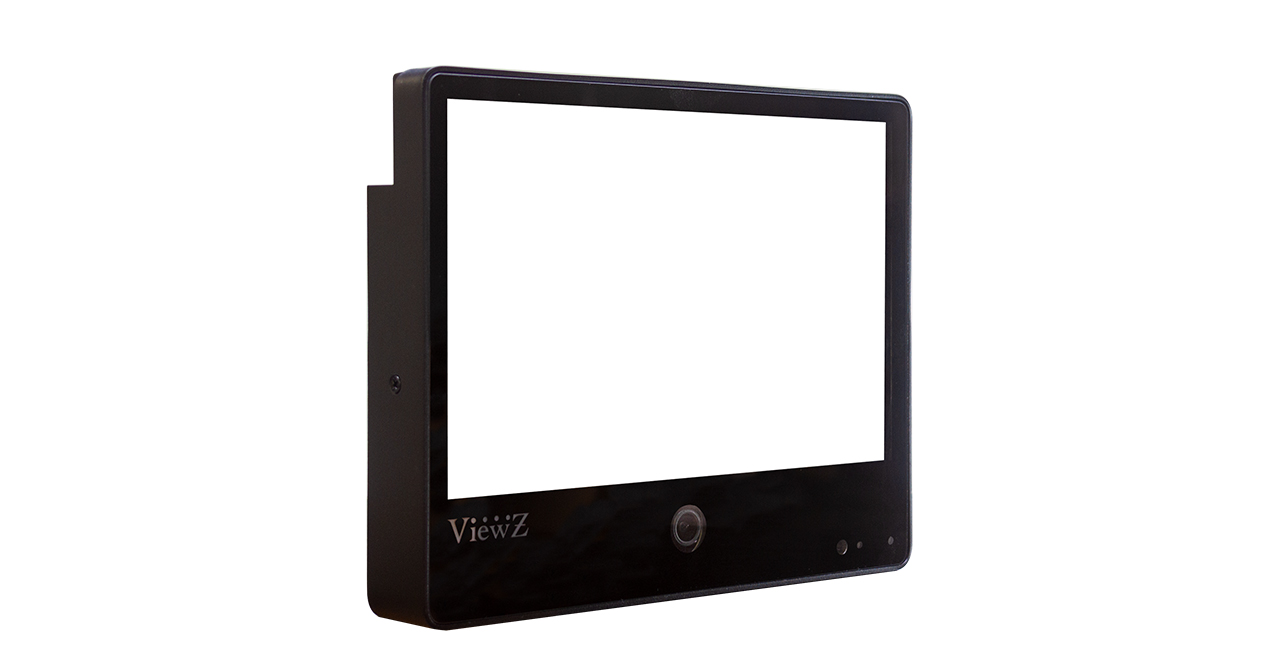

VZ-PVM-I1W4/I1B4-N
The new 10`` IP public view monitor from ViewZ boasts an impressive array of features such as PoE power operation, built-in 2.0 MP camera, built-in media player for advertising and industry proven grade ``A`` commercial panel for 24/7 operation.
- 10” Mega Pixel IP Public View Monitor
- Onvif Compliant (Fully Compatible with VMS ) – Profile S
- Video Obstruction Alarm / Video Loss Alarm / Door Open Alarm / Power Loss Alarm
- Recording Available with Micro SD
- People Count / Face Detection (Display Face Detection Boxes) / Mask Detection
- Powered by PoE
- Built-in 2 Mega Pixel Camera / Board Lens
- Blinking Message “Recording”
- Built to run 24/7/365
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : IPPVM-N | Key Features : IP P.o.E. Built-in Media Player
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-PVM-I1__N
- Enhanced Public View Monitor over IP
- 10″ Flat Panel Widescreen LED “A” Commercial-Grade Monitor
- Powered by PoE
- Onvif Compliant (Fully Compatible with VMS ) – Profile S
- Video Obstruction Alarm / Video Loss Alarm / Door Open Alarm / Power Loss Alarm
- Recording Available with Micro SD
- People Count / Face Detection (Display Face Detection Boxes) / Mask Detection
- Access Control
- HD 1280×800 / 16:9
- 1080p 2.0 Mega Pixel HD WDR Camera
- Camera Motion Sensor & Time Interval Based Source Switching between IP Camera and Media Player
- Flexible Alert Text / Multi-Color Blinking LED
- Camera and Monitor OSD / Remote Control
- Auto Power/Source Recovery
- VESA Wall Mount 75×75
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Display
| Screen Size | 10.1″ |
| Max Resolution | 1280 x 800 @60Hz |
| Pixel Pitch | 0.1695 mm x 0.1695 mm |
| Brightness | 350cd/m²(Typical) |
| Contrast Ratio | 900 : 1 |
| Aspect Ratio | 16 : 10 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 16.7 Million |
| Response Time | < 30 ms |

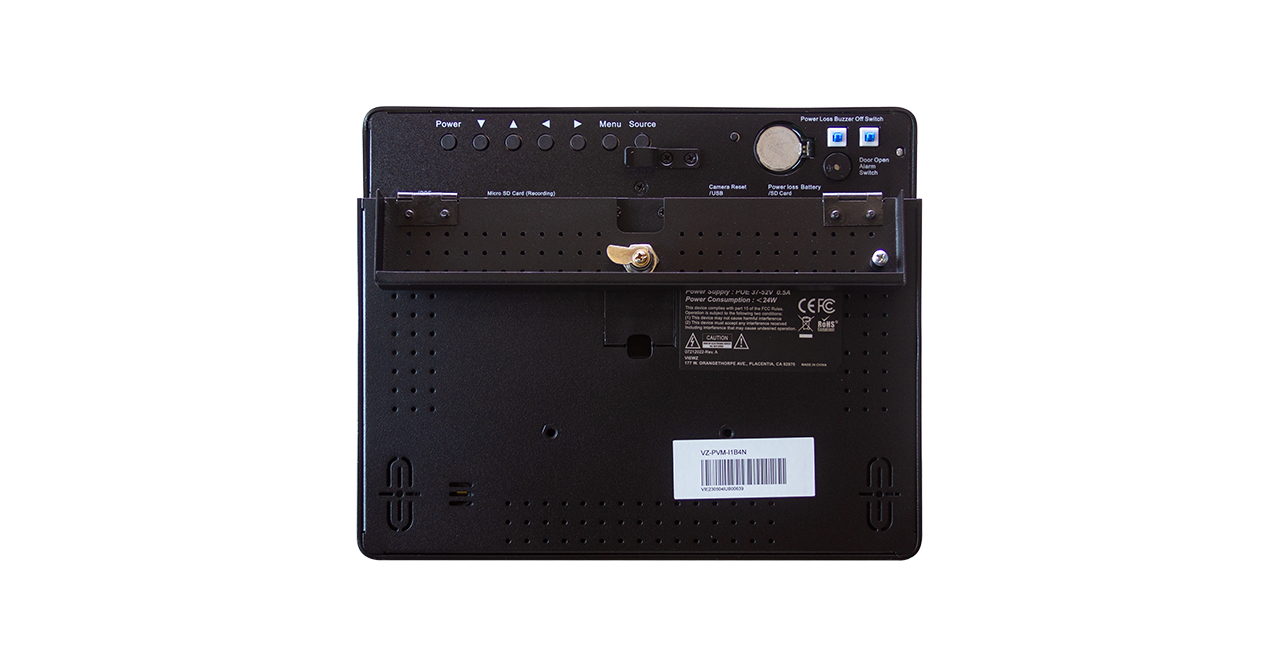

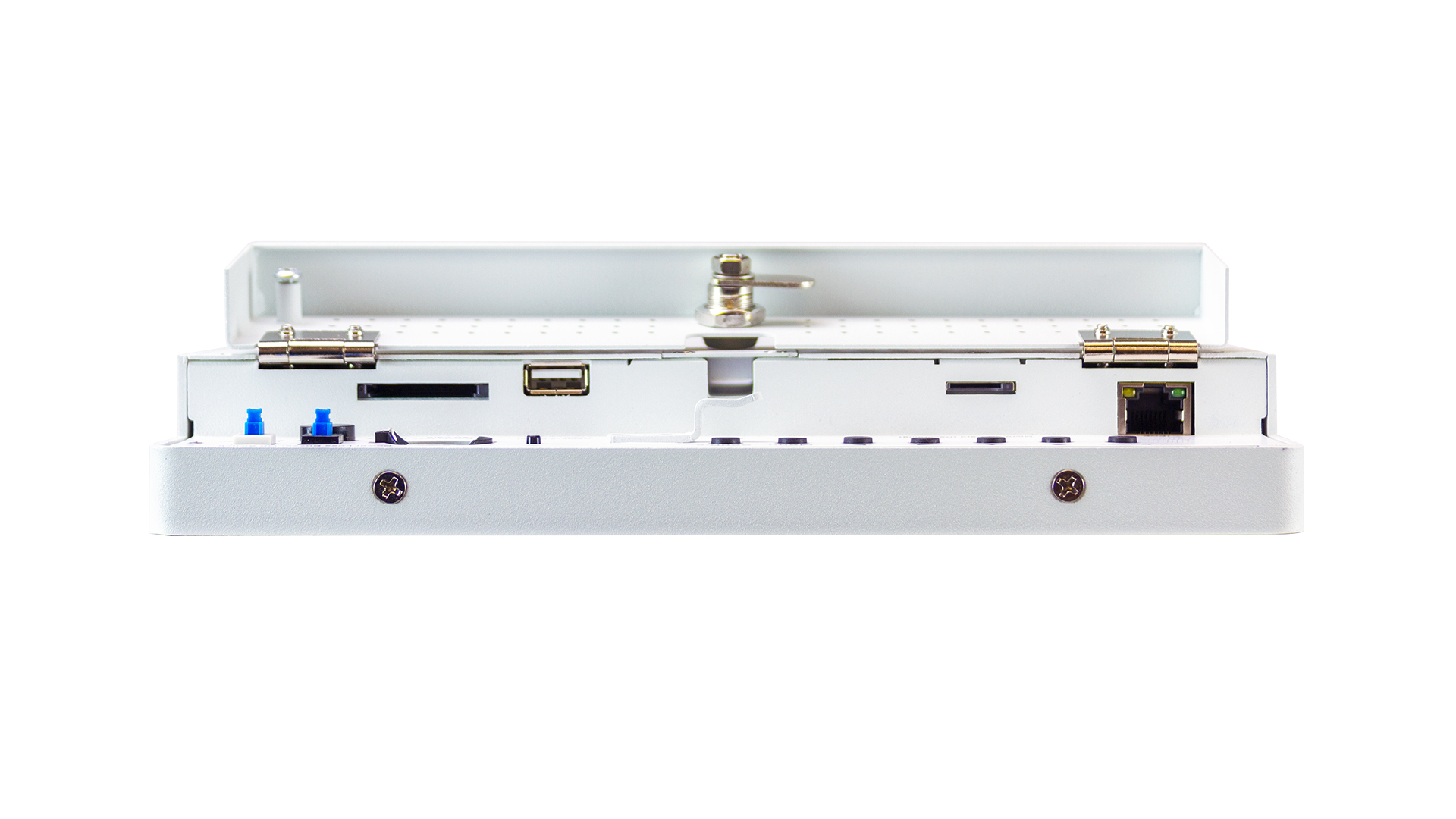

Interface
| RJ-45 for IP Camera & Power | 1 |
| USB / SD Card In (Media Player) | 1 / 1 |
| Micro SD In (Recording) | 1 |
IP Features
| Ethernet Interface | 10/100Base-T |
| Web Client Protocol | TCP / IP |
| Supported Protocol | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
Special Features
| PoE Support | Yes |
| Keylock | Yes |
| Blinking Message “Recording” | Yes |
| Video Obstruction / Door Open Alarm | Yes |
| Video / Power Loss Alarm | Yes |
| People Count | Yes |
| Face Detection / Mask Detection | Yes |
| Multi-Lingual Language | English, Spanish, French, Japanese, Russian, Portuguese |
Dimensions
| Outline Dimension (W x H x D) | 9.45” x 7.61” x 1.39” / 240.2 mm x 193.4 mm x 35.5 mm |
| Net Weight | 4.4 lbs / 2.0 kg |
| Gross Weight | 5.51 lbs / 2.5 kg |
Mount
| Vesa | 75mm x 75mm / M4 x L8 Screws |
Camera
| Sensor Type | 1/3″ 2.0M SONY IMX307 / NT98529 |
| Lens | 2.8mm Board Lens |
| Active Pixels | 1920(H) x 1080p(V) 30p |
| Min Illumination | Color: 0.001Lux@ (F1.2, AGC ON) / B&W: 0.0001Lux@(F1.2, AGC ON) |
| Function | 2D/3D DNR, HLC/BLC, Defog, WDR, Gain, White Balance, Noise Reduction, Aisle Mode, Smart IR, Mirror, Privacy Masking, True WDR, Digital Zoom, Day/Night (Auto ICR), Region of Interest (Off/On, 8zone & Rectangle) |
| Video Compression | H.265, H.264, MJPEG, CBR, VBR support |
| Video Out | 1ch RJ-45 output |
| Motion Detection | Support |
| Support Protocol | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
| Ethernet Port | 10 / 100 Base-T |
| Web Application | TCP / IP Protocol |
| Integration Protocol | ONVIF 2.6 (supported), SDK, CGI |
Media Card Reader - Optional Feature
| Support Type | Photo, Music, Video |
| External Storage | Support SD/SDHC CARD (Max.128GB), USB 2.0 HOST |
| Video File Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| Video Resolution | 1080P @60/50Hz, 1080i @60/50Hz, 720P @60/50Hz |
| Audio File Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| Image File Format | JPEG, TIF, PNG, BMP |
| VIDEO Play Control | AUTO, REPEAT, ZOOM, RESUME, TIME |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | PoE (37 – 52V) |
| Power – Consumption | ≤ 24 W |
| Warranty – Parts / Labor | 3 Year / 3 Year |
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
| Compatible Mounts – Wall | VZ-WM05, VZ-WM11, VZ-SCM, VZ-SM01 |
| Compatible PoE | VZ-CSE1202 |
| Regulation | FCC(A), CE |
