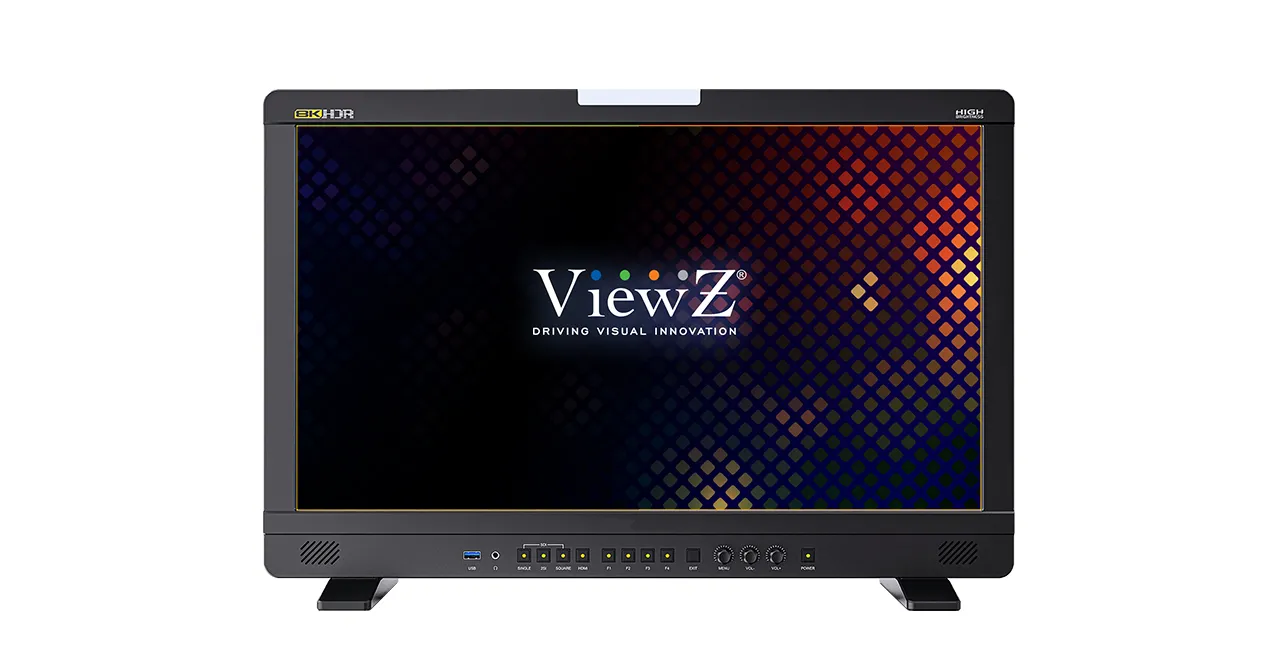

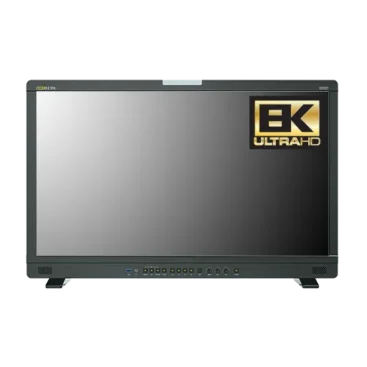

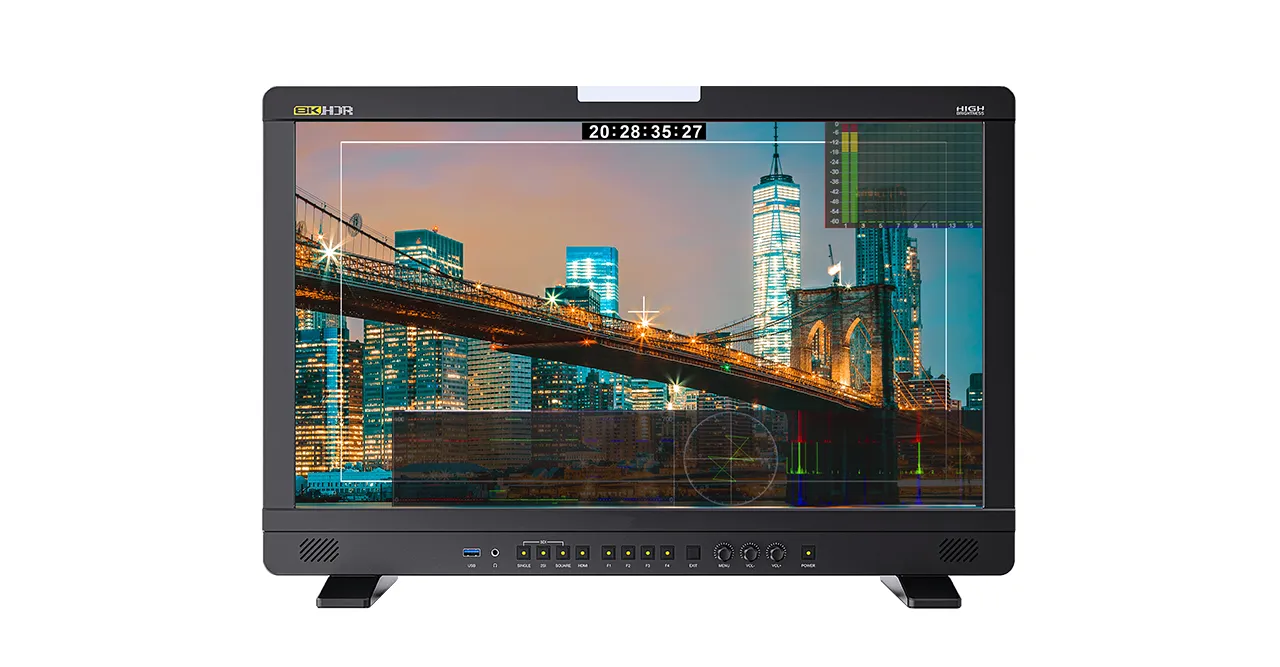

This 8K 23.8 Inches 1200 nits high brightness Production Monitor, feature with 8K 12G-SDI and 8K HDMI 2.1 input and loop outputs. It comes with rich features, including 3D-LUT, waveform and quad-split, allowing four signals to be displayed simultaneously, specially designed for professional photographer, videographer or film maker. VZ-238PM-8K-HB also have a portable rugged suitcase for outdoor filmmaking.
- 23.8” 8K/12G-SDI Monitor
- All SDI signals Input – 12G-SDI / 6G-SDI / 3G-SDI (Level A, DL-B, DS-B) / HD-SDI/SD-SDI

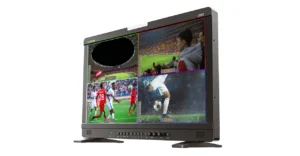

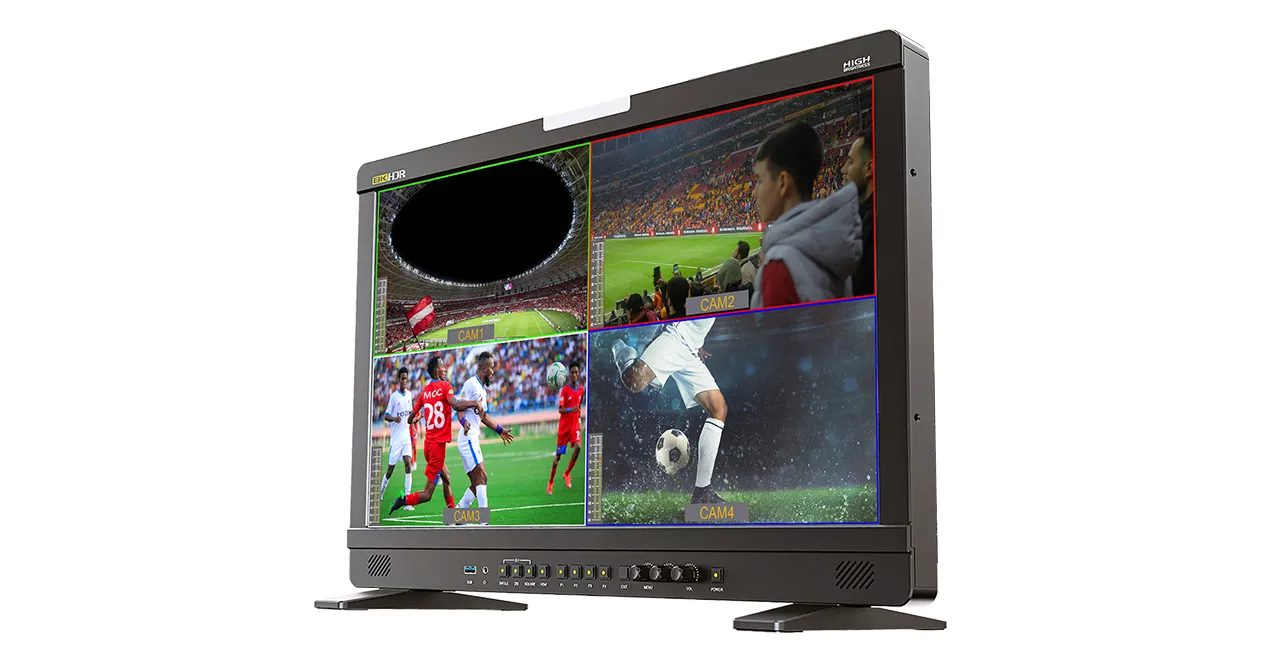

- Quad SDI | Single SDI
- Loop-Through (SDI)
- HDR – ST2082 / HLG / HDMI 2.0 & 1.4
- Color Space (100% DCI-P3 & 86% BT. 2020)
- Color Gamut – SMPTE-C / Rec601 / Rec709 / EBU / DCI-P3 / BT2020
- Waveform / Vector Scope / Histogram
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
Specification | Dimension | Spec & Manual
Series : Production Monitor | Key Features : 12G-SDI 4K 8K
Product Features
- Model Number: VZ-238PM-8K-HB
- SDI signals Input – 12G-SDI / 6G-SDI / 3G-SDI (Level A, DL-B, DS-B) /HD-SDI/SD-SDI
- Quad & Single SDI / Color Space (100% DCI-P3 & 86% BT. 2020)
- HDR – ST2082 / HLG / HDMI 2.0 & 1.4
- Waveform / Vector Scope / Histogram
- Color Gamut – SMPTE-C / Rec601 / Rec709 / EBU / DCI-P3 / BT2020
- Time Code ( LTC / VITC ) / Tally ( Red / Green )
- False Color (Default / Spectrum / ARRI / RED) / Exposure
- Color Temperature : 3200K/ 5500K/ 6500K/ 7500K/9300K/ User
- UMD / Peaking / RGB Gain
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
- Check Field / Overscan / H/V Delay / Zoom / Freeze
- Audio Level Meter (16ch) / Audio Vector
- Front User definable Buttons F1 ~ F4
- Marker – Center, Safety & Aspect ([16:9], [1.85:1], [2.35:1], [4:3], [3:2],
[2.0X], [2.0X MAG], [Grid], [User].)
Display
| Screen Size | 23.8″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.13725 mm x 0.13725 mm |
| Brightness | 1200 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.07 B |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User |
| LUT (Look Up Table) | Support (3D LUT – .cube Format) |
| Color Gamut | 100% DCI-P3, 86% Adobe RGB |
| Calibration | Calibrate color space to Rec.709, DCI-P3, NTSC, BT.2020 |
Interface

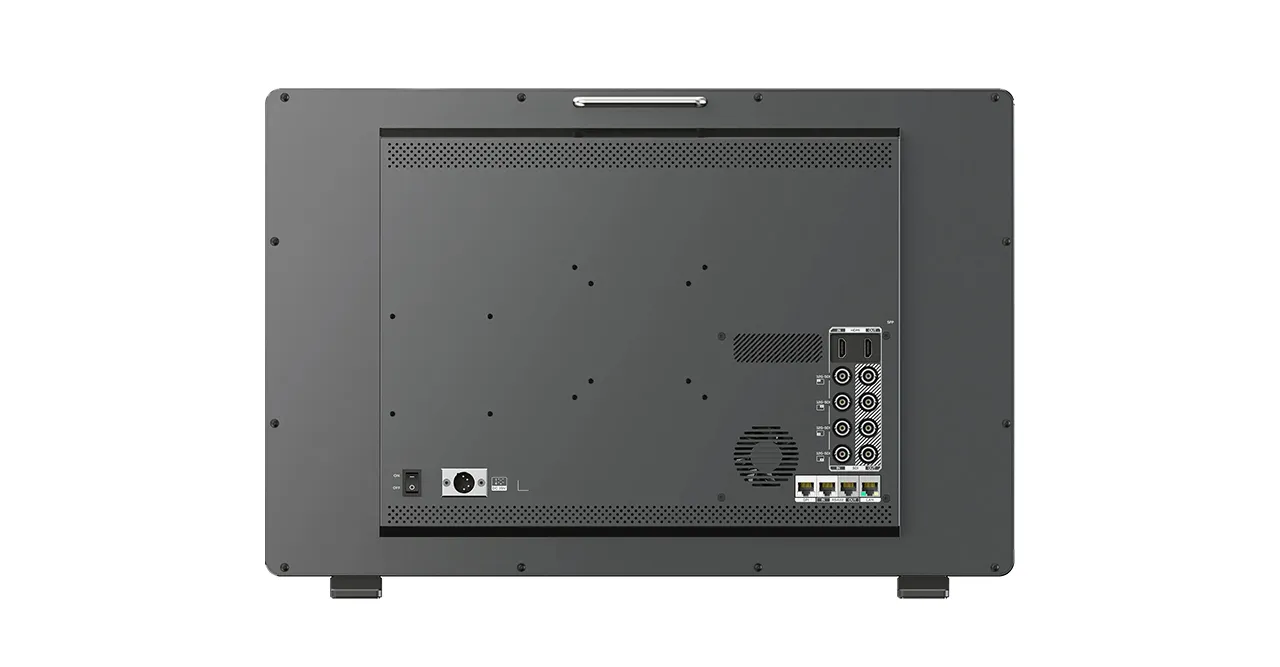

| 12G-SDI In / Out | 4 / 4 (Loopthrough) |
| HDMI 2.1 In / Out | 1 / 1 |
| SFP In | 1 x 12G SFP+ ( Fiber Module for Option) |
| RJ45 (Ethernet) In | 1 |
| RS422 In / Out | 1 / 1 (Remote Control) |
| GPI In | 1 (Remote Control) |
| USB In | 1 (Remote Control) |
Audio
| Built in speaker | 1W x 2 |
| SDI | 16ch 48kHz 24 bit |
| HDMI | 8ch 24 bit |
| Ear Jack | 3.5 mm |
Dimensions & Weight

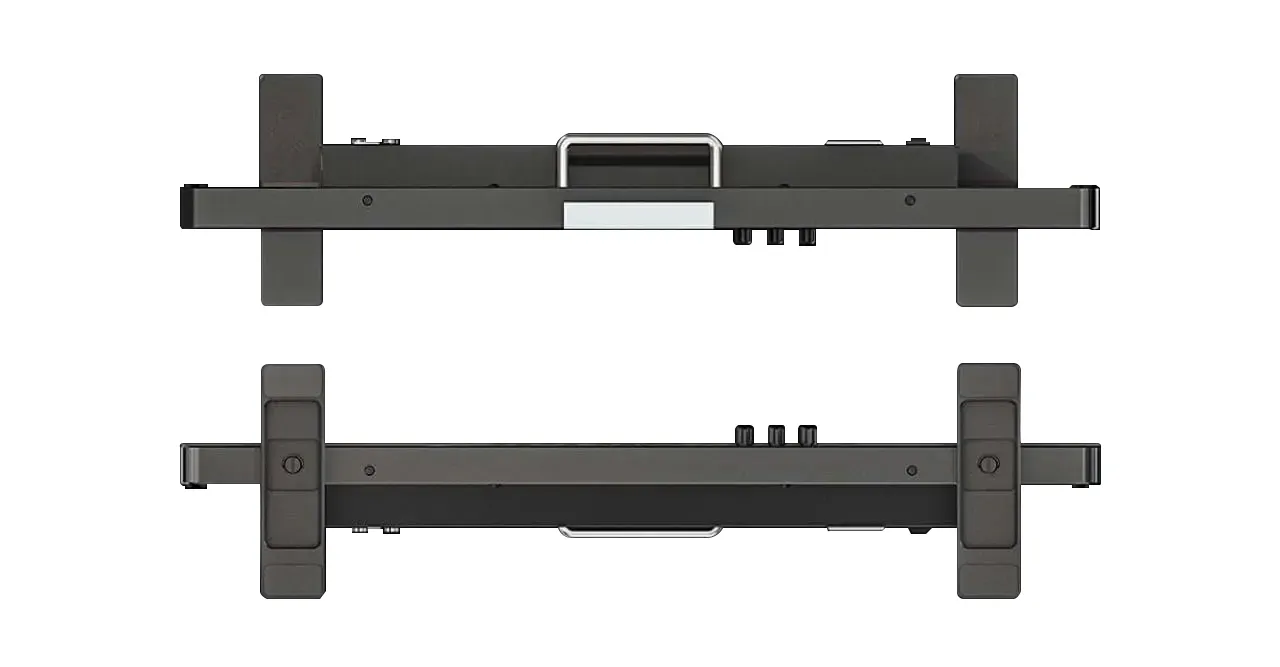

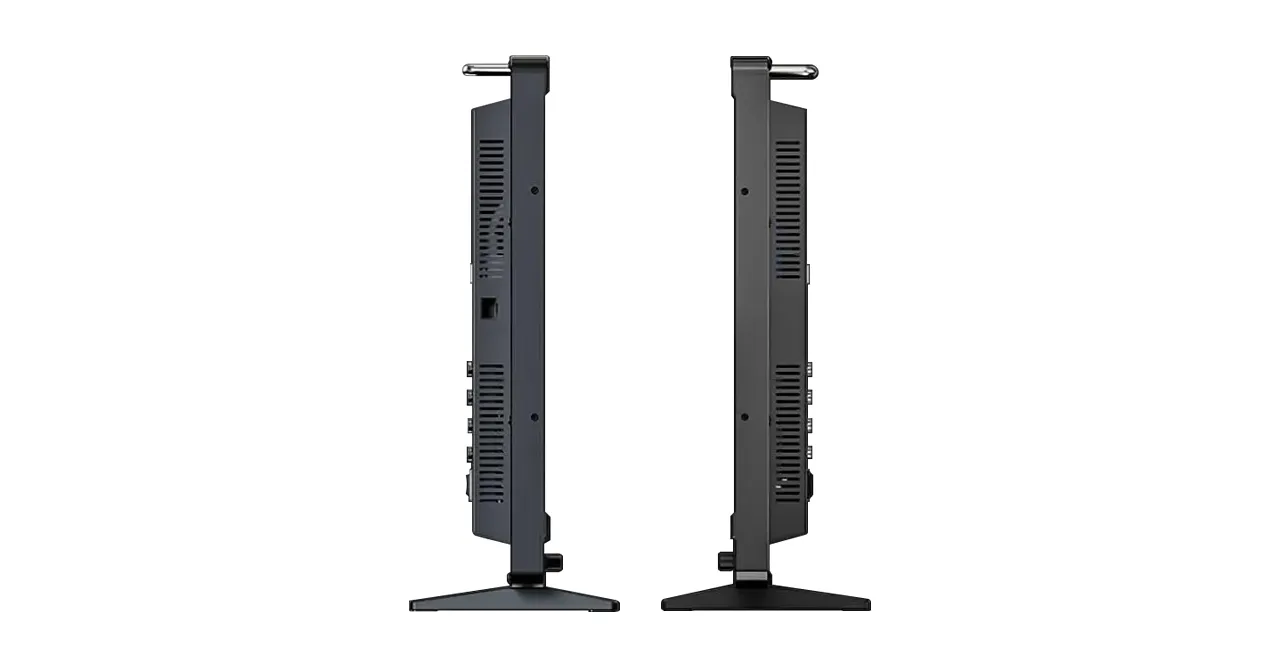

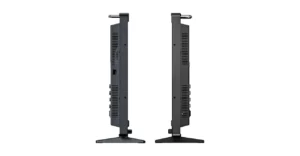

| Outline Dimension (W x H x D) | 22.7 x 14.78 x 2.1” / 576.6 x 375.5 x 53.5 mm |
| Carrying Case Dimension (W x H x D) | 24.89 x 16.98 x 6.7” / 632.4 x 431.3 x 171 mm |
| Net Weight | 16.97 lbs / 7.7 kg |
| Gross Weight | 39.24 lbs / 17.8 kg |
Input Format
| 12G-SDI | 7680x4320p (24/25/30/50/60), 3840x2160p (24/25/30/50/60), 1920x1080p (24/25/30/50/60), 1920x1080psf (24/25/30), 1920x1080i (50/60), 720p (50/60) |
| SFP | 3840x2160p (24/25/30/50/60), 1920x1080p (24/25/30/50/60), 1920x1080psf (24/25/30), 1080i (50/60), 720p (50/60) |
| HDMI | 7680x4320p (24/25/30/50/60), 3840x2160p (24/25/30/50/60p), 1920x1080p (24/25/30/50/60p), 1080i (50/60), 720p (50/60) |
General Summary
| Power – Electrical Ratings | XLR-4p (DC 15~24V) |
| Power – Consumption | ≤ 90 W (19V) |
| Warranty | 2 Years |
| Operating Temperature | 32 ~ 122°F / 0 ~ 50°C |
| Operating Humidity | 90% RH for 240 hrs, TA=+ 140°F (60°C) |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Battery Plate | V-mount or Anton Bauer |
| Package Include | 19V DC Adapter x 1, Manual x 1, VESA Plate x1, Desktop Stand Set x 1, USB Disk x 1, AB Battery Plate (V-Mount) x1 |
| Package Option | SFP Optical Fiber Module x 1, Carrying Case x1, Sunshade x1, Anton Bauer Mount x1, Rack Mount Bracket x1 |

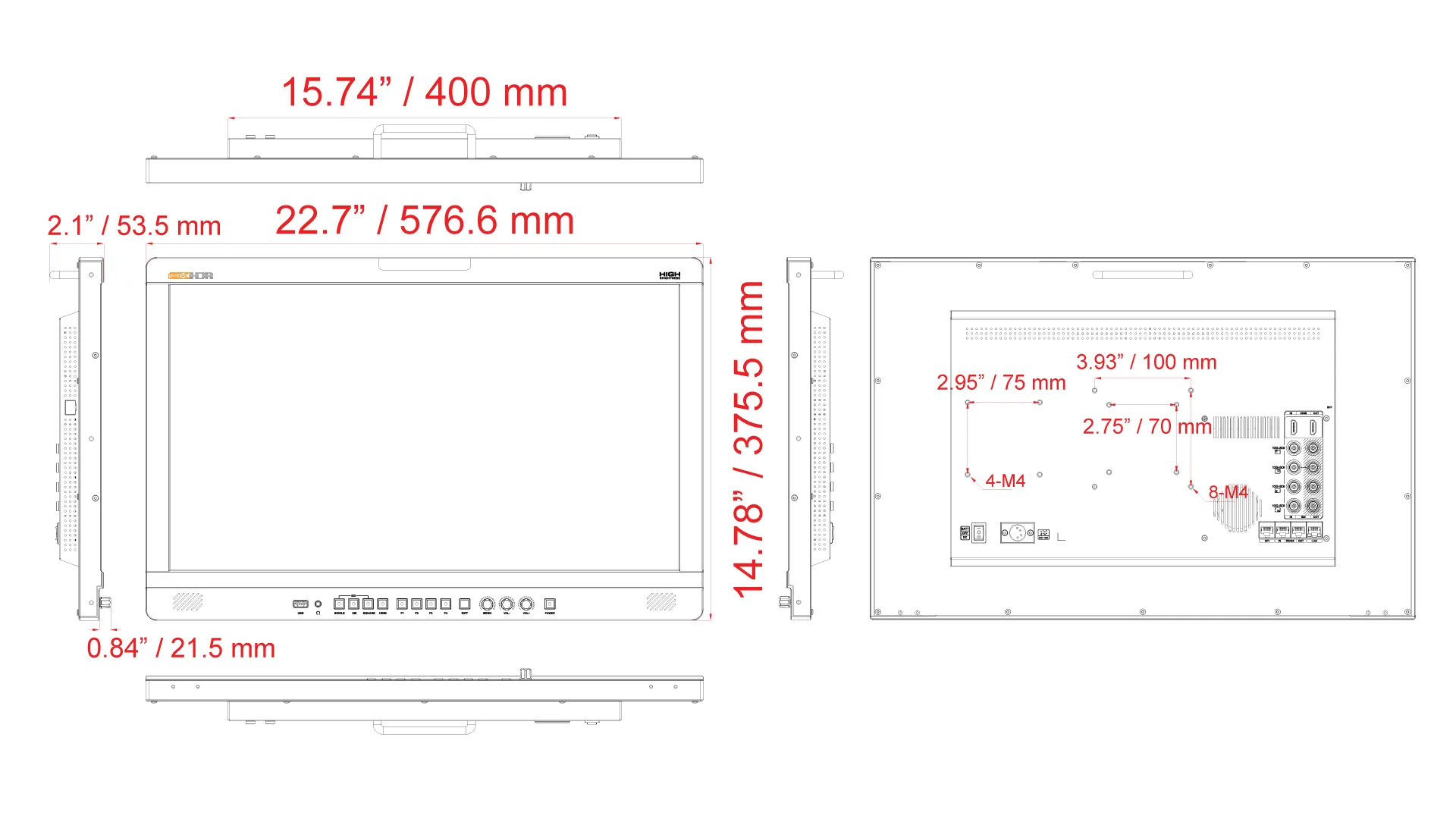

Product Dimension & Weight
